TE300SG

Name: TE300SG
SKU: TE300SG
Price: 199.99 USD
Availability: InStock

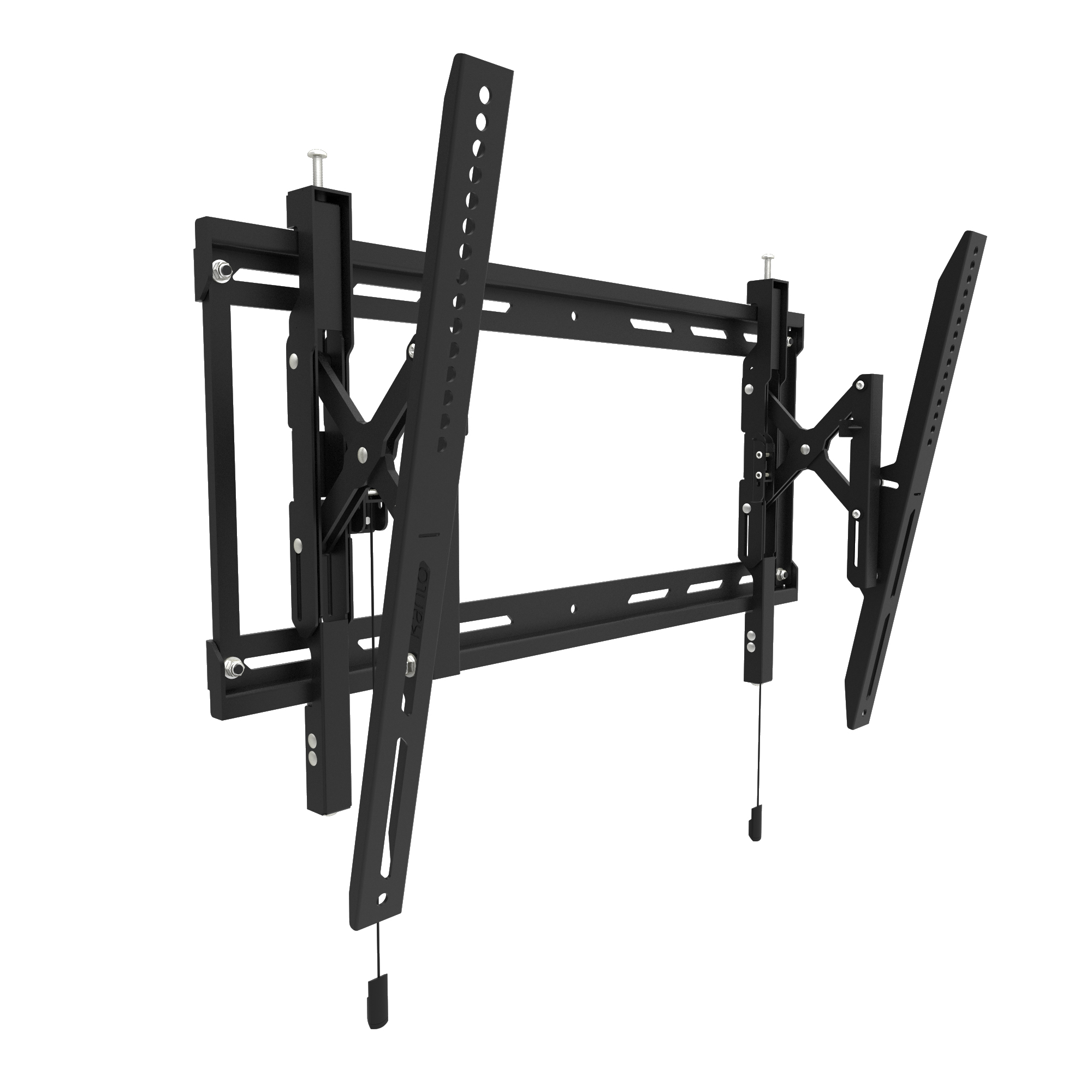

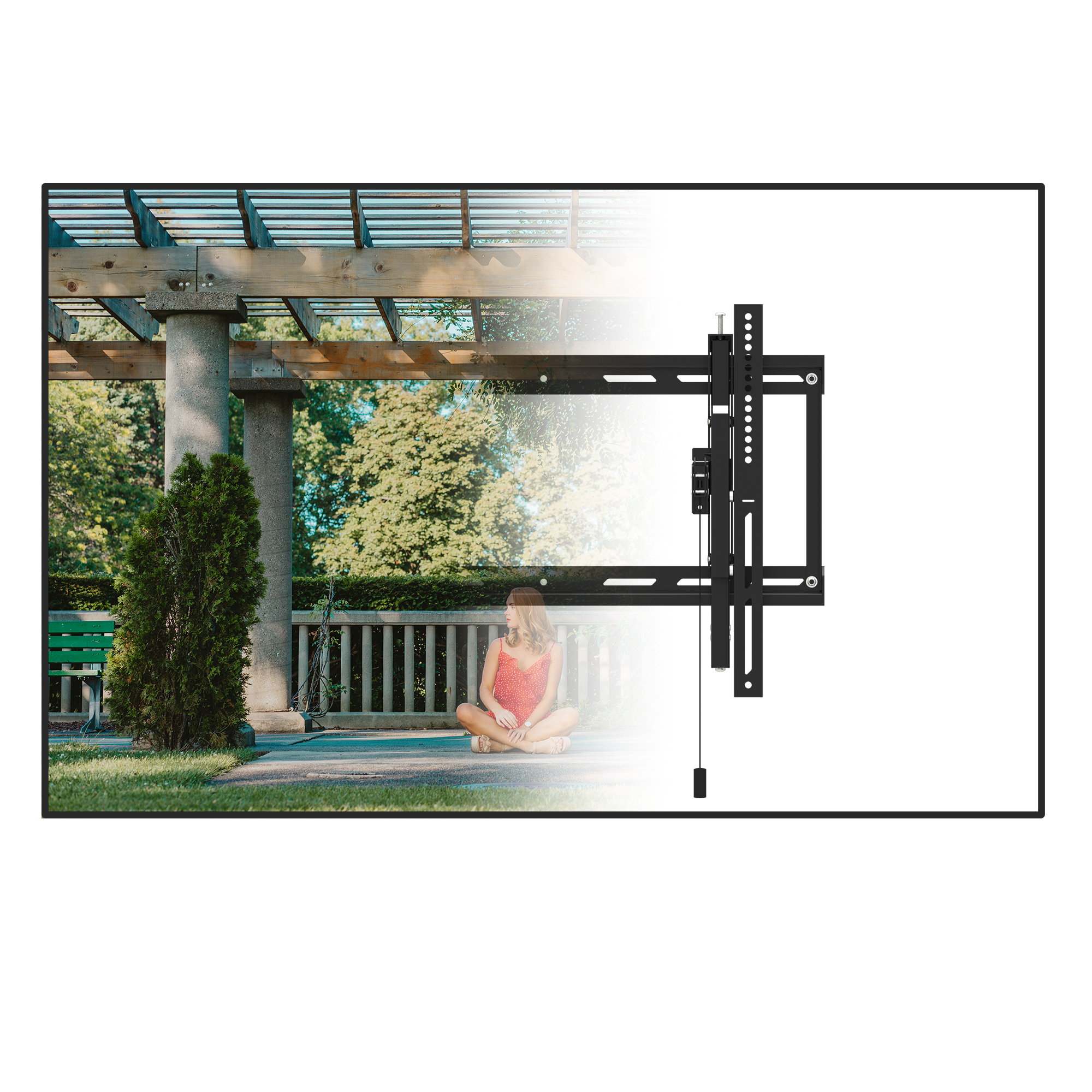

Outdoor Extend & Tilt TV Wall Mount

The TE300SG outdoor extendable tilting TV mount keeps your TV safe during stormy weather and gives you features you can’t get from a standard tilt mount. A latching system lets you to lock your TV into place when wind kicks up to prevent accidental damage. A simple pull on the release cord allows you to extend your TV up to 6” providing access to the rear of your TV for easy cable management at any time. Included stainless steel Security Torx TV screws provide security and peace of mind while the galvanized coating protects against rust. Capable of supporting up to 150 lbs, nearly any TV between 45” to 100” can mount safely and securely to TE300SG.

100 x 100 - 600 x 450

150 lb

45" - 100″

Outdoor

Tilting

BUY NOW Categories: Outdoor Mounts, Tilting Wall Mounts, TV Mounts Tags: extend & tilt, outdoor mount, outdoor tv wall mount, te300sg, tilt & extend, tilt mount

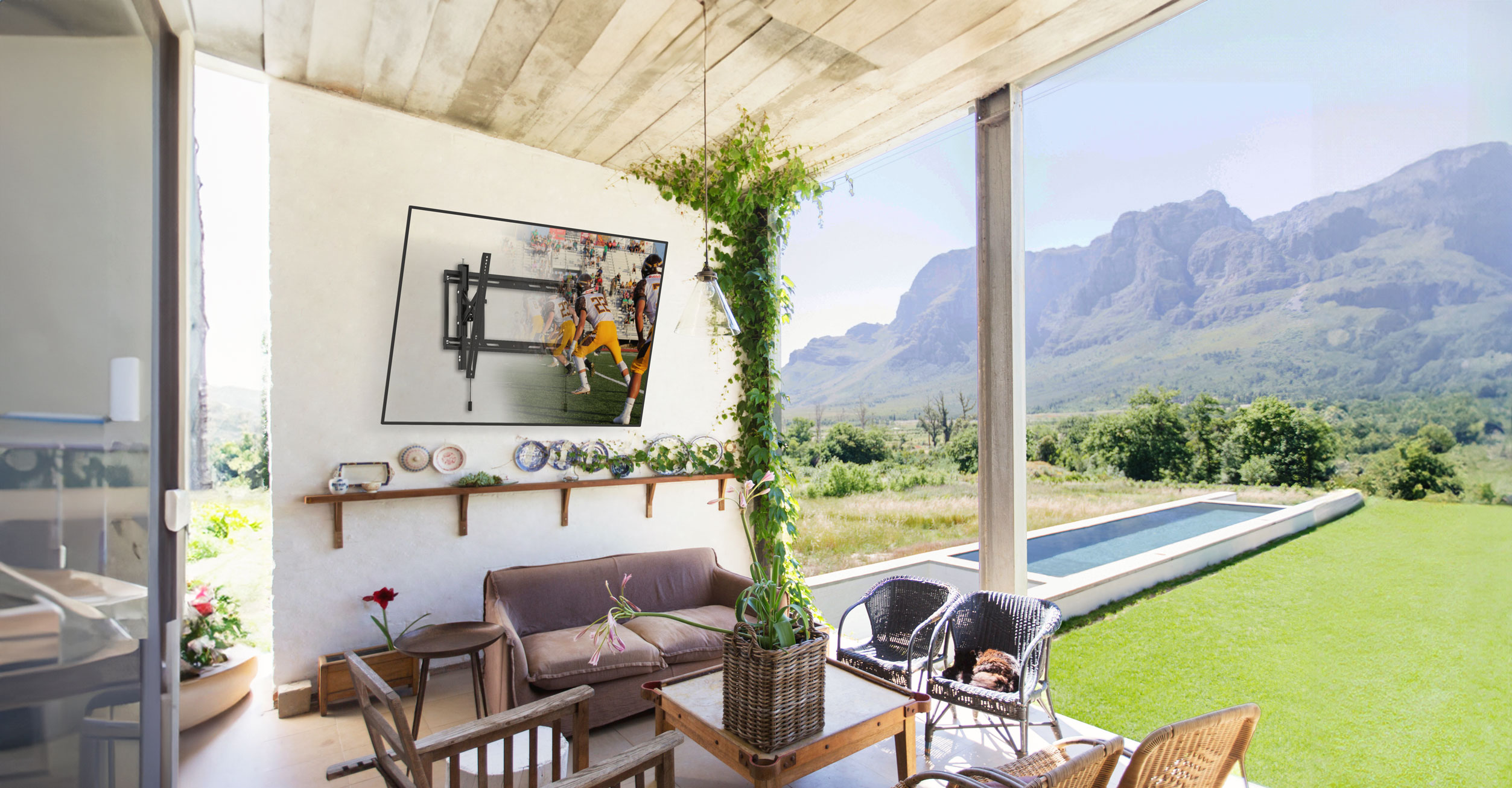

Built to brave the outdoors

Features at a glance

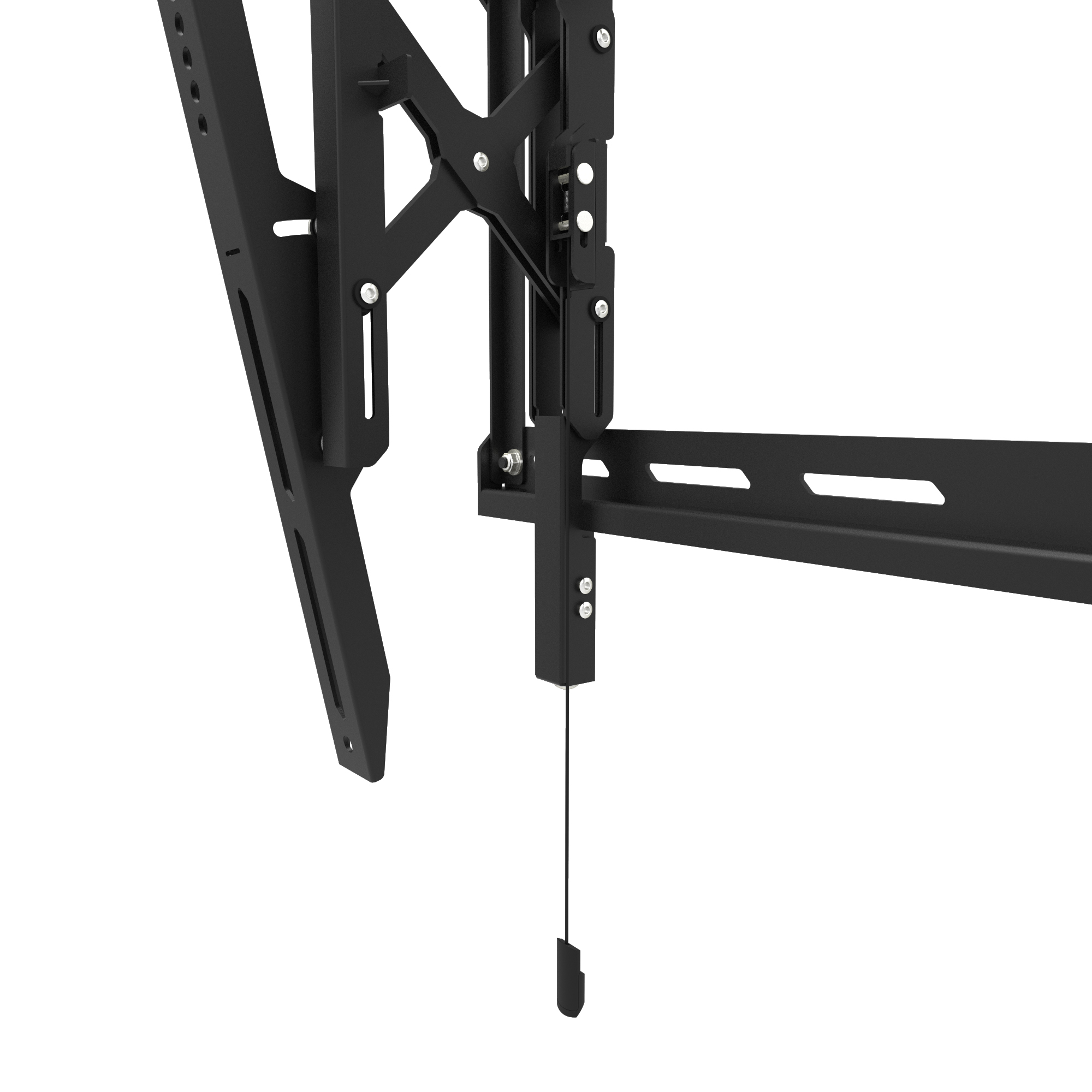

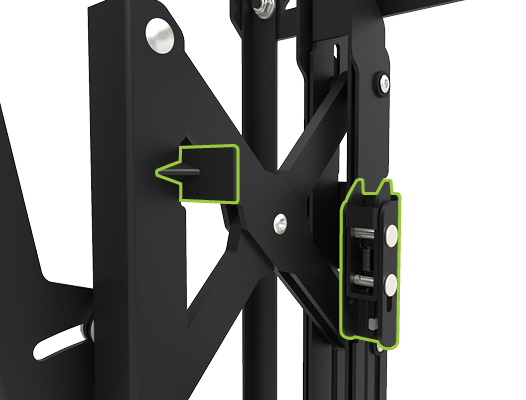

A latch locks your TV in the home position keeping it safe during windy weather. A simple pull of the release cable unlocks the TV allowing for adjustments.

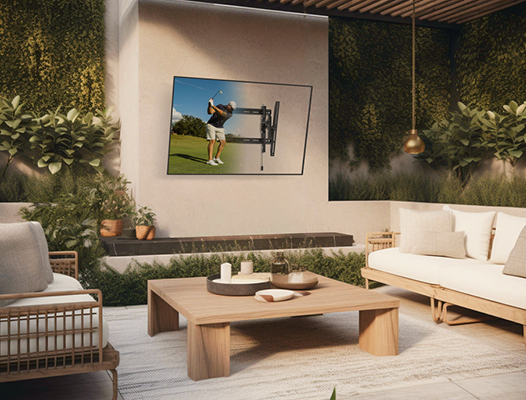

TE300SG is fully galvanized and coated with UV-resistant paint to stand strong against rain, snow, and sun for years of outdoor entertainment.

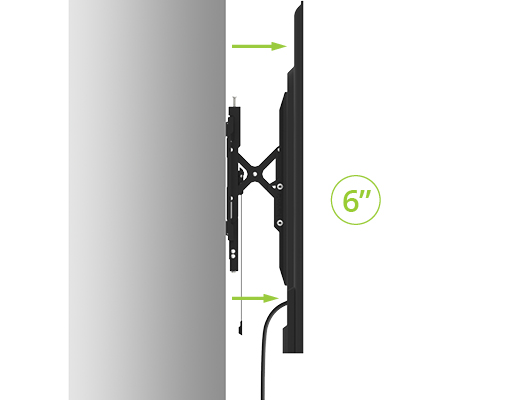

Accessing the cables and inputs at the rear of your TV is a breeze with the 6 inches of extension, a function that standard tilt mounts lack.

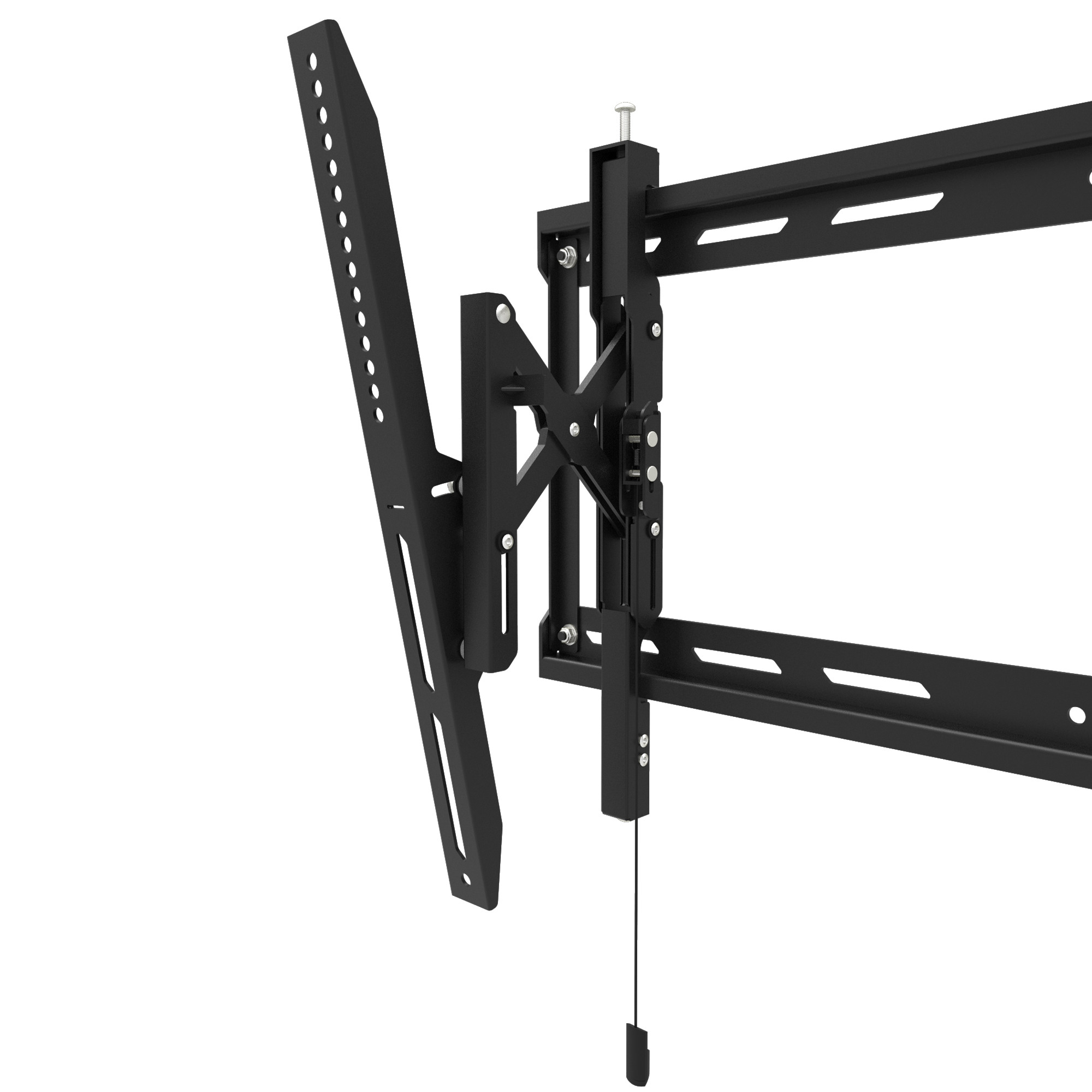

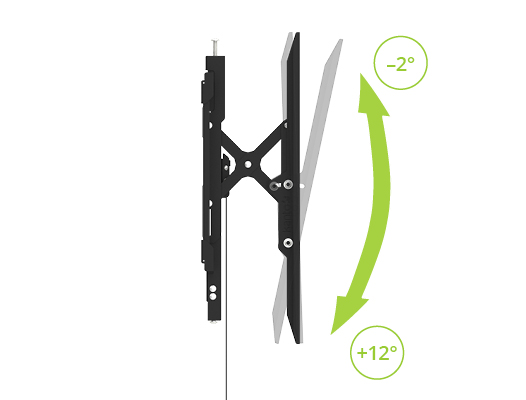

Improve visibility with your screen and reduce glare by adjusting the angle of your TV. Tilt up to 12° forward or 2° backward to find the perfect viewing angle.

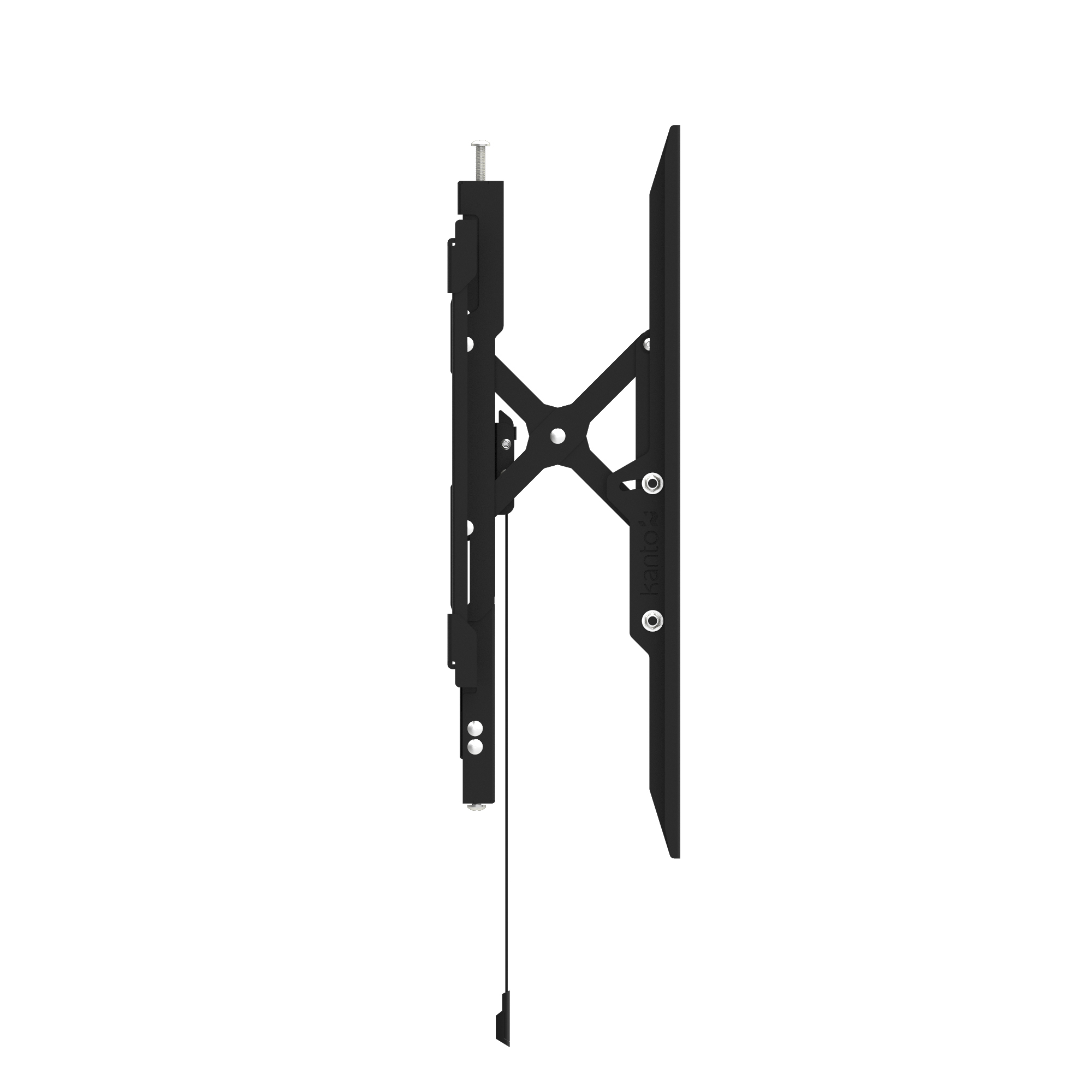

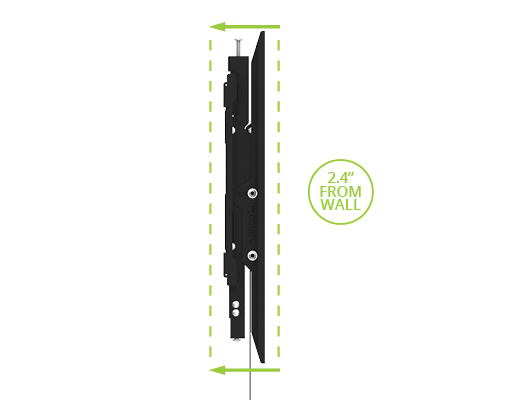

The TE300SG outdoor tilt and extend TV wall mount positions your screen 2.4″ away from the wall when fully retracted.

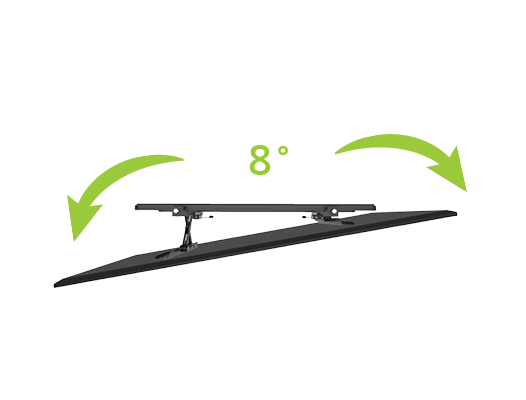

Enhance your viewing comfort with the TE300SG TV mount’s ability to pan your TV up to 8 degrees left or right, ensuring a perfect angle for your enjoyment.

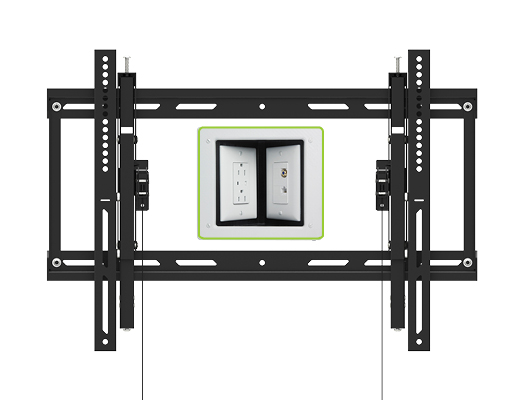

With a roomy open wall plate, you have the convenience of mounting electrical outlets or media boxes while keeping your cables organized and tidy.

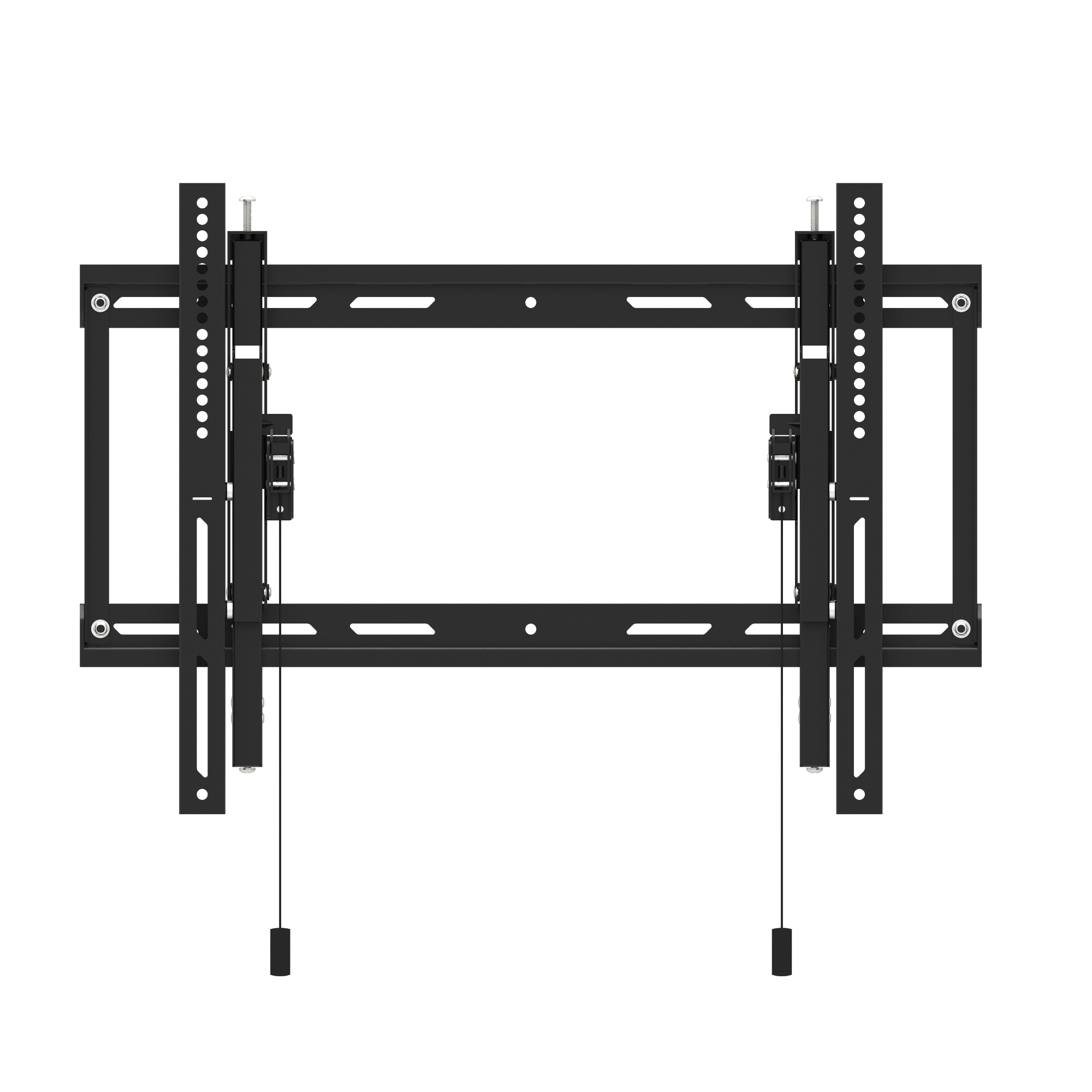

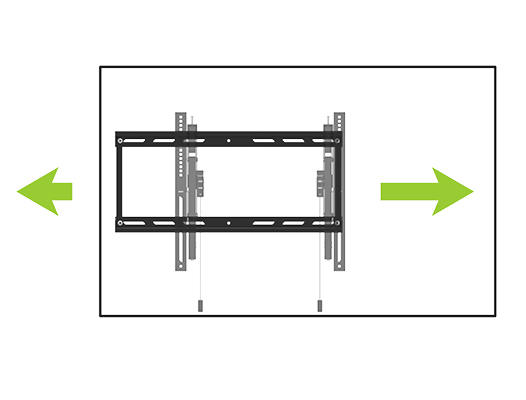

Adjust your screen vertically using the oversized TV brackets, and make horizontal adjustments with the wide wall plate to ensure your TV is perfectly placed.

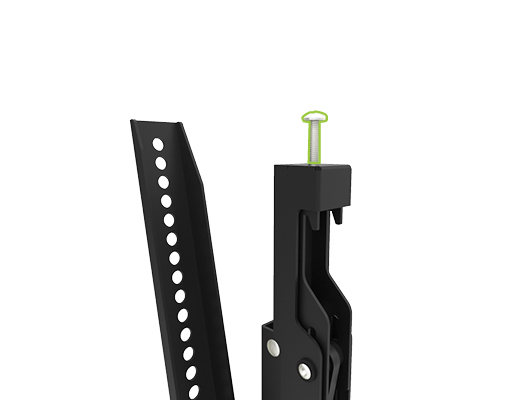

Achieve the perfect level for your screen by adjusting the individual screws situated on the top of each mounting bracket. This simple step will ensure that you enjoy a perfectly level install.

Ultra-easy install

This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto TE300/TE300SG extend & tilt TV wall mount.

Visit our support hub for help.

Specs

It's in the details

Warranty

What’s Included

TE300SG Outdoor Tilt & Extend TV Wall Mount

Installation Manual

Drill Template

All mounting hardware for wood stud and concrete installation

Profile: Sits 2.4″ (6.1 cm) from the wall

Extension: Up to 6″ (15.2 cm) from the wall

Material: Fully galvanized steel with durable UV-resistant powder-coated finish

Adjustable horizontal leveling

100×100 to 600×450

Specifications

TV Sizes: 45” to 100”
Weight Allowance: 150 lb (68 kg)
VESA Sizes: 100×100 to 600×450
Wall Plate: 27” (68.6 cm) dual stud wall plate accommodates up to 24″ stud spacing

Measurements

Shipping box weight: 14.7 lb (6.7 kg)
Shipping box dimensions: 30.4″ x 8.1″ x 3.9″ (77.3 x 21.7 x 9.8 cm)
Product weight: 12.3 lb (5.6 kg)
UPC: 800152721705

Documentation

TE300SG Multilingual Manual (English | French | Spanish)

TE300SG Product Sheet (English)

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
