With 24″ of extension, the PDX680 gives you unparalleled viewing options.

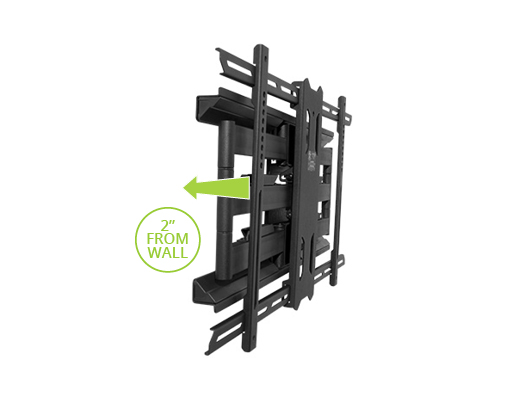

LOW PROFILE DESIGN
The unique design of the PDX680 allows your TV to sit 2 inch’s from the wall when fully pushed in.

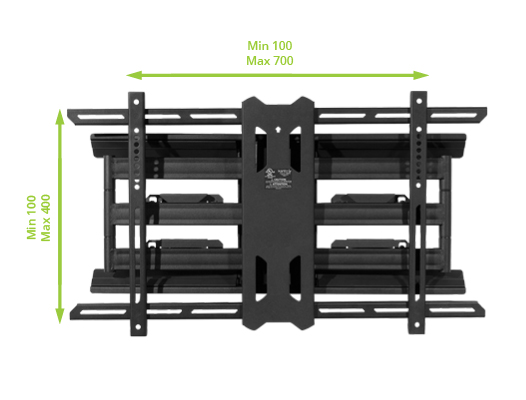

FITS VESA SIZES TO 700 x 400
The H Frame mounting bracket accommodates VESA sizes from 200×100 to 700×400. The mounting arms come with plenty of options to raise or lower the TV depending on the VESA pattern on the TV.

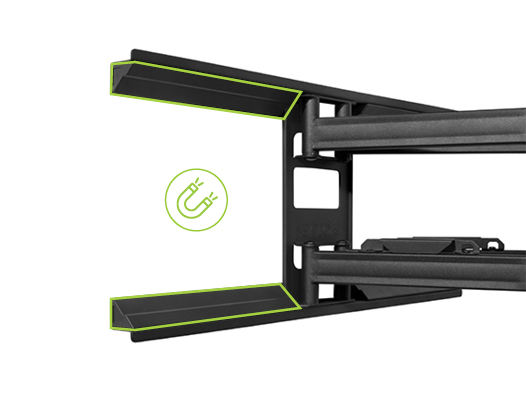

MAGNETIC LAG BOLT COVERS
Magnetic covers go over the lag bolts to give the wall plate an elegant look. Remove the covers when you install or remove the wall plate from the wall.

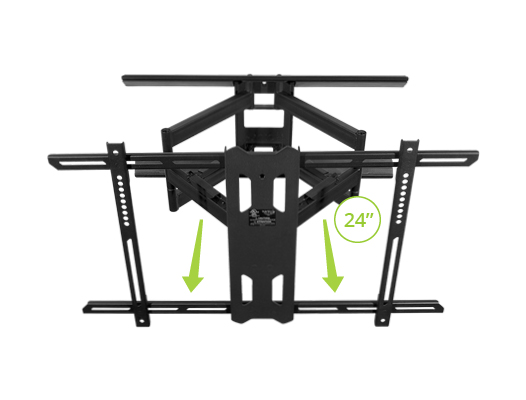

EXTENDS 24 INCHES
Even with its low-profile design the PDX680 can extend 24” from the wall, giving you plenty of room for tilting and swiveling your TV, or for reaching out from alcoves.
SUPPORTS 125 POUNDS
Designed with strength in mind, the PDX680’s solid steel frame can hold up to 125 lb (57 kg) with no concern, even at full extension.

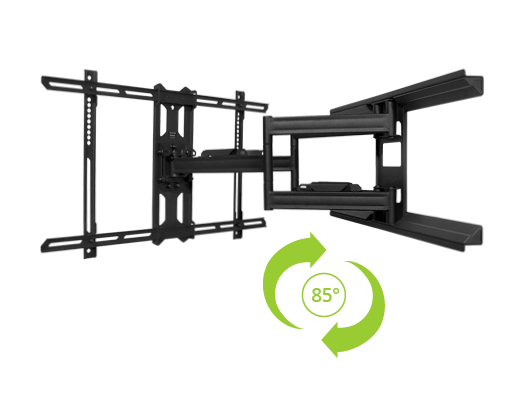

SWIVELS UP TO 170 DEGREES
The articulating arms on the PDX680 allow for a maximum of 170 degrees (with a 39″ TV). The larger the TV, the less swivel the PDX680 will have

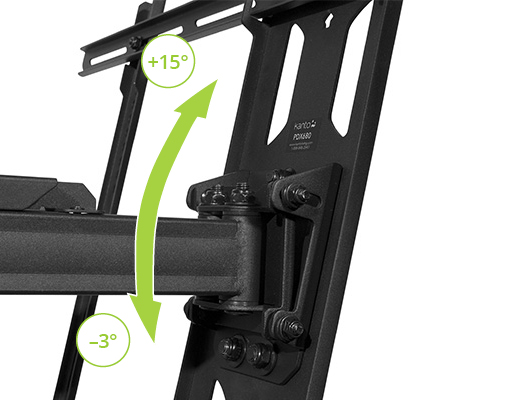

The accessible tilt mechanism makes it easy to angle your TV 15° forward or 3° backward. Once you’ve found the best viewing angle, tighten the nuts to secure your TV in place.

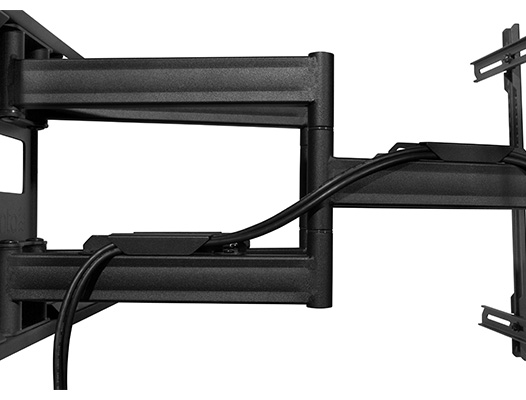

SLEEK CABLE MANAGEMENT
Four cable management raceways are attached to the bottom of the wishbone arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides – whatever works best.

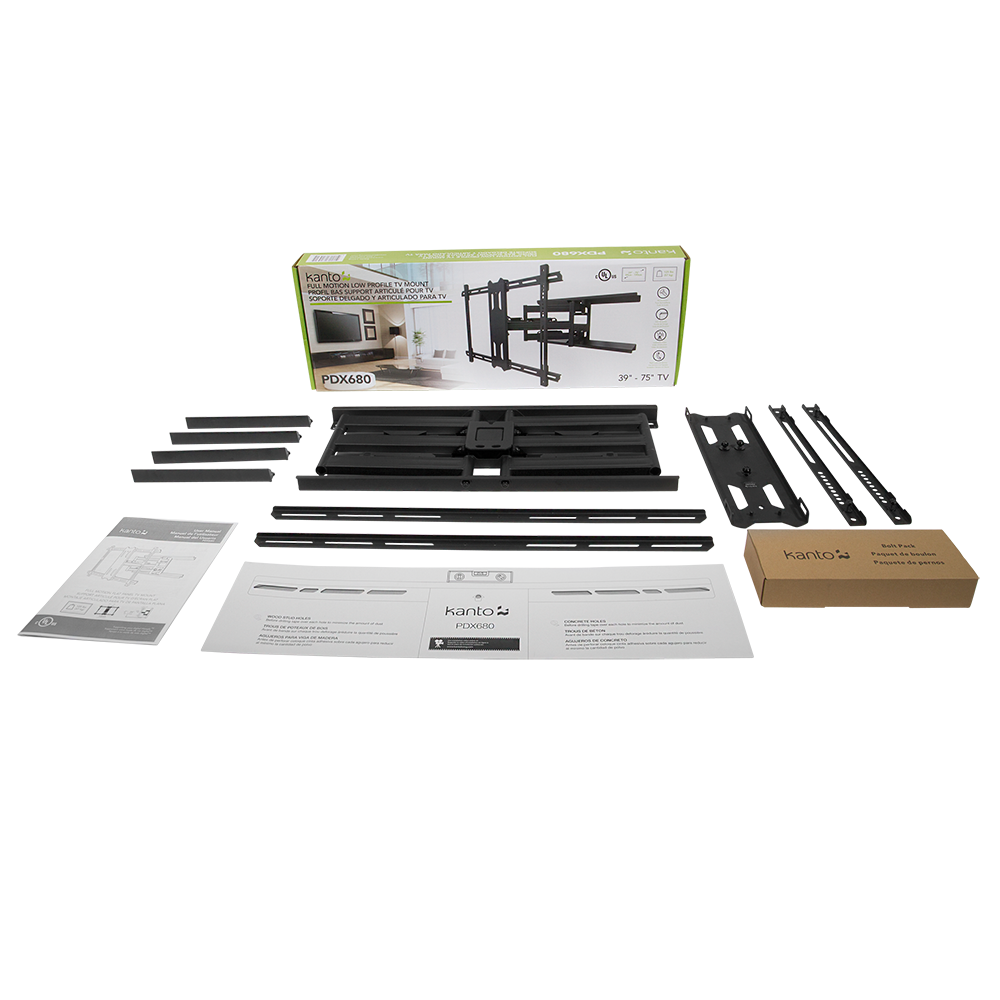

EVERYTHING YOU NEED
We supply you with everything except a toolbox to ensure that your installation goes smoothly. Instruction manuals are provided in English, French, and Spanish, as well as the parts you need to mount your TV safely and securely. Easy-to-follow online videos and phone support are available to assist you along the way.
CONVENIENT BOLT PACK
The PDX680 includes a labeled bolt pack with a variety of bolt diameters and lengths, as well as several spacers to allow a custom fit. Lag bolts and concrete anchors are provided so you can mount to wood studs and concrete walls.
Rotate the 360 degree image below.
TV Sizes: 39” to 80”
Weight Allowance: 125 lb (57 kg)
VESA Sizes: 200×100 to 700×400
Wall Plate: 27″ (68.5 cm); Accommodates dual studs with up to 24″ spacing
Tilt: +15° to -3°
Swivel: 170° at full extension (with 39″ TV)
Extension: 24″ (61 cm) from the wall
Profile: Sits 2″ (5 cm) from the wall
Integrated cable management
Adjustable horizontal leveling
Magnetic plastic covers to hide lag bolts
Paper wall template for marking pilot holes
All mounting hardware for wood stud and concrete installation
Warranty: 5 years
Weights and Measurements
Shipping box weight: 27.5 lb (12.5 kg)
Shipping box dimensions: 33.9” x 13” x 3.9”
(86 x 33 x 10 cm)
Product weight: 23 lb (10.5 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
