A great fit for both home and commercial installations, the FMC4 offers incredible versatility for your wall-mounting needs.
FITS VESA SIZES TO 600×400
The FMC4 accommodates a range of VESA sizes from 100×100 all the way to 600×400.
SUPPORTS 100 POUNDS
Confidently mount a TV weighing up to 100 pounds. Even at full extension, your TV stays in place with no sag.
EXTENDS UP TO 26 INCHES
At maximum extension, your TV will sit 26″ from the wall.
ADJUSTABLE PIVOT POINT
The FMC4 features a sliding pivot point that can be moved 20” to the left or right. With this function, you can move the entire arm and TV plate laterally across the wall plate for a wide range of viewing options.
SWIVELS 135 DEGREES IN EITHER DIRECTION
Depending on the size of your TV and the amount of extension, the FMC4 can swivel 135° in either direction, depending on screen size. With this range of motion, your TV can be seen from almost every part of the room, or from a different room altogether!
15 DEGREES OF TILT
The ability to tilt 5° backward is useful for lower installations. For higher mount installations, tilting 10° forward allows you to find the perfect viewing position. To keep the angle of your TV constant, use the included Allen key to tighten the tilt tension on the two hex bolts located on the tilt head.

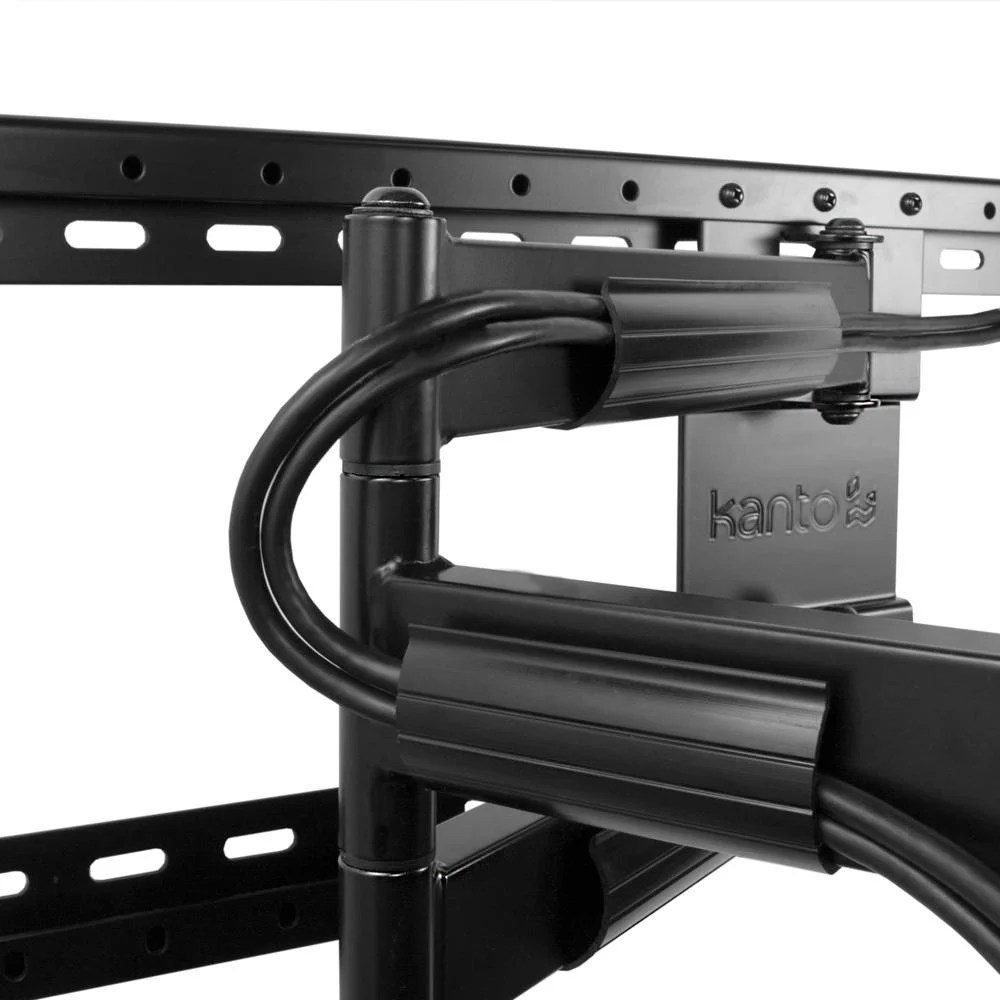

SLEEK CABLE MANAGEMENT
An integrated cable management system allows you to route your power and video cables neatly between the TV and the wall. Keep your cables tidy and out of sight for a clean, organized look.
Sometimes heavier TVs will twist slightly, especially if you shift your TV off-center on the TV plate. With a simple adjustment, level your TV horizontally for a perfect alignment.
TV Sizes: 30” to 60”
Weight Allowance: 100 lb (45 kg)
VESA Sizes: 100×100 to 600×400
Wall Plate: 26.8″ (68 cm); Accommodates dual studs with up to 24″ spacing
Tilt: +10° to -5°
Swivel: 135° in either direction, depending on screen size
Extension: 26” (66 cm) from the wall
Profile: 3.1” (8 cm) from the wall
Integrated cable management
Adjustable horizontal leveling
Sliding pivot point moves 20” left or right for flexible installation
Paper wall template for marking pilot holes
All mounting hardware for wood stud and concrete installation
Warranty: 5 years
Weights and Measurements
Shipping box weight: 25.4 lb (11.5 kg)
Shipping box dimensions: 28.5” x 12.8” x 3.9” (72.5 x 32.5 x 10 cm)
Product weight: 21.6 lb (9.8 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
