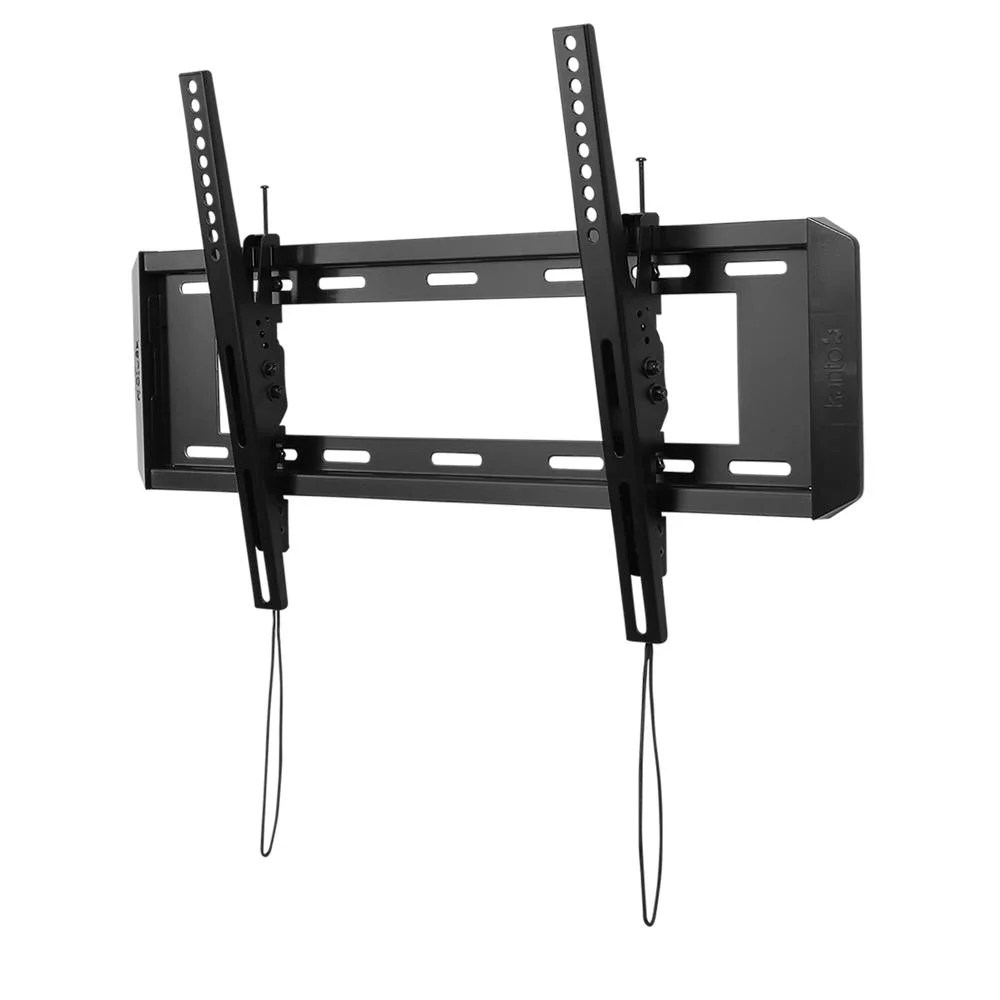

The T3760 is a tilting mount designed for flat panel TVs from 37” to 60” – it provides the structure and stability to get it up on the wall – hassle-free.
FITS VESA SIZES TO 600×400
The T3760 is compatible with a range of VESA patterns from 100×100 up to 600×400.
SUPPORTS UP TO 150 POUNDS
The T3760 supports a maximum of up to 150 pounds.
STRONG WALL PLATE
The T3760 is designed with two rows of mounting slots for extra strength and uses four lag bolts to support heavier TVs up to 150 pounds. It provides some offset abilities depending on your TV size, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 27” wall plate mounts on 16” and 24” stud spacing.
15 DEGREES OF TILT
With the T3760, your TV can be tilted up to 10° forward and 5° backward. You can easily make small but important changes to the tilt of your TV, eliminate glare and enjoy the perfect angle with this convenient feature. The tilt system comes pre-tensioned from the factory, but can be tightened if necessary.
TILT LOCK SCREWS
Using the included tilt lock screws, you can lock your TV at fixed intervals of +5°, 0°, and -5°. This added feature makes it easy to guarantee the selected position.
ATTRACTIVE END CAPS
Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.
QUICK LOCK MECHANISM
The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.
TV Sizes: 37” to 60”
Weight Allowance: 150 lbs (68 kg)
VESA Sizes: 100×100 to 600×400
Wall Plate: 27″ (68.6 cm) dual stud accommodates up to 24″ stud spacing
Tilt: +10° to -5°
Profile: Sits 1.9″ (4.8 cm) from the wall
Includes: Installation Manual; All mounting hardware for wood stud and concrete installation
Material: Solid steel with durable powder coated finish
Warranty: 5 years
Weights and Measurements
Shipping box weight: 9 lbs (4.1 kg)
Shipping box dimensions: 28.9” x 9.1” x 2.7” (73.5 x 23 x 6.8 cm)
Product weight: 7.5 lbs (3.4 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
