FMC1
Telescoping Corner TV Mount
Mounting your TV in a corner can be a great way to deal with limited wall space or angled seating arrangements. While some full motion mounts achieve this by being installed on near-by studs, the Kanto FMC1’s unique 90° wall plate can be mounted squarely in a corner, ensuring a perfectly centered setup with far more flexibility. Suitable for wood stud and concrete walls, the Kanto FMC1 corner TV mount features a telescoping support arm that provides adequate space for TVs as large as 60 inches. It’s also capable of swiveling left and right, allowing your TV to be pushed up against adjacent walls, and tilting forwards and backwards to reduce glare and improve line-of-sight with your screen.
No Wall Space? No Problem.
Features at a glance
- Supports 88 Pounds
- Simple Corner Installation
- Telescoping Arm
- Swivels Left and Right
- 16° of Tilt

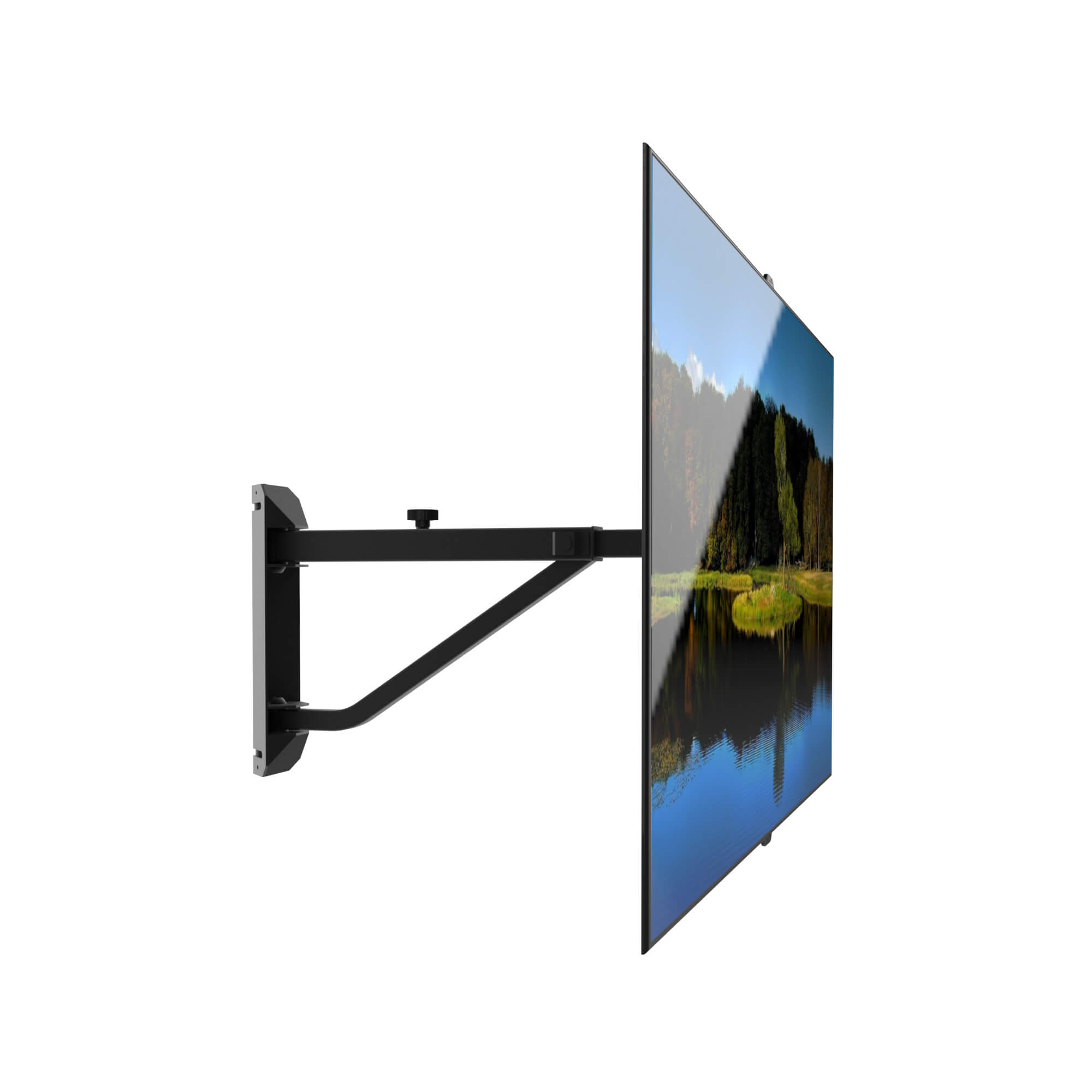

Constructed out of steel, the FMC1 safely supports 40” to 60” TVs weighing up to 88 pounds, and features adjustable mounting brackets to accommodate VESA sizes from 100×100 to 600×400.
Unlike other full motion mounts, the Kanto FMC1 corner TV mount’s unique 90° wall plate can be mounted squarely in the corner of any wood stud or concrete wall. Its contoured design ensures each lag bolt can be properly secured, regardless of how your studs are configured.

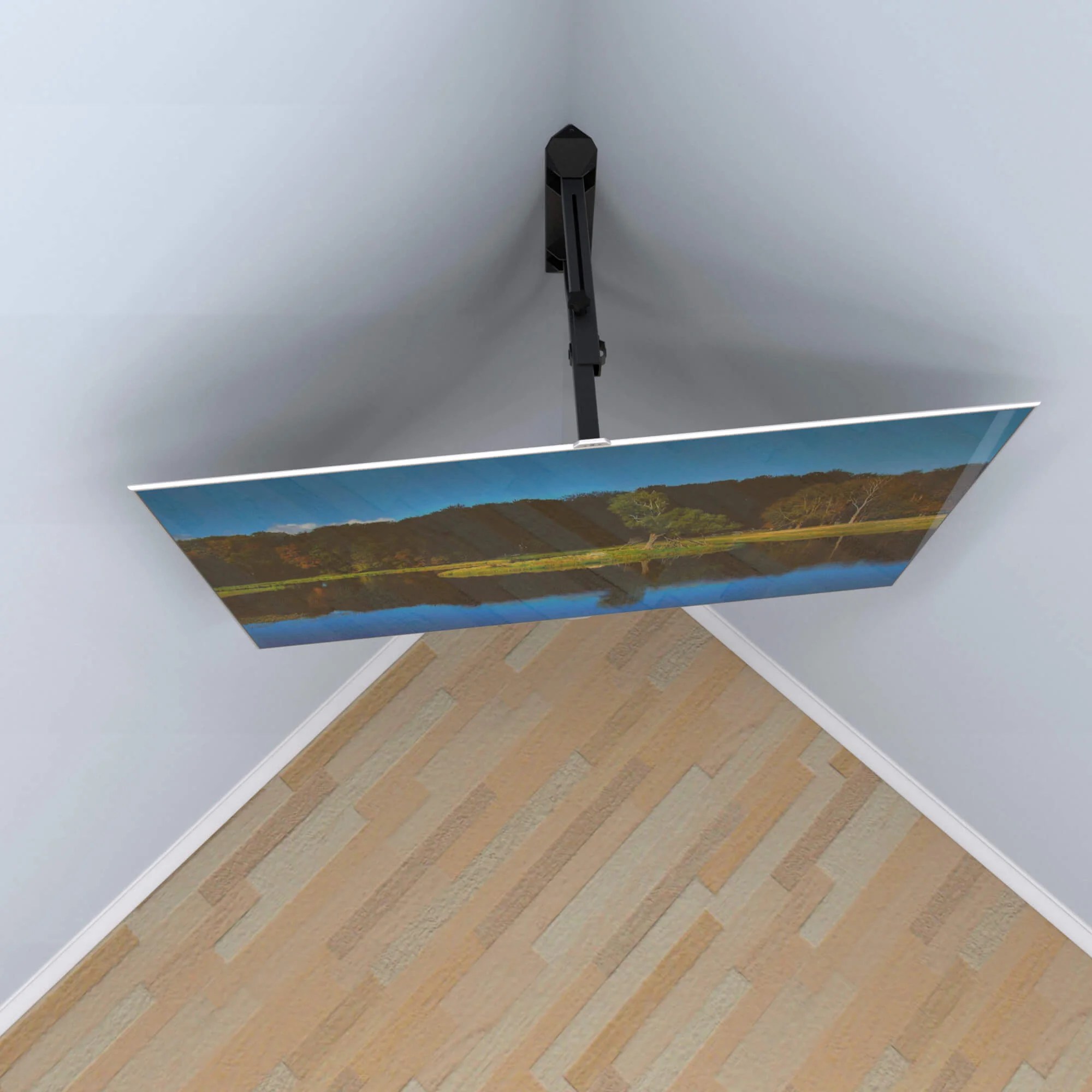

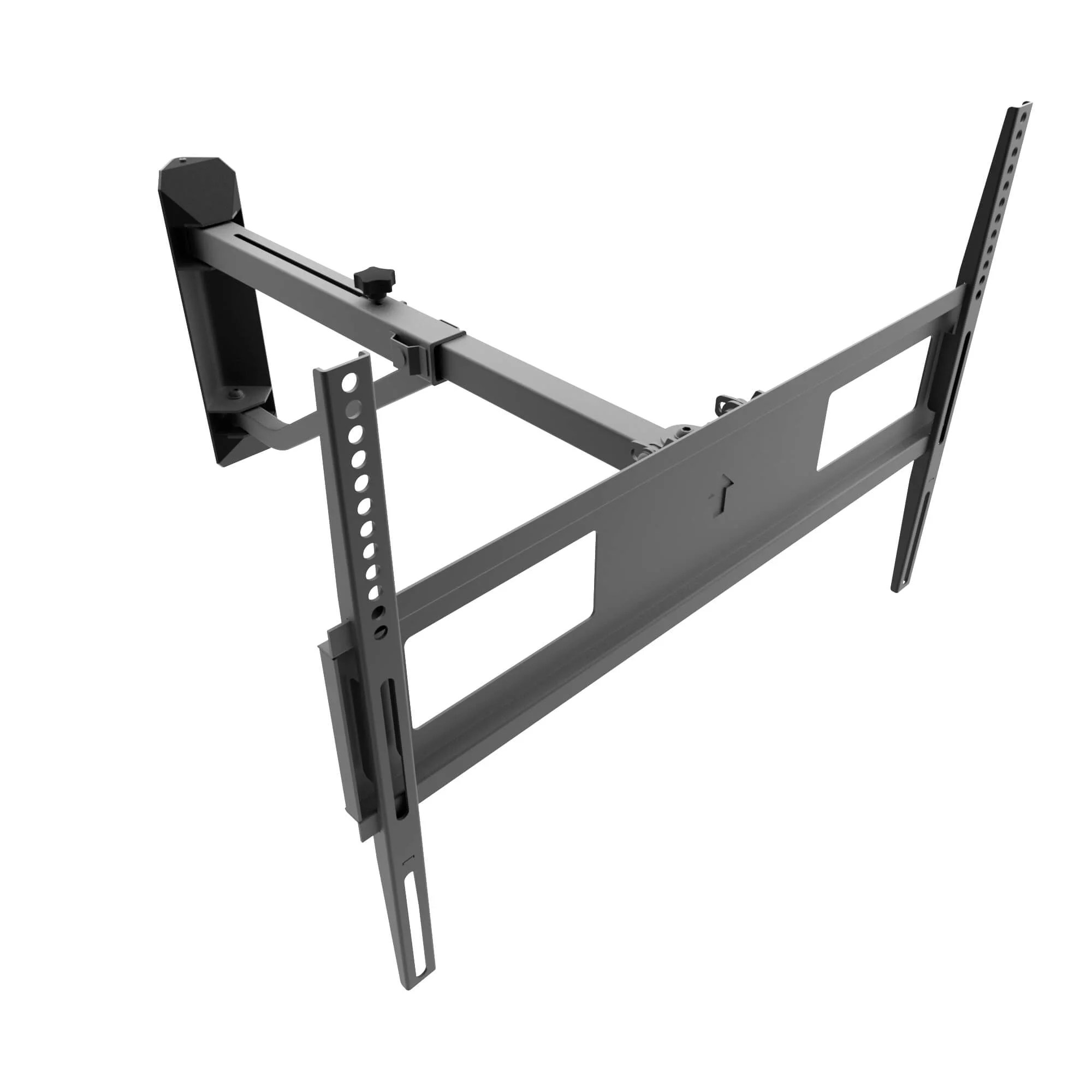

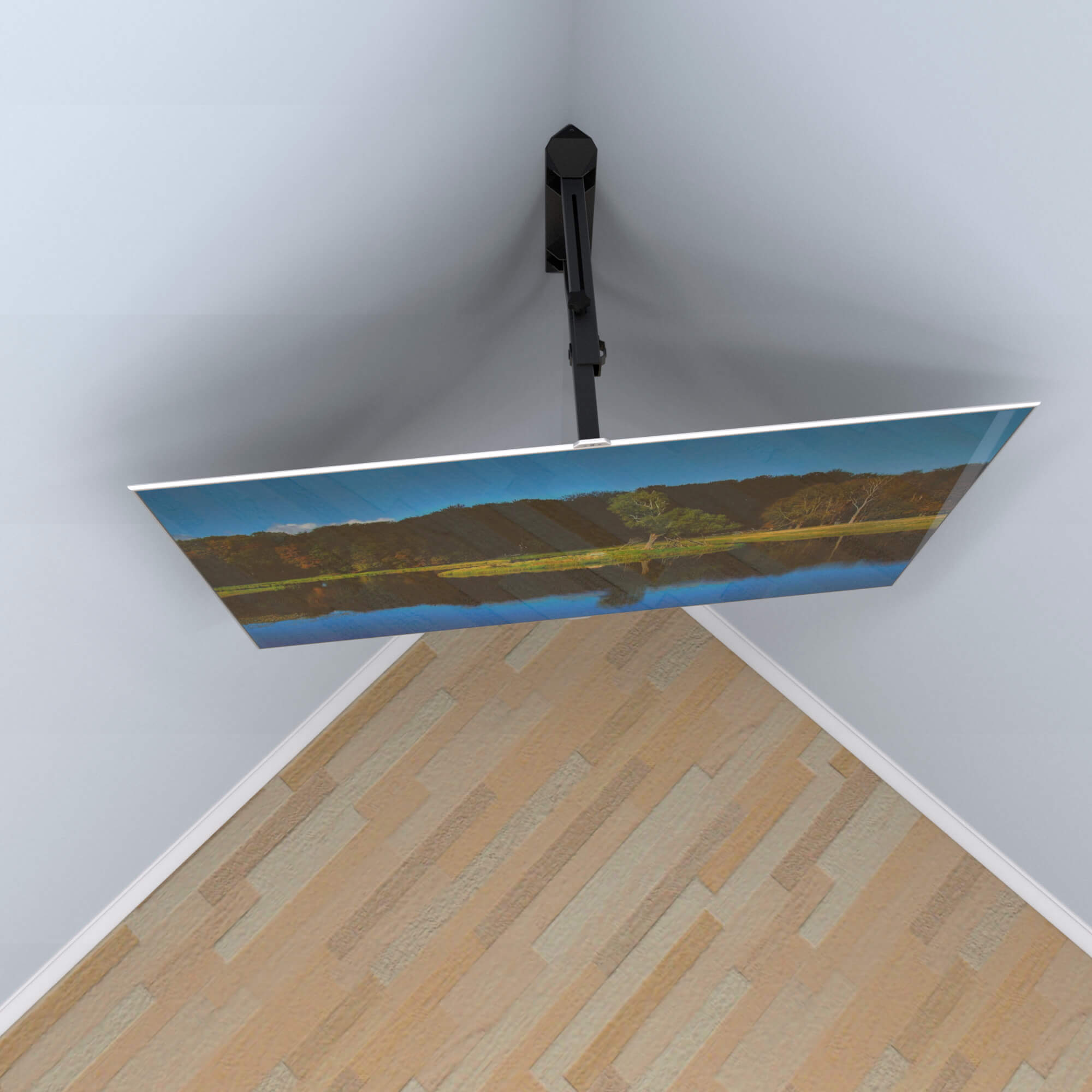

The telescopic TV wall mount’s support arm extends 20.4″ to 29.8″ from the corner, providing enough space for TVs as large as 60″.

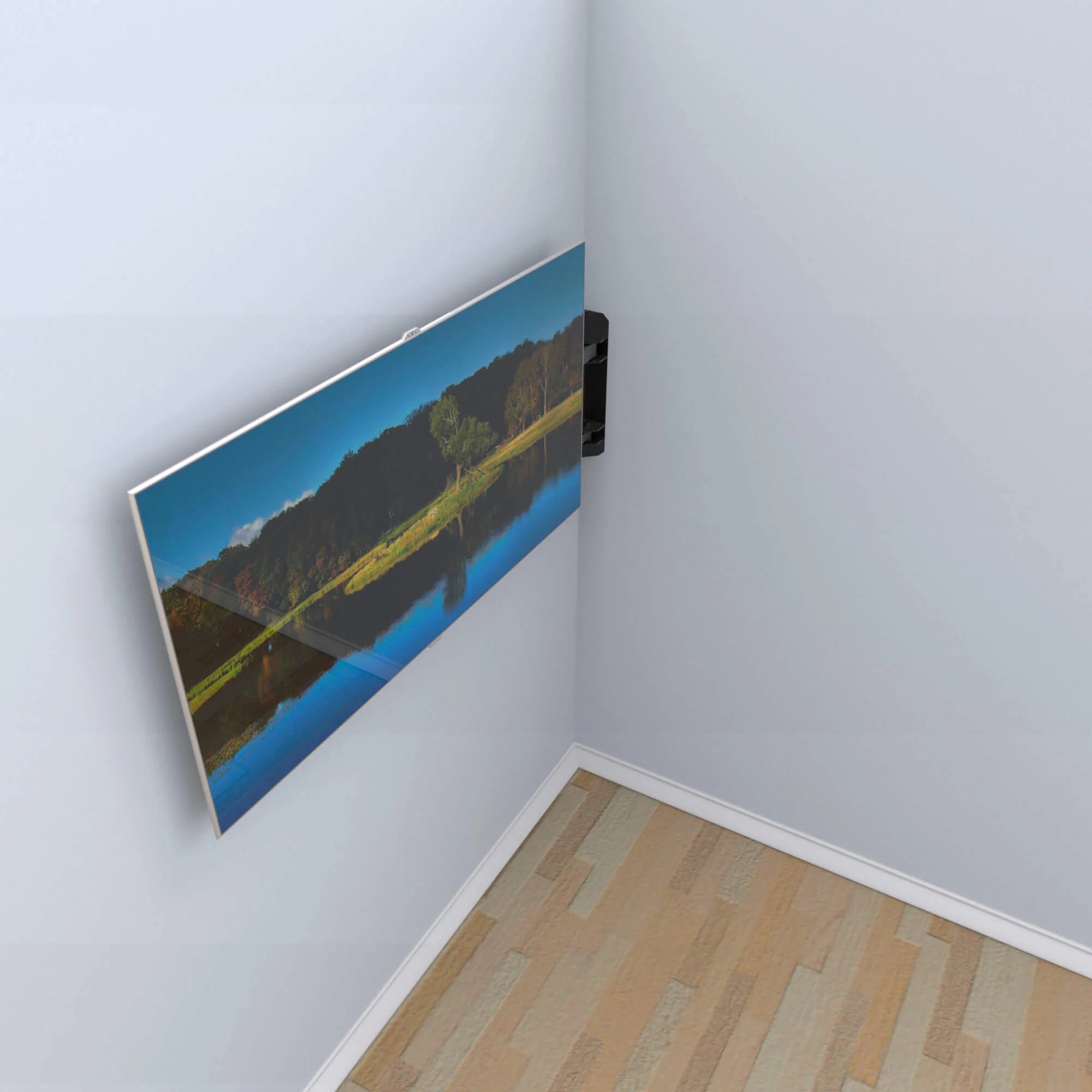

When sufficiently extended, this telescopic TV wall mount is capable of swiveling up to 90° left and right. This allows you to place your TV against the adjacent walls, or to make simple adjustments to your viewing angle.

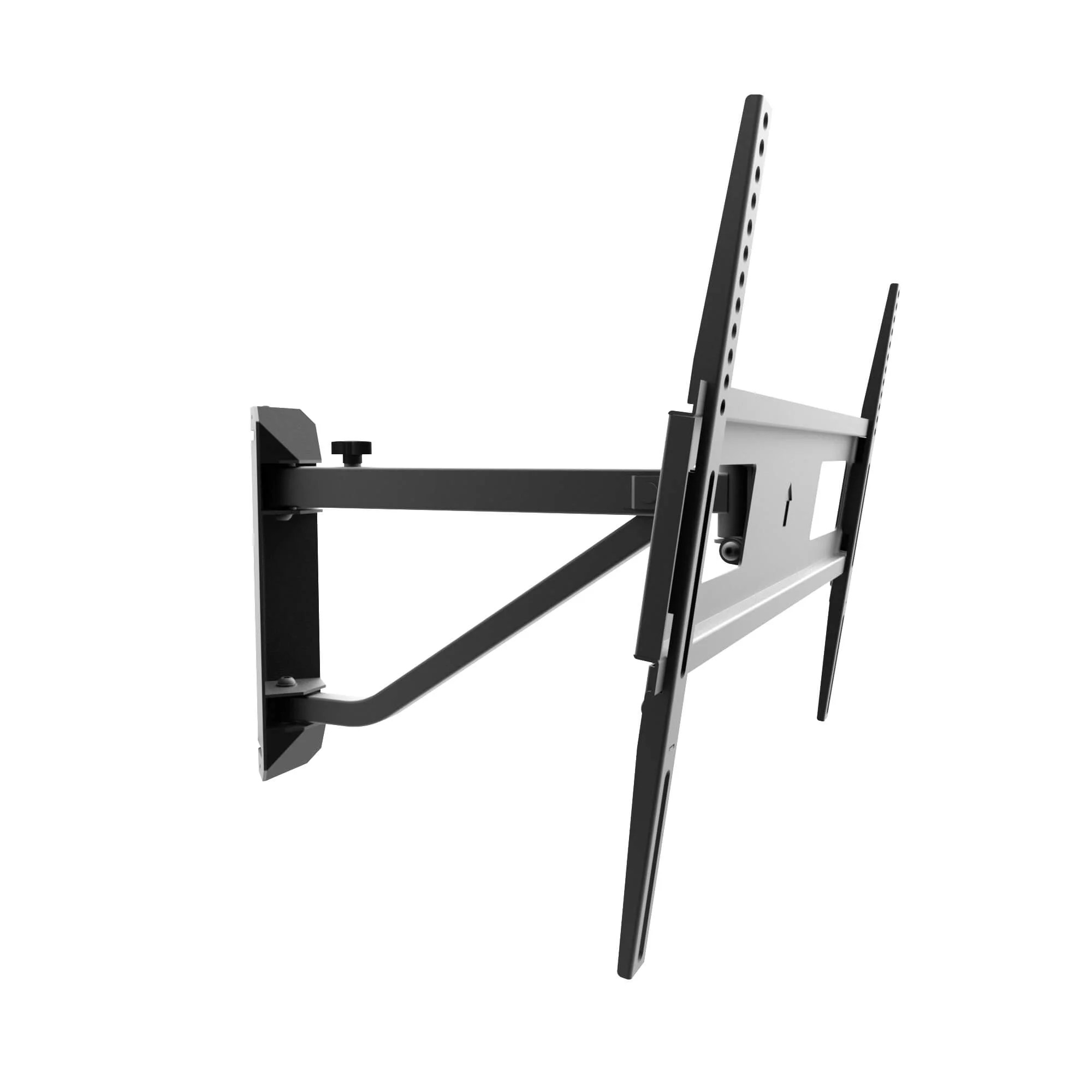

The telescopic TV wall mount tilts 10° forwards and 6° backwards to reduce glare and improve line-of-sight with your TV.
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto FMC1 Telescoping Corner TV mount.
Visit our support hub for help.
ADDITIONAL QUESTIONS?
Looking for an answer and want to help yourself? Visit our self-serve Knowledge Base for questions that other customers might have already asked. And if your question isn’t already answered, reach out and we will be happy to help.
Visit our Knowledge BaseSpecs
It's in the details
5
Year Warranty

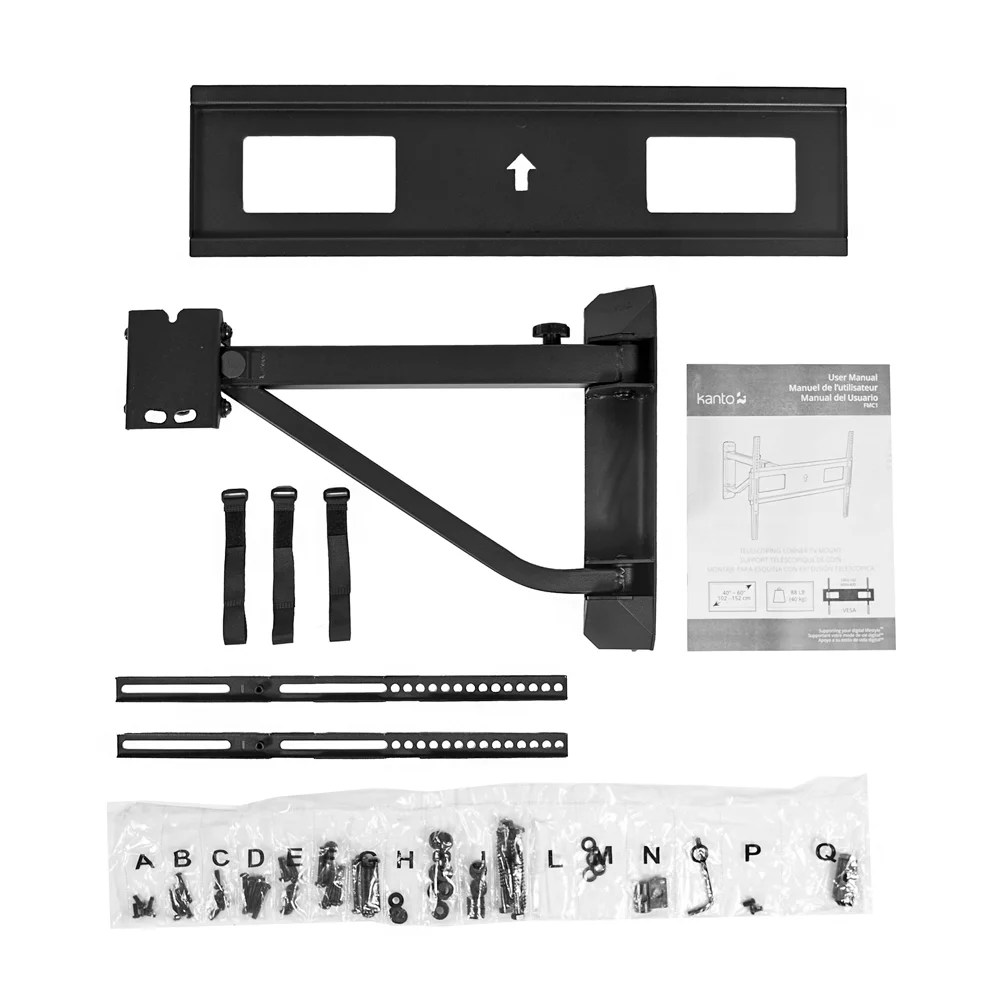

What’s Included:
Cable management straps
Assembly manual and all TV mounting hardware
+10°/-6°
Tilt
90°
Swivel
3.3″
from adjacent walls
Material
Solid steel with durable powder coated finish
100×100 to 600×400
Specifications
TV Size: 40″ to 60″
Weight Allowance: 88 lb (40 kg)
VESA Sizes: 100×100 to 600×400
Extension: 20.4″ (51.7 cm) to 29.8″ (75.7 cm) from the corner
Measurements
Shipping box weight: 18.7 lb (8.5 kg)
Shipping box dimensions: 27” x 15.2” x 4.7” (68.5 x 38.5 x 12 cm)
Product weight: 17.2 lb (7.8 kg)
UPC: 800152717500
