It will hold TVs weighing up to 88 pounds, and offers extension, tilt and swivel capabilities to provide you with a wide range of viewing positions, yet sit close to the wall when pushed back.
SUPPORTS UP TO 88 POUNDS
With its solid steel construction, the PS200 is designed to hold up to 88 pounds.
EXTENDS UP TO 13.8 INCHES
The PS200 extends 13.8” from the wall to give you a variety of viewing options.
The PS200 is made of solid steel, with a durable powder coated finish – giving you a sophisticated look and feel.
A RANGE OF VESA PATTERNS
The PS200 is designed for smaller TVs with specific VESA patterns, including 100×100 and 200×200.
VESA SIZES TO 400×400
For larger VESA mounting patterns such as 300×300 and 400×400, attach the four extension arms using the supplied Nylock nuts.
With 12° of forward tilt and 2° of backward tilt, the PS200 makes it easy to angle your TV just the way you want it.
SWIVELS UP TO 180 DEGREES
The extension arm allows you to swivel the TV left or right by 90° or more depending on TV size. When pushed back against the wall, note that the center of the TV plate is offset approximately 13” from the stud center (left or right).

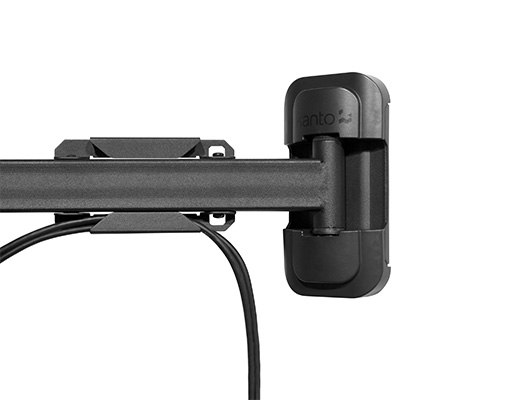

SLEEK CABLE MANAGEMENT
An integrated cable management system allows you to route your power and video cables neatly between the TV and the wall.

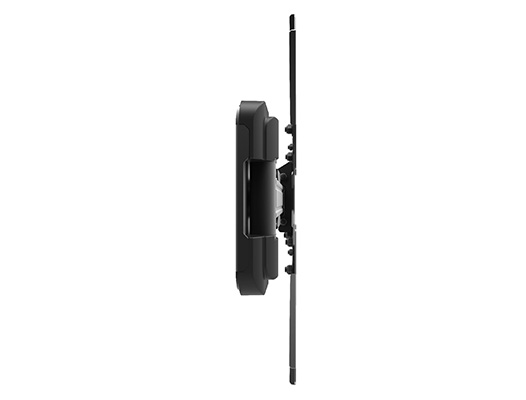

LOW PROFILE DESIGN
When pushed back into place, your TV sits less than 2” from the wall.

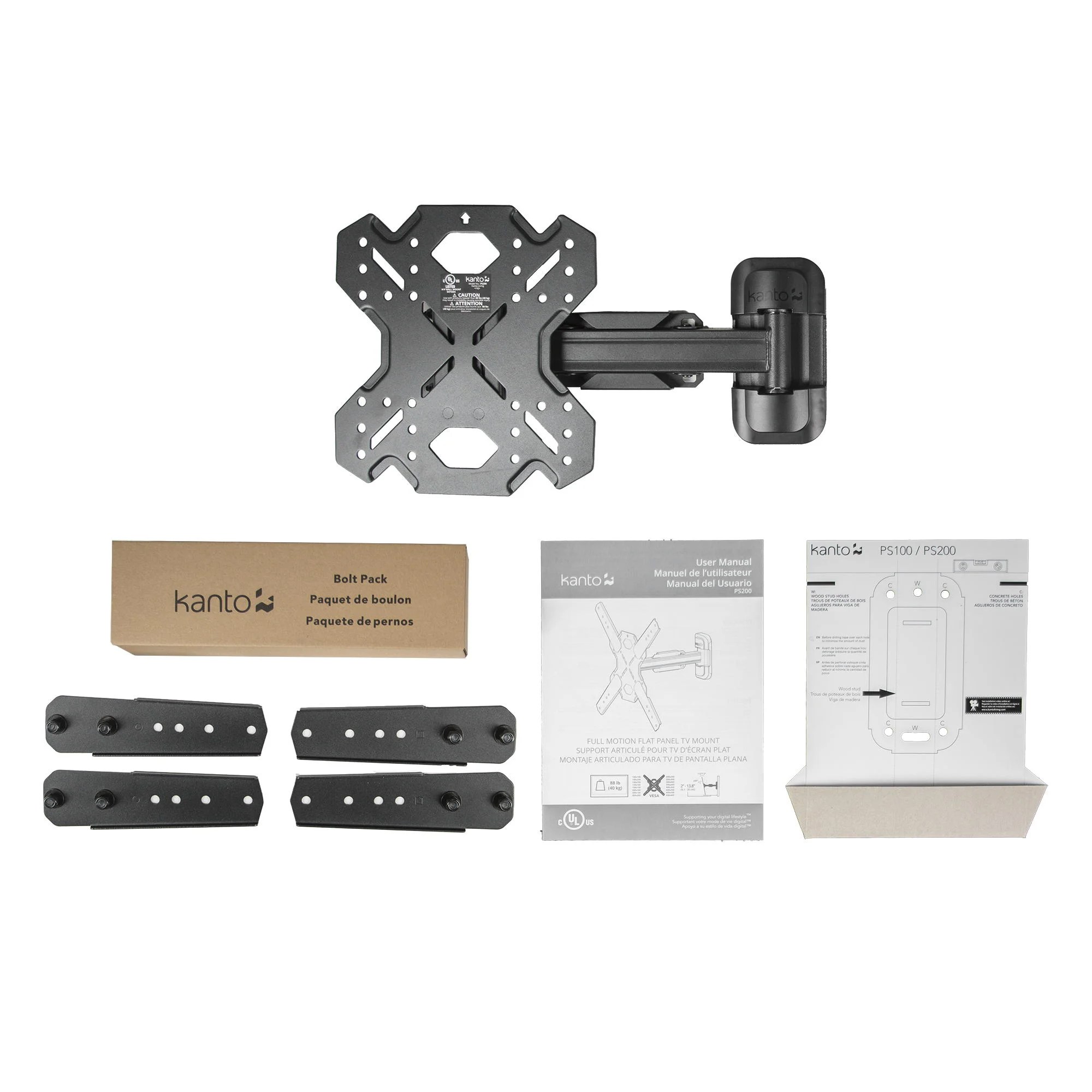

EVERYTHING YOU NEED

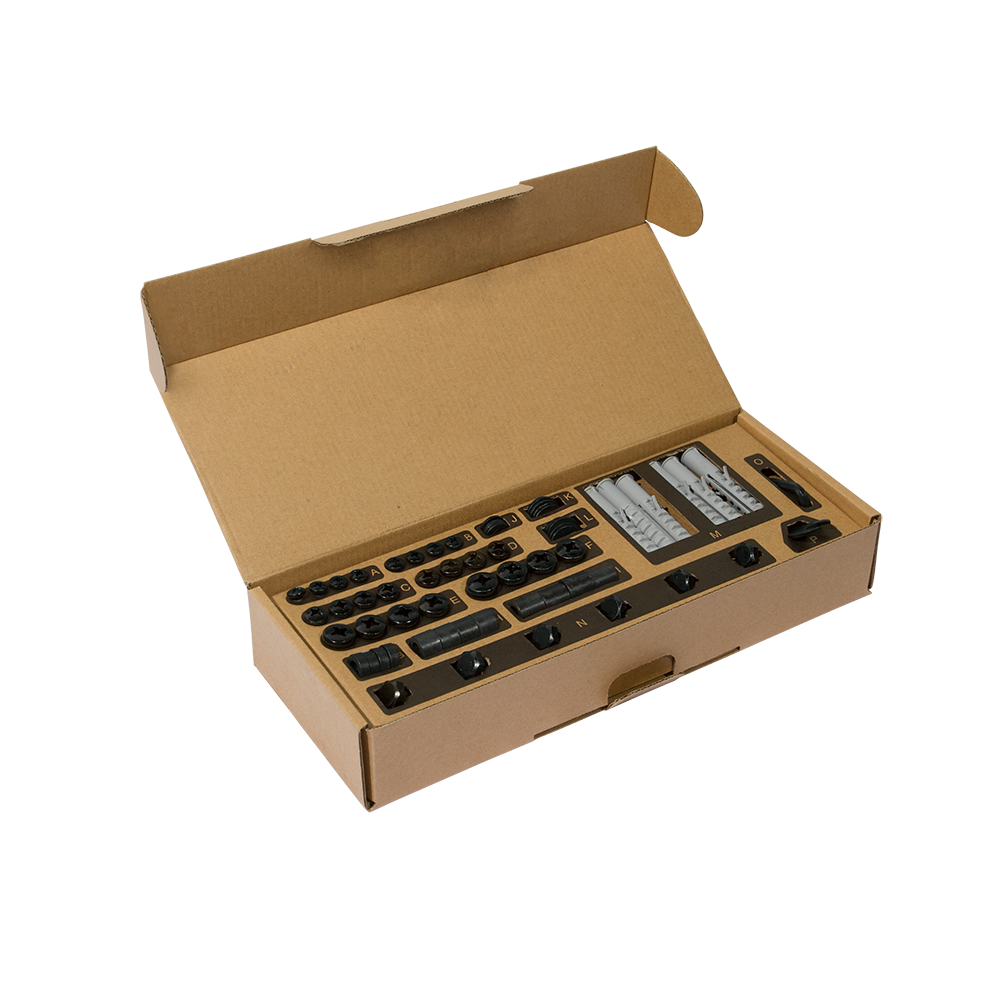

Because every installation is unique, PS200’s are carefully packaged with all the lag bolts, anchors, mounting bolts, washers and spacers that you could need. Everything is labeled with clear instructions that correspond with the manuals in order to simplify your installation.
Rotate the 360 degree image below.
TV Sizes: 26” to 60”
Weight Allowance: 88 lbs (40 kg)
VESA Sizes: 100×100, 100×150, 100×200, 150×100, 150×150, 200×100, 200×150, 200×200, 200×250, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Wall Plate: Single stud mounting
Tilt: +12° to -2°
Swivel: Up to 180° depending on TV size
Extension: 13.8″ (35 cm) from the wall
Profile: Sits 2″ (5.1 cm) from the wall
Integrated cable management
Adjustable horizontal leveling
Paper wall template for marking pilot holes
All mounting hardware for wood stud and concrete installation
Warranty: 5 years
Weights and Measurements
Shipping box weight: 11.5 lbs (5.2 kg)
Shipping box dimensions: 20.7” x 13.9” x 2.9” (52.5 x 35.3 x 7.4 cm)
Product weight: 8.6 lbs (3.9 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
