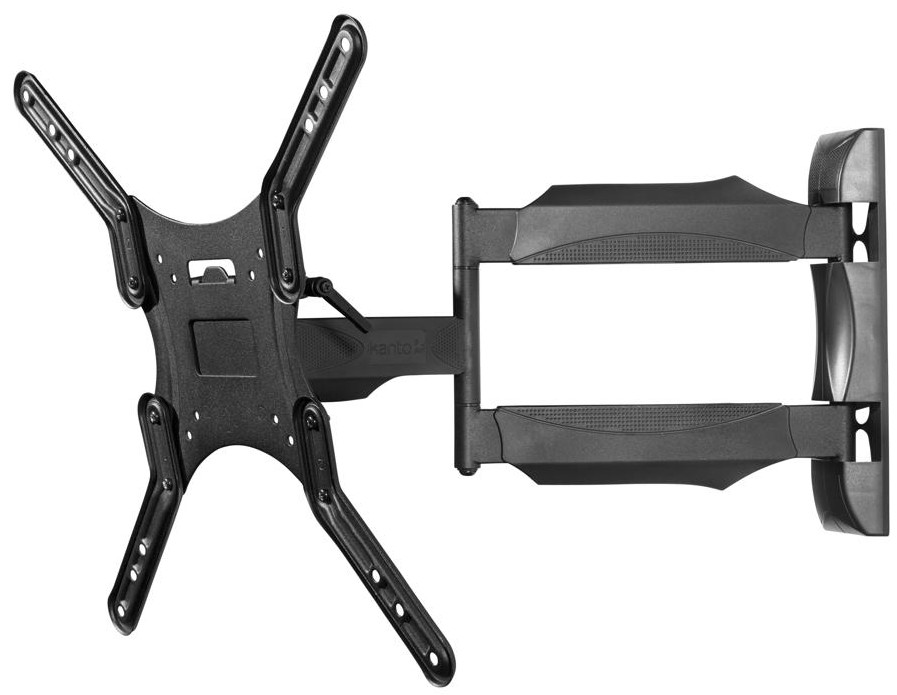

M300

$ 105

Full Motion TV Mount

The M300 is a one-stud solution for those looking to enjoy a wide range of TV viewing angles without taking up too much wall space.  For medium-sized TVs, this versatile mount has heavy-duty steel arms that support up to 80 pounds and allow for easy tilt, pan and swivel adjustments. With a clean powder-coated finish and integrated cable management, the M300 is a sleek answer to your TV mounting needs.

See Installation Video

TV Size 26″ – 55″
Max Weight 80 lb (36 kg)
Supports VESA 100×100 – 400×400
Extends 1.5″ – 19.6″ (3.8cm – 49.7cm)
Offset 5″ (12.7cm) left or right

MSRP $104.99 USD

Where to Buy
Clear
SKU: N/A Categories: ,

Features

Specifications

FAQ

The M300 is a one-stud solution that does it all.

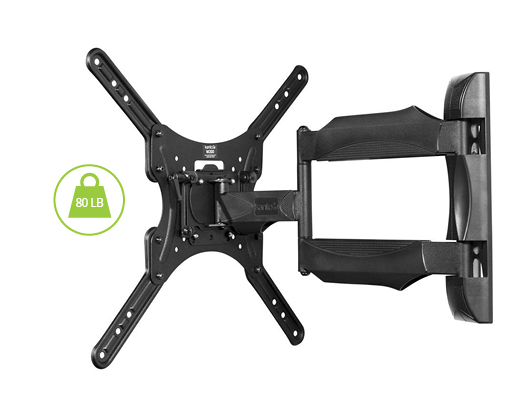

SUPPORTS  UP TO 80 POUNDS

Constructed out of solid steel and capable of carrying up to 80 pounds, you can rest assured that your TV is safe and secure with the M300.

19.6 INCHES OF EXTENSION

The M300 extends a generous 19.6” from the wall to accommodate a variety of TV viewing positions.

SITS 1.5″ FROM THE WALL

The low-profile design of the M300 allows you to push your TV back to sit 1.5″ from the wall. (Note: When fully retracted, the center of your TV will sit 5″ to the left or right of where it is mounted)

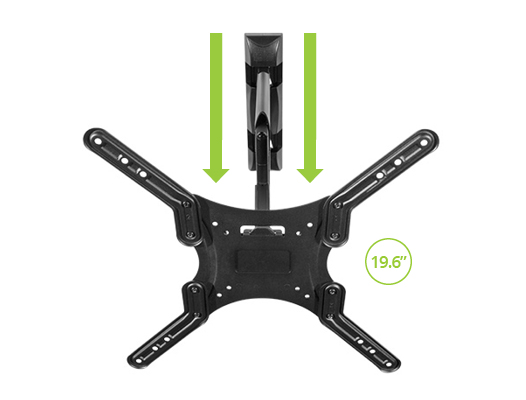

FITS VESA SIZES 100×100 TO 400×400

The M300 supports a multitude of VESA sizes up to 200×200, and includes extension arms to allow for VESA sizes up 400×400.

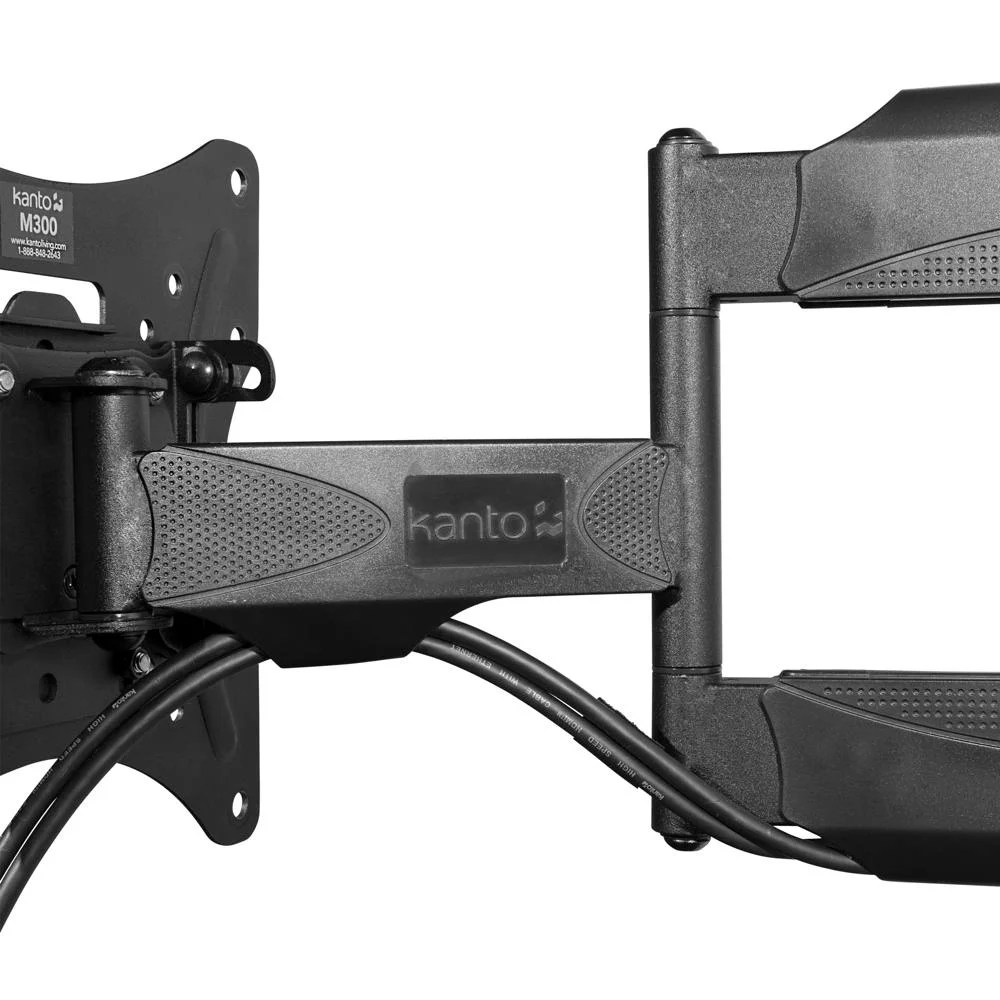

SLEEK CABLE MANAGEMENT

Built-in cable management tucks your cables out of the way and keeps them neatly and safely organized – out of sight, out of mind.

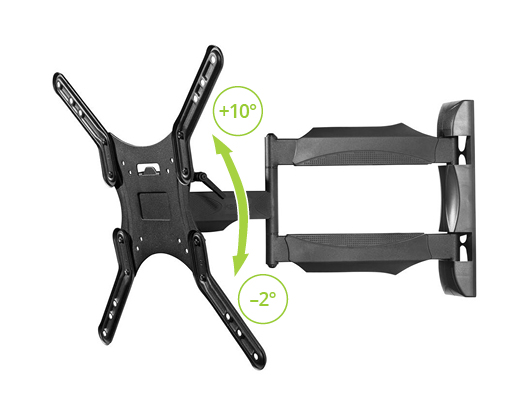

12 DEGREES OF TILT

With the use of a simple tightening mechanism, easily adjust the to tilt of your TV 10° forward or 2° backward to suit your viewing needs.

EVERYTHING YOU NEED

We supply you with everything except a toolbox to ensure that your installation goes smoothly. Instruction manuals are provided in English, French, and Spanish, as well as the parts you need to mount your TV safely and securely. Easy-to-follow online videos and phone support are available to assist you along the way.

Rotate the 360 degree image below.

INSTALLATION VIDEO

WALK-THROUGH VIDEO

SPECIFICATIONS

Specifications

TV Sizes: 26” to 55”
Weight Allowance: 80 lb (36 kg)
VESA Sizes: 100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400

Features

Tilt: +10° to -2°
Swivel: 135° of swivel in either direction, depending on screen size
Extension: 19.6″ (49.7 cm) from the wall
Profile: Sits 1.5″ (3.8 cm) from the wall

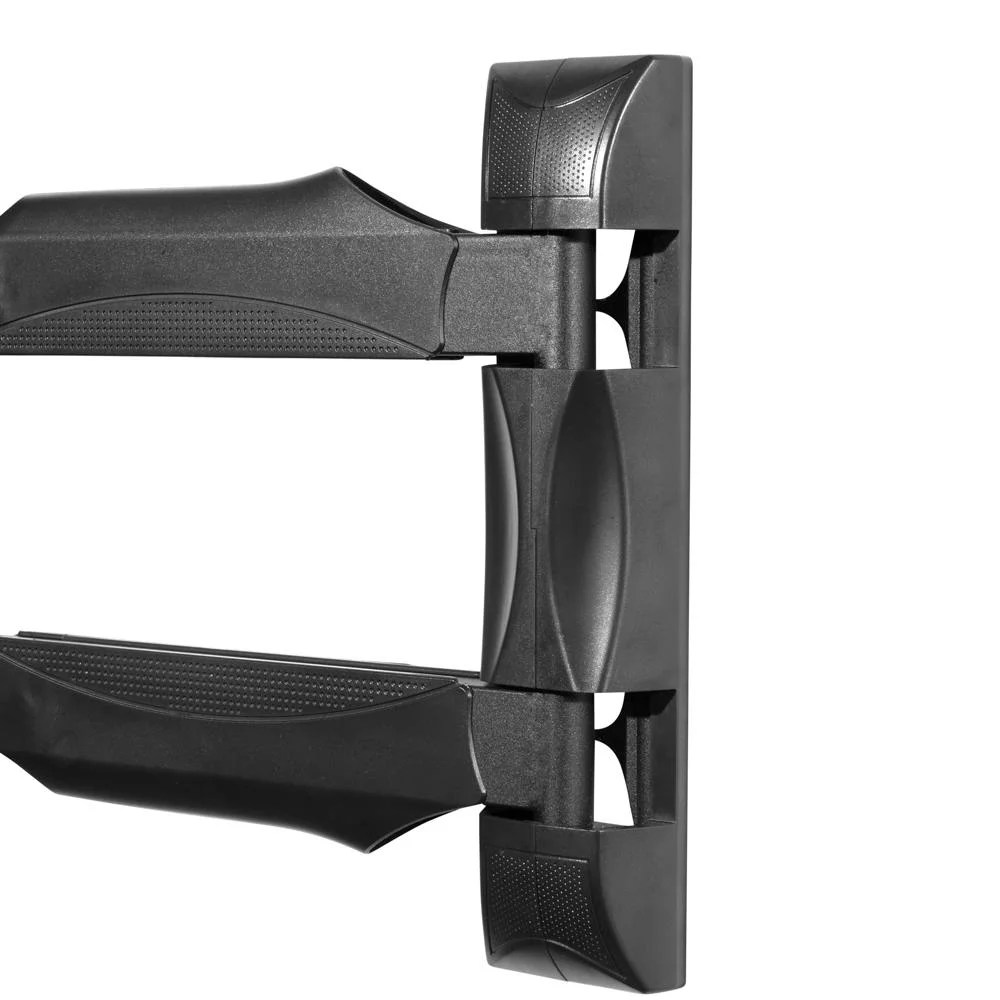

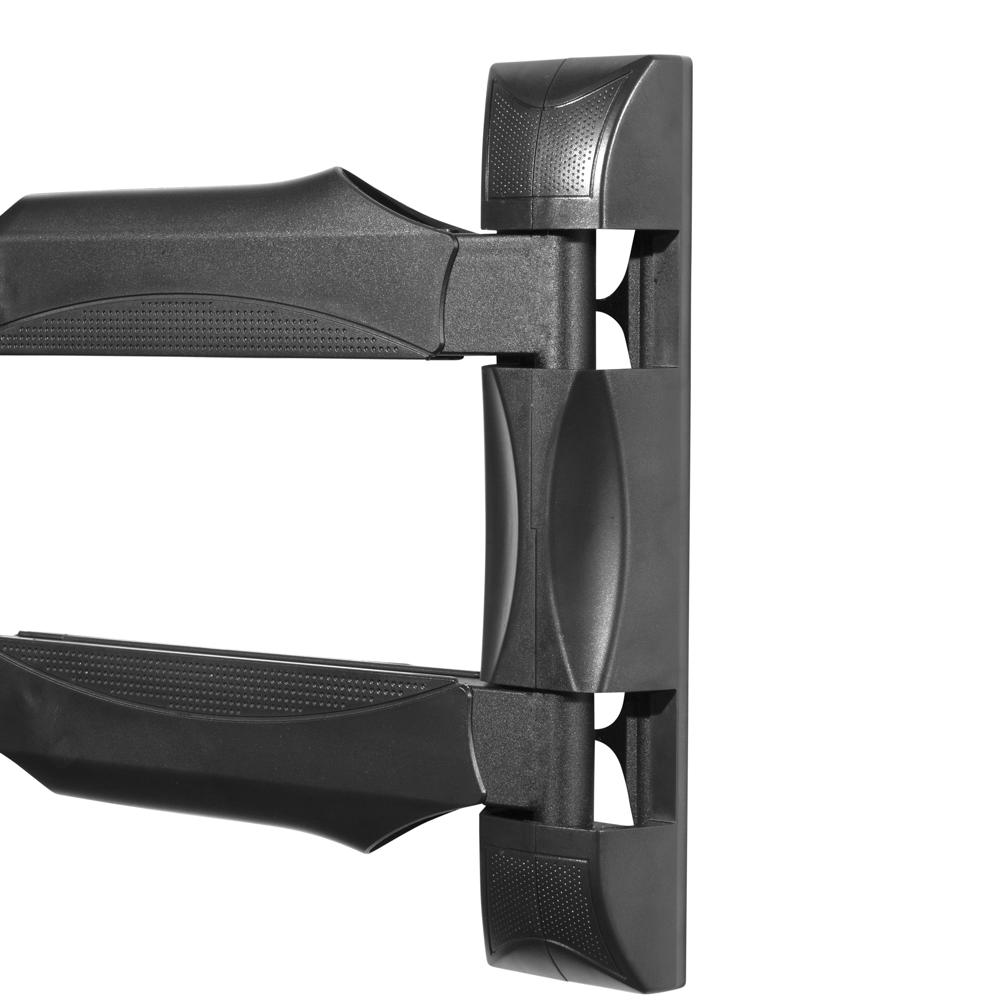

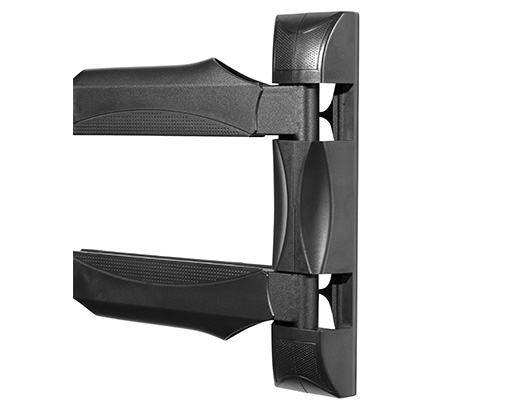

Single stud wall plate
Integrated cable management system

General

Includes: Installation Manual; All mounting hardware for wood stud and concrete installation
Material: Solid steel with durable powder coated finish
Warranty: 5 years

Weights and Measurements

Shipping box weight: 11.2 lb (5.1 kg)
Shipping box dimensions: 15.6” x 12.6” x 2.5” (39.7 x 31.9 x 6.3 cm)
Product weight: 10.1 lb (4.6 kg)
UPC: 800152712697

DOCUMENTATION

PRODUCT MANUALS

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.

PRODUCT SHEET

FAQ

What does VESA pattern mean and how do I check what VESA pattern my TV has?

VESA stands for Video Electronics Standard Association.  At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts.  To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane.  For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.

Can I install my wall mount on a concrete or brick wall?

Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.

Why should I only buy from an authorized Kanto reseller?

When it comes to customer service, we set the bar exceedingly high. Commitment of this level requires us to work closely with all our online and in-store retailers, so that we may ensure our customers receive the type of experience we try so hard to deliver.

If you are interested in purchasing a Kanto product, we encourage you to shop through one of the many authorized dealers listed above. This not only guarantees the quality of your purchase, but also gives you the benefit of our warranty should any issues arise. While we strive to support all our customers, we unfortunately cannot always provide assistance for products sold through unauthorized third parties.

If you are unsure if you are purchasing from an authorized retailer, please contact us toll-free at 1-888-848-2643 or email us at support@kantoliving.com.
