PS300

$ 110

Full Motion TV Mount

This mount does it all. 22” of reach from your wall, combined with swivel and tilt capabilities, lets your TV adjust to you – just the way it should be. The low-profile design means you can tuck it away when you want. With the PS300, you only need a single stud to get it up on the wall, yet still benefit from its many features. Solid steel construction equates to durability and reliability, while the cable management system will make you forget your input wires even existed in the first place.

See Installation Video

TV Size 26″ – 60″
Max Weight 88 lb (40 kg)
Supports VESA 100×100 – 400×400
Extends 1.9″ – 22″ (4.7cm – 56.1cm)

MSRP: $109.99 USD

Where to Buy

Features

Specifications

FAQ

22” of reach from your wall, combined with swivel and tilt capabilities, lets your TV adjust to you – just the way it should be.

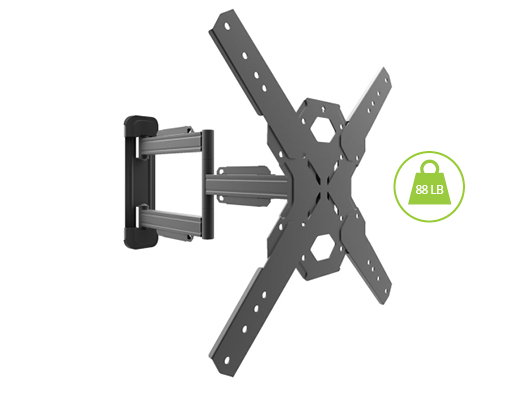

SUPPORTS UP TO 88 POUNDS

With its solid steel construction, the PS300 is designed to hold up to 88 pounds.

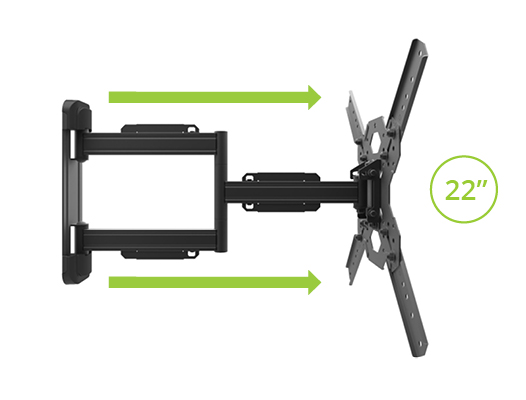

EXTENDS UP TO 22 INCHES

The PS300 extends 22” from the wall to give you a variety of viewing options.

CLEAN FINISH

The PS300 is made of solid steel with a durable powder coated finish, giving you a sophisticated look and feel.

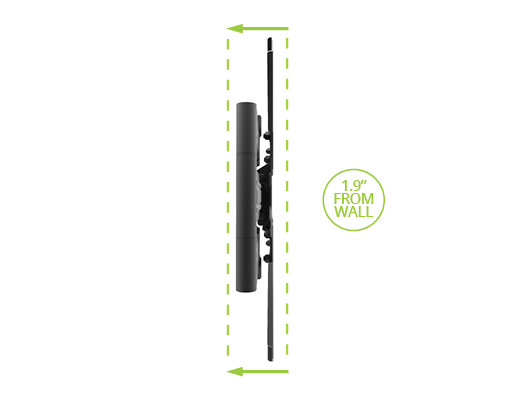

LOW PROFILE DESIGN

When pushed back, your TV will sit 1.9” from the wall, with the center of the screen in-line with the wall mount.

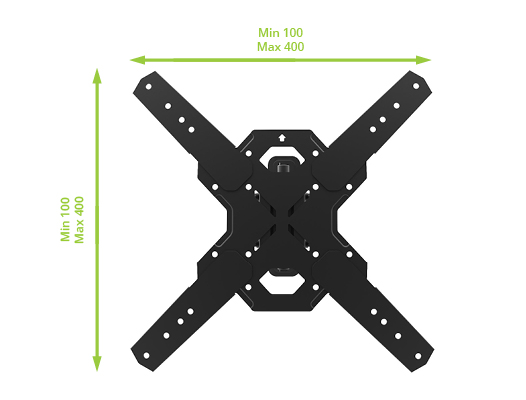

VESA SIZES TO 400×400

The PS300 is designed for small to midsize TVs with specific VESA patterns, including 100×100 and 200×200. For larger VESA mounting patterns such as 300×300 and 400×400, attach the four extension arms using the supplied Nylock nuts.

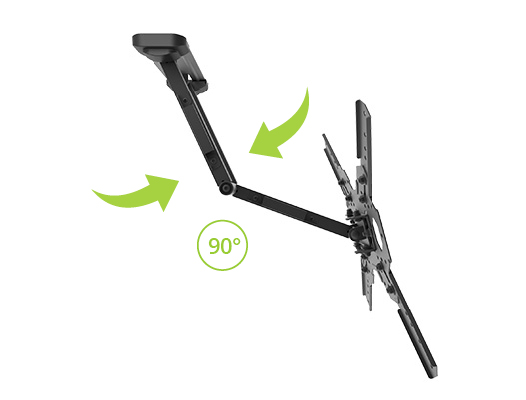

SWIVELS UP TO 180 DEGREES

With its articulating arms, the PS300 allows you to swivel your TV 90° left or right depending on the size of your TV.

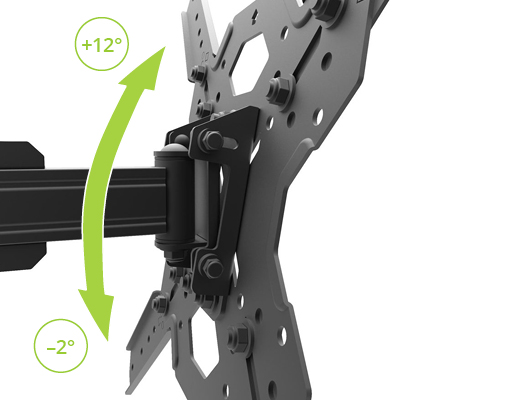

TILT MECHANISM

With 12° of forward tilt and 2° of backward tilt, the PS300 makes it easy to angle your TV just the way you want it.

SLEEK CABLE MANAGEMENT

An integrated cable management system allows you to route your power and video cables neatly between the TV and the wall.

MAGNETIC COVERS

Magnetic covers attach to the wall plate to give you a clean, modern look.

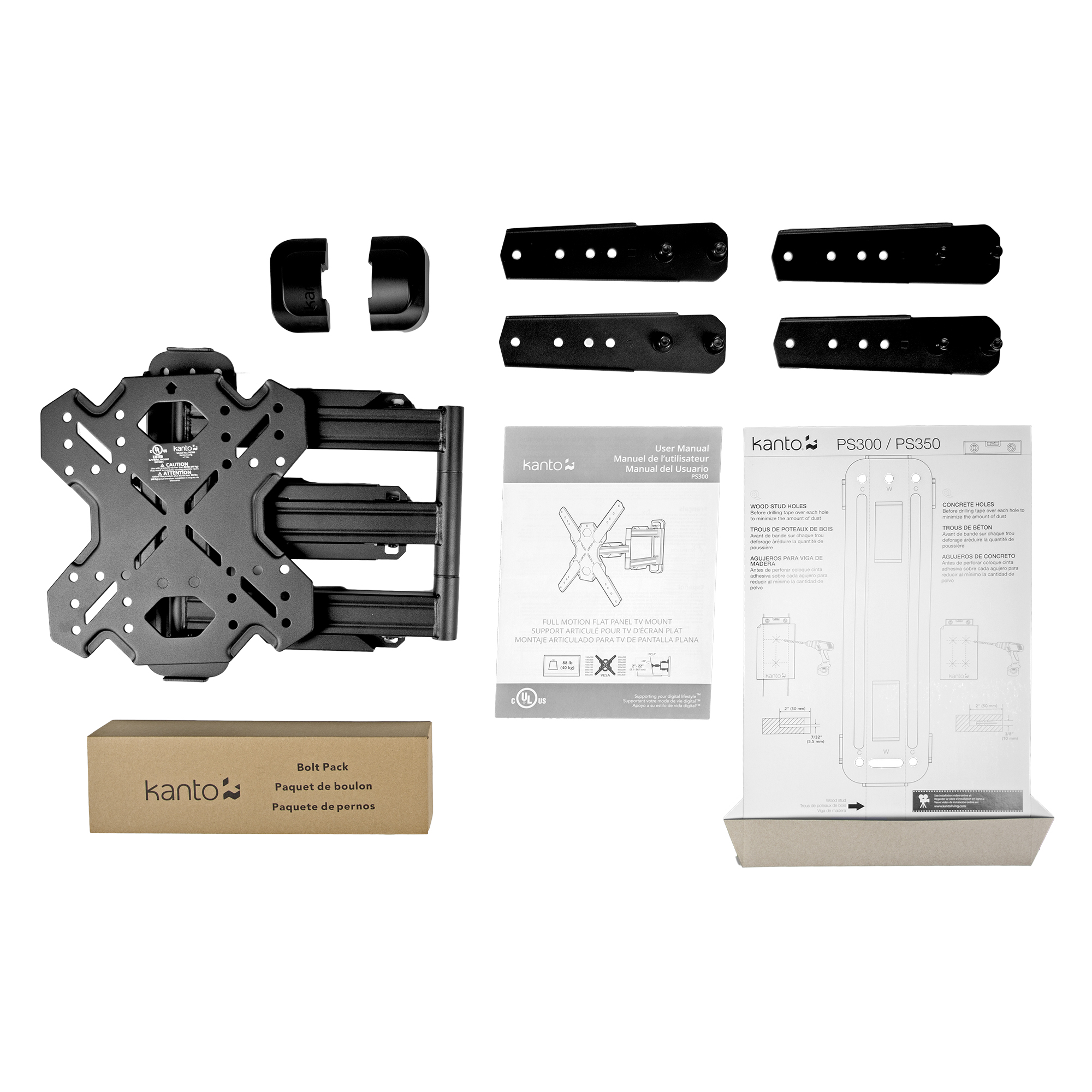

EVERYTHING YOU NEED

Because every installation is unique, PS300’s are carefully packaged with all the lag bolts, anchors, mounting bolts, washers and spacers that you could need. Everything is labeled with clear instructions that correspond with the manuals in order to simplify your installation.

Rotate the 360 degree image below.

INSTALLATION VIDEO

WALKTHROUGH VIDEO

SPECIFICATIONS

Specifications

TV Sizes: 26” to 60”
Weight Allowance: 88 lb (40 kg)
VESA Sizes: 100×100, 200×200, 300×300, 400×400
Wall Plate: Single stud mounting

Features

Tilt: +12° to -2°
Swivel: 90° of swivel in either direction, dependent on screen size.
Extension: 22″ (56.1 cm) from the wall
Profile: Sits 1.9″ (4.7 cm) from the wall
Material: Solid steel with durable powder coated finish
Integrated cable management
Adjustable horizontal leveling

General

Includes:
Installation Manual
All mounting hardware for wood stud and concrete installation
Warranty: 5 years

Weights and Measurements

Shipping box weight: 15.4 lb (7 kg)
Shipping box dimensions: 20.5” x 14” x 2.8” (52 x 35.5 x 7 cm)
Product weight: 13 lb (5.9 kg)
UPC: 800152714400

DOCUMENTATION

PRODUCT MANUALS

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.

FAQ

What does VESA pattern mean and how do I check what VESA pattern my TV has?

VESA stands for Video Electronics Standard Association.  At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts.  To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane.  For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.

Can I install my wall mount on a concrete or brick wall?

Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.

Why should I only buy from an authorized Kanto reseller?

When it comes to customer service, we set the bar exceedingly high. Commitment of this level requires us to work closely with all our online and in-store retailers, so that we may ensure our customers receive the type of experience we try so hard to deliver.

If you are interested in purchasing a Kanto product, we encourage you to shop through one of the many authorized dealers listed above. This not only guarantees the quality of your purchase, but also gives you the benefit of our warranty should any issues arise. While we strive to support all our customers, we unfortunately cannot always provide assistance for products sold through unauthorized third parties.

If you are unsure if you are purchasing from an authorized retailer, please contact us toll-free at 1-888-848-2643 or email us at support@kantoliving.com.
