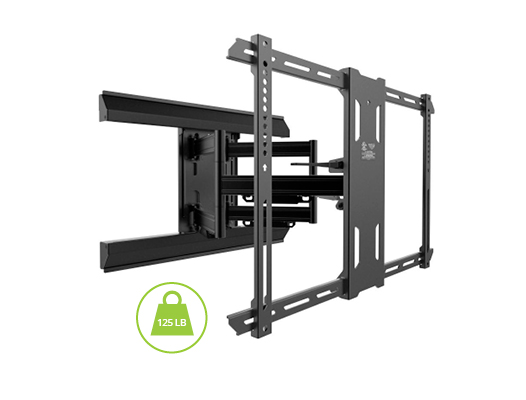

SUPPORTS 125 POUNDS
The PMX660’s solid steel frame safely holds up to 125 lb (57 kg), even at full extension.

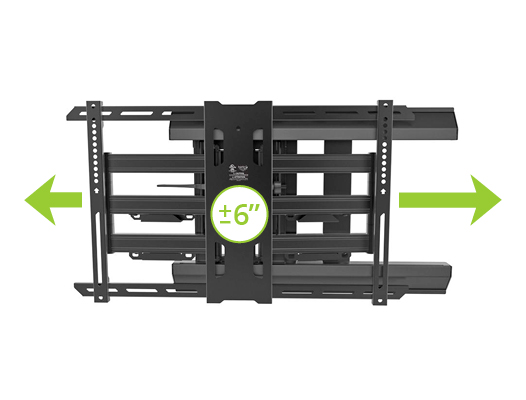

Center your TV on the wall regardless of where your studs are located by adjusting the PMX660’s arm assembly 6” (15.2 cm) left or right.

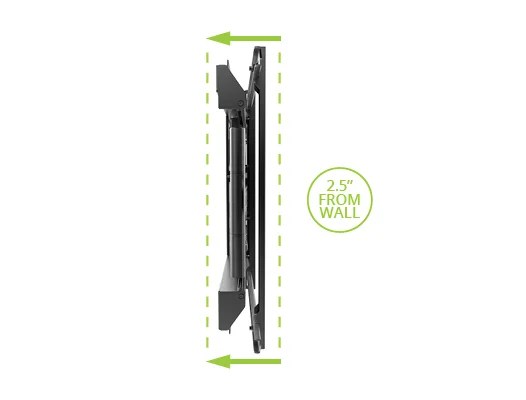

LOW PROFILE DESIGN
The unique design of the PMX660 allows your TV to sit 2.5 inches from the wall when fully pushed in.

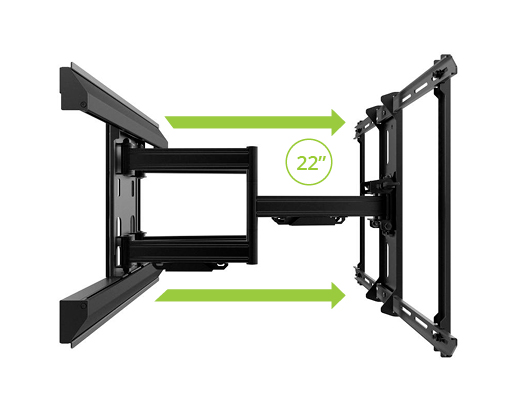

EXTENDS 22 INCHES
Easily reach over fireplaces or out of recessed locations with 22” (55.9 cm) of extension.
TOOLLESS TILT MECHANISM
Effortlessly tilt your TV 12° forward or 3° backward with the PMX660’s newly designed toolless tilt mechanism.

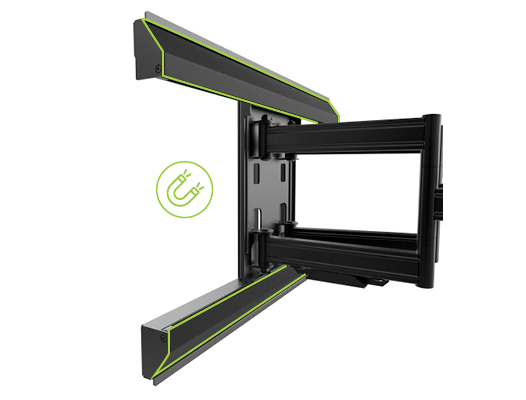

ALUMINUM SECURITY COVERS
Maintain a clean, finished appearance while hiding any sign of installation with the PMX660’s aluminum wall plate covers.

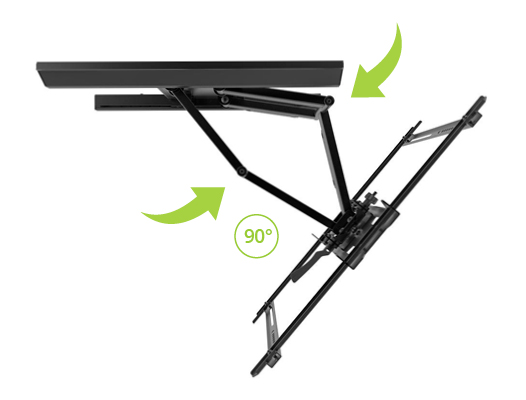

SWIVELS UP TO 180 DEGREES
Achieve the best viewing angle regardless of where you’re sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.
SLEEK CABLE MANAGEMENT
Four cable management raceways located on the bottom of each arm help to keep your viewing area tidy.

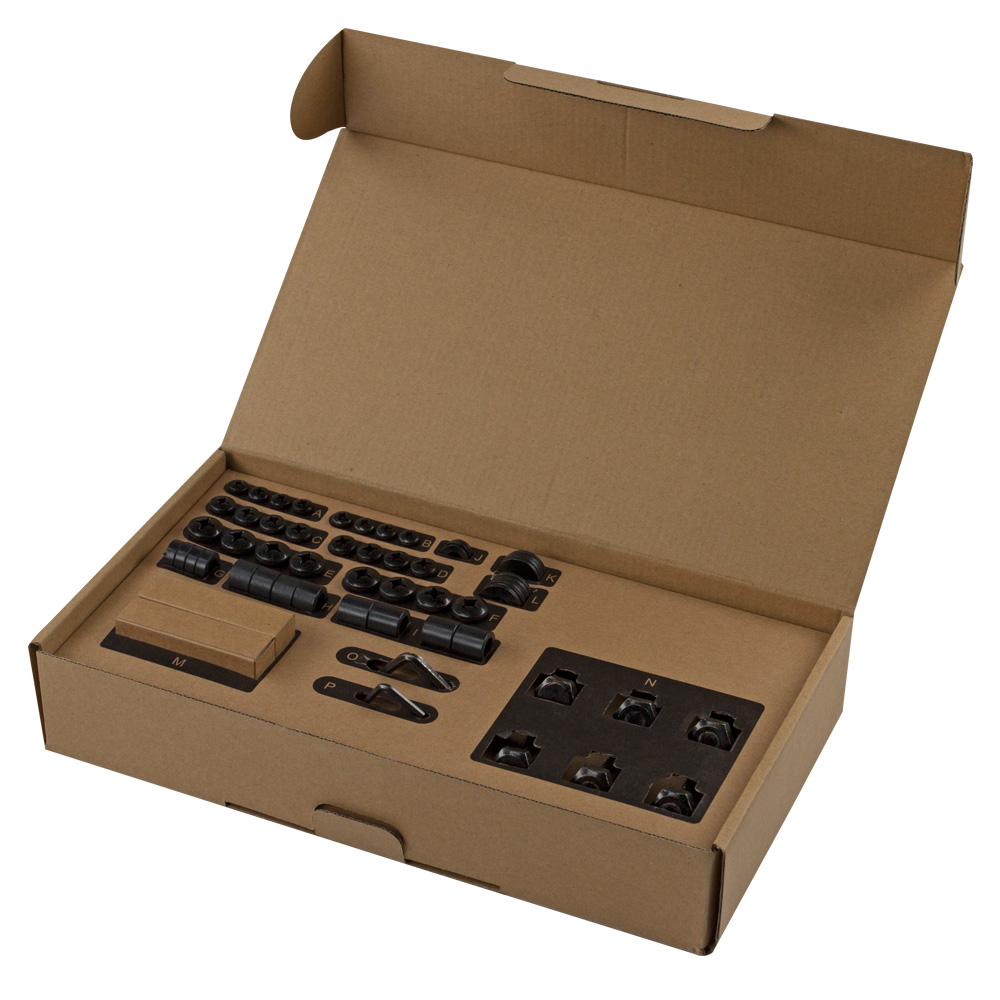

ONE BOX. MULTIPLE OPTIONS.
Because every installation is unique, the PMX660 is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.
Rotate the 360 degree image below.
TV Sizes: 37” to 80”
Weight Allowance: 125 lbs (57 kg)
VESA Sizes: 200×100 to 600×400
Wall Plate: 23.2″ (59 cm); Accommodates dual studs with up to 16″ spacing
Tilt: +12° to -3°
Swivel: 180° at full extension (with 37″ TV)
Extension: 22″ (55.9 cm) from the wall
Profile: Sits 2.5″ (6.3 cm) from the wall
Horizontal Offset: 12″ (30.2 cm) of total horizontal offset
Toolless Tilt Mechanism
Integrated cable management
Adjustable horizontal leveling
Aluminum covers to hide lag bolts
Paper wall template for marking pilot holes
All mounting hardware for wood stud and concrete installation
Warranty: 10 years
Weights and Measurements
Shipping box weight: 36.8 lb (16.7 kg)
Shipping box dimensions: 30.8” x 18.5” x 4.7”
(78.2 x 46.9x 12 cm)
Product weight: 29.1 lb (13.2 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
