PS350

$ 149

Full Motion TV Mount

The PS350 provides an amazing range of motion, offering 22” of extension yet sitting less than 2” from the wall when pushed in. Capable of accommodating TVs up to 60” and weighing 88 pounds, PS350 is simple to install and easy to use. The H-frame style TV plate fits a wide range of VESA sizes. The attractive solid steel construction includes a cable management system to hide your cables, and magnetic covers to hide the wall mount lag bolts

See Installation Video

TV Size 37” – 60″
Max Weight 88 lbs (40 kg)
Supports VESA 200×75 – 600×400
Extends 1.9″ – 22″ (4.9cm – 56cm)

MSRP: $119.99 USD

Where to Buy
Colour

Clear selection
SKU: N/A Categories: ,

Features

Specifications

FAQ

Combining H-Frame mounting arms with a single stud wall plate, PS350 is the new standard in Full Motion Mounts.

PS350 Full Motion TV Wall Mount

SUPPORTS UP TO 88 POUNDS

With its solid steel construction, the PS350 is designed to hold up to 88 pounds.

EXTENDS UP TO 22 INCHES

The PS350 extends 22” from the wall to give you a variety of viewing options.

CLEAN FINISH

The PS350 is made of solid steel with a durable powder coated finish – giving you a sophisticated look and feel.

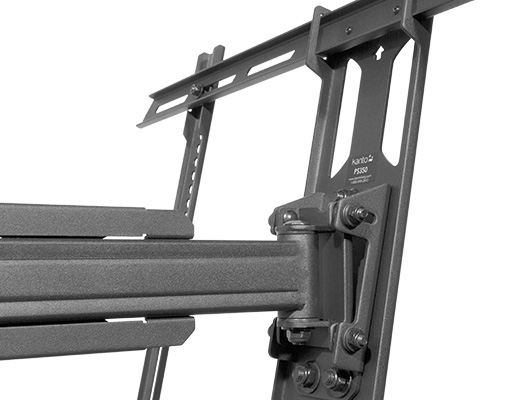

TILT MECHANISM

With 12° of forward tilt and 2° of backwards tilt, the PS350 makes it easy to angle your TV just the way you want it.

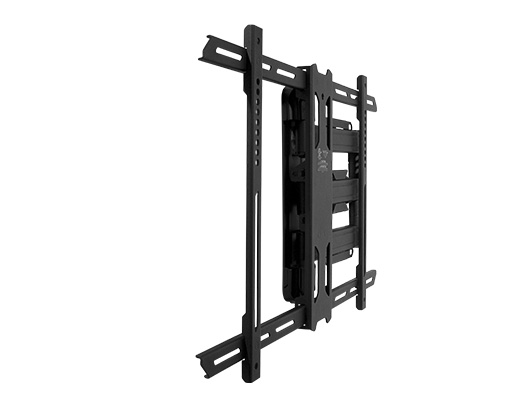

LOW PROFILE DESIGN

When pushed back into place, your TV sits less than 2” from the wall.

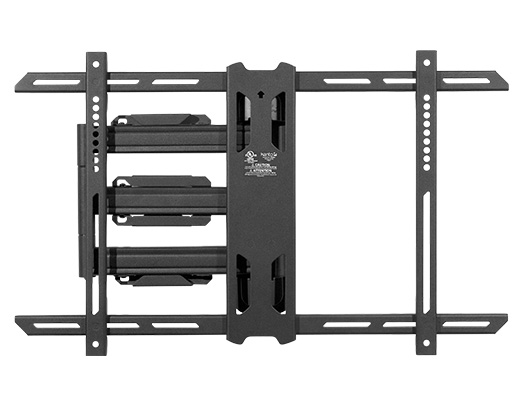

VESA SIZES TO 600×400

The adjustable H-frame mounting brackets allow the PS350 to accommodate VESA sizes ranging from 200×75 to 600×400

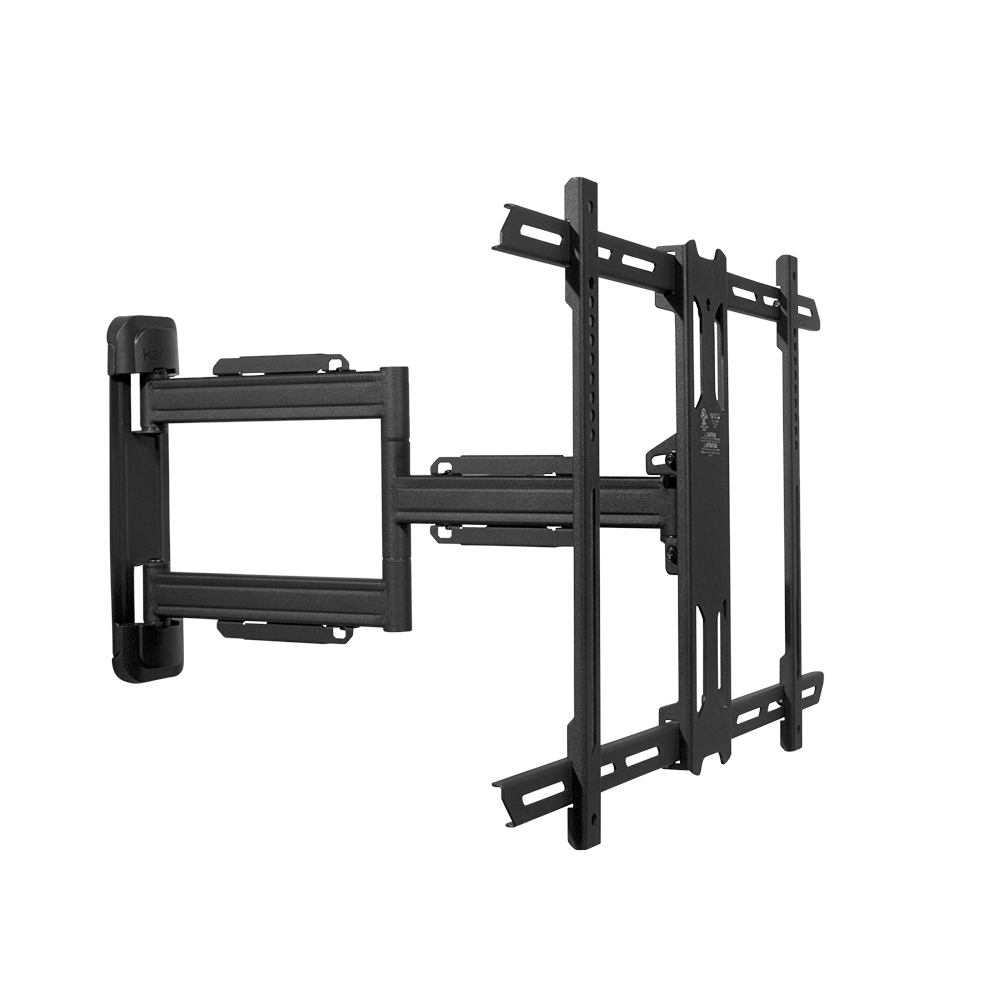

SWIVELS UP TO 180 DEGREES

The two extension arms allow you to swivel the TV up to 180°, depending on TV size. When pushed back against the wall, note that the center of the TV plate is centered with the wall mount.

PS350 Full Motion Wall Mount

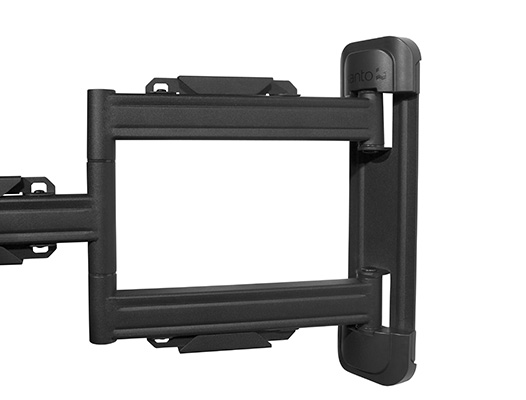

MAGNETIC COVERS

Magnetic covers attach to the wall plate to give you a clean, modern look.

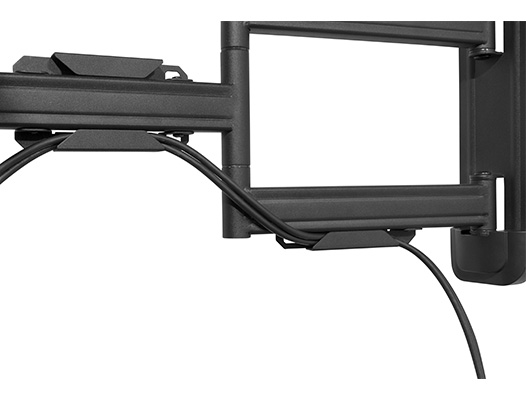

SLEEK CABLE MANAGEMENT

An integrated cable management system allows you to route your power and video cables neatly between the TV and the wall.

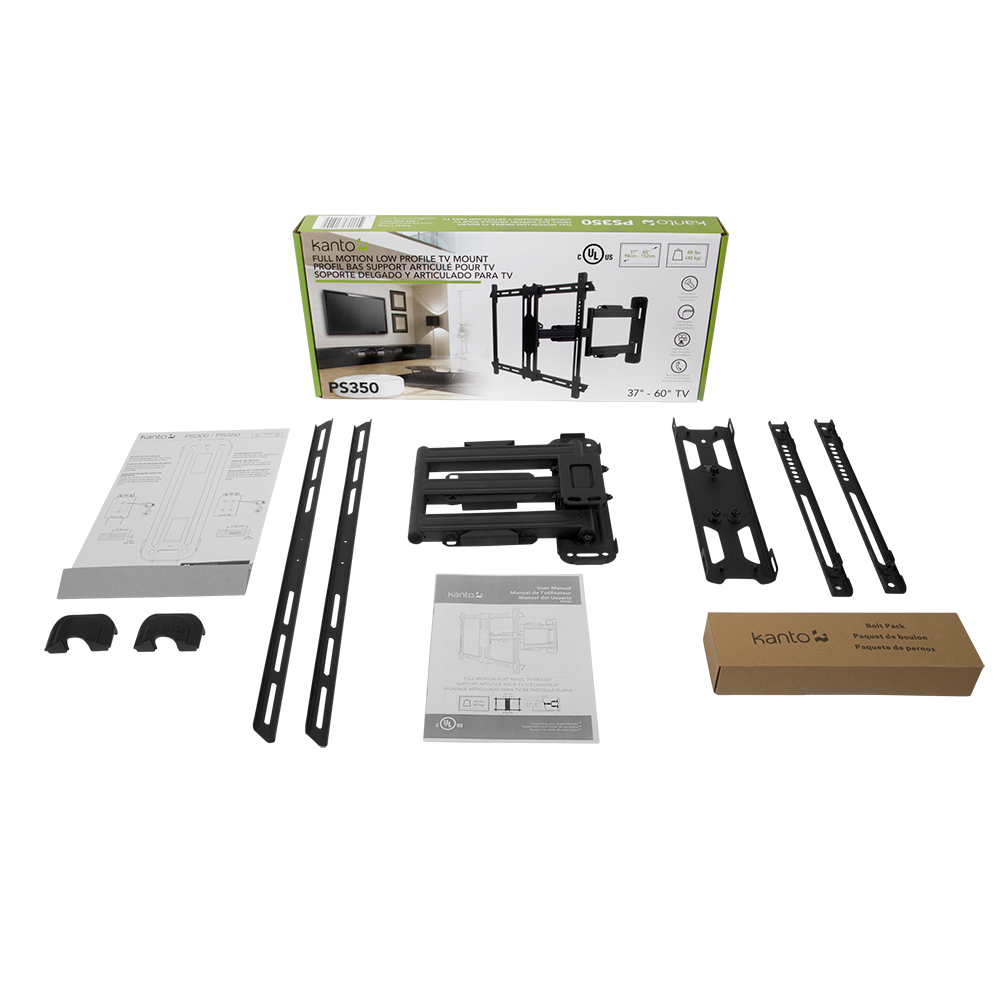

EVERYTHING YOU NEED

Because every installation is unique, PS350’s are carefully packaged with all the lag bolts, anchors, mounting bolts, washers and spacers that you could need. Everything is labeled with clear instructions that correspond with the manuals in order to simplify your installation.

Rotate the 360 degree image below.

INSTALLATION VIDEO

SPECIFICATIONS

Specifications

TV Sizes: 37” to 60”
Weight Allowance: 88 lbs (40 kg)
VESA Sizes: 200×75 to 600×400
Wall Plate: Single stud mounting

Features

Tilt: +12° to -2°
Swivel: 180° at full extension (with 37″ TV)
Extension: 22″ (56.1 cm) from the wall
Profile: Sits 1.9″ (4.7 cm) from the wall
Material: Solid steel with durable powder coated finish
Integrated cable management
Adjustable horizontal leveling

General

Includes:
Installation Manual
All mounting hardware for wood stud and concrete installation
Warranty: 5 years

Weights and Measurements

Shipping box weight: 18.3 lbs (8.3 kg)
Shipping box dimensions: 29.7” x 13.6” x 3.8” (75.5 x 34.5 x 9.7 cm)
Product weight: 14.6 lbs (6.6 kg)
UPC: 800152715292

DOCUMENTATION

PRODUCT MANUALS

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.

FAQ

What does VESA pattern mean and how do I check what VESA pattern my TV has?

VESA stands for Video Electronics Standard Association.  At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts.  To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane.  For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.

Can I install my wall mount on a concrete or brick wall?

Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.

Why should I only buy from an authorized Kanto reseller?

When it comes to customer service, we set the bar exceedingly high. Commitment of this level requires us to work closely with all our online and in-store retailers, so that we may ensure our customers receive the type of experience we try so hard to deliver.

If you are interested in purchasing a Kanto product, we encourage you to shop through one of the many authorized dealers listed above. This not only guarantees the quality of your purchase, but also gives you the benefit of our warranty should any issues arise. While we strive to support all our customers, we unfortunately cannot always provide assistance for products sold through unauthorized third parties.

If you are unsure if you are purchasing from an authorized retailer, please contact us toll-free at 1-888-848-2643 or email us at support@kantoliving.com.
