R600

Name: R600
SKU: R600
Price: 349.99 USD
Availability: InStock

Recessed In-Wall TV Mount

R600 features an oversized in-wall box that allows cable set-top boxes and TV breakout boxes to be stored in the wall on the included accessory plate. Two TV mounting interfaces are provided – one with a no gap profile for TVs with small VESA patterns, and one with support for extra large panels. Metal knockouts allow you to easily run power into the box, while rubber grommets handle all other cabling. Durable metal cable management clips and zip tie mounting points take care of messy cables. The game-changing foldable new-construction box allows contractors to run cabling and install drywall keeping the mount safe and scuff-free in its packaging until the job is complete.

100 x 100 - 800 x 600

135 lb

65″ - 90″

Up to 18"

Recessed

Categories: Recessed Mounts, TV Mounts

Effortless Elegance: Where Style Meets Functionality

Features at a glance

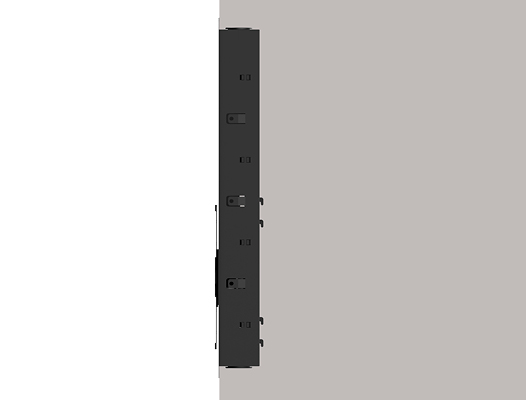

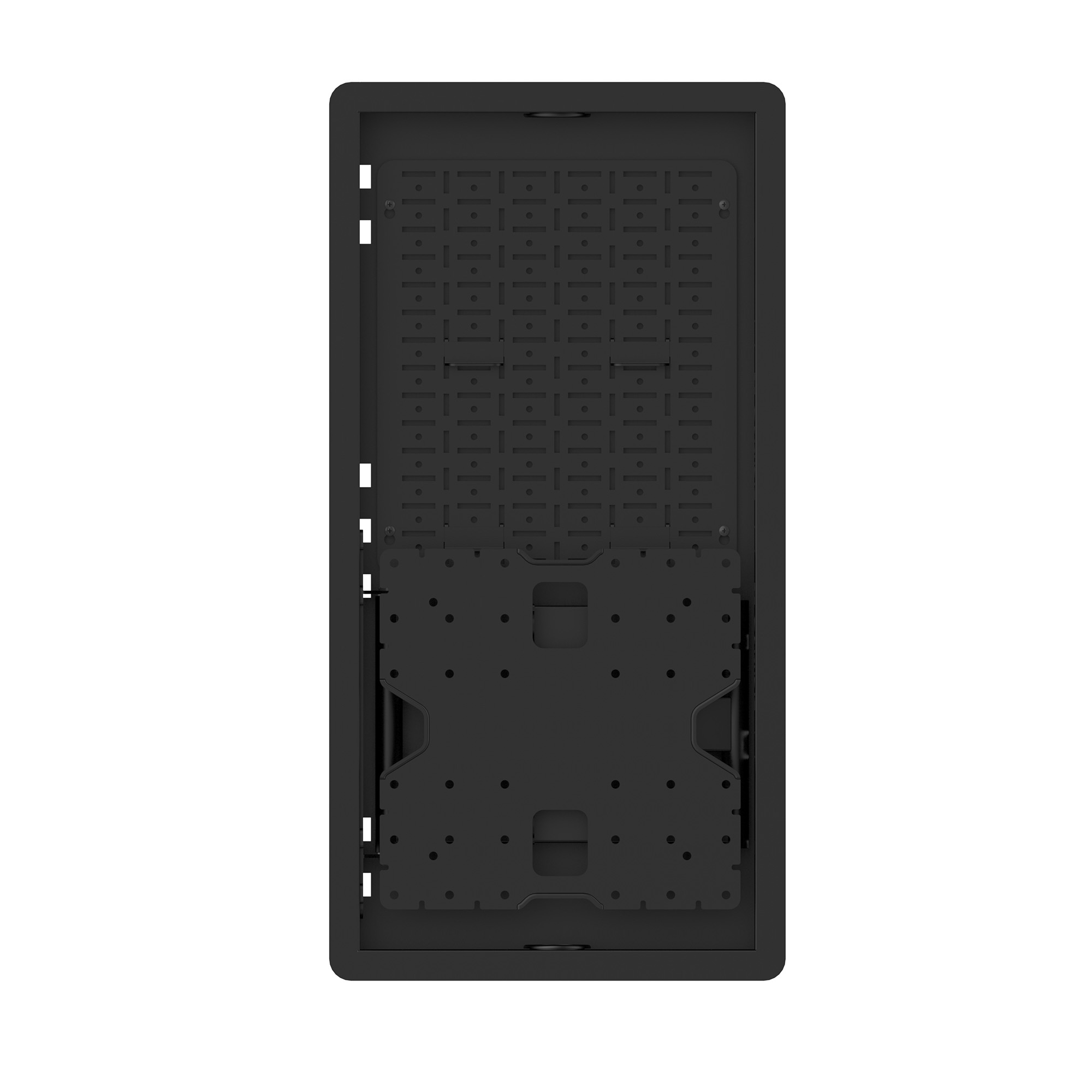

R600 is a true zero gap TV mount that allows TVs with a VESA pattern of 300×300 or less to sit directly against the wall for a completely flush look.

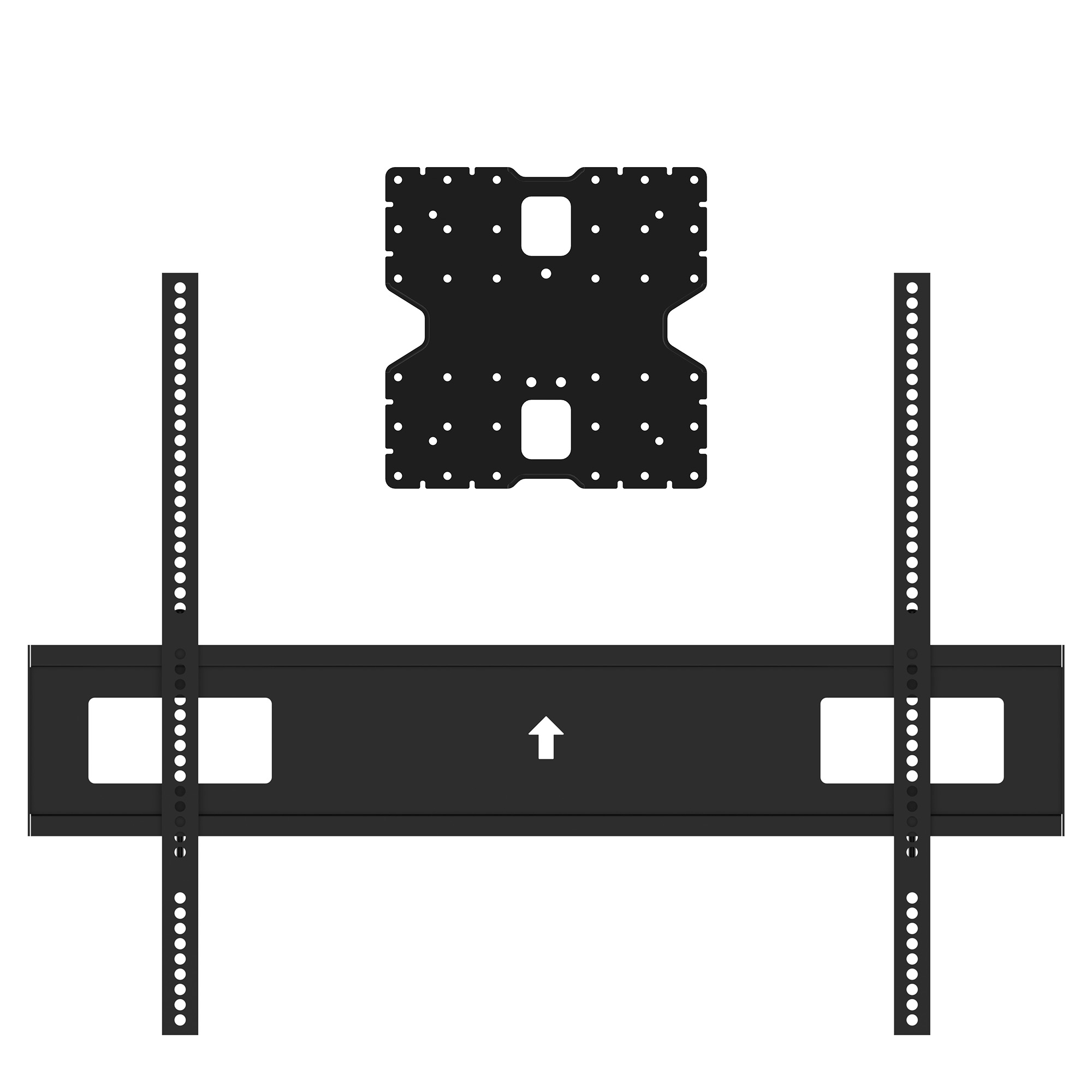

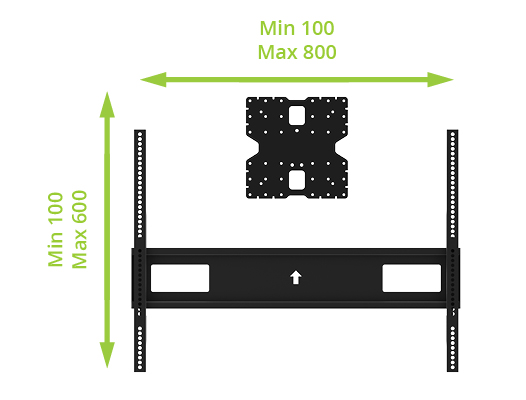

800×600 VESA patterns are supported with provided large VESA interface. Using this increases the profile to 1.1″ (2.8 cm) from the wall.

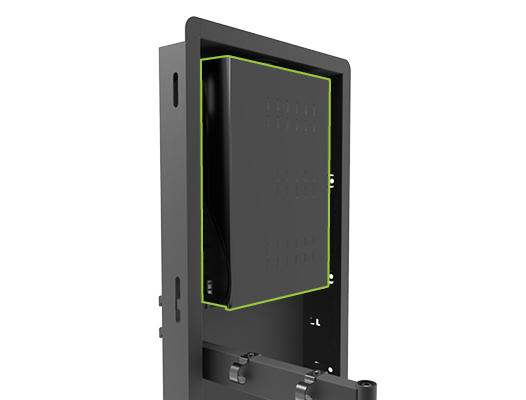

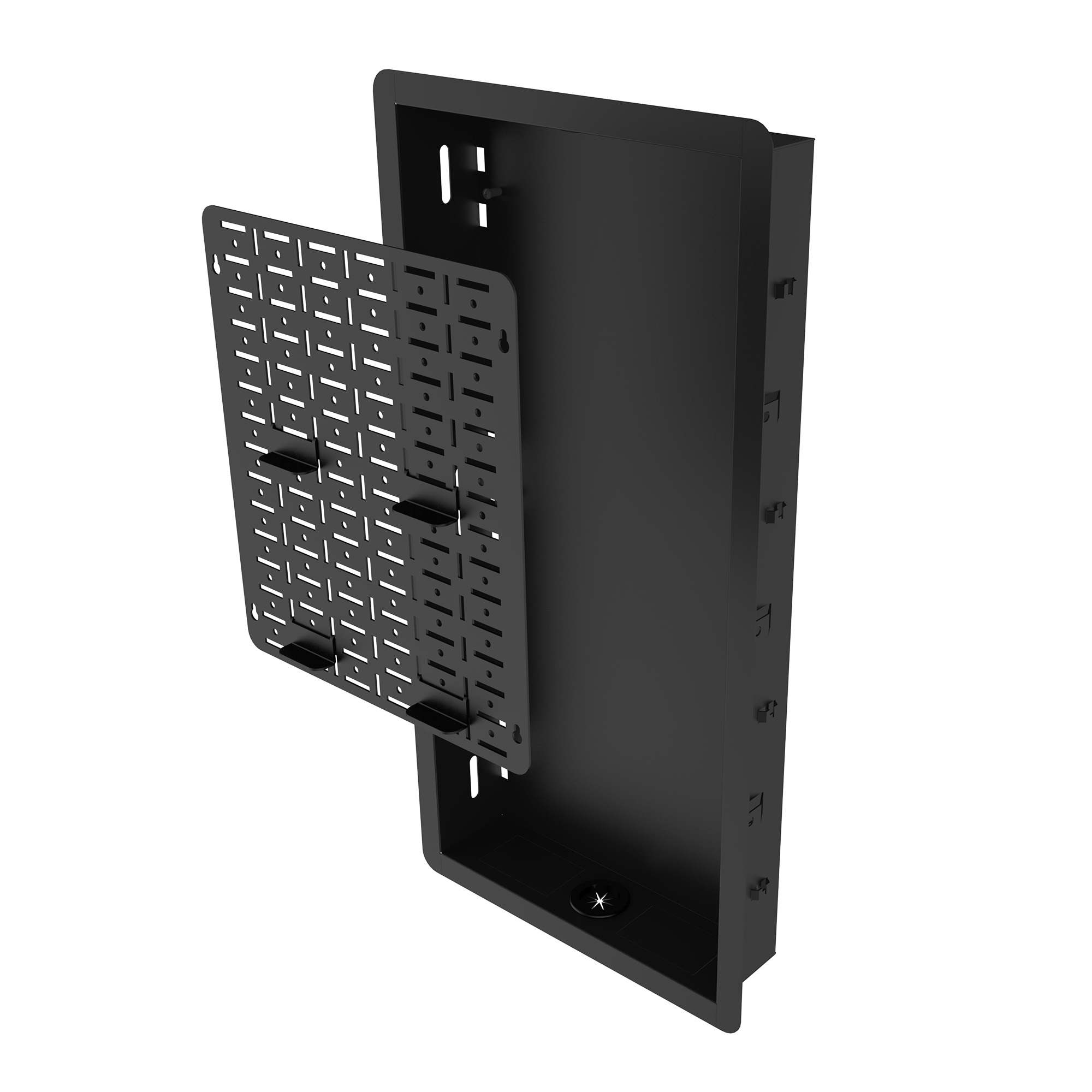

A removable accessory plate allows easy attachment of TV breakout boxes, or other accessories. Simply connect them to the plate, then place the entire unit within the spacious in-wall box for complete concealment behind your TV.

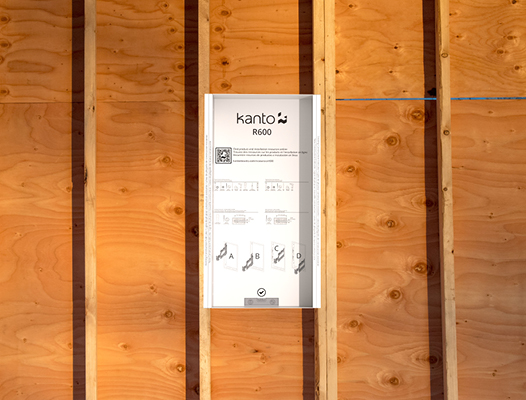

A foldable, in-wall template for new construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed.

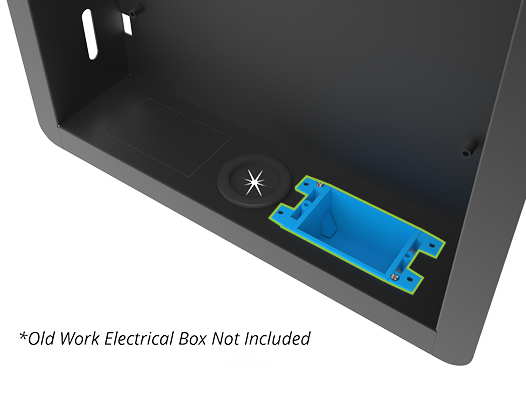

Metal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall.

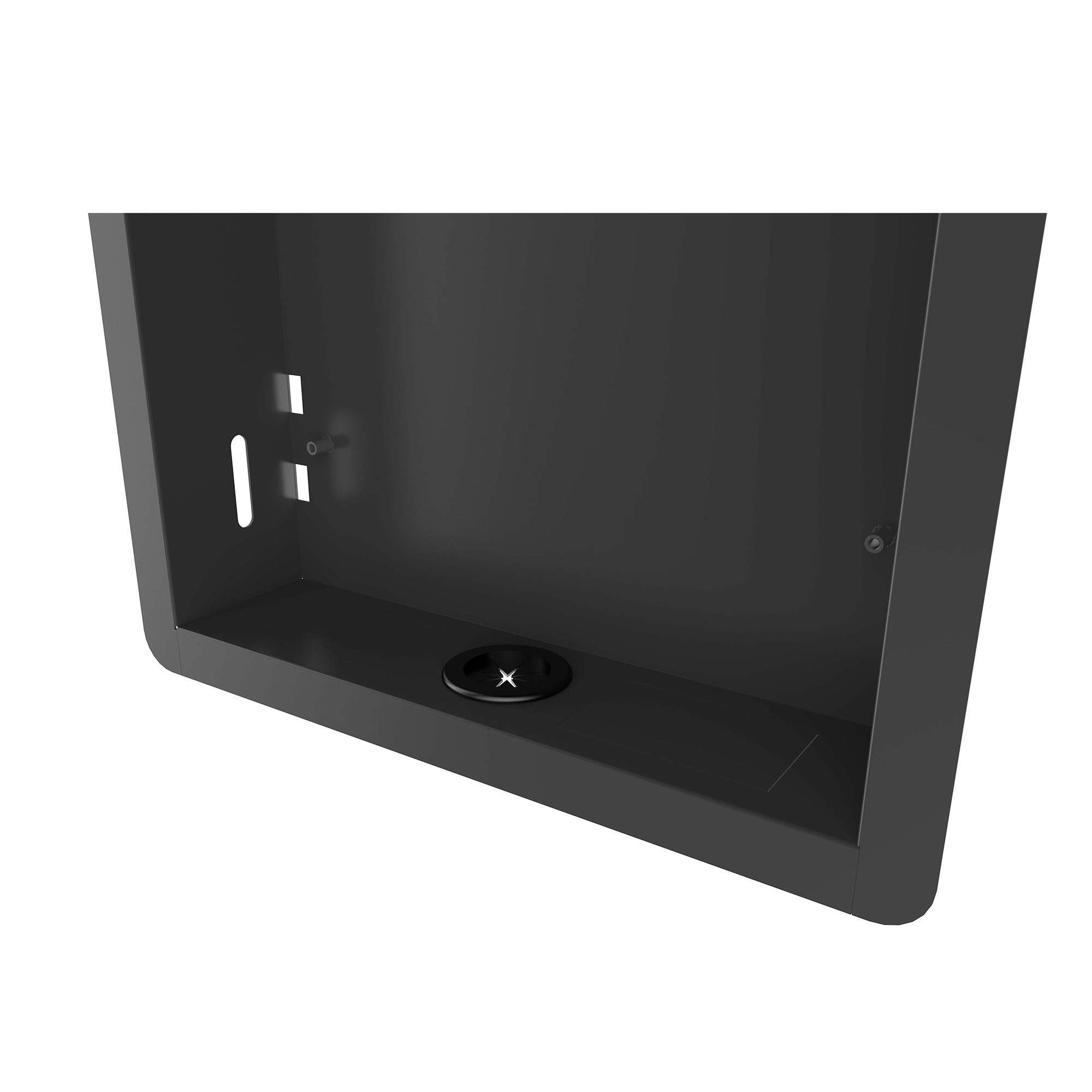

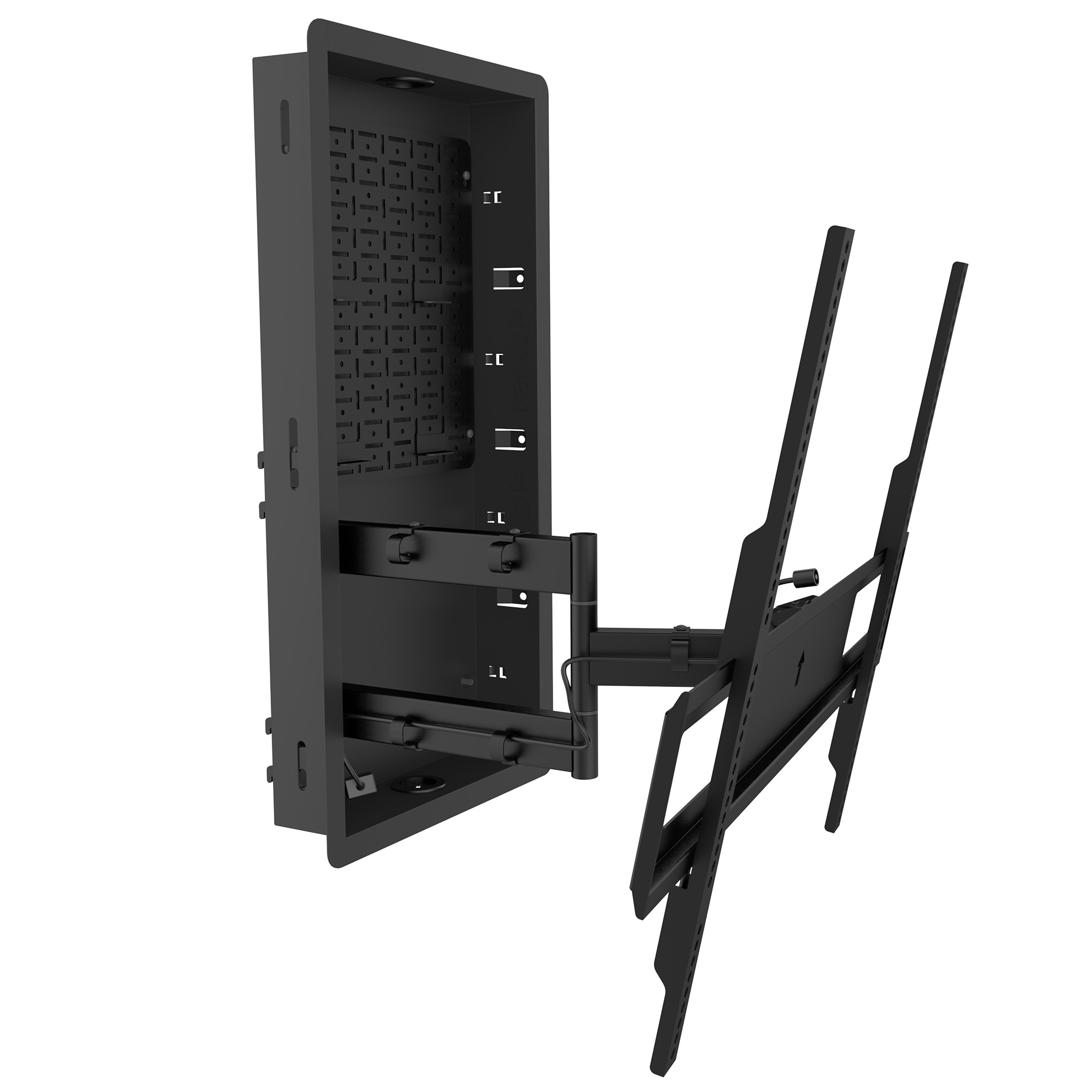

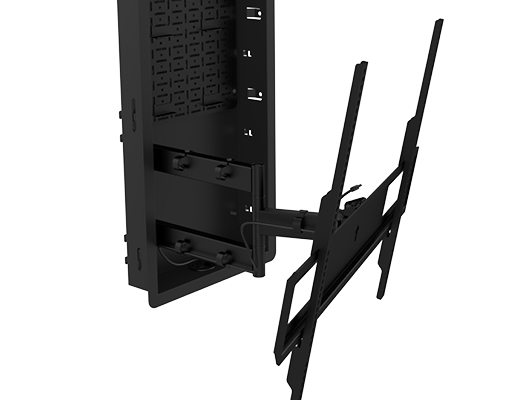

Metal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess.

Specs

It's in the details

Warranty

What’s Included

R600 Pro-Series Recessed In-wall TV Mount
Drywall Template
In-Wall Template
Hardware
Manual(s)

100×100 to 800×600

+10° to -2°

Tilt Angle

90°

Swivel in either direction
(dependent on TV size)

Specifications

TV Sizes: 65” to 90”
Weight Allowance: 135 lb (61 kg)
VESA Sizes: 100×100 to 800×600

Measurements

Shipping box weight: 48.5 lb (22 kg)
Shipping box dimensions: 36.8” x 20.7” x 5.7”
(93.5 x 52.5 x 14.5 cm)
Product weight: 45.2 lb (20.5 kg)
UPC: 800152721668

Documentation

R600 Multilingual Manual (English | French | Spanish)

R600 Product Sheet (English)

R600 Technical Drawing

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
