T6090
Tilting TV Mount
DISCONTINUED
Showcase what you love. Now that you’ve invested in a giant screen, get it fastened to the wall securely with the T6090, and easily tilt it to the viewing angle you want. As long as your TV is under 200 pounds, you’re in business. Accommodating a wide range of VESA patterns, your TV is almost certain to fit perfectly. To move your TV left or right, use the quick-release cords to detach and re-attach wherever you see fit. Your TV will sit a mere 2” from the wall. Get the mount that will make you proud.
Now that you’ve invested in a giant screen, get it fastened to the wall securely with the T6090, and easily tilt it to the viewing angle you want. As long as your TV is under 200 pounds, you’re in business.
Features at a glance
- Supports Up to 200 Pounds
- Fits VESA Sizes to 1100×600
- 15 Degrees of Tilt
- Tilt Mechanism
- Tilt Lock Screws
- Strong Wall Plate
- Strong Wall Plate
The T6090 supports a maximum of up to 200 pounds.

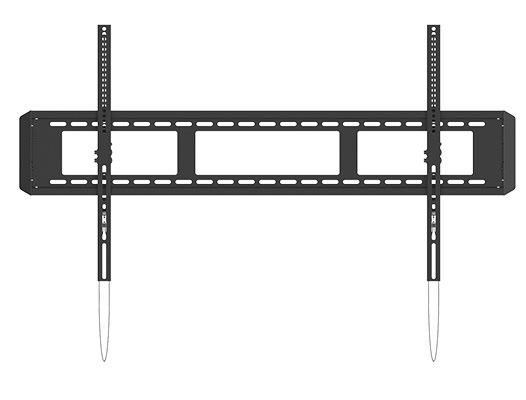

The T6090 is compatible with a range of VESA patterns from 400×400 up to 1100×600, to support even the largest TVs.
With the T6090, your TV can be tilted up to 10° forward and 5° backward. You can easily make small but important changes to the tilt of your TV. Eliminate glare and enjoy the perfect angle with this convenient feature. The tilt system comes pre-tensioned from the factory, but can be tightened if necessary.
With the touch of your finger, effortlessly tilt your TV forward to reduce glare and find the best viewing angle.

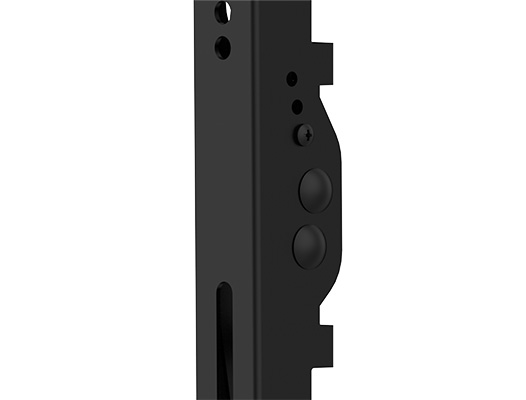

Using the included tilt lock screws, you can lock your TV at fixed intervals of +5°, 0°, and -5°. This added feature makes it easy to guarantee the selected position.
The T6090 is designed with two rows of mounting slots for extra strength and, using up to six lag bolts on three studs, supports very heavy TVs up to 200 pounds. It provides some offset abilities depending on your TV size, allowing you to position your TV across the wall plate. Made of solid steel, the 45” wall plate mounts on either three 16” studs or two 24” studs.

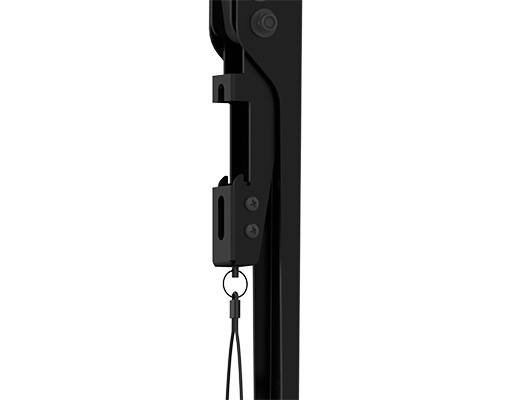

The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.
Specs
It's in the details
5
Year Warranty
What’s Included

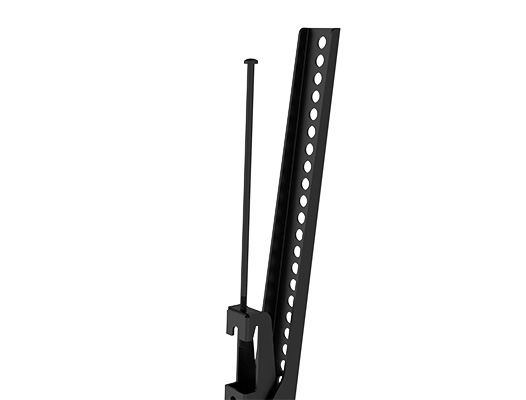

Adjustable horizontal leveling
Installation Manual and all mounting hardware for wood stud and concrete installation
+10° to -5°
Tilt
2″
from the wall
400×400 to 1100×600
Specifications
TV Sizes: 60” to 90”
Weight Allowance: 200 lbs (91 kg)
VESA Sizes: 400×400 to 1100×600
Wall Plate: 45” (114.3 cm); Accommodates three studs with up to 16″ spacing, or offsetting on 24” stud centers
Material: Solid steel with durable powder coated finish
Measurements
Shipping box weight: 15.9 lbs (7.2 kg)
Shipping box dimensions: 47.2” x 10.2” x 3.9” (120 x 26 x 10 cm)
Product weight: 12.6 lbs (5.7 kg)
UPC: 800152712192
Documentation
No stress, just support
Our customer support team is ready to help. Reach out with any pre-purchase or install questions, and we’ll be happy to help you get set up.
