PT400
Low-Profile Tilting TV Mount
The Kanto PT400 low profile tilting TV mount is designed to improve line-of-sight with your TV. Its pre-tensioned mounting brackets provide 12° of forward tilt and come equipped with adjustable screws to facilitate precision leveling. Torx screws and a locking feature are also included to protect against theft, while quick-release cords provide an easy way of removing your TV when unlocked. Featuring a 35-inch wall plate, the Kanto PT400 low profile tilting TV mount ensures an easy installation on both 16 and 24-inch stud centers, and comes with all the necessary hardware for wood stud and concrete installations.
Find your ideal viewing angle.
Features at a glance
- 12° of Forward Tilt
- Low Profile Design
- Extra Wide Wall Plate
- Post-Installation Leveling
- Quick Release Cords
- Added Security

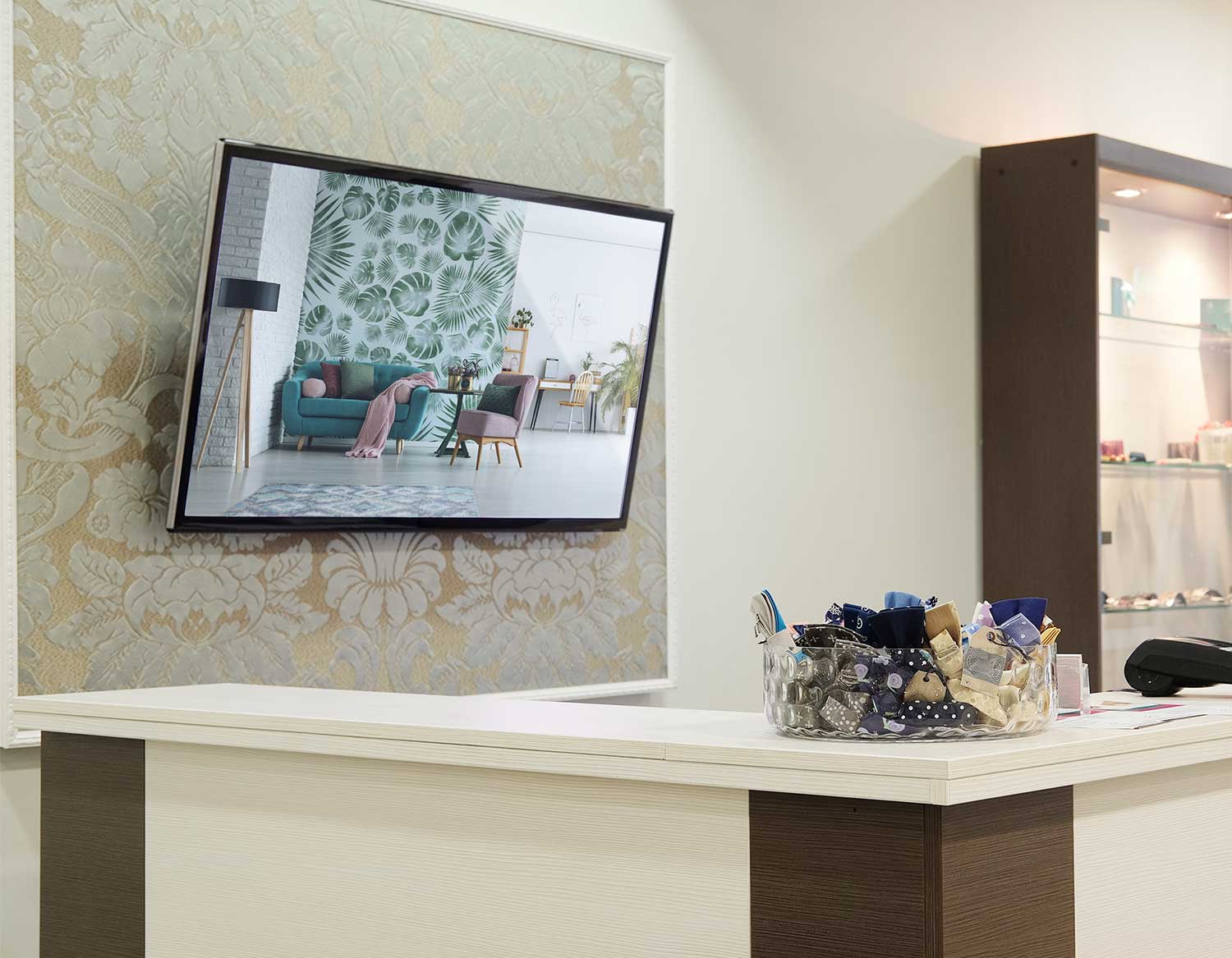

Tilt your TV up to 12° forward to reduce glare and improve line-of-sight with your screen.

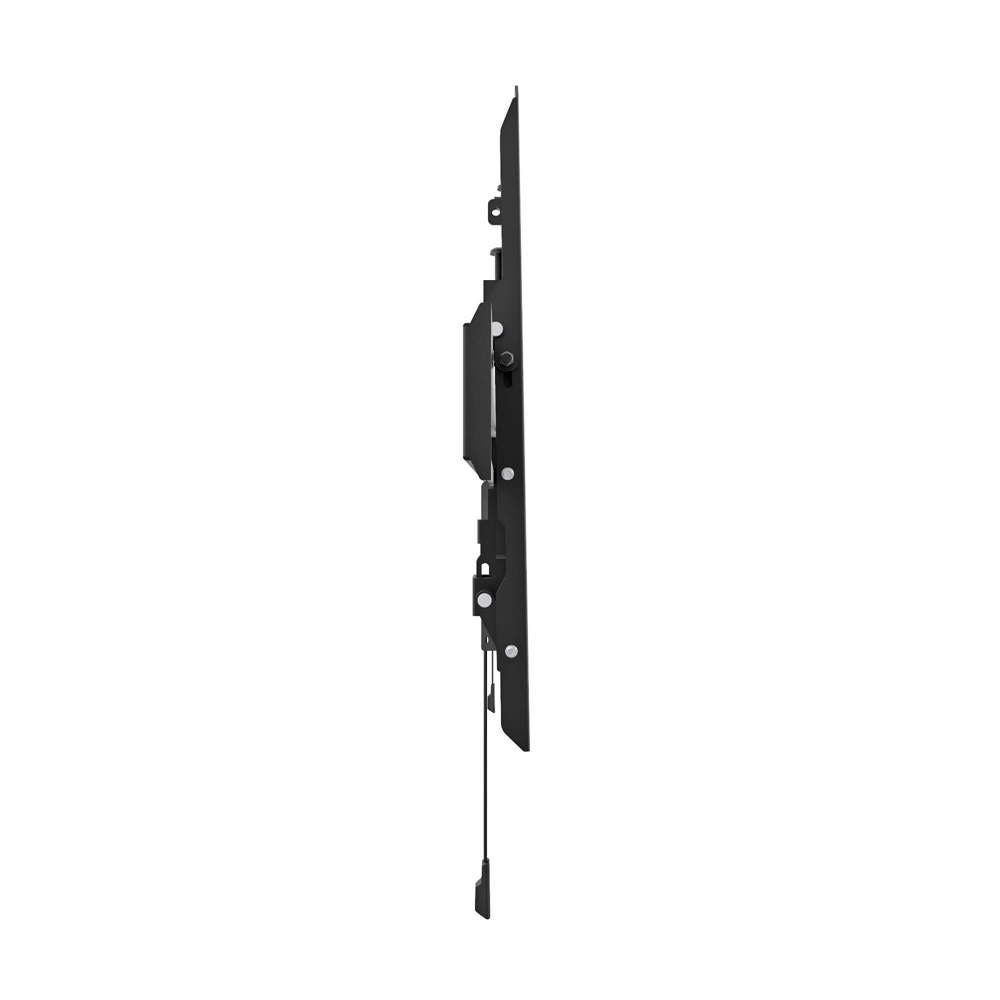

With a combined thickness of 1.4”, the Kanto PT400 low profile tilting TV mount’s slim wall plate and mounting brackets allow your TV to sit remarkably close to the wall.
Measuring 35″ wide, the solid steel wall plate can be installed across three studs with 16″ spacing, or two studs with 24″ spacing.
Ensure your TV is perfectly level by adjusting the individual screws located on top of each mounting bracket.
Removing your TV from the wall is as easy as pulling on two quick-release cords. Each cord includes a magnetic end, allowing them to be conveniently tucked out of sight.
Two Torx screws can be tightened with the provided key to prevent your TV from being removed. Alternatively, a lock can be attached to the mounting brackets to secure them in place (lock not included).
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto PT300 or PT400 Tilting TV mount.
Visit our support hub for help.
ADDITIONAL QUESTIONS?
Looking for an answer and want to help yourself? Visit our self-serve Knowledge Base for questions that other customers might have already asked. And if your question isn’t already answered, reach out and we will be happy to help.
Visit our Knowledge BaseSpecs
It's in the details
5
Year Warranty
What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installation
Profile: Sits 1.4″ (3.5 cm) from the wall
Material: Solid steel with durable powder coated finish
Integrated cable management
Adjustable horizontal leveling
Magnetic quick-release cords
Lockable arms (lock not included)
100×100 to 800×400
Specifications
TV Sizes: 40” to 90”
Weight Allowance: 200 lb (91 kg)
VESA Sizes: 100×100 to 800×400
Wall Plate: 34.8” (88.4 cm) wall plate allows mounting to three 16” studs, or offsetting on 24” stud centers
Measurements
Shipping box weight: 10.8 lb (4.9 kg)
Shipping box dimensions: 36.2″ x 6.8″ x 3.3″ (91.9 x 17.3 x 8.4 cm)
Product weight: 8.2 lb (3.7 kg)
UPC: 800152718224
