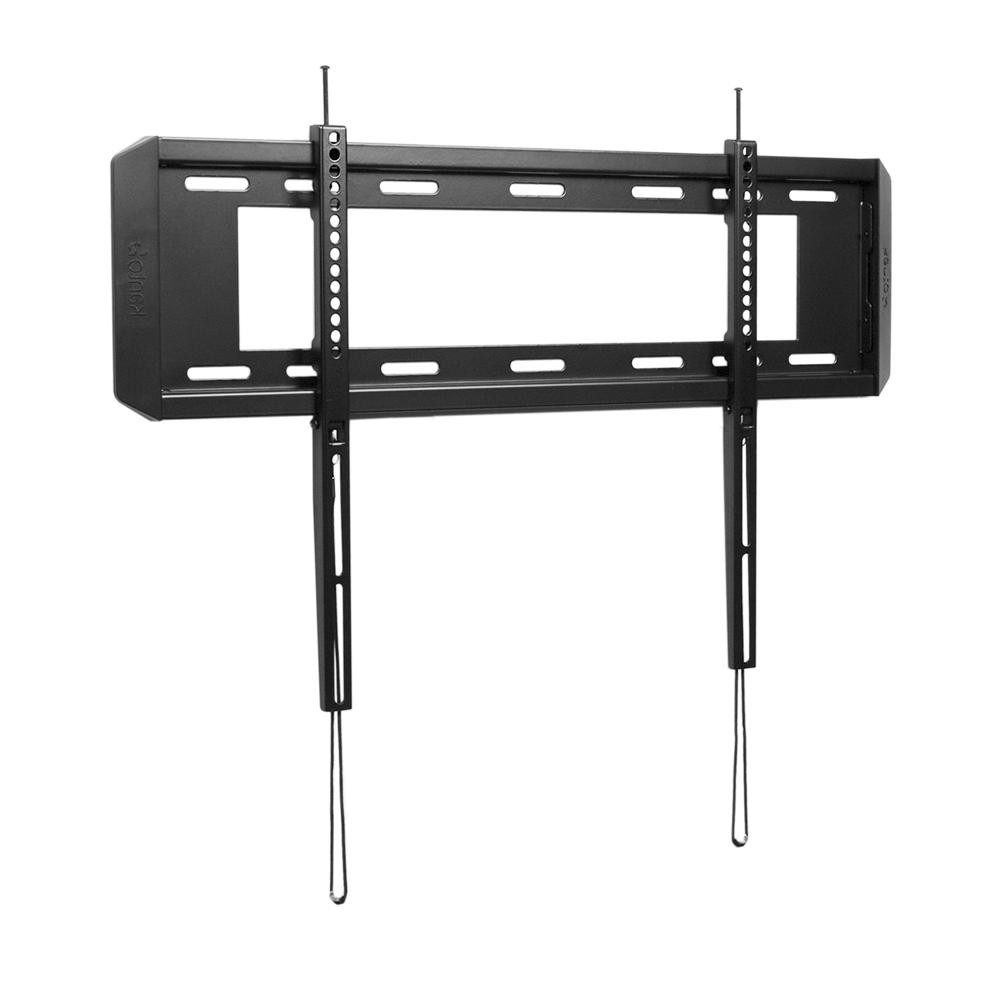

F3760. Peace of mind in securing your new TV.

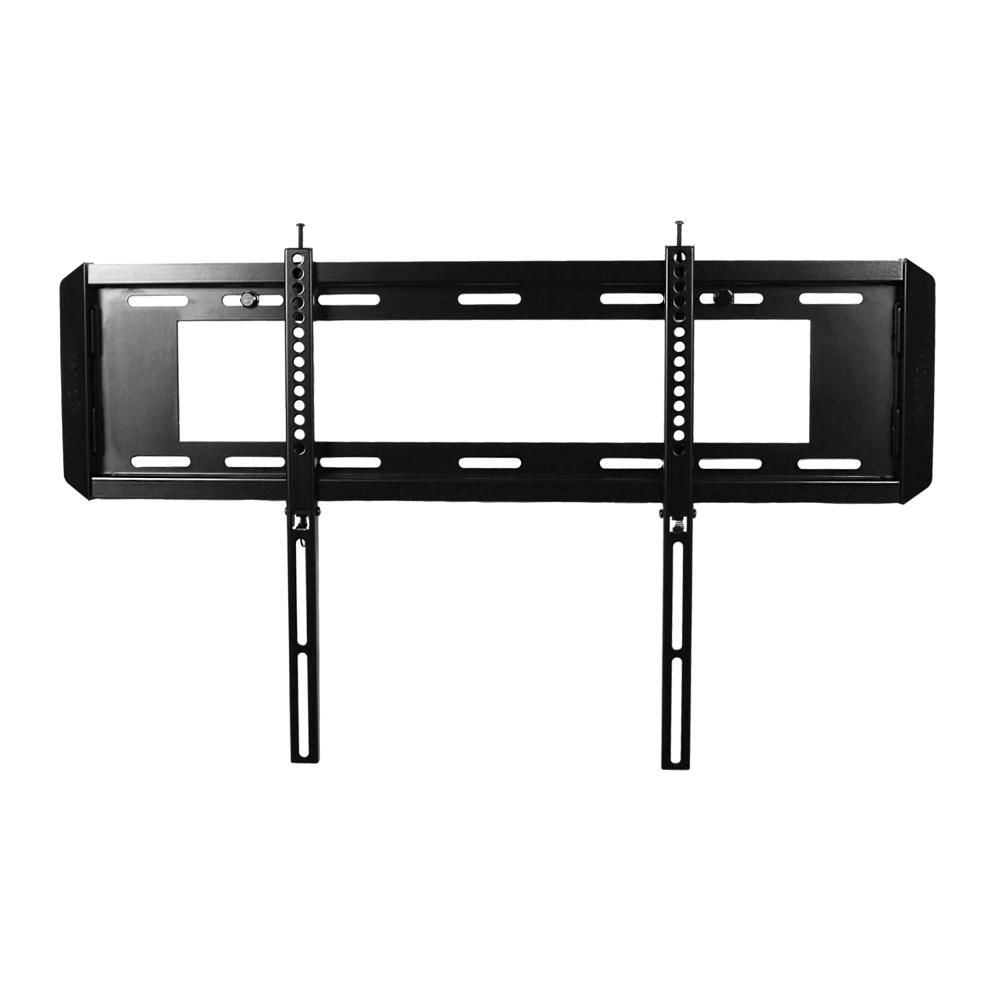

STRONG WALL PLATE
The F3760 is designed with two rows of mounting slots for extra strength. Using four lag bolts to support heavier TVs up to 150 pounds, this fixed TV mount provides offset abilities, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 27” wall plate mounts on 16” and 24” stud spacing.
FITS VESA SIZES TO 600×400
The F3760 is compatible with a range of VESA patterns from 100×100 up to 600×400.
ATTRACTIVE END CAPS
Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.

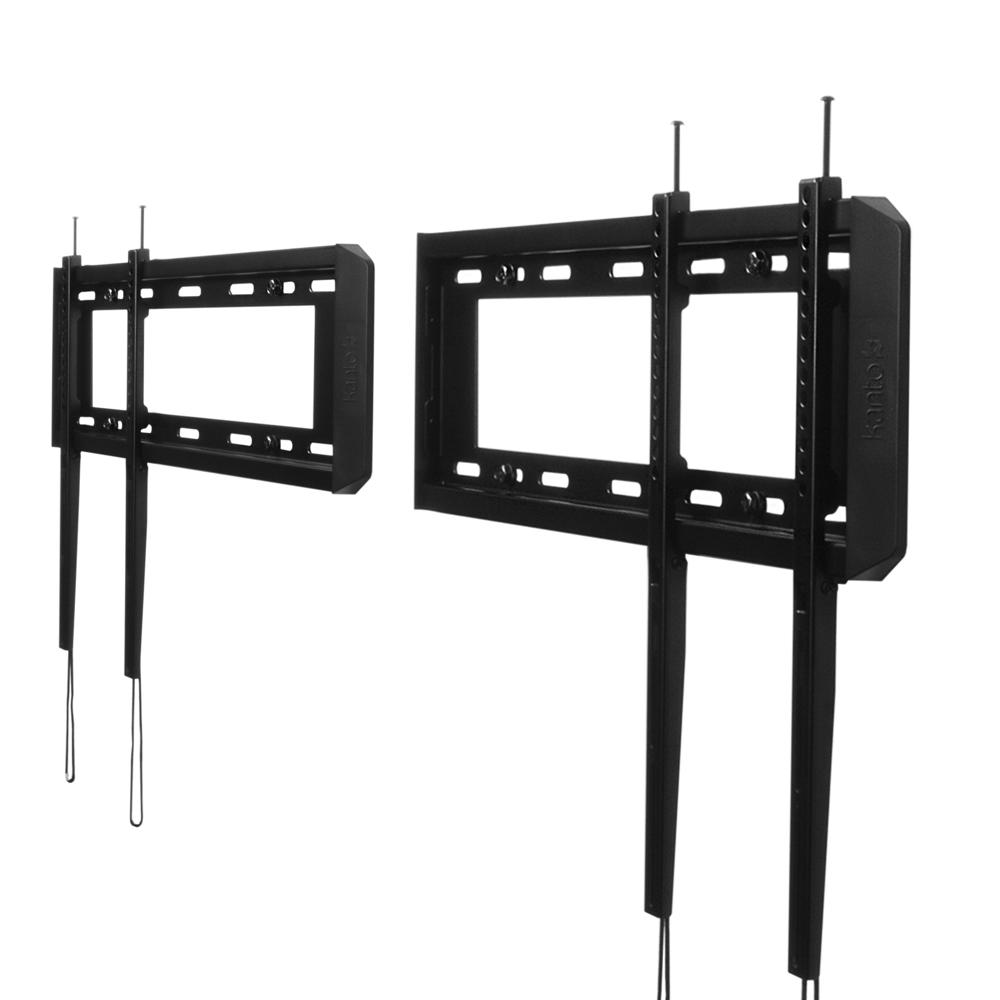

SHIFT YOUR TV LEFT OR RIGHT
Once your mount is installed you can still move the position of your TV left or right. Smoothly slide your TV across the wall plate to get the perfect viewing position. The range of movement depends on your TV size.
QUICK LOCK MECHANISM
The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.
HORIZONTAL LEVELING SCREWS
Located on each of the vertical bracket arms is a leveling screw that is used to fine-tune the angle of your TV. If you notice that your TV is not completely level, use the leveling screws to make the necessary adjustments so that it’s perfectly aligned.
TV Sizes: 37” to 60”
Weight Allowance: 150 lbs (68 kg)
VESA Sizes: 100×100 to 600×400
Wall Plate: 27″ (68.6 cm); Accommodates dual studs with up to 24″ spacing
Profile: Sits 1″ (2.5 cm) from the wall
Material: Solid steel with durable powder coated finish and adjustable horizontal leveling.
Contents: Installation Manual; All mounting hardware for wood stud and concrete installation
Warranty: 5 years
Weights and Measurements
Shipping box weight: 7 lbs (3.2 kg)
Shipping box dimensions: 28.4” x 9.1” x 1.6” (72.2 x 23 x 4 cm)
Product weight: 6.8 lbs (3.1 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
