PMX800

Name: PMX800
SKU: PMX800
Price: 399.99 USD
Availability: InStock

PRO

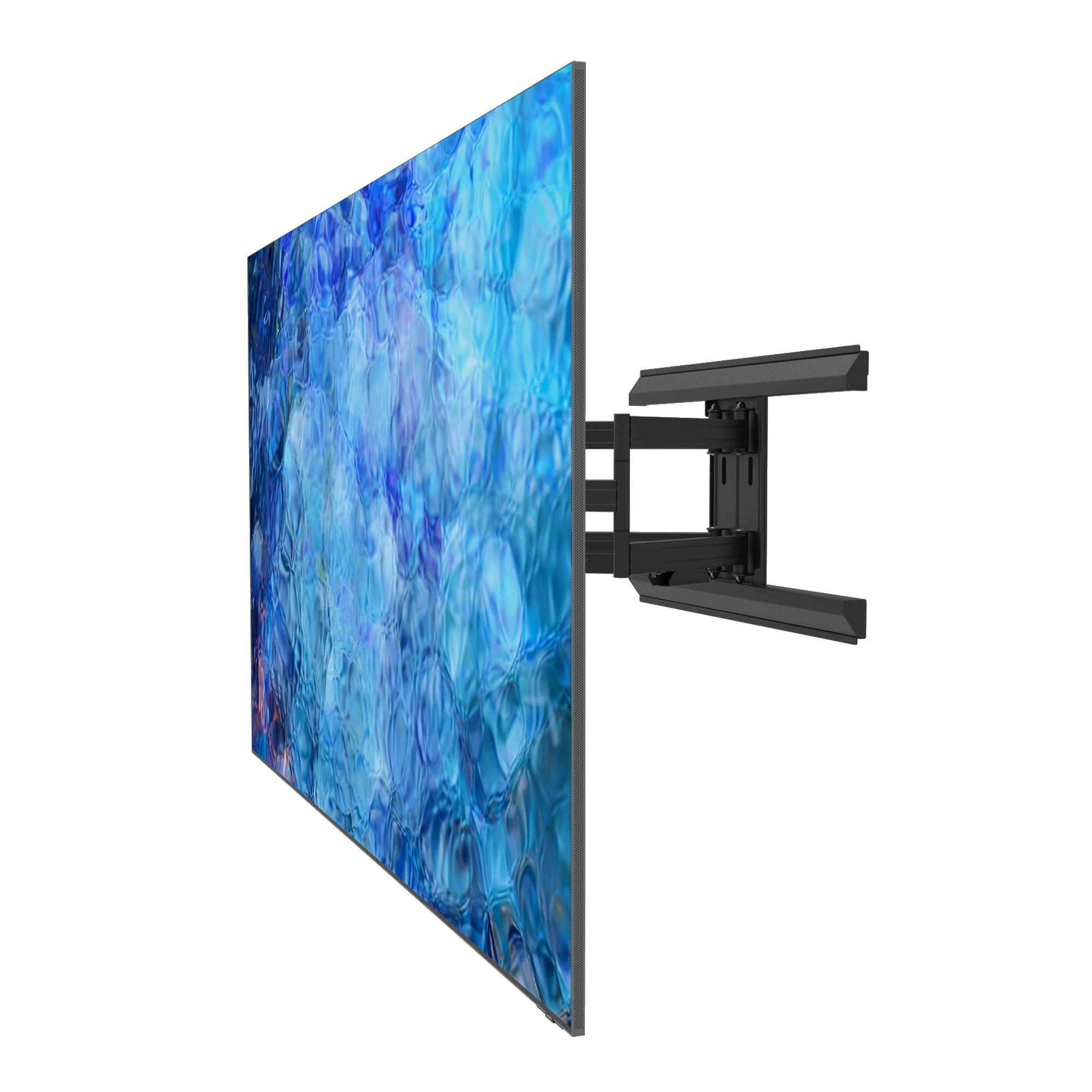

Full Motion TV Mount for Large Screens

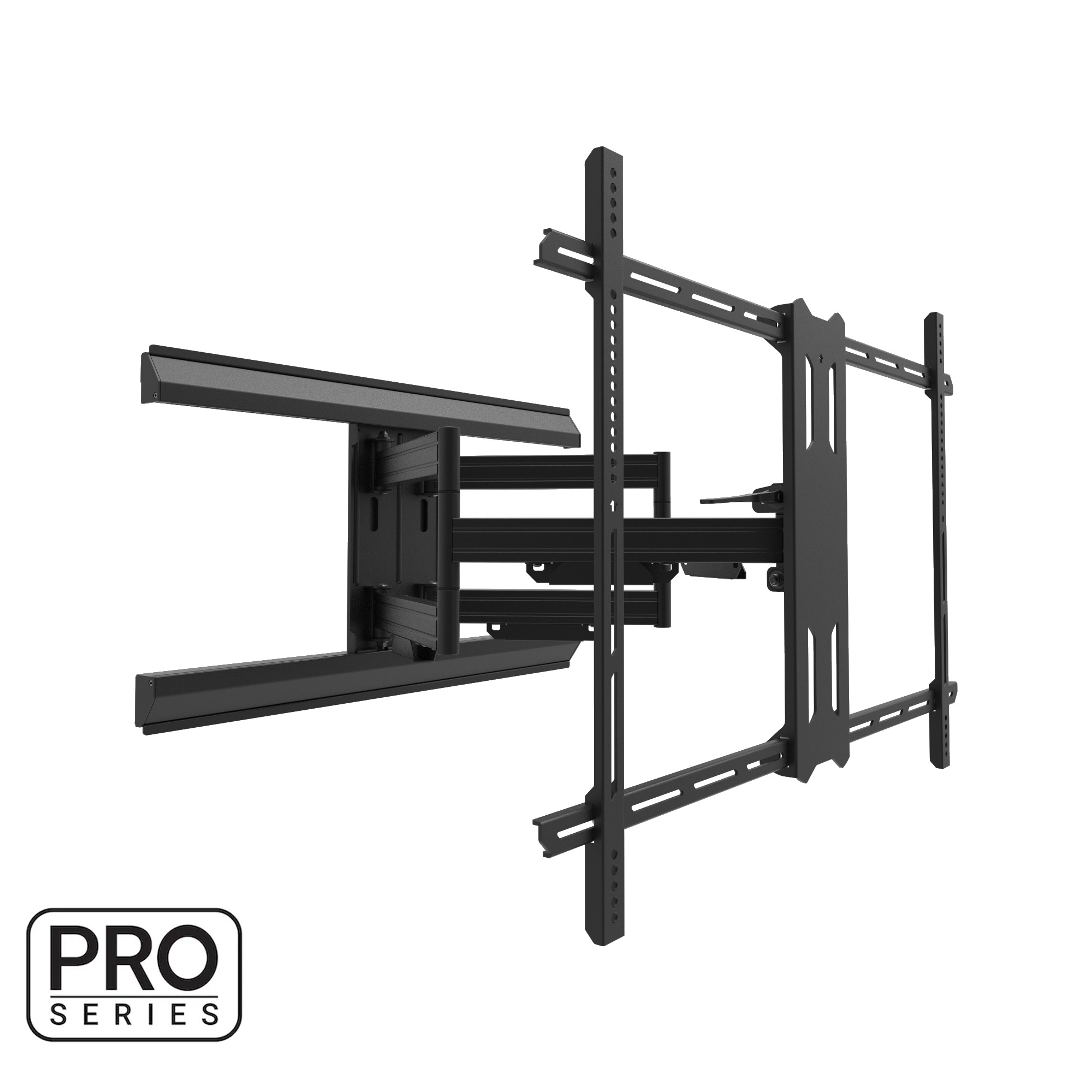

Don’t let the size of your TV dictate where you put it. Capable of supporting panels up to 120”, PMX800 adjustable wall mount can be horizontally offset 11” in either direction to dial in the lateral placement of your display. An oversized 900×600 VESA interface improves compatibility with extra-large touch screens and provides flexibility for vertical positioning. With 31.3” of extension, this full motion wall mount gives you all the swivel needed to get the perfect viewing angle. Its low-profile design allows your TV to sit 2.6” from the wall when fully retracted and features all-metal cable management and lag bolt covers to stand the test of time. Toolless tilt rounds off PMX800’s extensive feature set allowing for on-the-fly adjustments.

200 x 100 - 900 x 600

200 lb

55″ - 120"

Up to 31.3"

Full Motion

PRO

Categories: Full Motion Wall Mounts, Pro Series, TV Mounts Tags: extra large tv mount, pmx800

Features at a glance

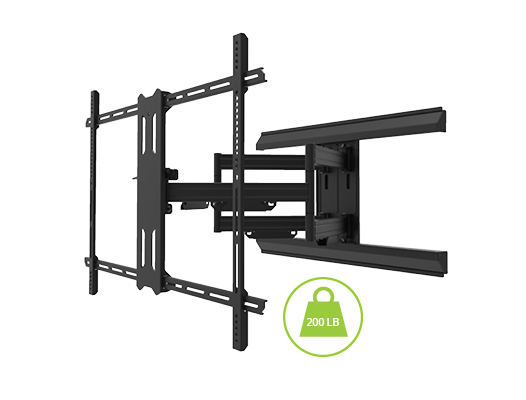

Whether you’re designing the ultimate home theatre, or installing interactive touch panels, PMX800’s 200 lb. weight capacity ensures compatibility with displays of any size.

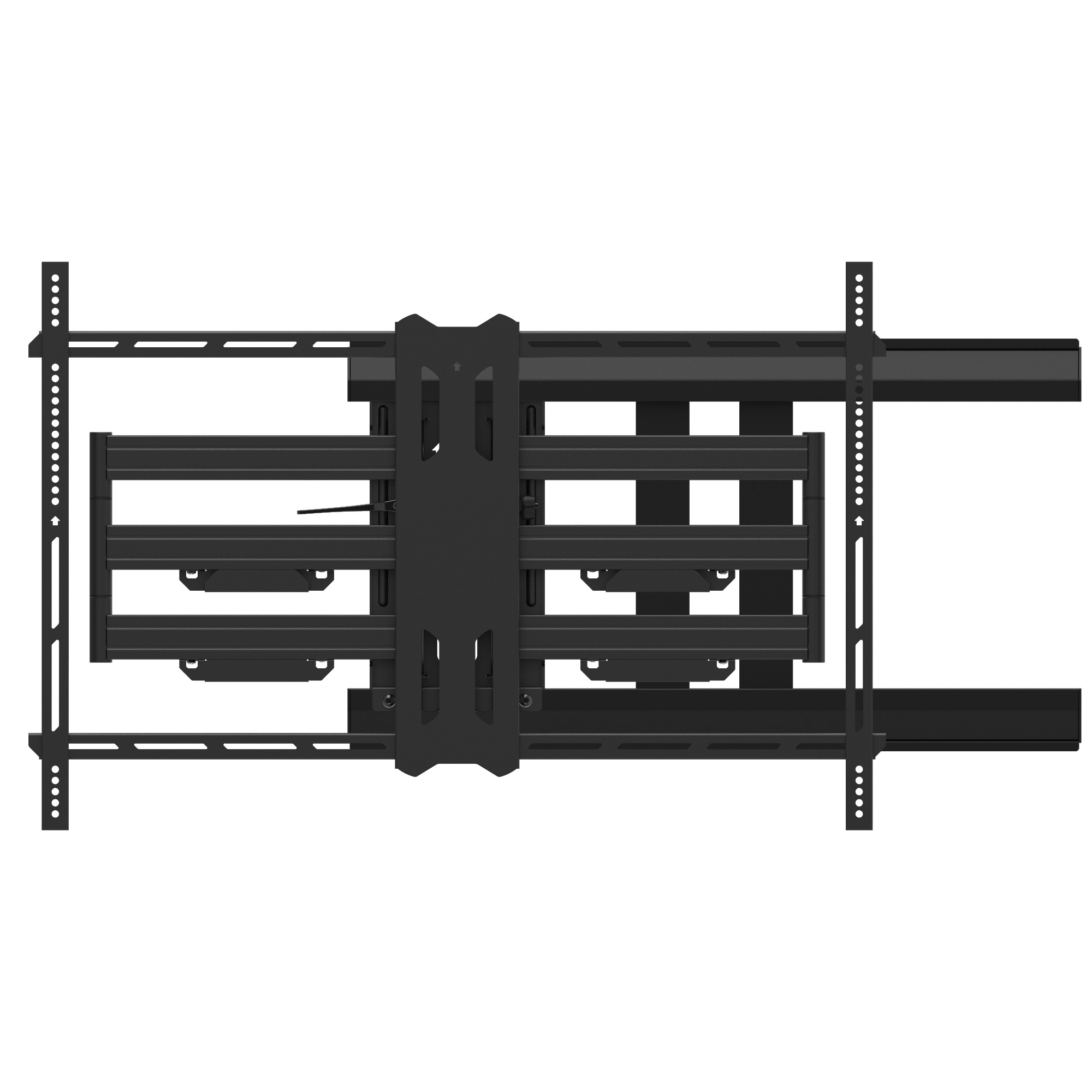

Even if your studs are in a suboptimal position, you can still nail your TVs placement with 22 total inches of horizontal offset. Oversized TV brackets provide flexibility to achieve the perfect height.

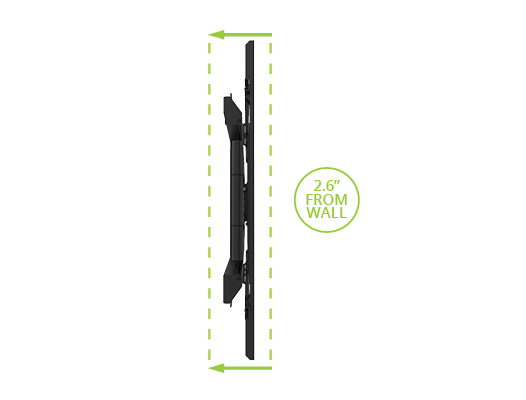

The unique design of this articulating wall mount allows your TV to sit 2.6 inches from the wall when fully pushed in.

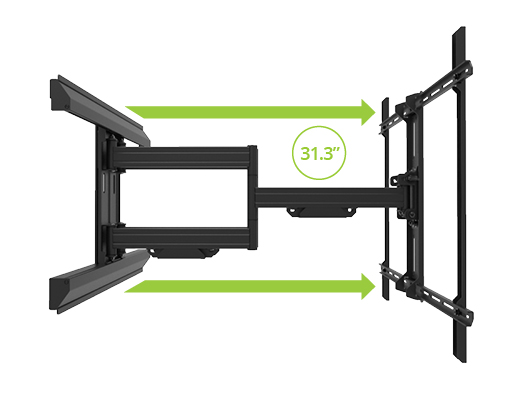

Easily reach over fireplaces or out of recessed locations with 31.3” (79.5 cm) of extension.

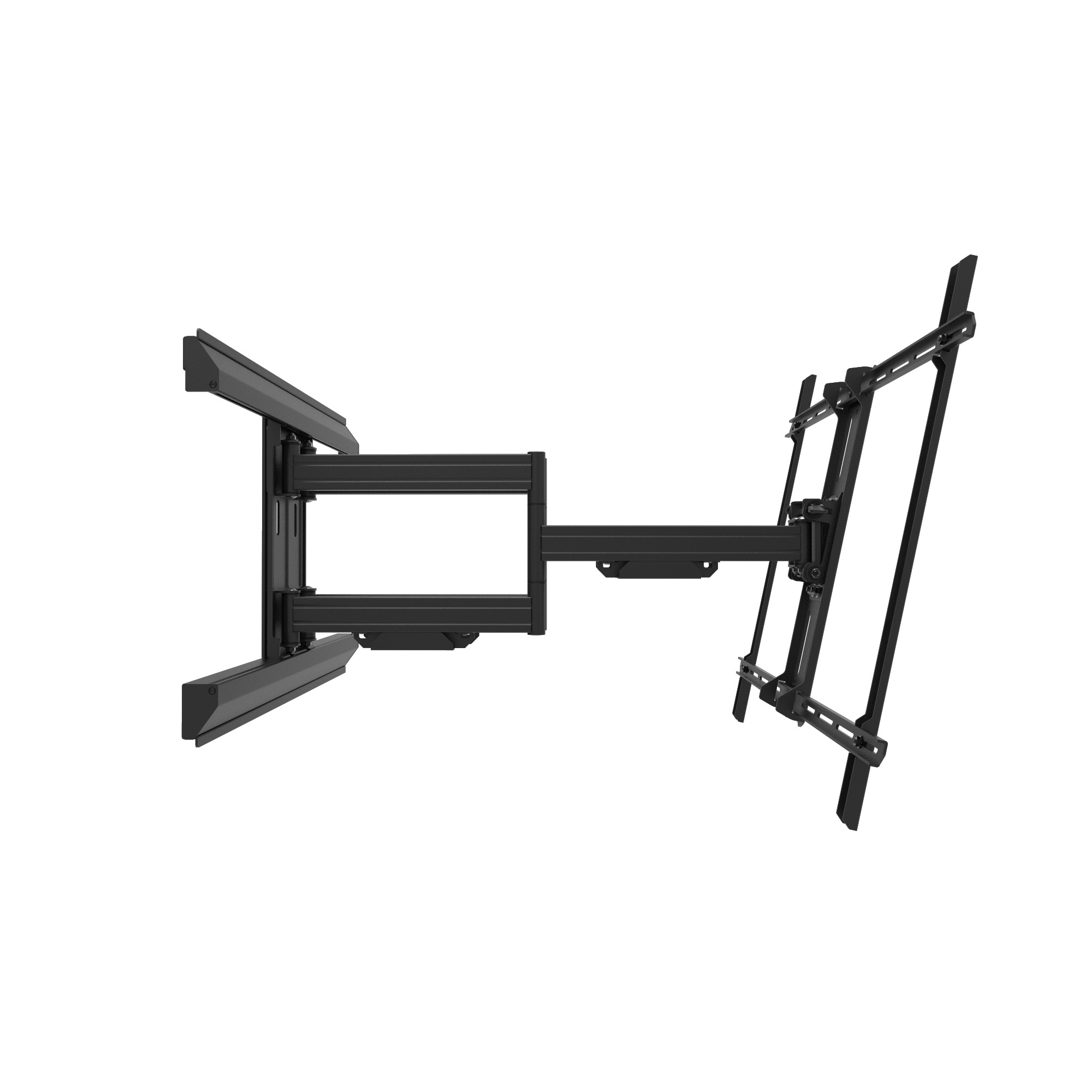

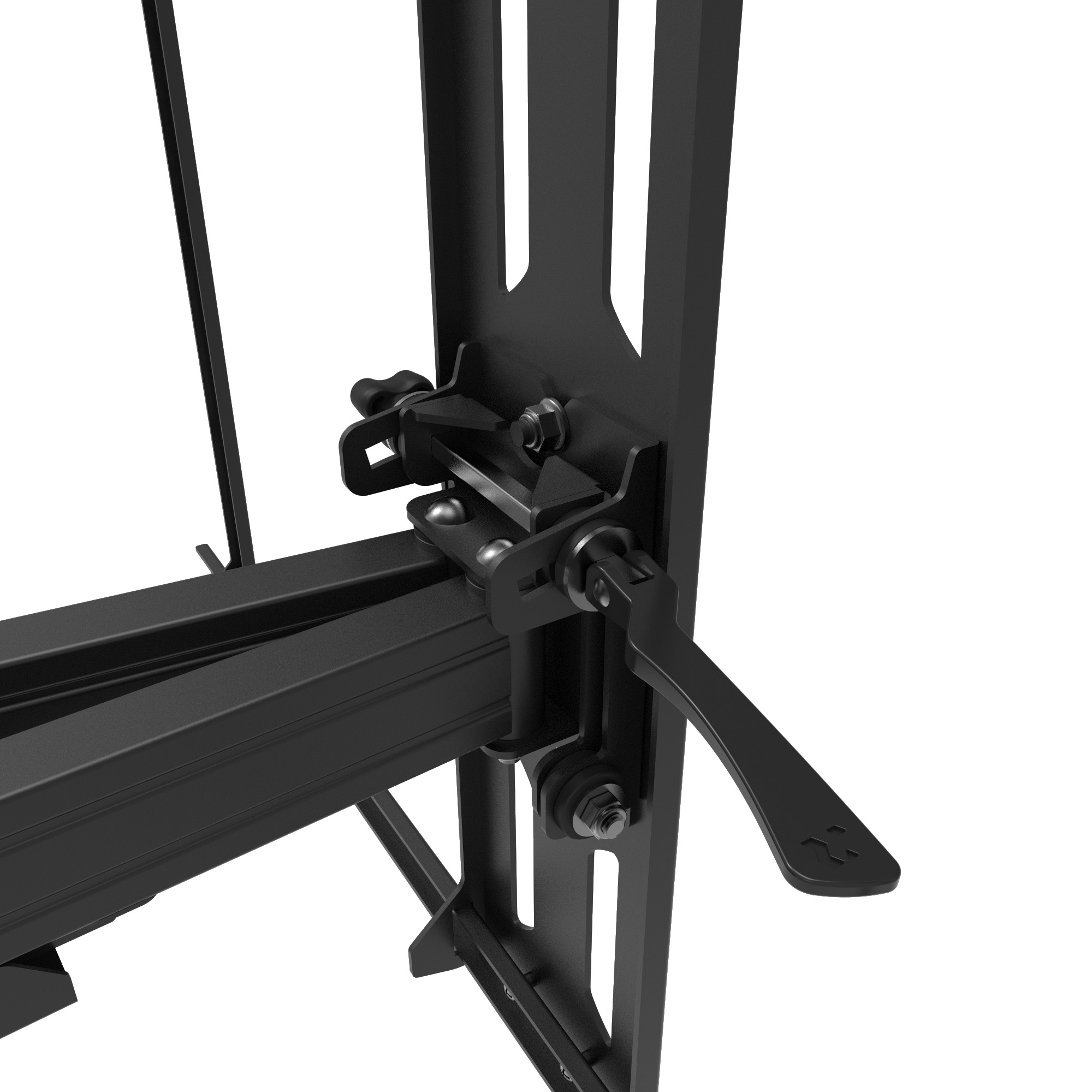

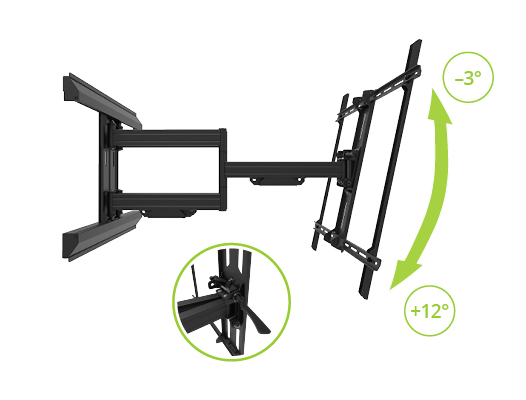

A toolless cam lever tilt mechanism allows for on-the-fly adjustments. Tilt your screen forward up to 12 degrees or backwards 3 degrees

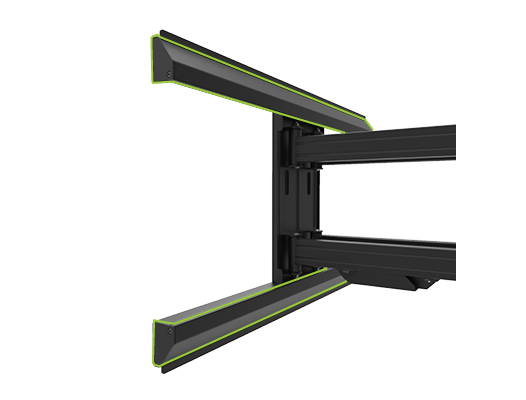

Maintain a clean, finished appearance while hiding any sign of installation with the aluminum wall plate covers on this fully featured TV wall mount.

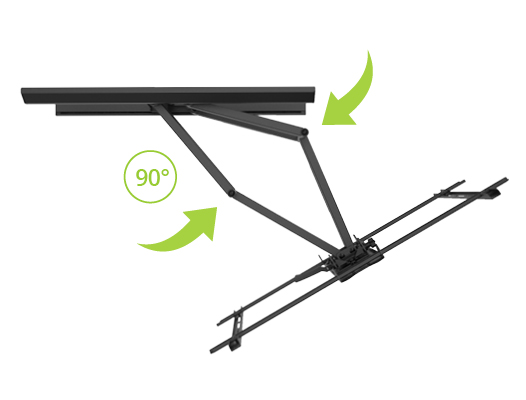

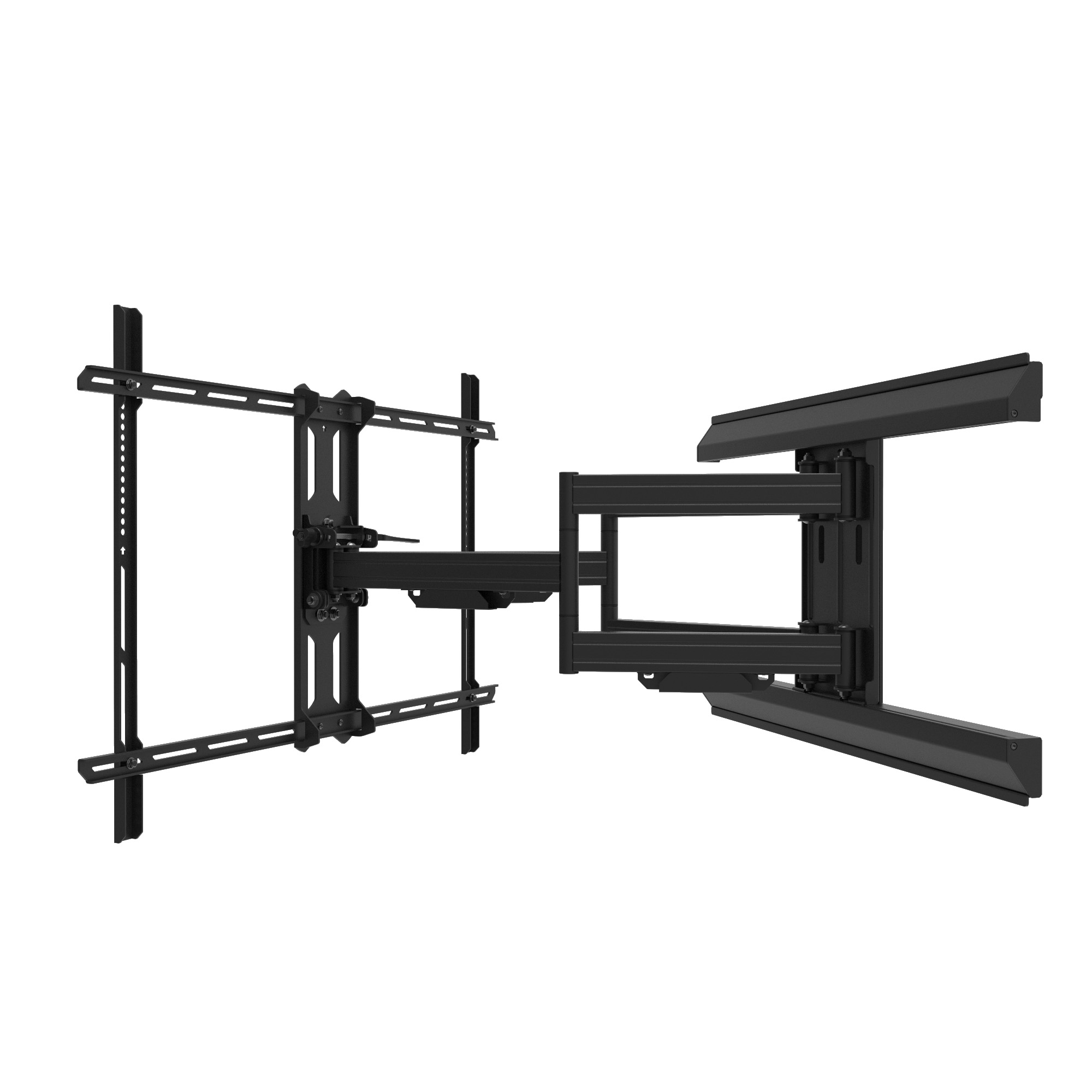

Achieve the best viewing angle regardless of where you’re sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.

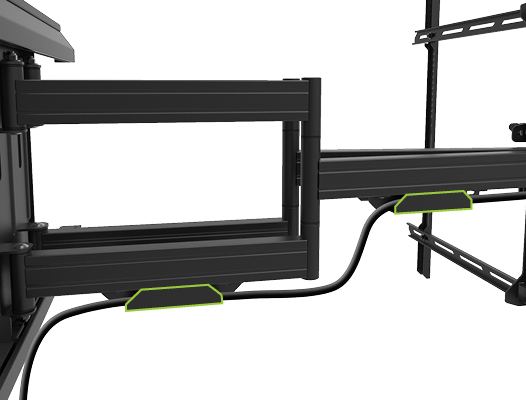

PMX800’s cable management system is made of metal to stand up to regular use and reduce potential service calls.

Because every installation is unique, this pro series full motion wall mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.

Product Walkthrough

Ultra-easy install

Each mount includes a carefully packaged box containing all the lag bolts, anchors, washers, spacers and screws needed for installation. An included drill template makes marking holes for installation pain-free.

Visit our support hub for help.

ADDITIONAL QUESTIONS?

Looking for an answer and want to help yourself? Visit our self-serve Knowledge Base for questions that other customers might have already asked. And if your question isn’t already answered, reach out and we will be happy to help.

Visit our Knowledge Base

Specs

It's in the details

Warranty

What’s Included

Paper wall template for marking pilot holes

Installation Manual

All mounting hardware for wood stud and concrete installation

+12° to -3°

Toolless Tilt

±90°

Swivel
Left or Right

2.6″ - 31.3"

Extension

Horizontal Offset: 22″ (55.8cm) of total horizontal offset

Integrated cable management
Adjustable horizontal leveling
Aluminum covers to hide lag bolts

200×100 to 900×600

Specifications

TV Sizes: 55” to 120”
Weight Allowance: 200 lbs (90.9 kg)
VESA Sizes: 200×100 to 900×600

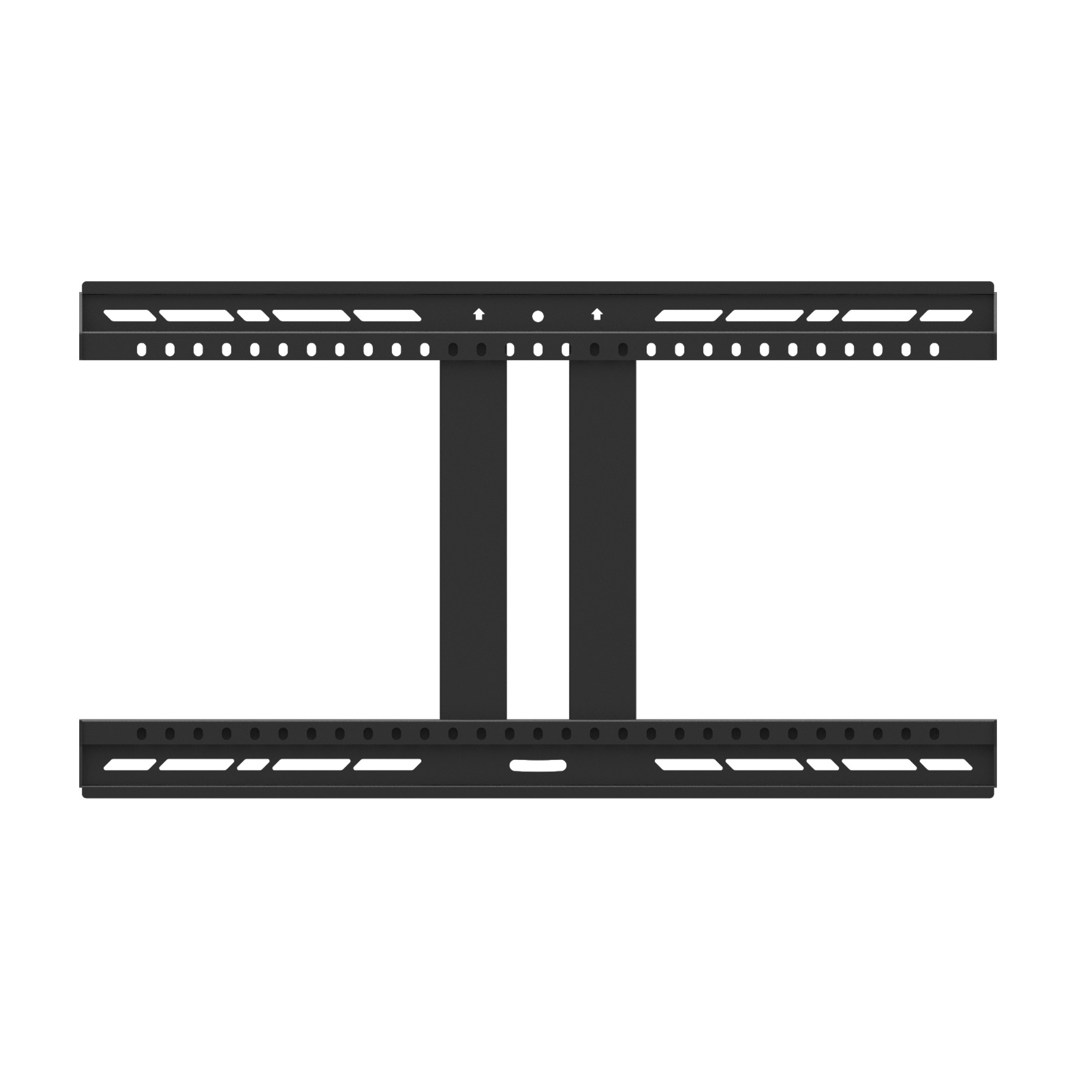

Wall Plate: 32.4″ (82.3 cm); Accommodates dual studs with up to 24″ spacing

Measurements

Shipping box weight: 58.4 lb (26.5 kg)
Shipping box dimensions: 41.6″ x 21.3″ x 4.9″
(105.7 x 58.3 x 12.5 cm)
Product weight: 48.3 lb (21.9 kg)
UPC: 800152721712

Documentation

PMX800 Multilingual Manual (English | French | Spanish)

PMX800 Product Sheet (English)

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
