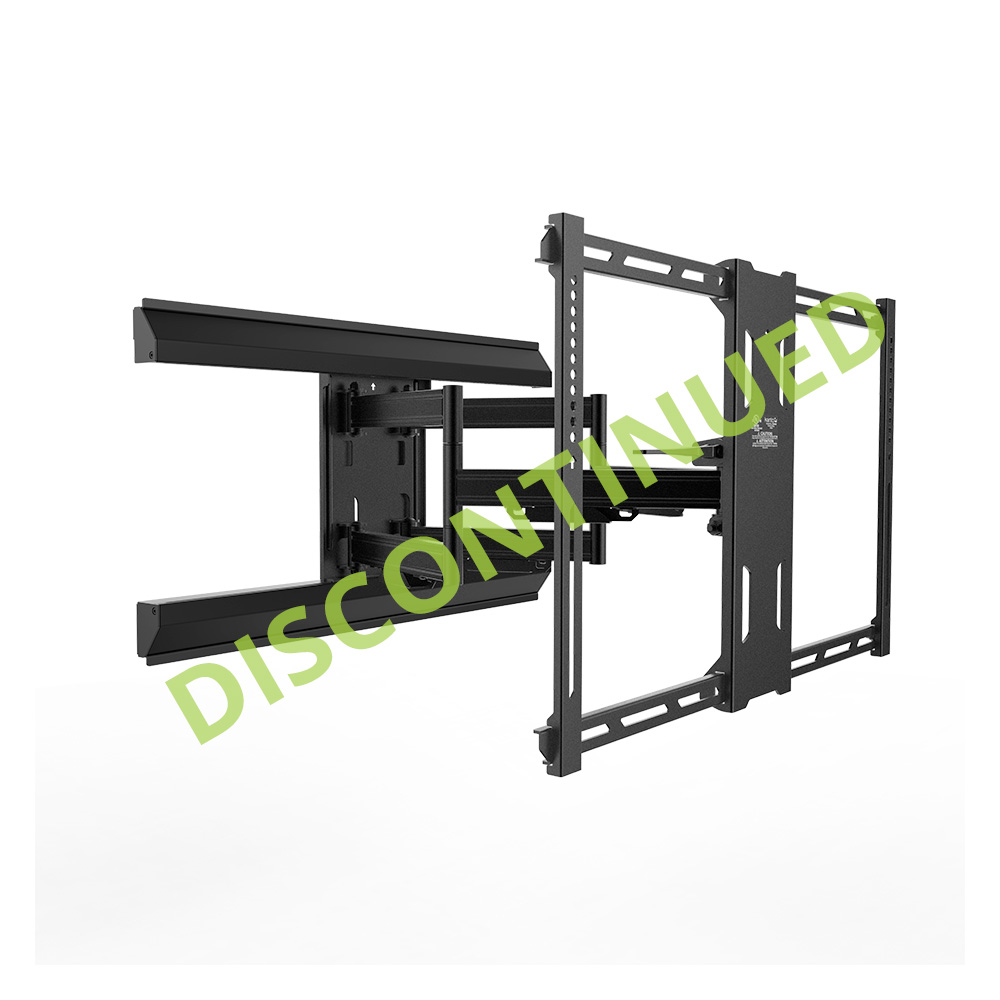

PMX680

$ 300

Full Motion TV Mount – Pro Series

Don’t let the size of your TV dictate where you put it. Capable of supporting TVs up to 80”, the PMX680 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 24” of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.5” from the wall when fully retracted and features cable management clips to keep your cables out of sight.

See Installation Video

TV Size 39″ – 80″
Max Weight 125 lb (57 kg)
Supports VESA 200×100 – 700×400
Extends 2.5″ – 24″ (6.3cm – 61.3cm)
Horizontal Offset 18” (45.6cm) of total offset

MSRP: $299.99 USD

Where to Buy
Colour

Clear selection
SKU: N/A Categories: , , Tag:

Features

Specifications

FAQ

Defy Gravity.

PMX680

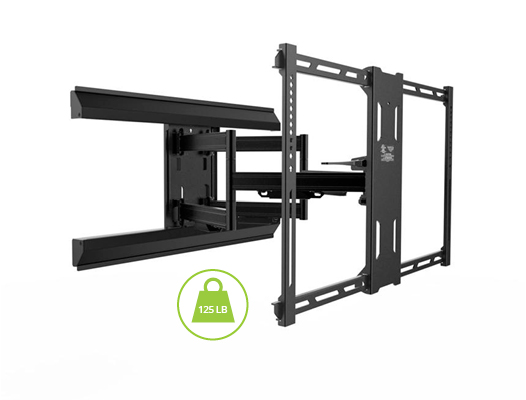

 SUPPORTS 125 POUNDS

The PMX680’s solid steel frame safely holds up to 125 lb (57 kg), even at full extension,

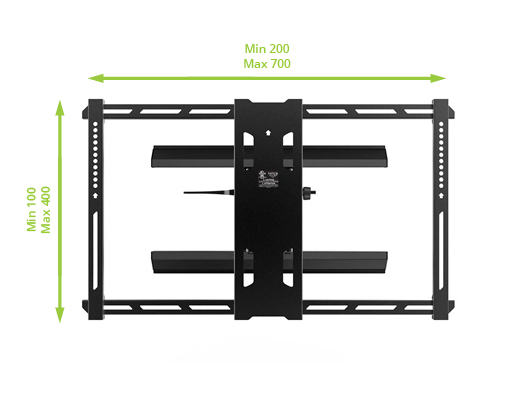

FITS VESA SIZES TO 700 x 400

Featuring a specially designed H-frame mounting bracket, the PMX680 accommodates any VESA size between 200×100 to 700×400.

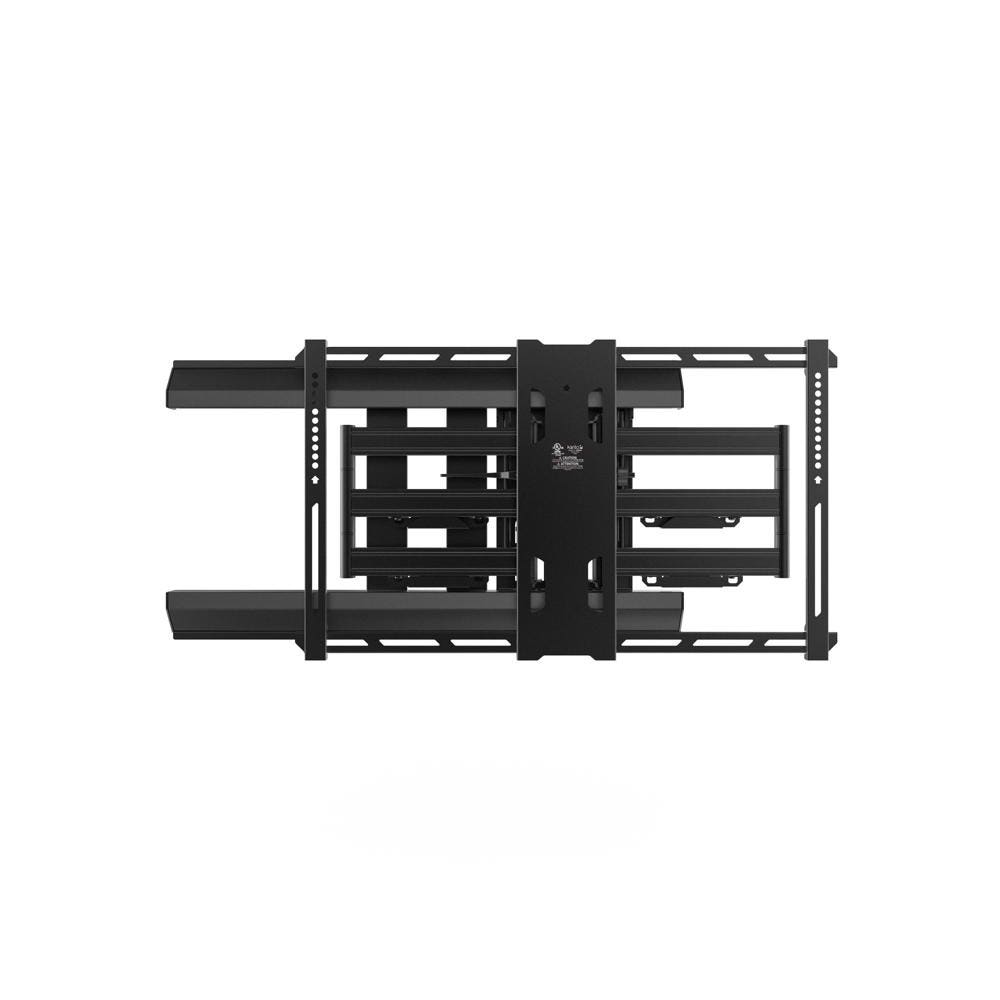

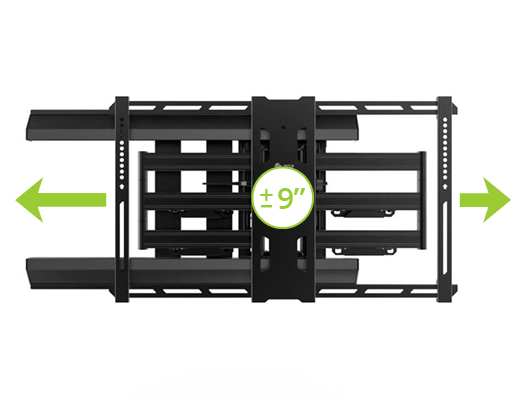

HORIZONTAL OFFSET

Center your TV on the wall regardless of where your studs are located by adjusting the PMX680’s arm assembly 9” (22.8 cm) left or right.

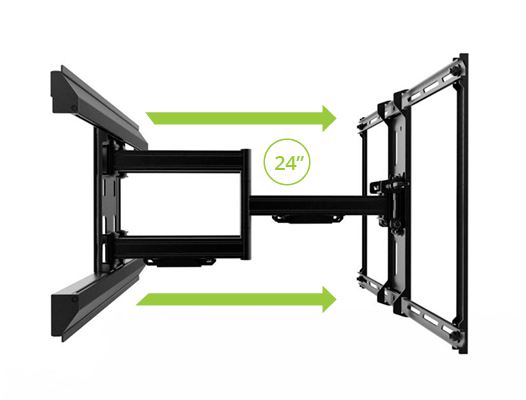

EXTENDS 24 INCHES

Easily reach over fireplaces or out of recessed locations with 24″ (61.3 cm) of extension.

PMX700
PMX700

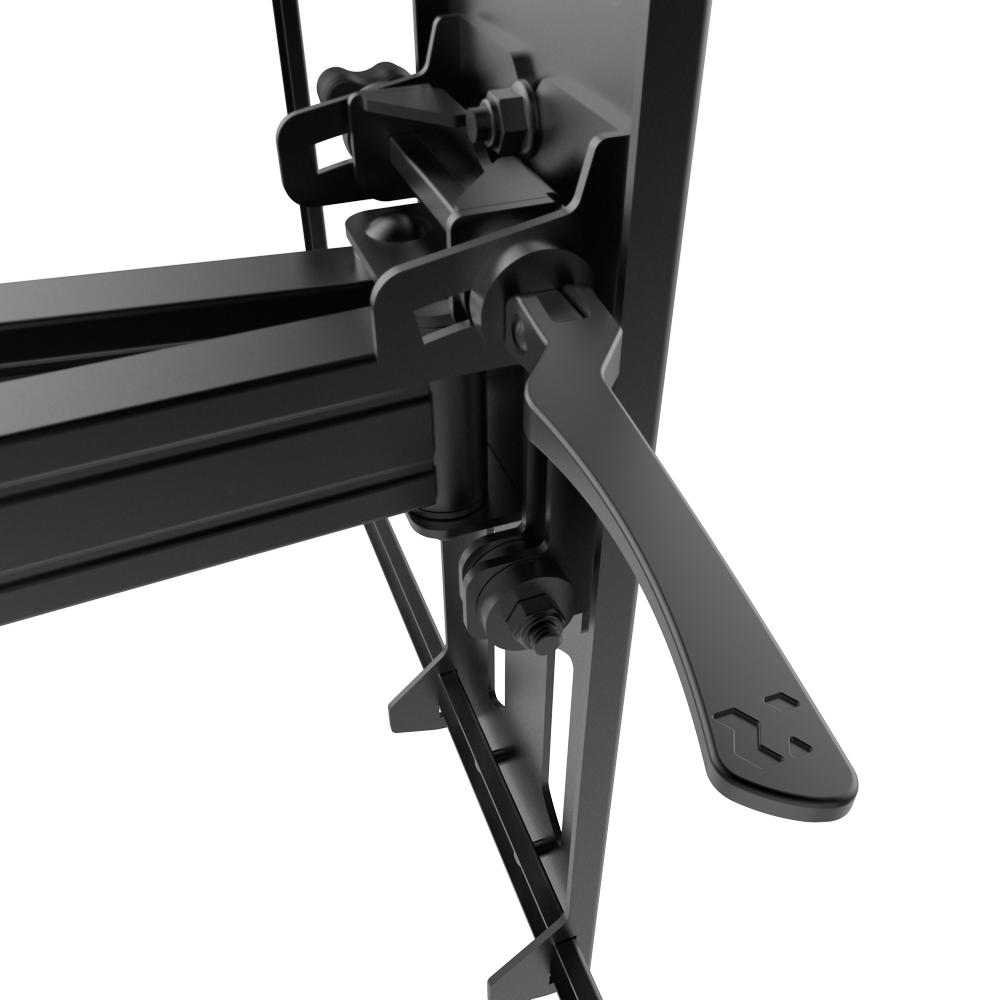

TOOLLESS TILT MECHANISM

Effortlessly tilt your TV 12° forward or 3° backward with the PMX680’s newly designed toolless tilt mechanism.

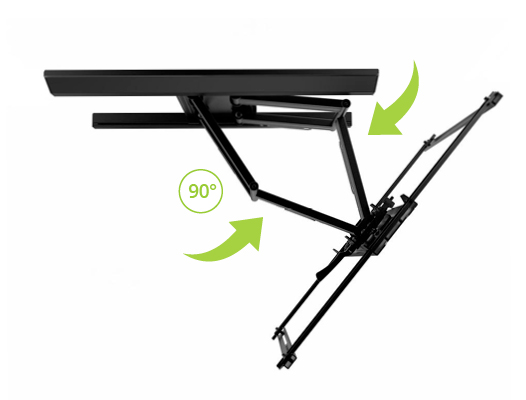

 SWIVELS UP TO 180 DEGREES

Achieve the best viewing angle regardless of where you’re sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.

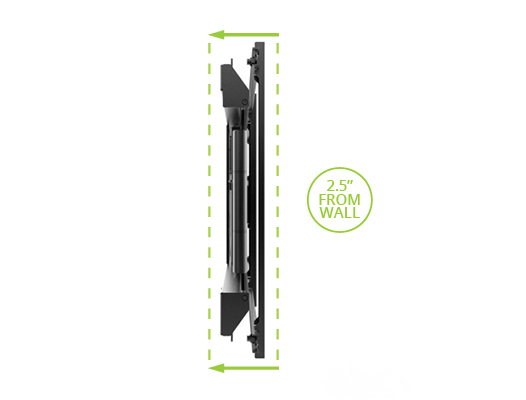

LOW PROFILE DESIGN

The unique design of the PMX680 allows your TV to sit 2.5 inches from the wall when fully pushed in.

SLEEK CABLE MANAGEMENT

Four cable management raceways located on the bottom of each arm help to keep your viewing area tidy.

PMX700

ALUMINUM SECURITY COVERS

Maintain a clean, finished appearance while hiding any sign of installation with the PMX680’s aluminum wall plate covers.

ONE BOX. MULTIPLE OPTIONS.

Because every installation is unique, the PMX680 is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.

Rotate the 360 degree image below.

INSTALLATION VIDEO

SPECIFICATIONS

Specifications

TV Sizes: 39” to 80”
Weight Allowance: 125 lbs (57 kg)
VESA Sizes: 200×100 to 700×400
Wall Plate: 28.9″ (73.3 cm); Accommodates dual studs with up to 24″ spacing

Features

Tilt: +12° to -3°
Swivel: 180° at full extension (with 42″ TV)
Extension: 24″ (61.3 cm) from the wall
Profile: Sits 2.5″ (6.3 cm) from the wall
Horizontal Offset: 18″ (43.6 cm) of total horizontal offset
Tool less tilt mechanism
Integrated cable management
Adjustable horizontal leveling
Aluminum covers to hide lag bolts
cULus Certified

General

Includes:
Paper wall template for marking pilot holes
Installation Manual
All mounting hardware for wood stud and concrete installation
Warranty: 10 years

Weights and Measurements

Shipping box weight: 40.6 lb (18.4 kg)
Shipping box dimensions: 34.8” x 18.5″ x 4.7”
(88.5  x 46.9 x 12 cm)
Product weight: 32 lb (14.5 kg)
UPC: 800152716633

DOCUMENTATION

PRODUCT MANUALS

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.

FAQ

What does VESA pattern mean and how do I check what VESA pattern my TV has?

VESA stands for Video Electronics Standard Association.  At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts.  To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane.  For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.

Can I install my wall mount on a concrete or brick wall?

Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.

Why should I only buy from an authorized Kanto reseller?

When it comes to customer service, we set the bar exceedingly high. Commitment of this level requires us to work closely with all our online and in-store retailers, so that we may ensure our customers receive the type of experience we try so hard to deliver.

If you are interested in purchasing a Kanto product, we encourage you to shop through one of the many authorized dealers listed above. This not only guarantees the quality of your purchase, but also gives you the benefit of our warranty should any issues arise. While we strive to support all our customers, we unfortunately cannot always provide assistance for products sold through unauthorized third parties.

If you are unsure if you are purchasing from an authorized retailer, please contact us toll-free at 1-888-848-2643 or email us at support@kantoliving.com.
