CM600SG

Name: CM600SG
SKU: CM600SG
Price: 349.99 USD
Availability: InStock

Stainless Steel Outdoor Ceiling TV Mount

CM600SG feels just as comfortable by the poolside as it does in the pouring rain. With a height adjustable stainless steel pole protected by galvanized and UV-resistant finishes, this outdoor ceiling TV mount resists corrosion when left in even the harshest of environments. Included stainless steel Security Torx TV screws and four fixed tilt increments prevent tampering to keep your investment safe. A pivoting mounting plate gives you the ability to mount CM600SG onto flat, angle, or vertical surfaces expanding the possibilities of where a TV up to 70” can be hung. Designed to handle the elements for years to come, CM600SG is the benchmark for all other outdoor ceiling TV mounts.

75 x 75 - 600 x 400

110 lb

37″ - 70″

Up to 66.3" in 2" increments

Ceiling

Outdoor

BUY NOW Categories: Ceiling Mounts, Outdoor Mounts, TV Mounts Tags: adjustable ceiling mount, angled ceiling mount, ceiling tv mount, galvanized mount, hanging tv mount, outdoor tv mount, stainless steel tv mount

Outdoor Use

Assembled with stainless steel hardware, the outdoor TV ceiling mount’s galvanized steel frame and powder-coated finish are designed to withstand rust and the increased wear and tear associated with outdoor use.

Features at a glance

Easy Installation
Angled Ceilings
Adjustable Height
Swivel & Tilt
Integrated Cable Management

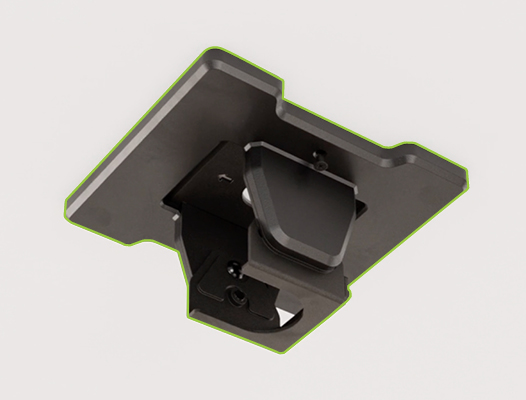

The full motion ceiling mount’s detachable mounting plate can be easily installed to any wood stud or concrete ceiling. Simply slide the extension pole into place and secure it to complete the installation.

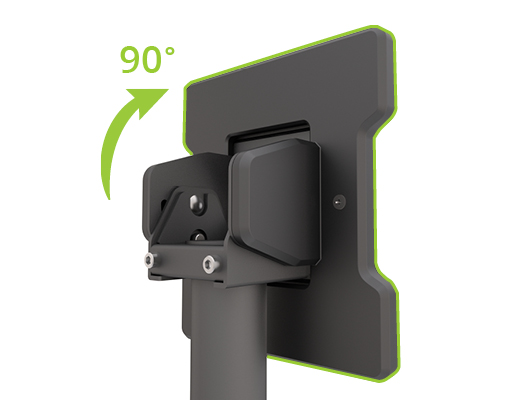

To accommodate sloped ceilings and support beams, swing the extension pole up to 90° and lock it in place at the preferred angle. This also allows the outdoor TV ceiling mount to be installed on a wall, if needed.

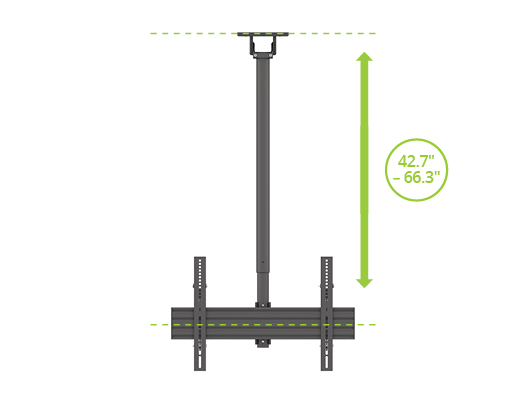

Ensure your TV is positioned at an ideal height by setting the center of your screen between 42.7″ to 66.3″ from the ceiling. Adjustments can be made in 2″increments.

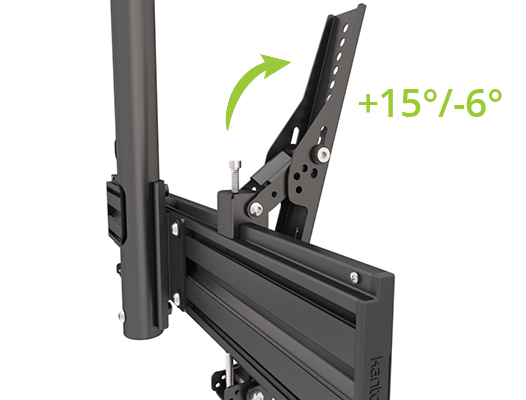

Along with 360° of rotation, this outdoor TV ceiling mount offers four discrete tilt options. In 5° increments, angle the TV brackets up to 15° forward to improve line-of-sight, or tilt them 6° backward to compensate for potential lean.

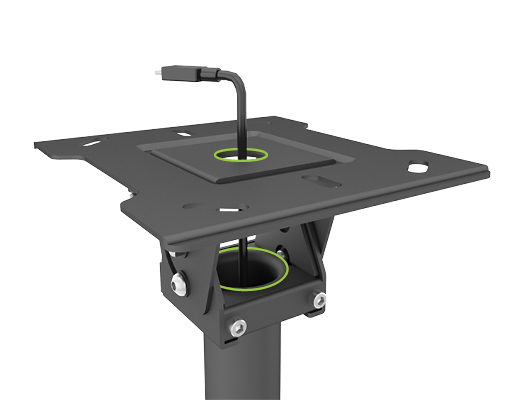

The extension pole’s hollow core provides an unobstructed path to route your cables, while an opening in the mounting plate allows them to continue through the ceiling for a clean and professional setup.

Ultra-easy install

This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto CM600G Full Motion Ceiling Mount.

Visit our support hub for help.

Specs

It's in the details

Warranty

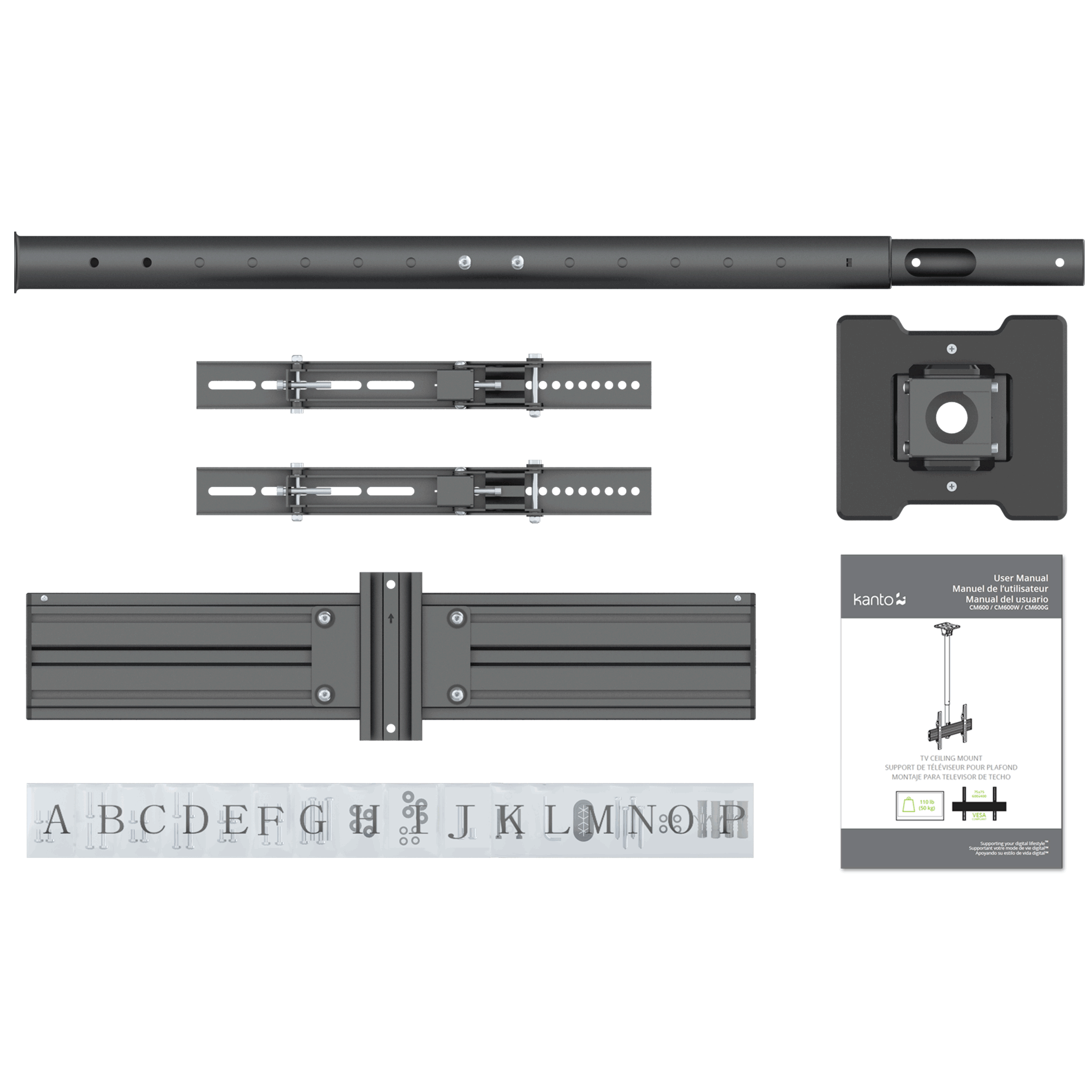

What’s Included

Installation Manual

All mounting hardware for wood stud and concrete installation

+15° to -6°

Tilt

90°

Swing

42.7” to 66.3”

from ceiling to center of TV

Adjustable horizontal leveling
Internal cable management

75×75 to 600×400

Specifications

TV Sizes: 37” to 70”
Weight Allowance: 110 lb (50 kg)
VESA Sizes: 75×75 to 600×400
Material: Solid galvanized steel construction with stainless steel hardware

Measurements

Shipping box weight: 20.9 lb (9.5 kg)
Shipping box dimensions: 43.3″ x 8.8″ x 4.2″ (110 x 22.4 x 10.7 cm)
Product weight: 18.3 lb (8.3 kg)
UPC: 800152721118

Documentation

CM600SG Multilingual Manual (English | French | Spanish)

CM600SG Product Sheet (English)

CM600SG Technical Drawing

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
