CM600BTB
Back to Back Ceiling TV Mount

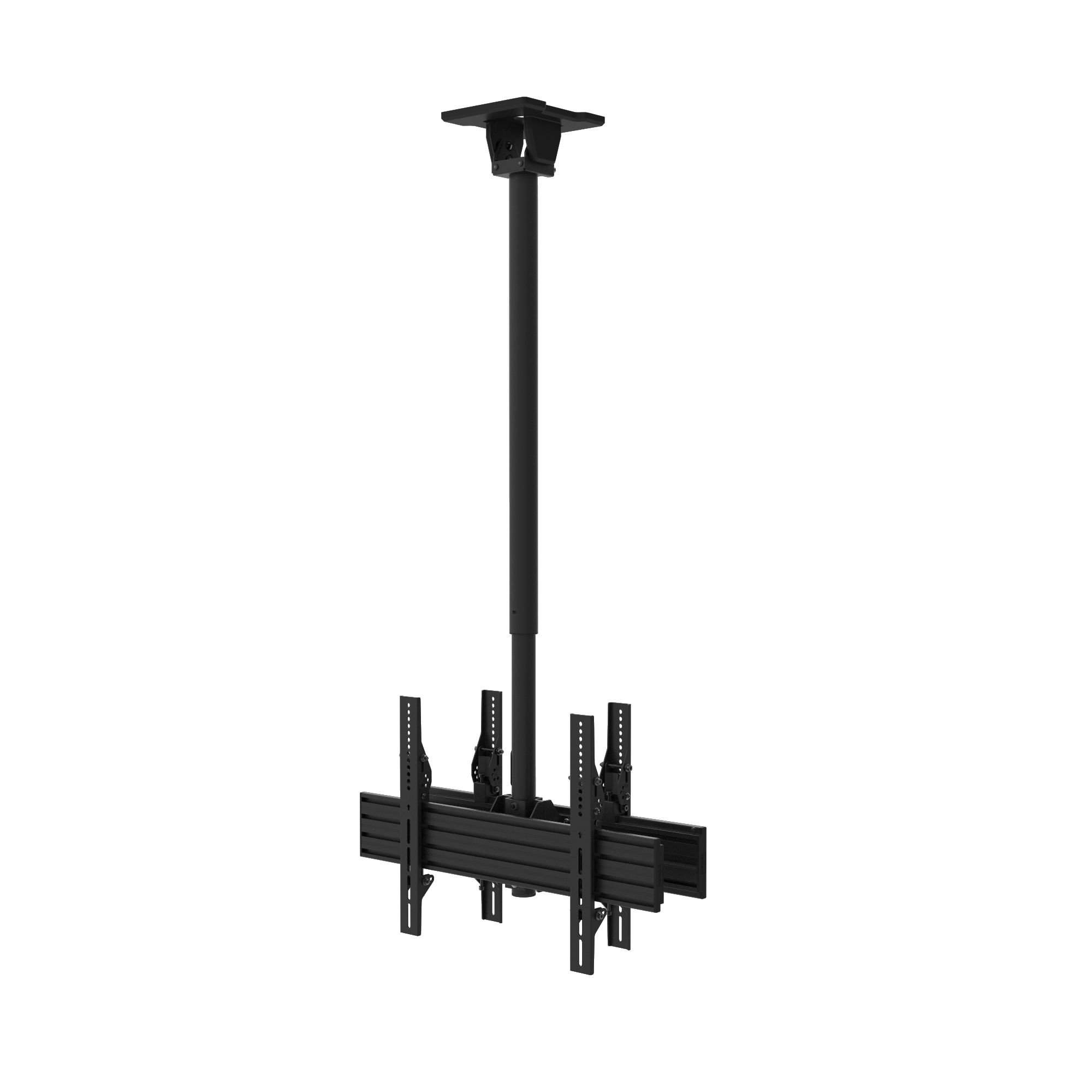

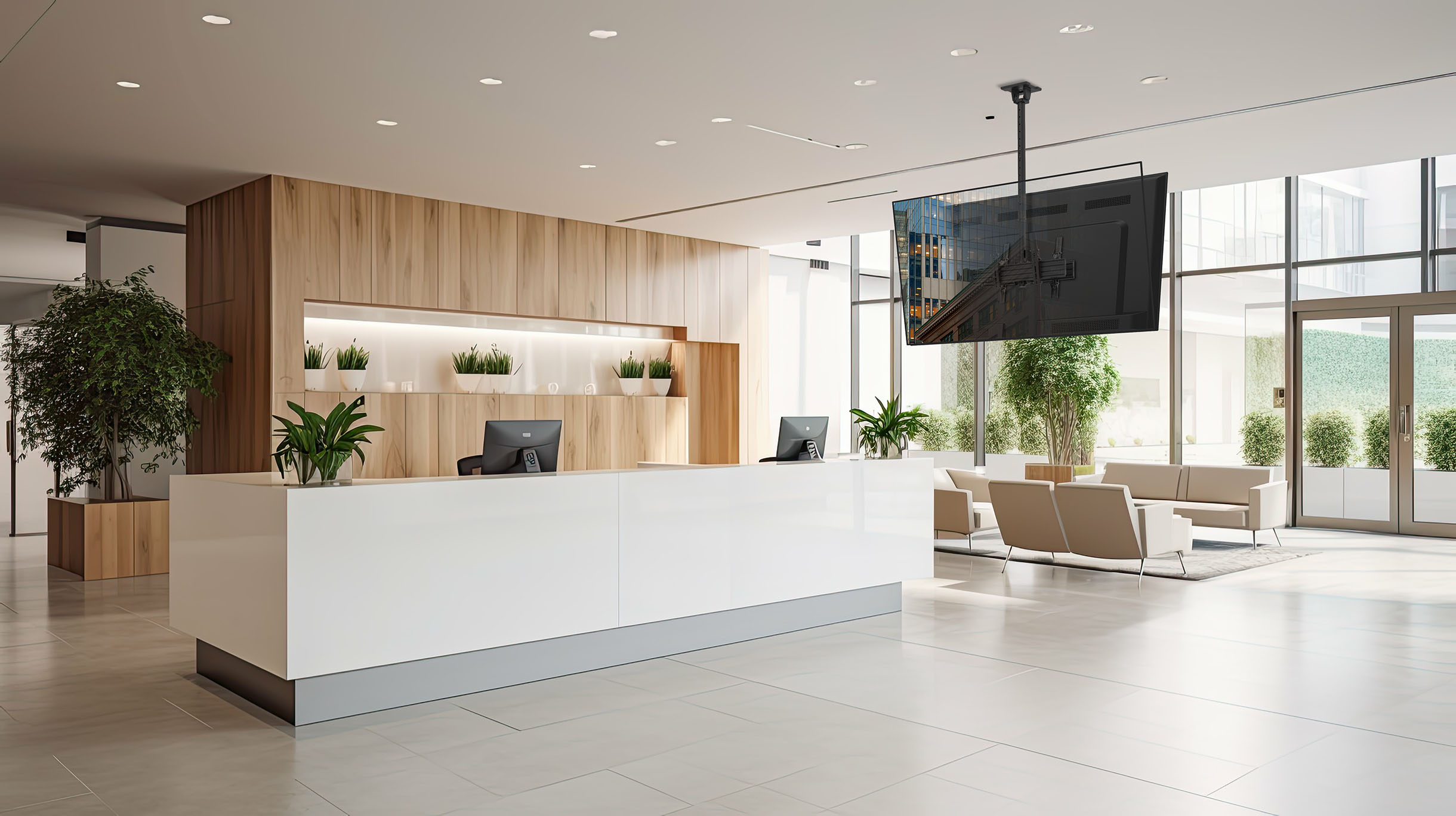

The CM600BTB Dual TV Ceiling Mount is the ideal solution for retail or commercial AV setups. This versatile mount features back-to-back TV plates, allowing you to mount two panels in opposite directions. The pivoting mounting plate offers flexibility to mount onto flat, angled, or vertical surfaces. With a telescoping extension pole providing 23” of height adjustment and 360° rotation, you can position your screens precisely where you need them. The adjustable leveling screws and four discrete tilt options, with up to 15° forward or 6° backward tilt, ensure perfect screen alignment. Additionally, the mount includes unobstructed cable management along the entire length of the pole, keeping your installation clean and organized.
Dual displays, one powerful solution.
Features at a glance
- Back-to-Back Screens
- Flexible Mounting Options
- Height Adjustable
- Swivel & Tilt
- Integrated Cable Management

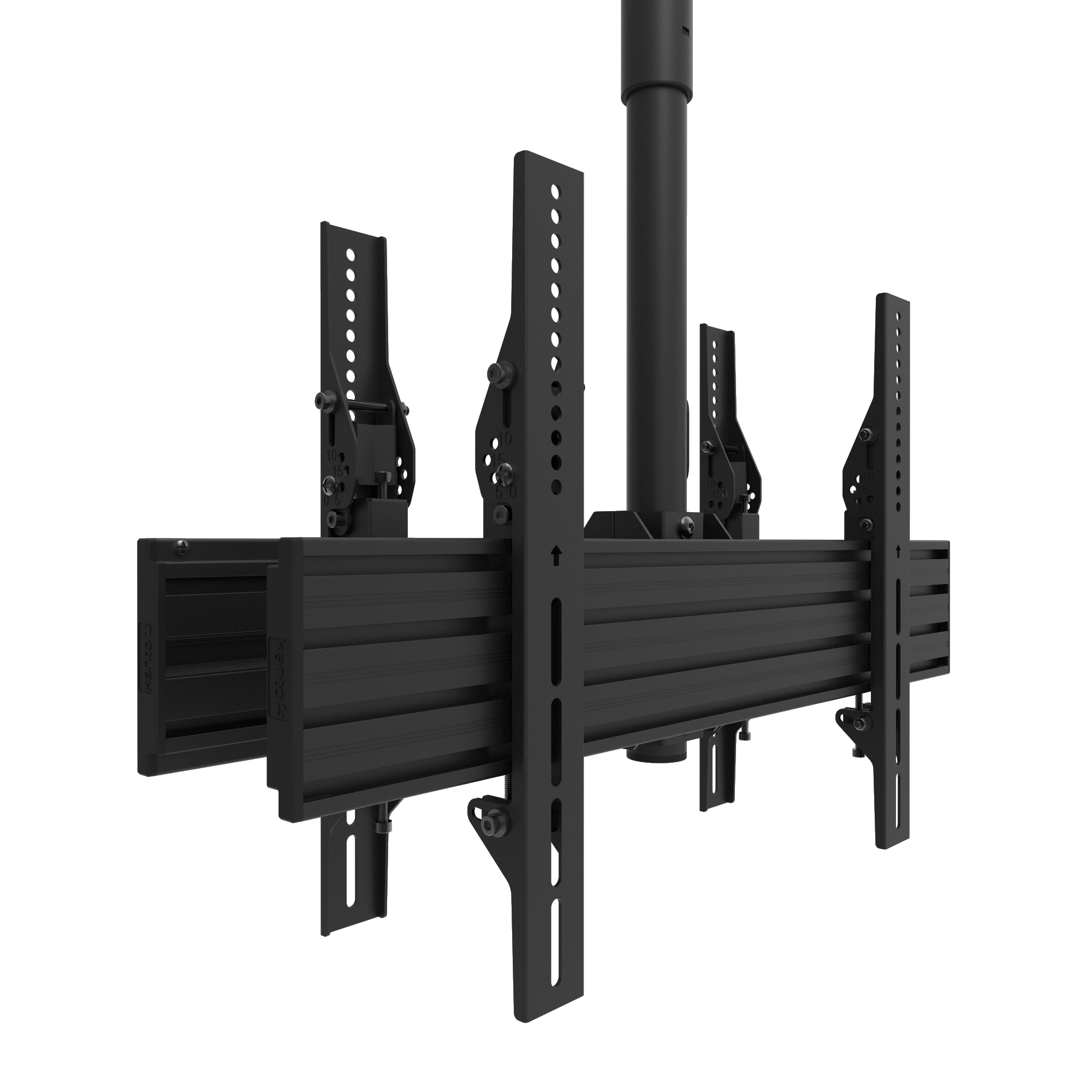

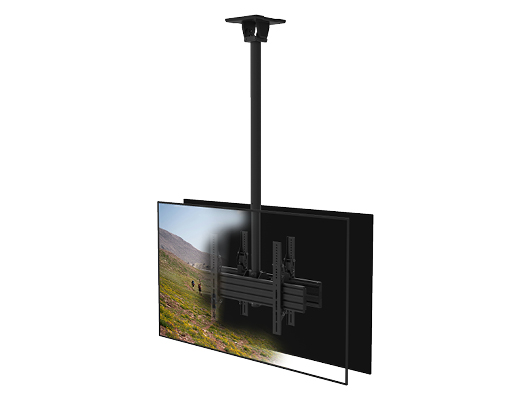

The back-to-back TV plates allow mounting of two panels in opposite directions, increasing visibility and ensuring content reaches a wider audience.

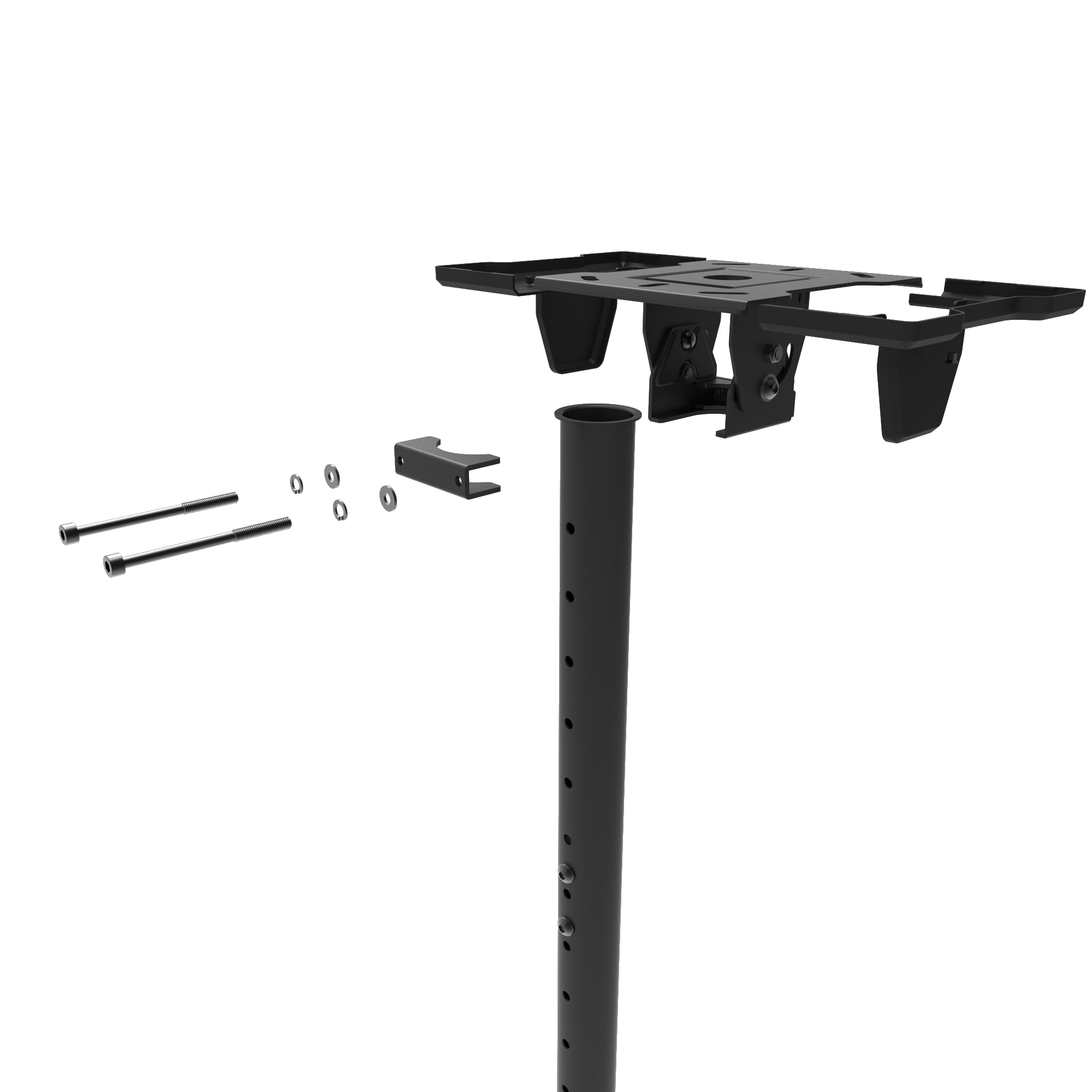

The pivoting mounting plate secures the CM600BTB to a flat ceiling, angled ceiling or beam, or walls, expanding the possibilities for TV placement in any environment.

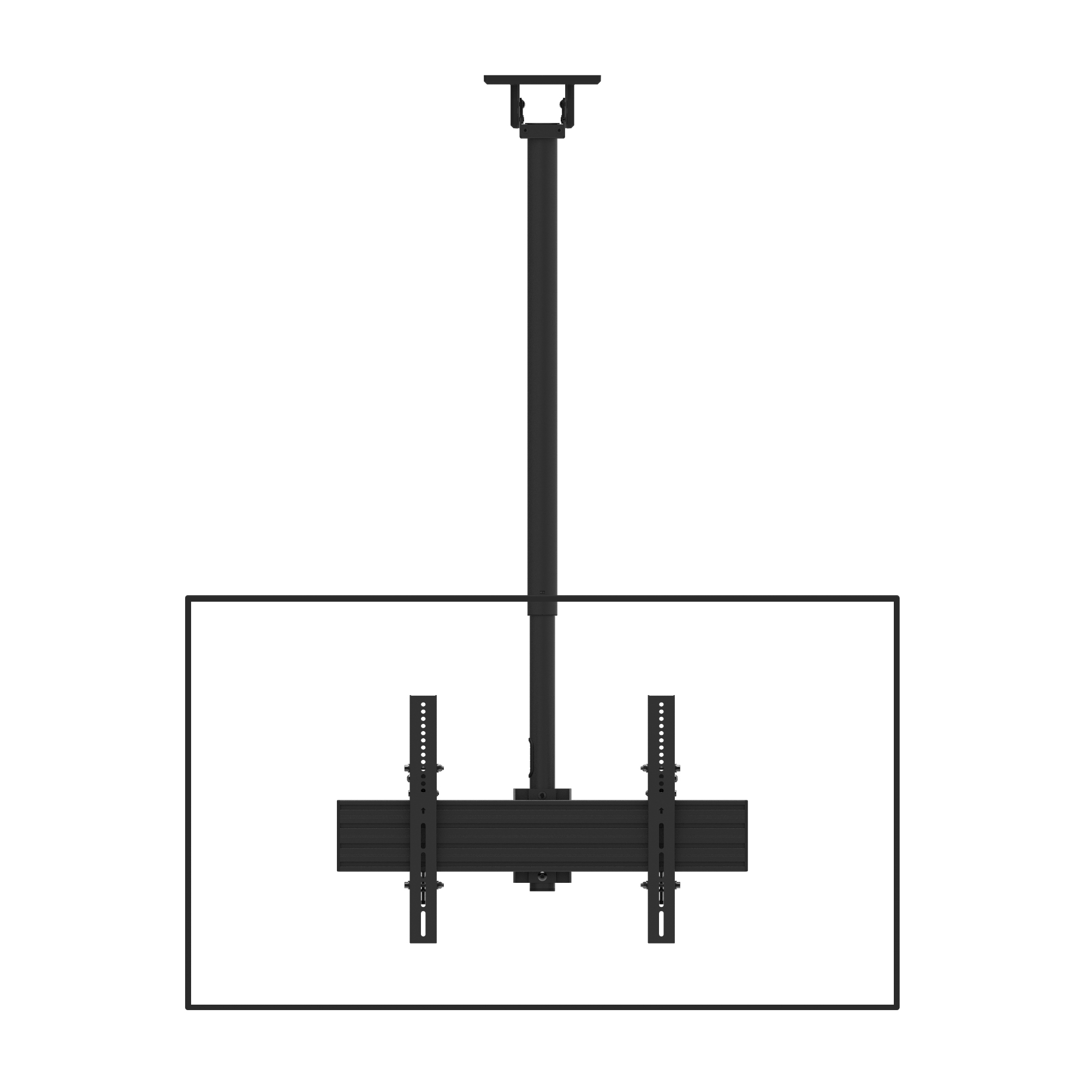

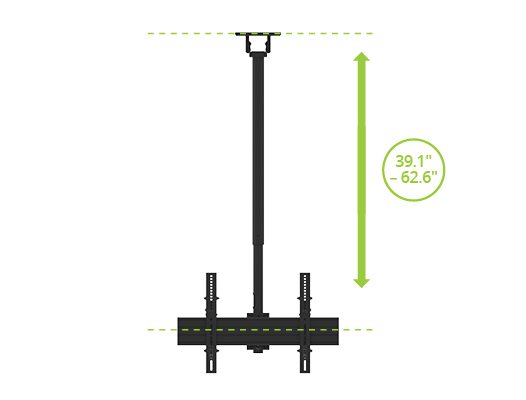

The telescoping extension pole provides height adjustment between 39.1” and 62.6” from the ceiling to the center of the TV, ensuring perfect screen positioning.

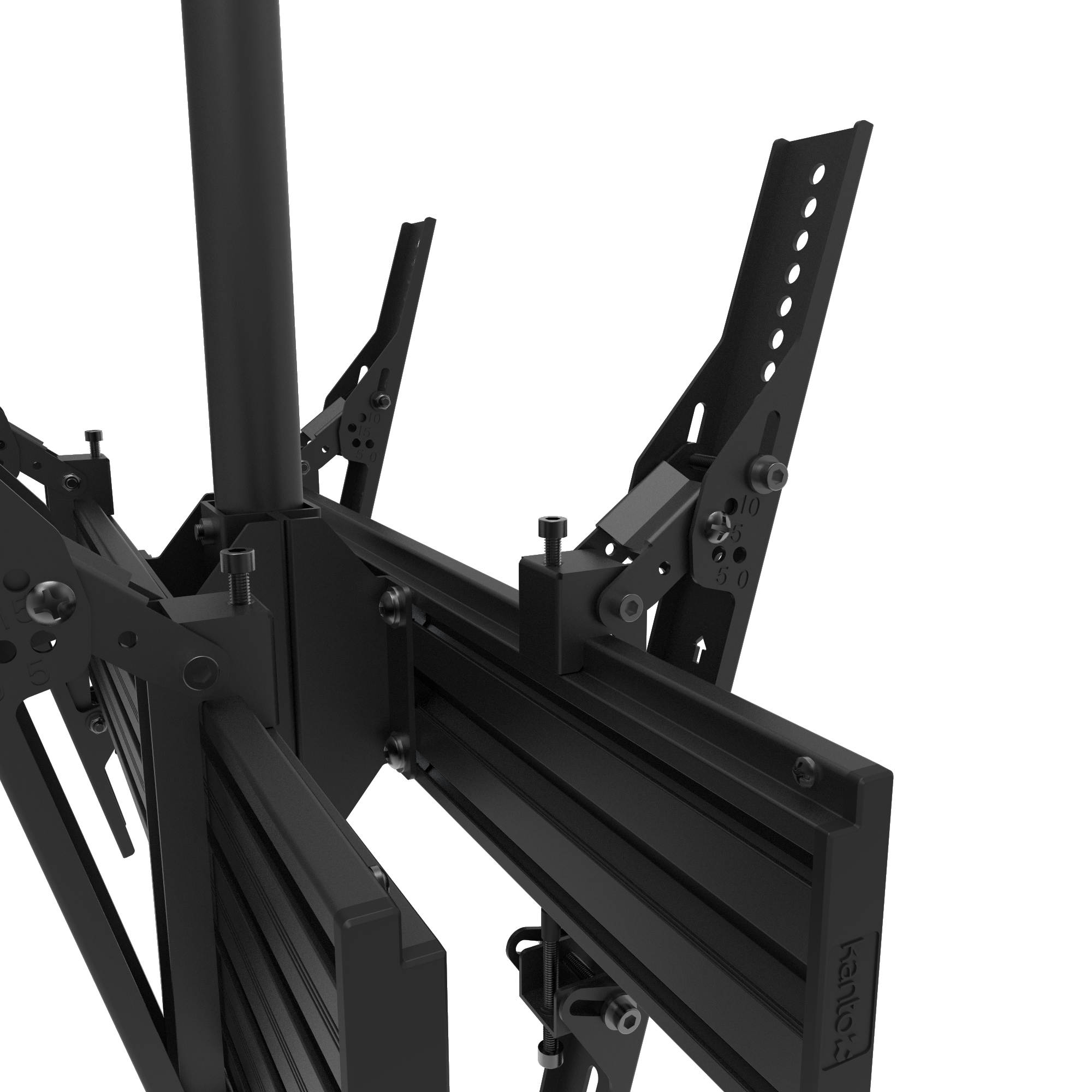

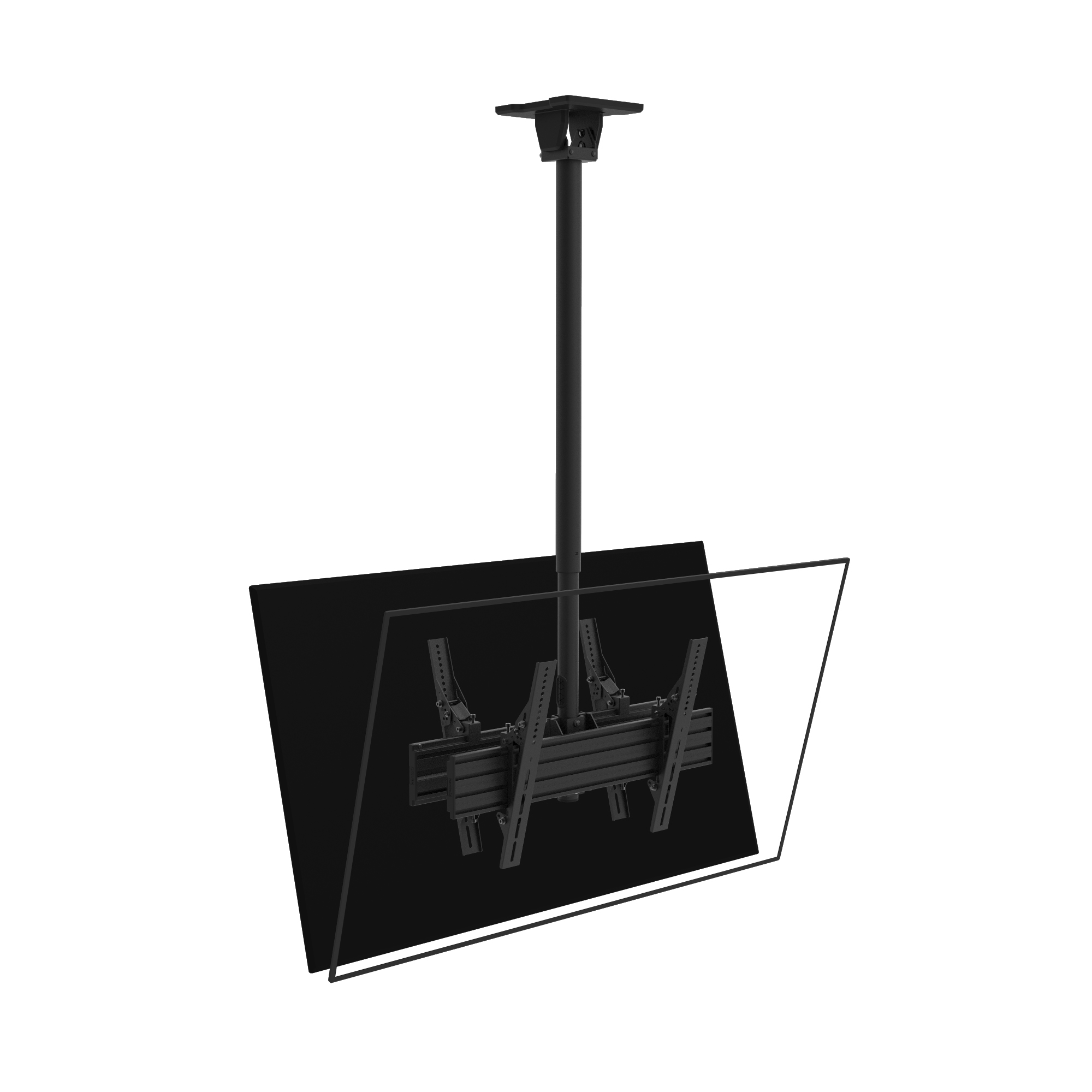

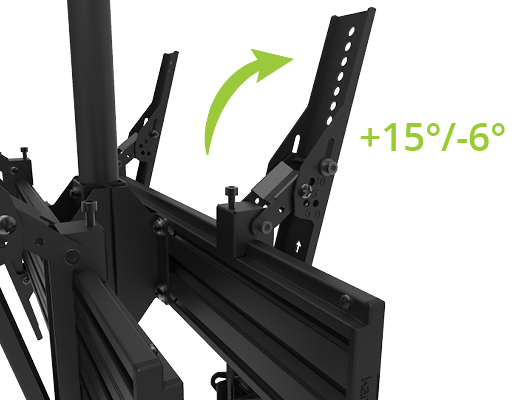

Along with 360° of rotation, this back-to-back dual TV ceiling mount offers four discrete tilt options. In 5° increments, angle the TV brackets up to 15° forward to improve line-of-sight, or tilt them 6° backward to compensate for potential lean.
The hollow core of the extension pole provides an unobstructed path for cable routing, while an opening in the mounting plate allows cables to continue through to the mounting surface, keeping them hidden and organized.
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto CM600BTB Back-to-Back Hanging TV Ceiling Mount.
Visit our support hub for help.Specs
It's in the details
Warranty
What’s Included
CM600BTB Back-to-back hanging TV ceiling mount
Installation manual
All mounting hardware for wood stud installation
+15° to -6°
Tilt
90°
Swing
39.1” to 62.6”
from ceiling to center of TV
Special Features:
Adjustable horizontal leveling
Internal cable management
75×75 to 600×400
Specifications
TV Sizes: 40” to 80”
Weight Allowance: 100 lb (45 kg) per screen
VESA Sizes: 75×75 to 600×400
Material: Solid aluminum and steel construction
Measurements
Shipping box weight: 32.4 lb (14.7 kg)
Shipping box dimensions:43.3″ x 9.7″ x 6.5″ (110 x 24.6 x 16.5 cm)
Product weight: 28.7 lb (13 kg)
UPC: 800152722399
Documentation
