Recessed Articulating Wall Mount

Achieve an ultra-low-profile setup with the R300 recessed wall mount. Designed to be inserted between two studs measuring 16” apart, this unique mounting solution lets your TV sit 1.25” from the wall when fully retracted. Its 18.5” long articulating arm provides -5°/+10° of tilt and 180° of swivel, ensuring optimal viewing from all angles. Built out of high-grade steel, the R300 supports 32” to 55” TVs weighing up to 80 pounds.

See Installation Video

TV Size 32″ – 55″
Max Weight 80 lb (36 kg)
Supports VESA 100×100 – 400×400
Extends 1.25″ – 18.5″ (3.2 cm – 46.9 cm)

MSRP: $199.99 USD

Where to Buy

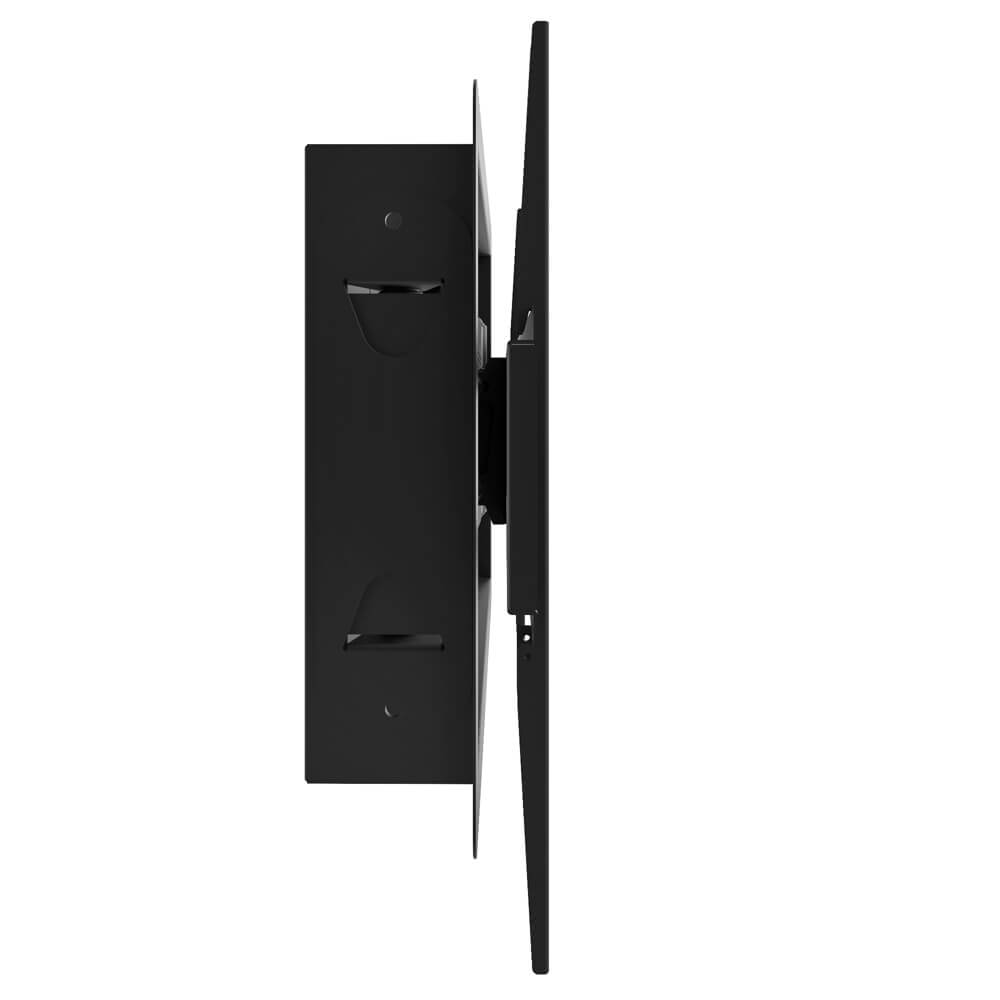

The R300’s in-wall design is made to fit securely between 16” stud centers. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.


Constructed out of solid steel, the R300 safely supports 32” to 55” TVs weighing up to 80 pounds, while its adjustable mounting brackets accommodate VESA sizes between 100×100 and 400×400.

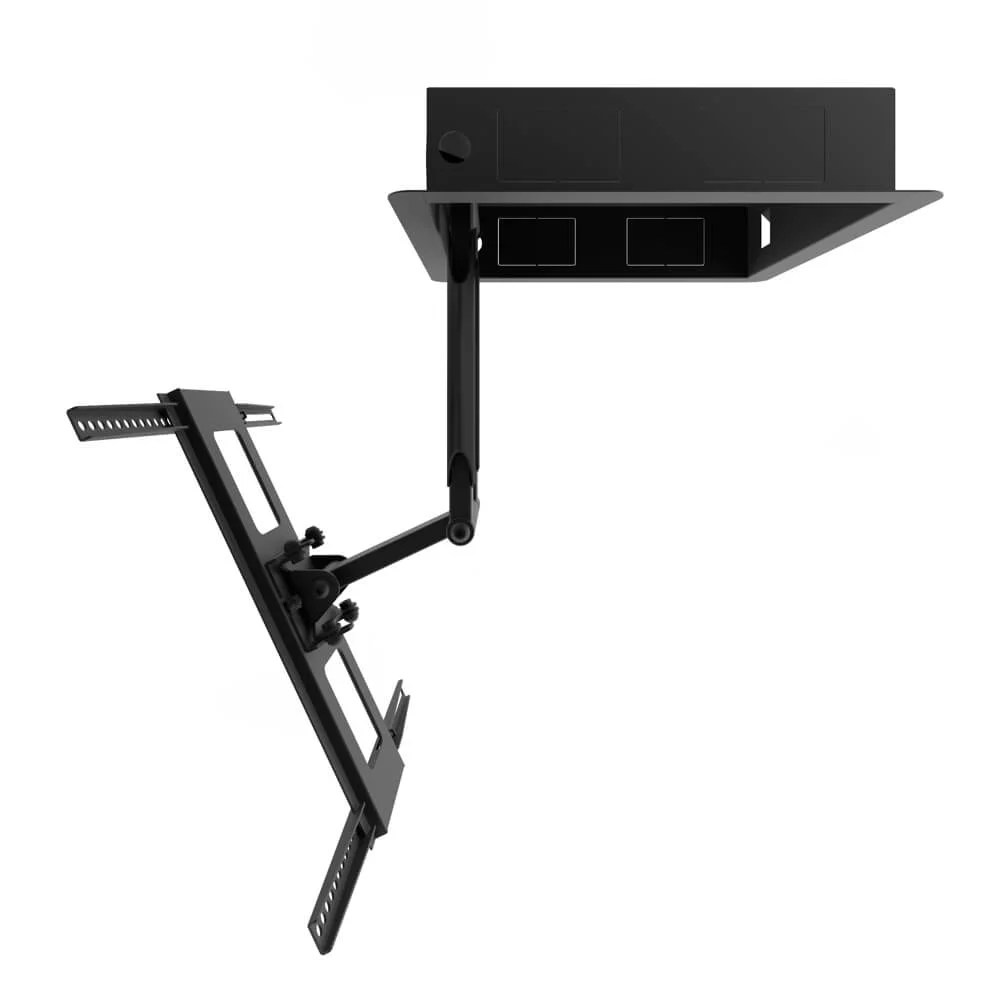

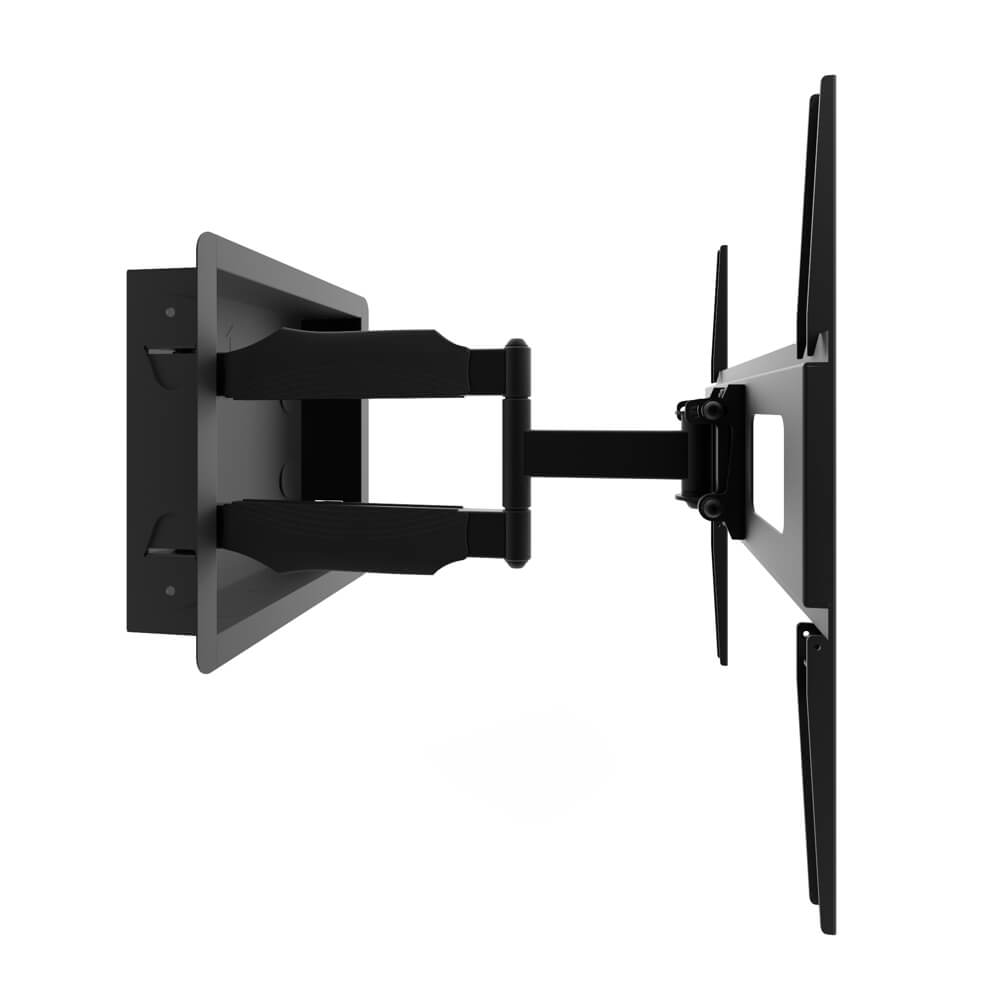

Use the R300’s articulating arm to ensure you always have the perfect viewing angle. Extend it out 18.5” to provide ample room to tilt and swivel your TV.

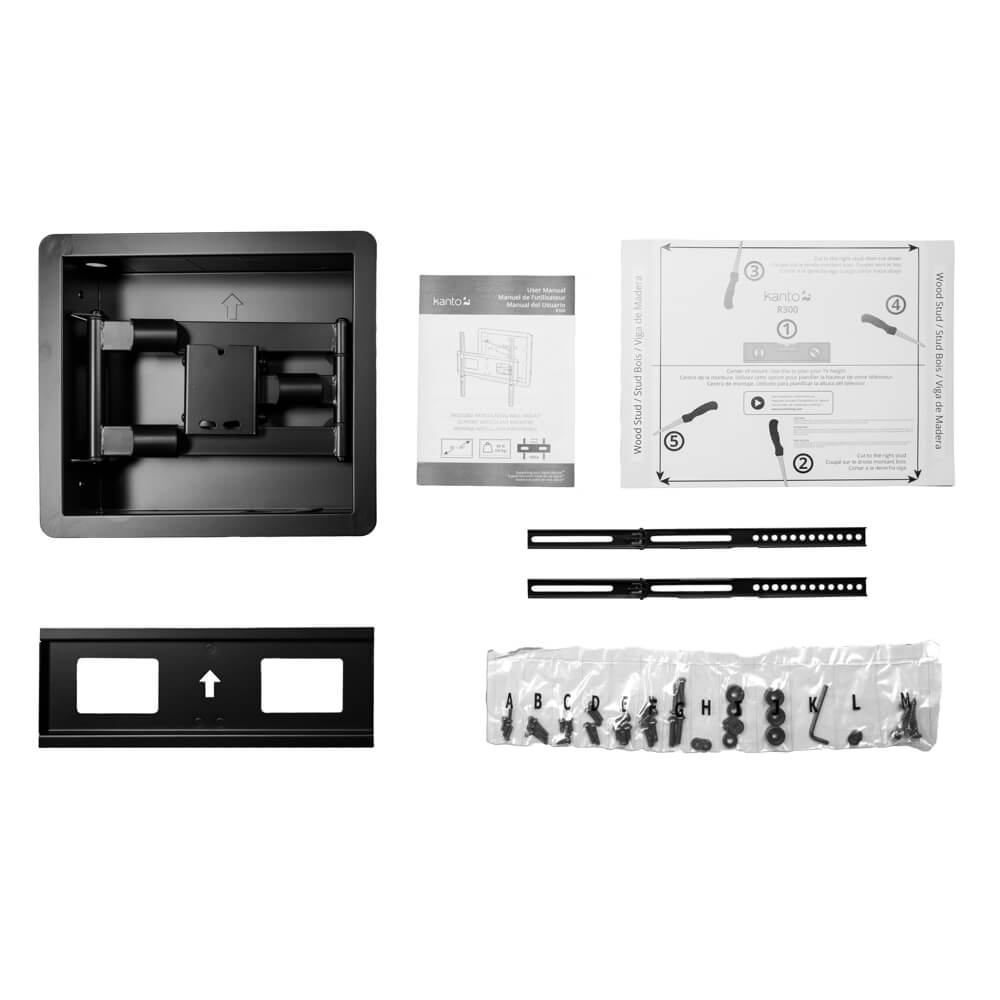

Because every installation is unique, the R300 is carefully packaged with all the lag bolts, washers and spacers that you could need. An online installation video is also provided to help you along the way.

Rotate the 360 degree image below.




TV Sizes: 32” to 55”
Weight Allowance: 80 lbs (36 kg)
VESA Sizes: 100×100 to 400×400
In-Wall Box: 14.4″ (36.5 cm) wide by 13″ (33 cm) tall by 3.5″ (8.9 cm) deep
In-Wall Box Installation: Fits between 16″ stud centers



Tilt: +10° to -5°
Swivel: 180° at full extension (with 32″ TV)
Extension: 18.5″ (46.9 cm) from the wall
Profile: Sits 1.25″ (3.2 cm) from the wall
Integrated cable management


Paper wall template
Installation Manual
All mounting hardware for wood stud installation
Warranty: 5 years

Weights and Measurements

Shipping box weight: 22 lb (10 kg)
Shipping box dimensions: 19.3″ x 16.5″ 5.5″ (49 x 42 x 14 cm)
Product weight: 20.5 lb (9.3 kg)
UPC: 800152717456



Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.


What does VESA pattern mean and how do I check what VESA pattern my TV has?

VESA stands for Video Electronics Standard Association.  At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts.  To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane.  For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.

Why should I only buy from an authorized Kanto reseller?

When it comes to customer service, we set the bar exceedingly high. Commitment of this level requires us to work closely with all our online and in-store retailers, so that we may ensure our customers receive the type of experience we try so hard to deliver.

If you are interested in purchasing a Kanto product, we encourage you to shop through one of the many authorized dealers listed above. This not only guarantees the quality of your purchase, but also gives you the benefit of our warranty should any issues arise. While we strive to support all our customers, we unfortunately cannot always provide assistance for products sold through unauthorized third parties.

If you are unsure if you are purchasing from an authorized retailer, please contact us toll-free at 1-888-848-2643 or email us at support@kantoliving.com.
