PT500

Name: PT500
SKU: PT500
Price: 109.99 USD
Availability: InStock

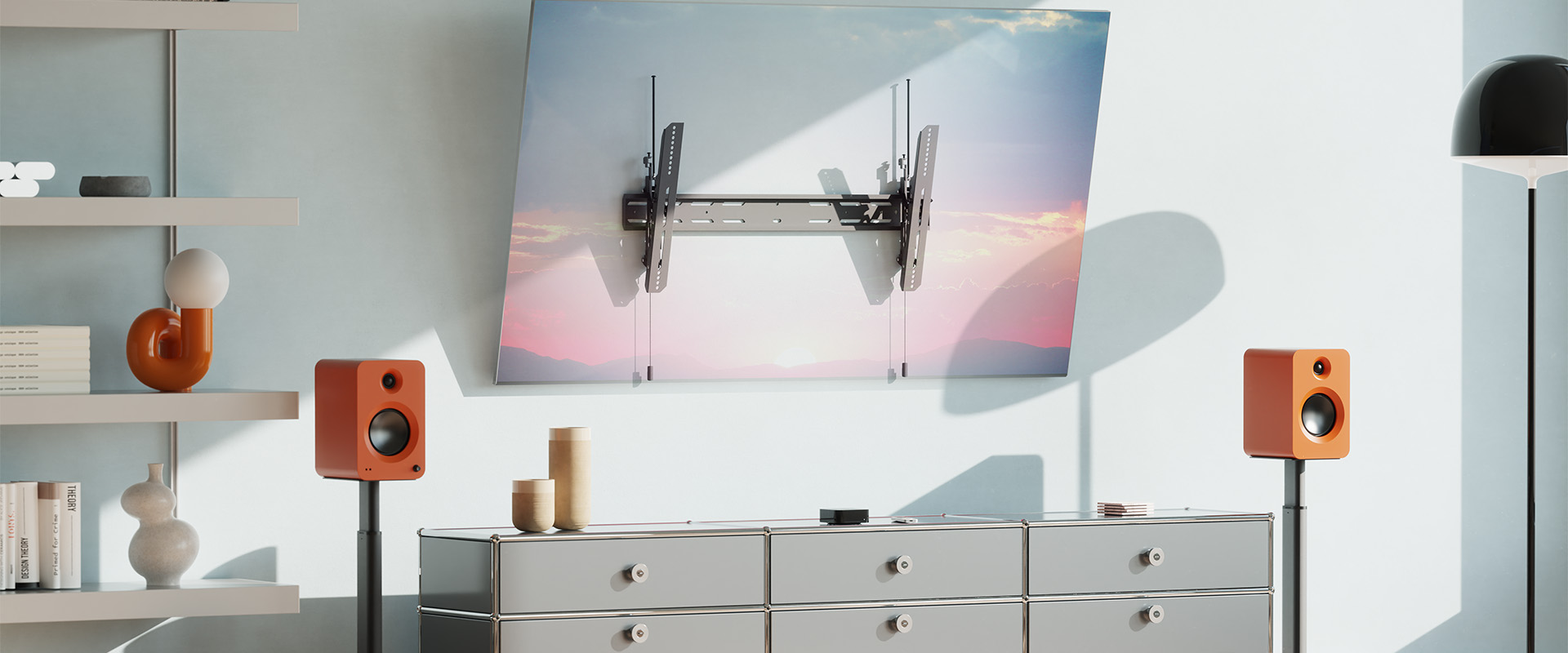

Low-Profile Tilt Mount for Large TVs

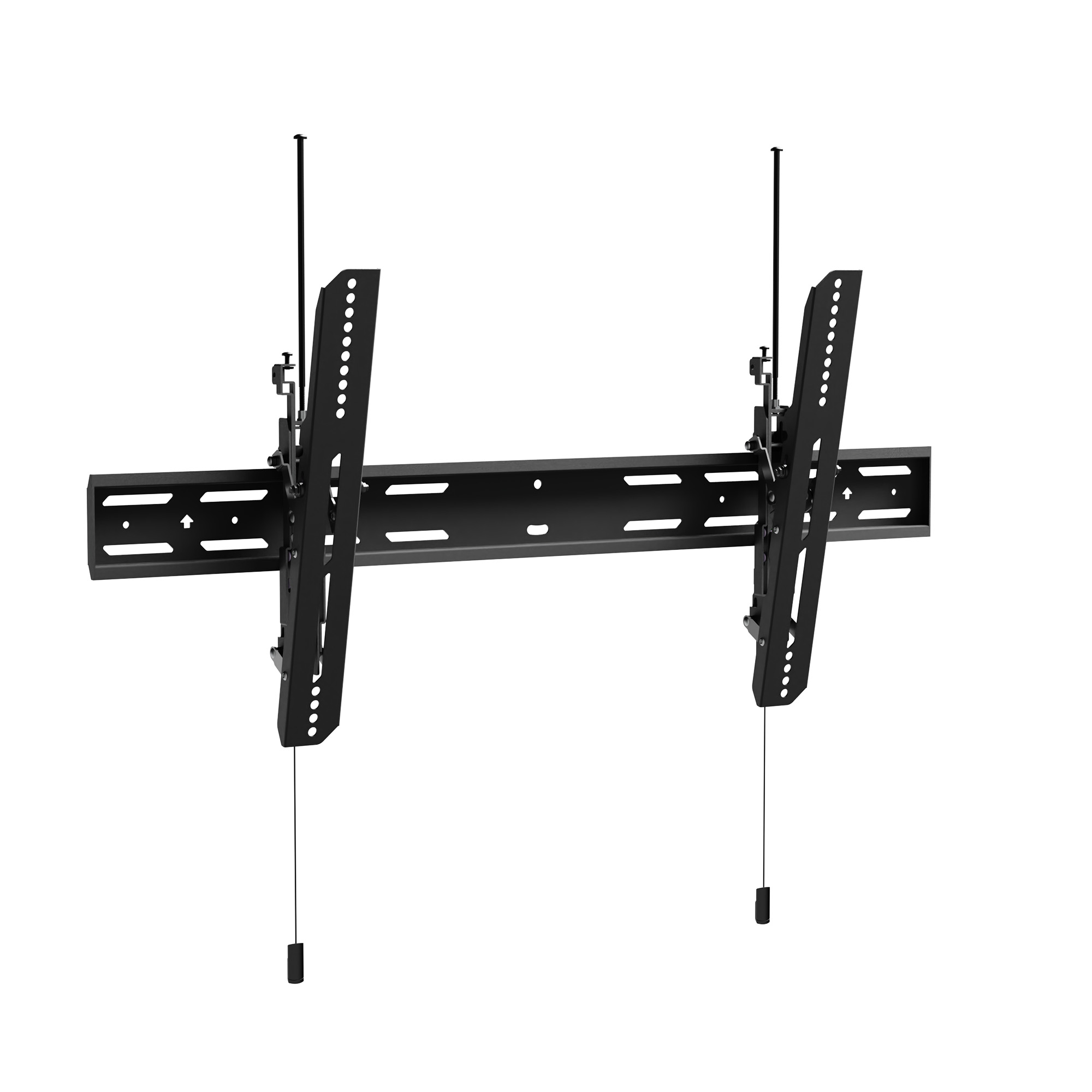

The PT500 is a heavy-duty tilting wall mount engineered for the next generation of large displays. Built to support screens up to 120” and weighing up to 250 lb, this robust mount features an expanded VESA pattern and an oversized wall plate for secure installation across multiple studs. With 12° of forward tilt to reduce glare and extended leveling screws for precision alignment, the PT500 provides the industrial strength and functional flexibility required to safely optimize the viewing experience for your extra-large premium TV.

100 x 100 - 800 x 400

250 lb

65″ - 120"

Tilting

$109.99 USD

Categories: Tilting Wall Mounts, TV Mounts

Features at a glance

12° of Forward Tilt
Slim Profile Design
Extra-Wide Steel Wall Plate
Post-Installation Leveling
Quick Release Cords

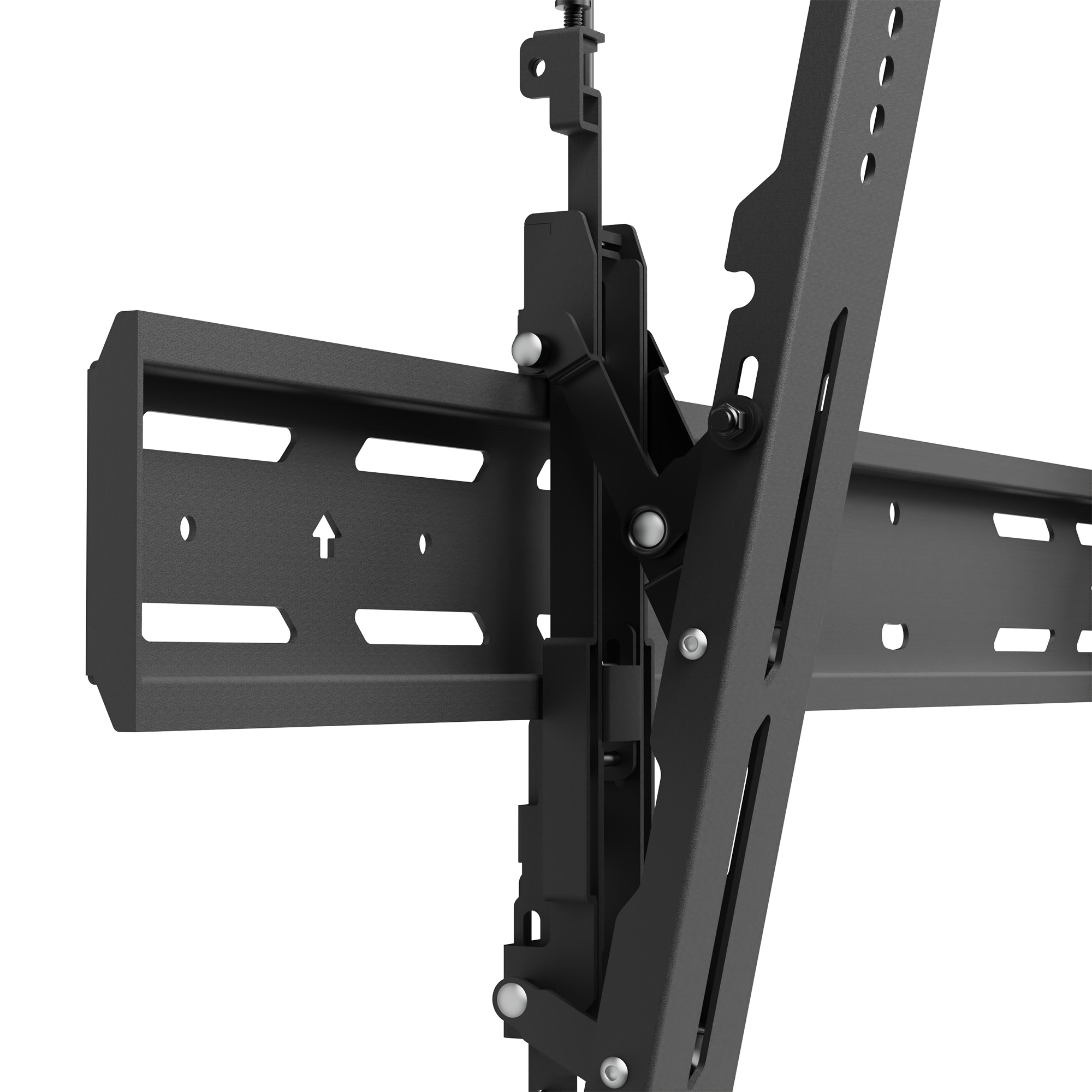

Tilt your TV up to 12° forward to eliminate distracting glare and achieve the perfect line of sight, even when mounting your screen higher on the wall.

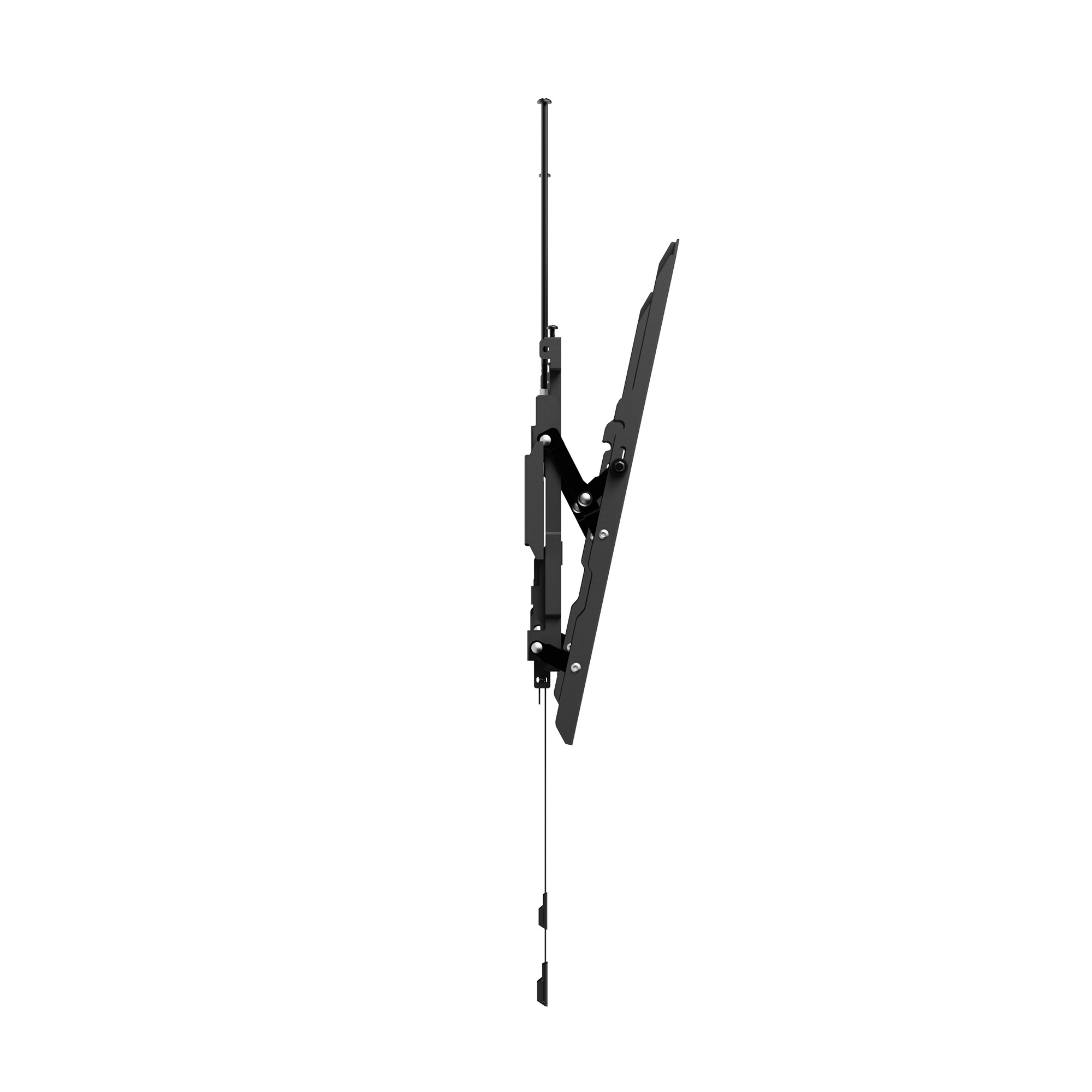

Engineered with a slim 1.4” profile, the PT500 keeps your massive display sitting remarkably close to the wall for a clean, flush, and modern look.

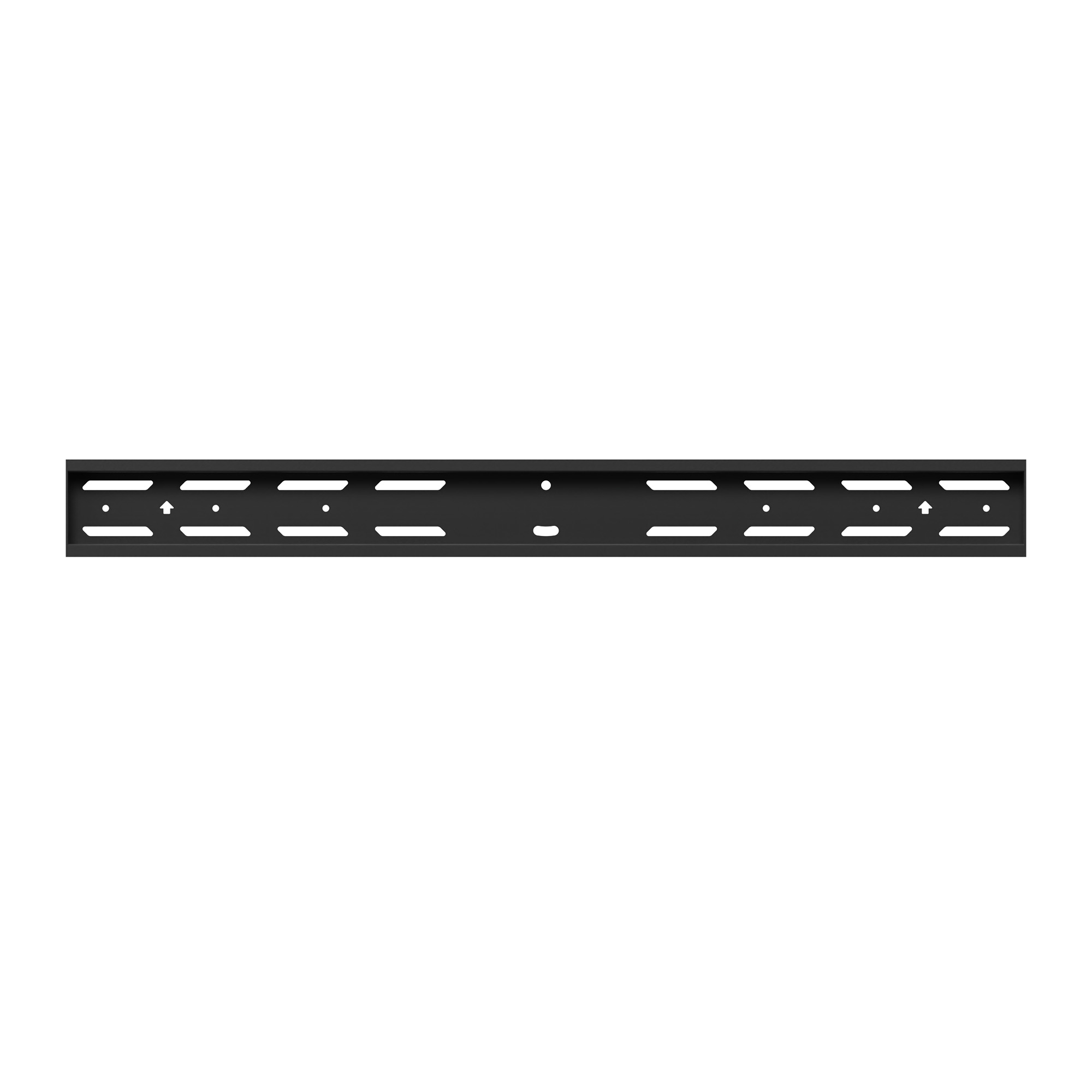

Built from solid steel and measuring 34.8” wide, the oversized wall plate can span up to three studs with 16” spacing or two studs at 24” spacing providing you ultimate placement flexibility and rock-solid support for heavier TVs.

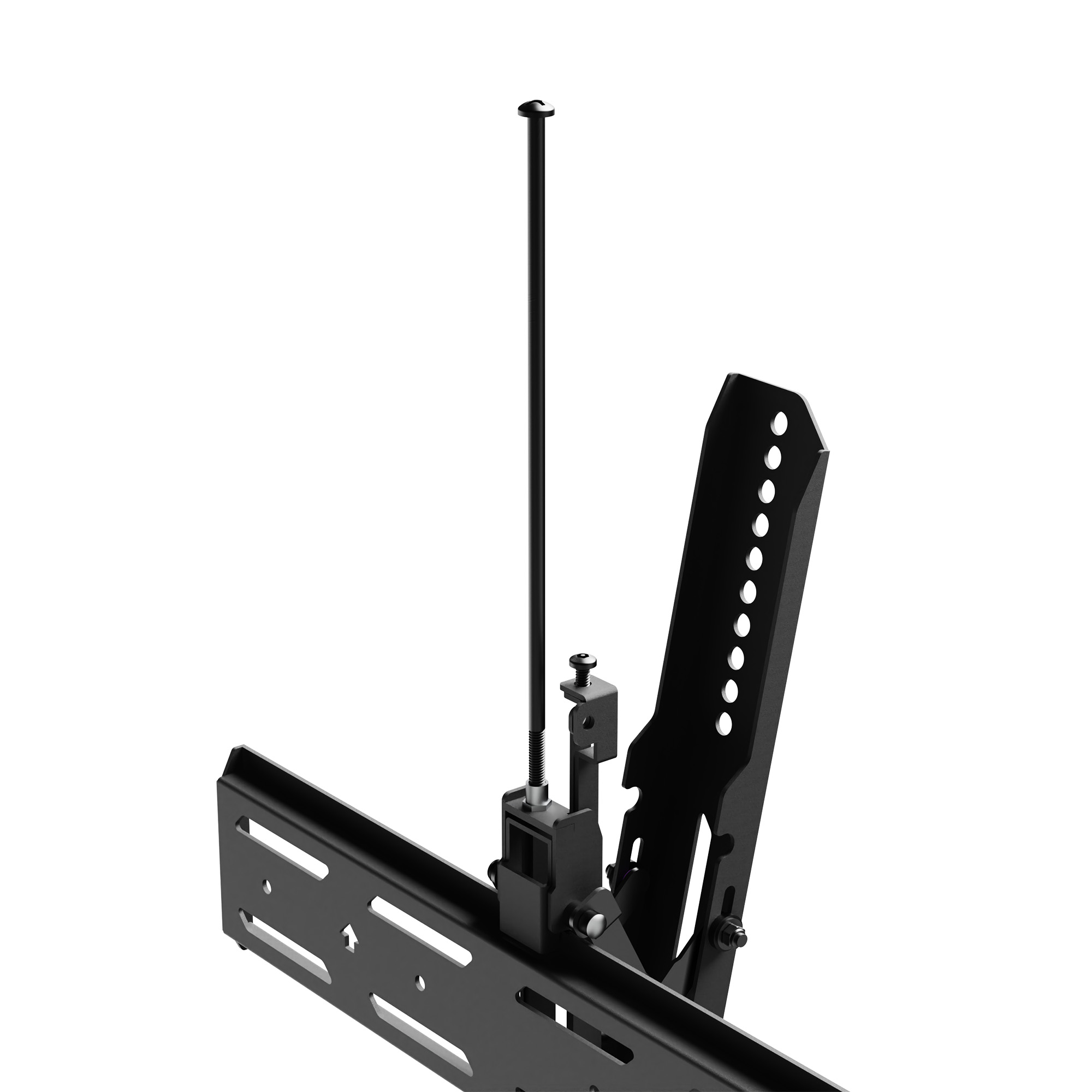

Skip the stress of a slightly crooked mount. Easily fine-tune your TV’s alignment after it’s on the wall using the accessible leveling screws on top of each bracket.

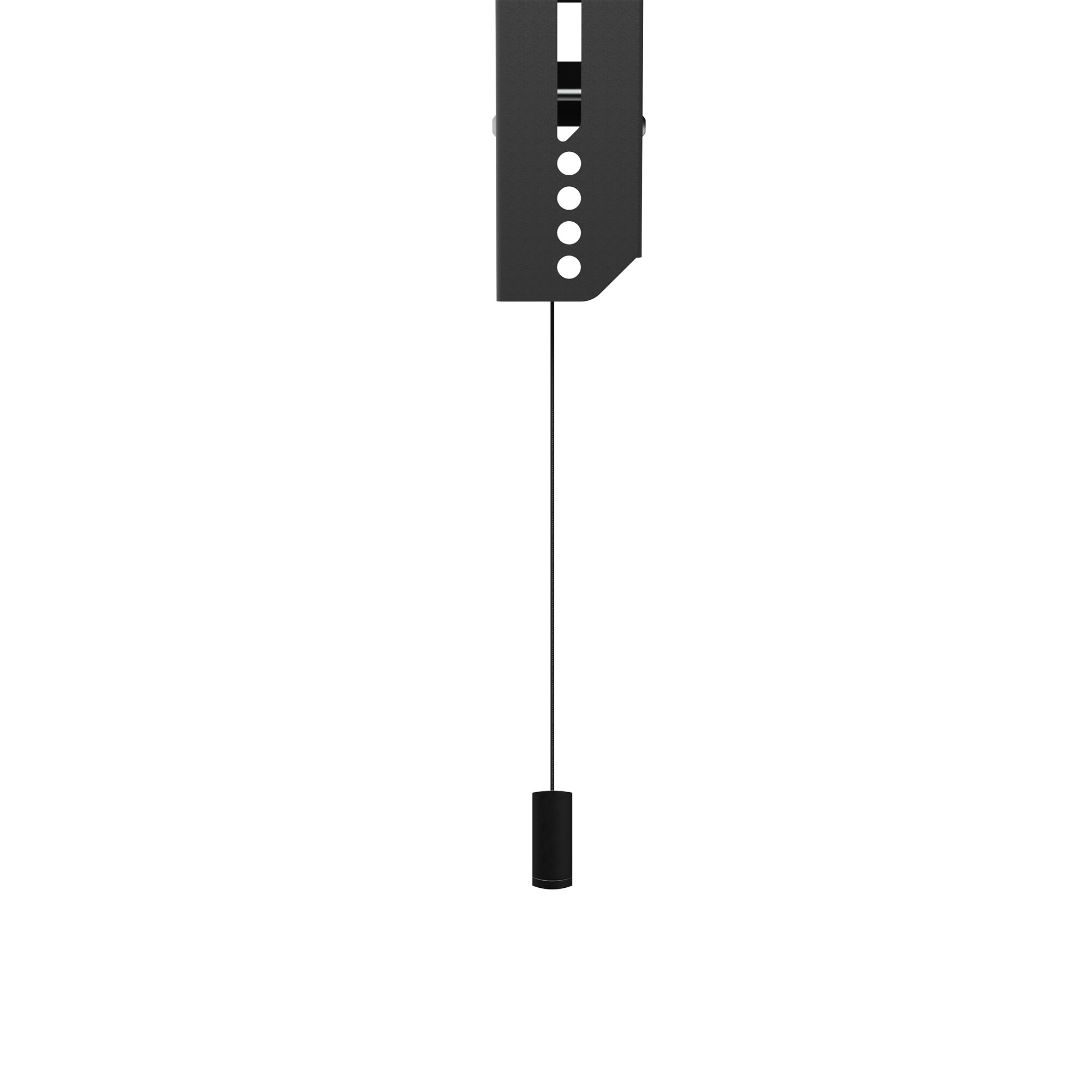

Take down or access the back of your TV in seconds simply by pulling the dual quick-release cords. When you’re done, the integrated magnetic ends tuck neatly out of sight behind the screen.

Ultra-easy install

This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto PT300, PT400 or PT500 Tilting TV mount.

Visit our support hub for help.

ADDITIONAL QUESTIONS?

Looking for an answer and want to help yourself? Visit our self-serve Knowledge Base for questions that other customers might have already asked. And if your question isn’t already answered, reach out and we will be happy to help.

Visit our Knowledge Base

Specs

It's in the details

5

Year Warranty

What’s Included

Installation Manual

All mounting hardware for wood stud and concrete installation

Profile: Sits 1.4″ (3.5 cm) from the wall

Material: Solid steel with durable powder coated finish

Adjustable horizontal leveling
Magnetic quick-release cords
Lockable arms (lock not included)

100×100 to 800×400

Specifications

TV Sizes: 65” to 120”
Weight Allowance: 250 lb (113.4 kg)

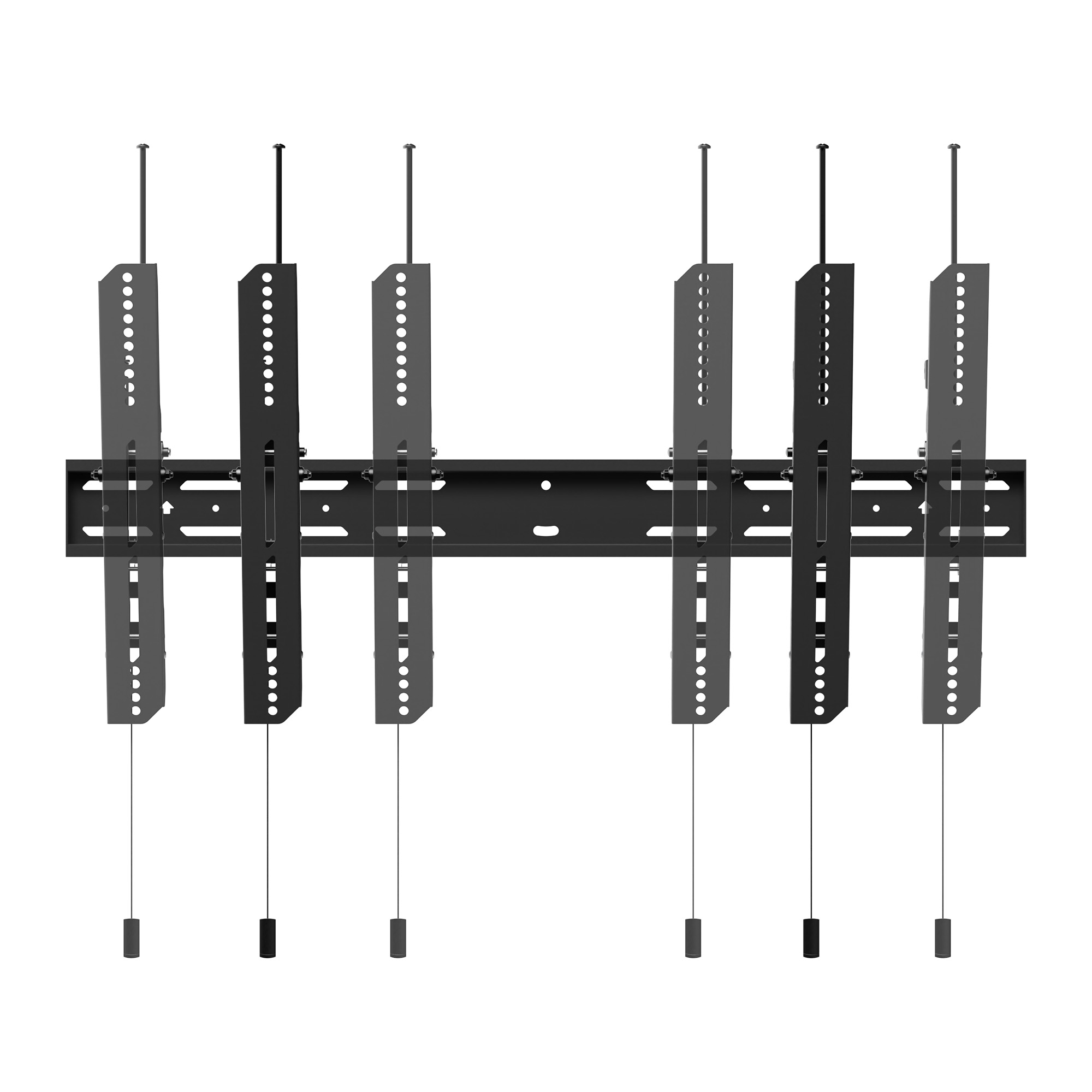

VESA Sizes: 100×100 to 800×400
Wall Plate: 34.8” (88.4 cm) wall plate allows mounting to three 16” studs, or offsetting on 24” stud centers

Measurements

Shipping box weight: 11.2 lb (5.1 kg)
Shipping box dimensions: 36.2″ x 6.8″ x 3.3″ (91.9 x 17.3 x 8.4 cm)
Product weight: 8.4 lb (3.8 kg)
UPC: 800152726779

Documentation

PT500 Multilingual Manual (English | French | Spanish)

PT500 Product Sheet (English)

PT500 Technical Drawing

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
