PF300
Low-Profile Fixed TV Mount
The Kanto PF300 provides a low-profile solution to mounting your flat screen TV. Designed to support 150 pounds, its 27-inch wall plate ensures an easy installation on both 16 and 24-inch stud centers. The fixed TV wall mount brackets come equipped with adjustable screws to facilitate precision leveling, Torx screws to protect against theft, and quick release cords for easy removal of your TV. Along with a 6-inch extension bit to conveniently access the security and leveling screws after mounting your TV, the PF300 comes with all the necessary TV wall mounting hardware for wood stud and concrete installations.
Level, locked and low-profile.
Features at a glance
- Low Profile Design
- Extra Wide Wall Plate
- Post-Installation Leveling
- Lockable Arms
- Magnetic Quick Release Cords

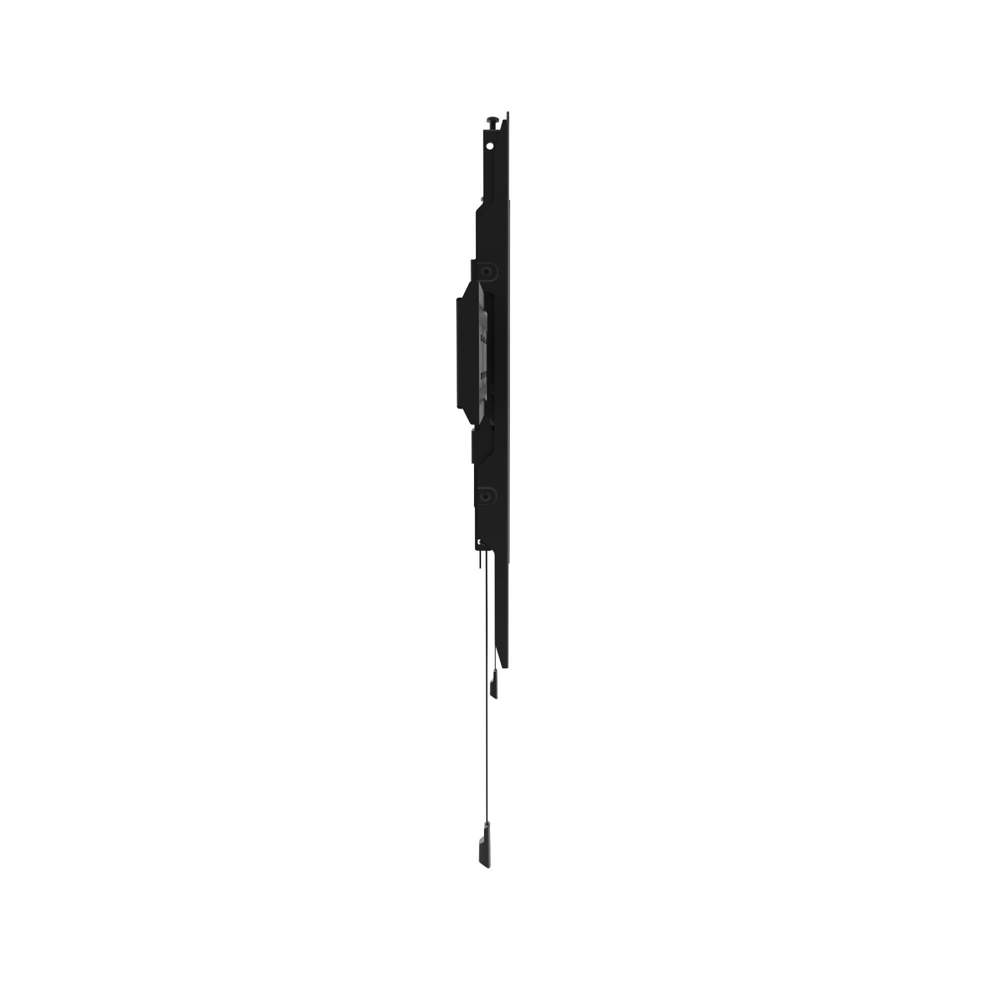

The Kanto PF300’s slim wall plate and fixed wall mount television brackets allow your TV to sit 1.4″ from the wall.
Measuring 27″ wide, the solid steel wall plate accommodates both 16″ and 24″ stud spacing for optimal TV mount support.

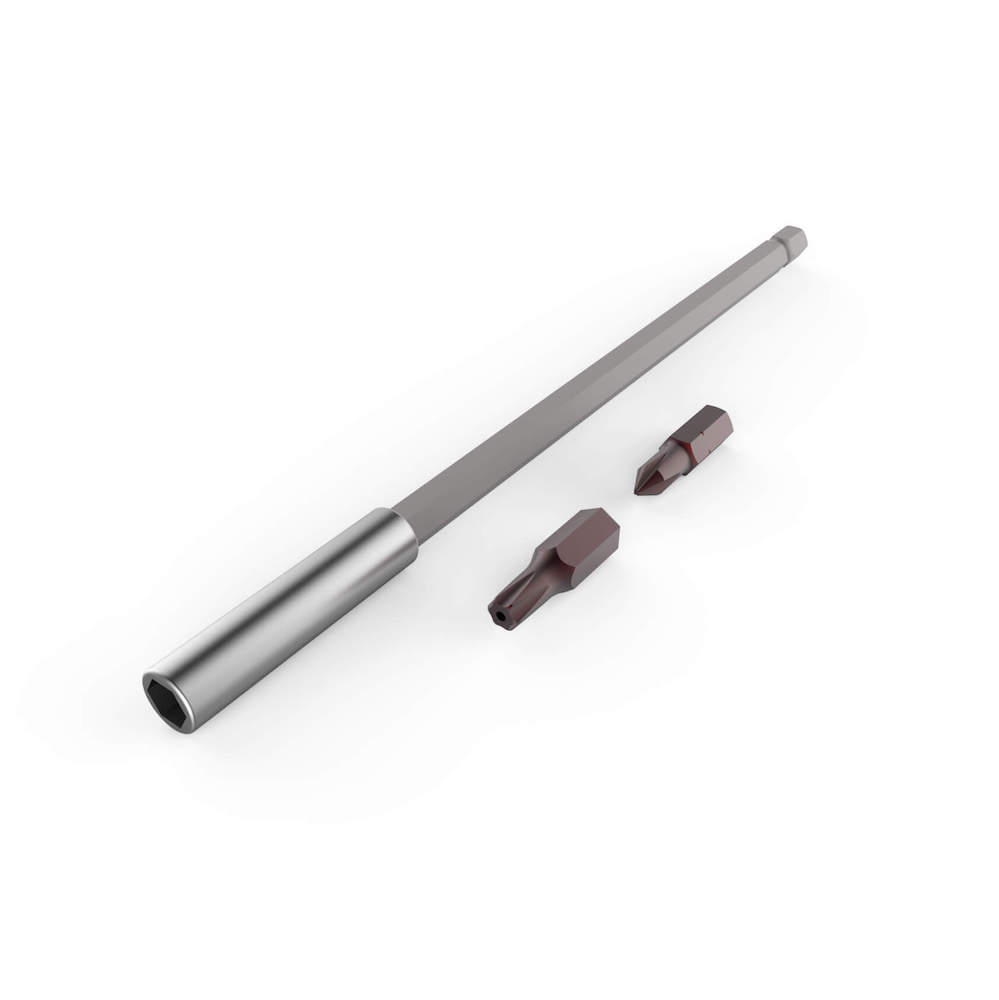

Precision leveling can be achieved with two adjustable screws. Use the provided 6″ extension bit to easily access the leveling screws after your TV has been mounted.

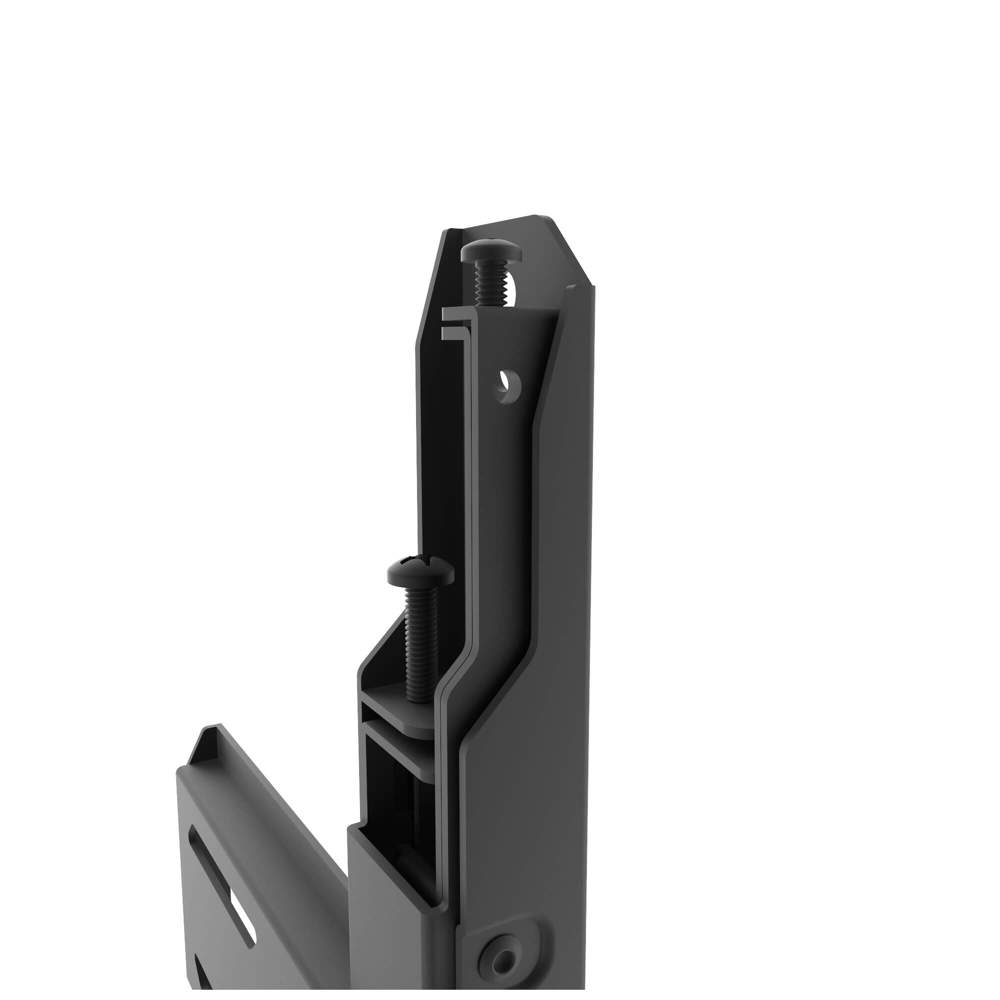

Two Torx screws can be tightened using the provided key and extension bit to prevent your TV from being removed.
Removing your TV from the wall is as easy as pulling on two quick release cords. Each cord includes a magnetic end, allowing them to be tucked neatly out of sight.
Specs
It's in the details
5
Year Warranty
What’s Included
Installation manual
All mounting hardware for wood stud and concrete installation
Profile: Sits 1.4″ (3.5 cm) from the wall
Material: Solid steel with durable powder coated finish
Integrated cable management
Adjustable horizontal leveling
Magnetic quick release cords
Lockable arms

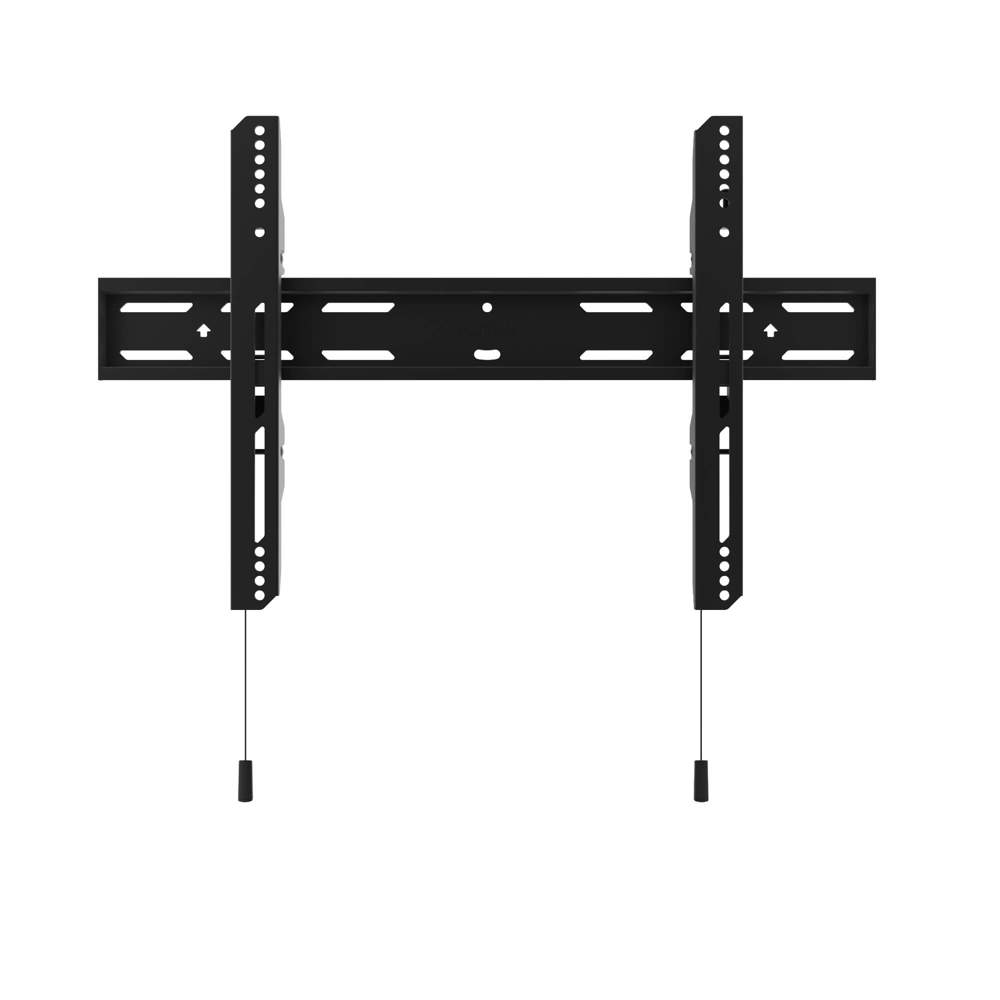

100×100 to 600×400
Specifications
TV Sizes: 32” to 90”
Weight Allowance: 150 lb (68 kg)
VESA Sizes: 100×100 to 600×400
Wall Plate: 26.9 (68.4 cm) wall plate allows mounting to 24” stud centers
Measurements
Shipping box weight: 8.2 lb (3.7 kg)
Shipping box dimensions: 28.3″ x 6.8″ x 3.3″ (71.9 x 17.3 x 8.4 cm)
Product weight: 6 lb (2.7 kg)
UPC: 800152718231
Documentation
