F2337

Fixed TV Mount

Do you want your new TV flush against the wall like a work of art? With the F2337, you get the perfect solution for mounting your TV very close to the wall while still providing room for cables. Quick release cords allow you to access connections and easily move the placement of your TV without reinstalling. This fixed TV mount is designed to carry up to 100 pounds, and works with a wide range of VESA patterns. Compatibility, strength, and sophistication. For stationary installations that do not require a range of motion, the F2337 is the mount for you.

See Installation Video

TV Size 23″ – 37″
Max Weight 100 lbs (45 kg)
Supports VESA 100×100 – 400×300

MSRP: $59.99 USD

Where to Buy

Features

Specifications

FAQ

With the F2337, you get the perfect solution for mounting your TV very close to the wall while still providing room for cables.

FITS VESA SIZES TO 400×300

The F2337 is compatible with a range of VESA patterns from 100×100 up to 400×300.

QUICK LOCK MECHANISM

The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.

HORIZONTAL LEVELING SCREWS

Located on each of the vertical bracket arms is a leveling screw that is used to fine-tune the angle of your TV. If you notice that your TV is not completely level, use the leveling screws to make the necessary adjustments so that it’s perfectly aligned.

ATTRACTIVE END CAPS

Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.

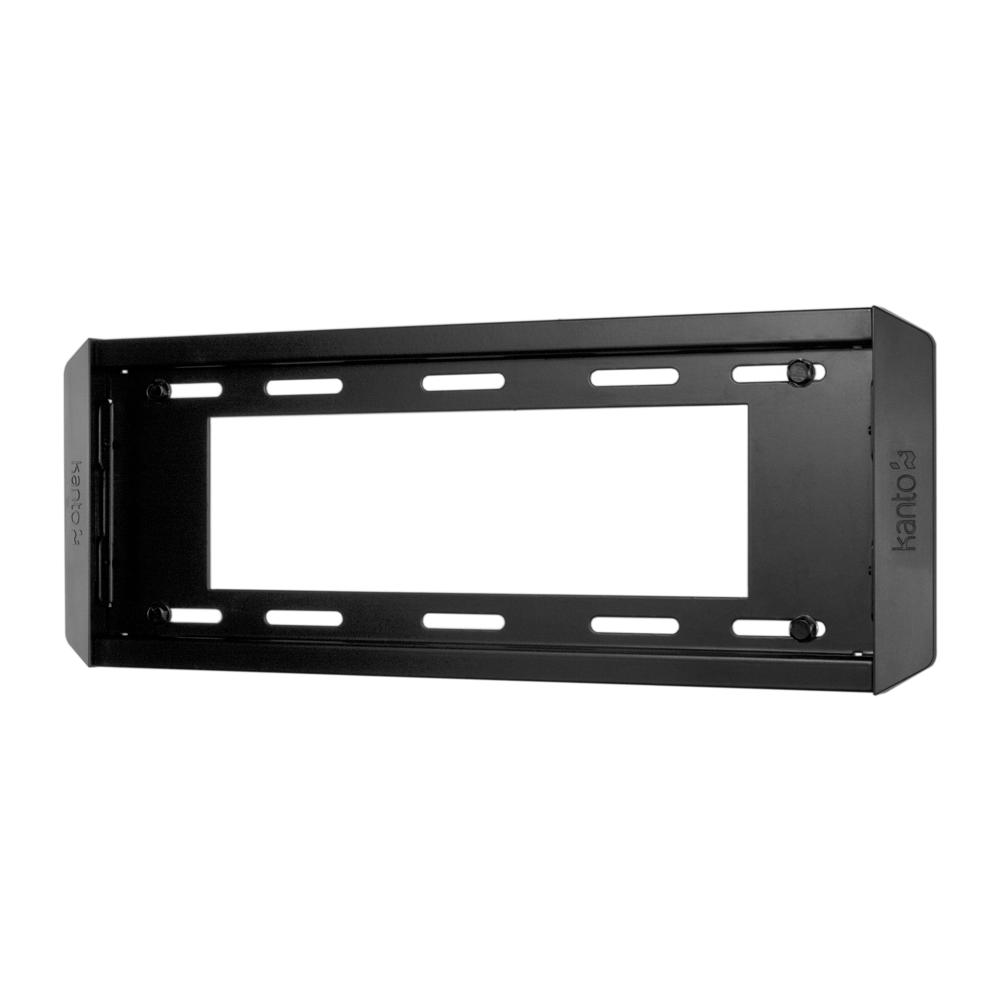

STRONG WALL PLATE

The F2337 is designed with two rows of mounting holes for extra strength and uses four lag bolts to support heavier TVs up to 100 pounds. It provides some offset abilities, depending on your TV size, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 19.5” wall plate mounts on 16” stud spacing.

INSTALLATION VIDEO

SPECIFICATIONS

Specifications

TV Sizes: 23″ to 37″
Weight Allowance: 100 lbs (45 kg)
VESA Sizes: 100×100 to 400×300
Wall Plate: 19.5″ (49.5 cm) dual stud accommodates up to 16″ stud spacing

Features

Profile: Sits 1″ (2.5 cm) from the wall
Material: Solid steel with durable powder coated finish and adjustable horizontal leveling

General

Includes:
Installation Manual
All mounting hardware for wood stud and concrete installation
Warranty: 5 years

Weights and Measurements

Shipping box weight: 5.6 lbs (2.5 kg)
Shipping box dimensions: 21.1” x 8.9” x 1.6” (53.5 x 22.5 x 4 cm)
Product weight: 4.6 lbs (2.1 kg)
UPC: 800152712178

DOCUMENTATION

PRODUCT MANUALS

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.

FAQ

What does VESA pattern mean and how do I check what VESA pattern my TV has?

VESA stands for Video Electronics Standard Association.  At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts.  To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane.  For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.

Can I install my wall mount on a concrete or brick wall?

Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.

Why should I only buy from an authorized Kanto reseller?

When it comes to customer service, we set the bar exceedingly high. Commitment of this level requires us to work closely with all our online and in-store retailers, so that we may ensure our customers receive the type of experience we try so hard to deliver.

If you are interested in purchasing a Kanto product, we encourage you to shop through one of the many authorized dealers listed above. This not only guarantees the quality of your purchase, but also gives you the benefit of our warranty should any issues arise. While we strive to support all our customers, we unfortunately cannot always provide assistance for products sold through unauthorized third parties.

If you are unsure if you are purchasing from an authorized retailer, please contact us toll-free at 1-888-848-2643 or email us at support@kantoliving.com.
