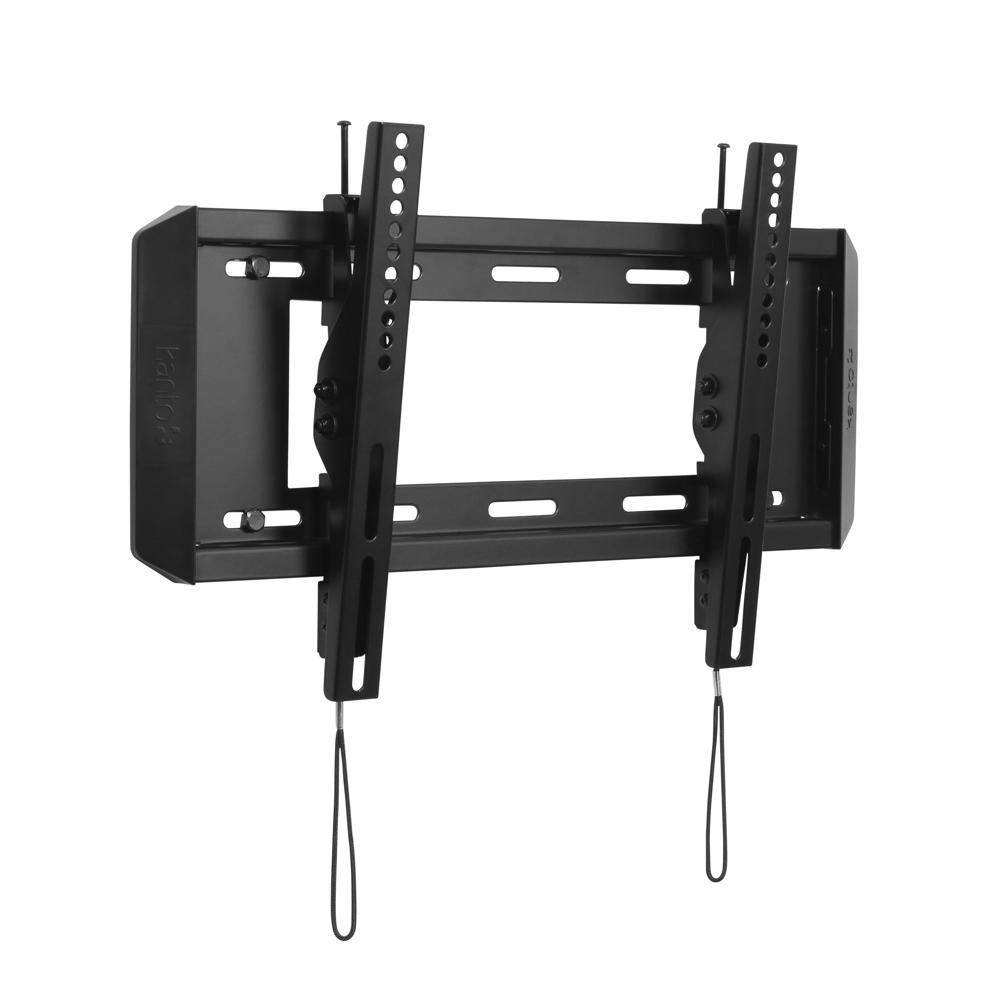

T2337
Tilting TV Mount
The perfect tilting mount for your smaller TV. For a sturdy and simple mounting solution, choose the T2337. It carries standard features such as a tilting mechanism and fits a wide range of VESA patterns. It allows your TV to sit close to the wall and offers quick release cords which let you detach your TV and re-attach it in your preferred viewing position to suit your needs. It can support up to 100 pounds – if your TV weighs this much, we recommend asking someone to give you a helping hand. Functionality + Simplicity + Strength. The T2337 from Kanto.
The perfect tilting mount for your smaller TV. For a sturdy and simple mounting solution, choose the T2337.
Features at a glance
- Fits VESA Sizes to 400×300
- Supports 100 Pounds
- Quick Lock Mechanism
- Strong Wall Plate
- Attractive End Caps
- Tilt Lock Screws
- 15 Degrees of Tilt

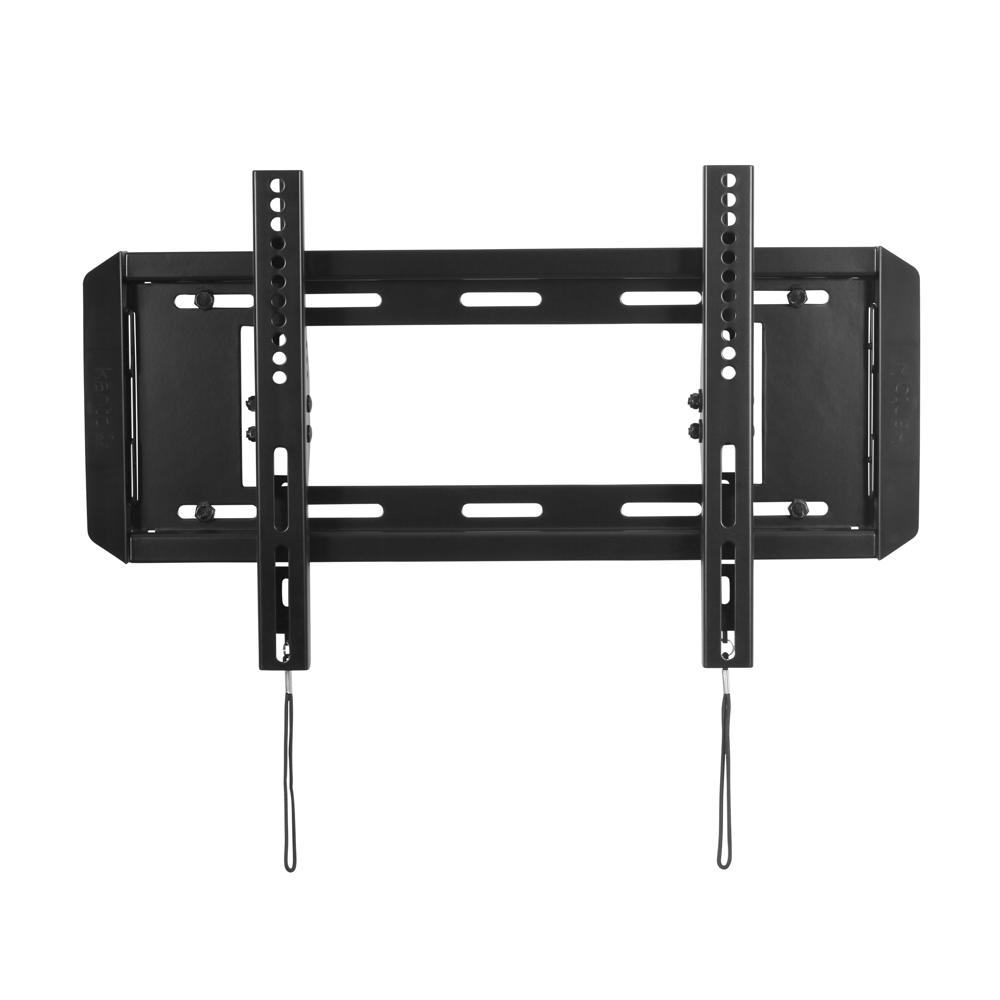

The T2337 is compatible with a range of VESA patterns from 100×100 up to 400×300.
The T2337 can support up to 100 pounds.
The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.

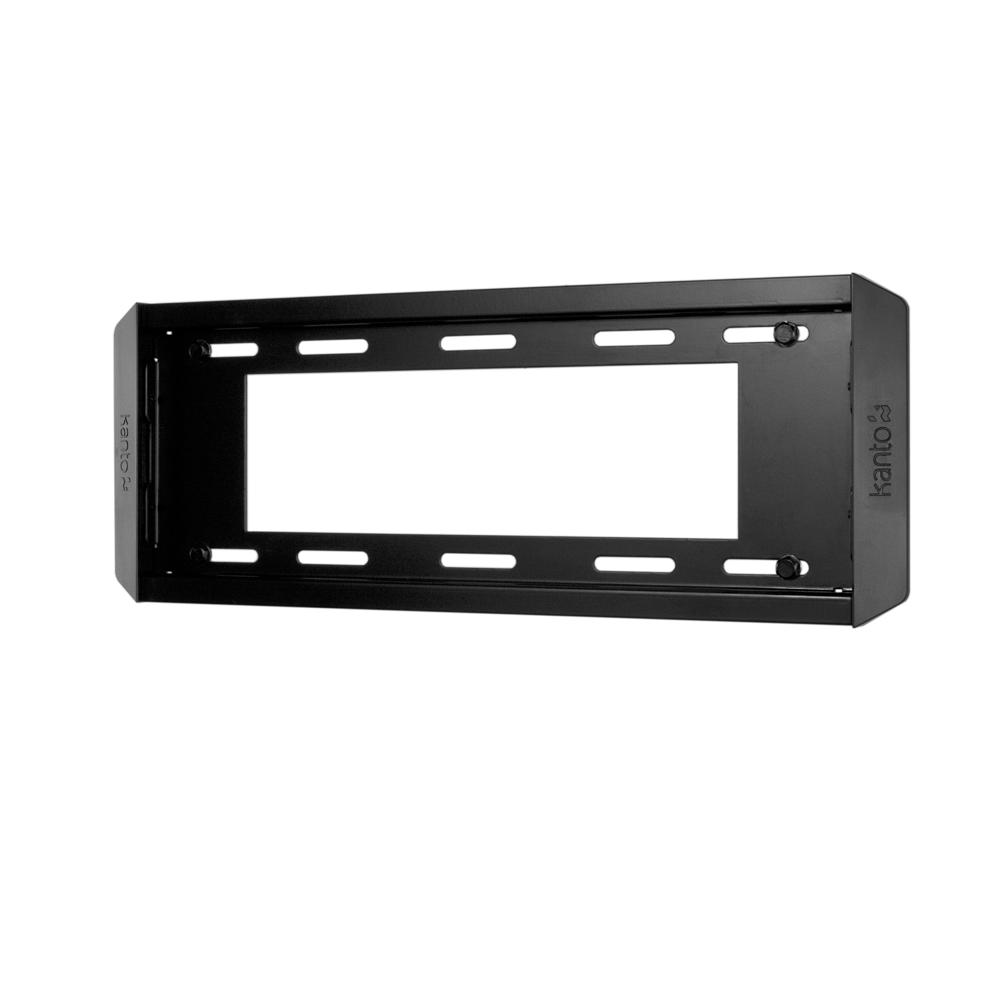

The T2337 is designed with two rows of mounting slots for extra strength and uses four lag bolts for installation. It provides some offset abilities depending on your TV size allowing you to position your TV across the wall plate. Made of solid steel, the 19.5” wall plate mounts on 16” stud spacing.
Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.
Using the included tilt lock screws, you can lock your TV at fixed intervals of +5°, 0°, and -5°. This added feature makes it easy to guarantee the selected position.
With 10° of forward tilt and 5° of backward tilt, the T2337 provides just the right amount of range to make the proper adjustments to optimize your viewing angle.
Specs
It's in the details
5
Year Warranty
What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installation
+10° to -5°
Tilt
1.9″
from the wall
100×100 to 400×300
Specifications
TV Sizes: 23” to 37”
Weight Allowance: 100 lbs (45 kg)
VESA Sizes: 100×100 to 400×300
Wall Plate: 19.5” (49.5 cm); Accommodates dual studs with up to 16″ spacing
Measurements
Shipping box weight: 7.6 lbs (3.4 kg)
Shipping box dimensions: 21.1” x 9.1” x 2.7” (53.5 x 23 x 6.8 cm)
Product weight: 7.3 lbs (3.3 kg)
UPC: 800152712154
