PT250
Tilting TV Mount

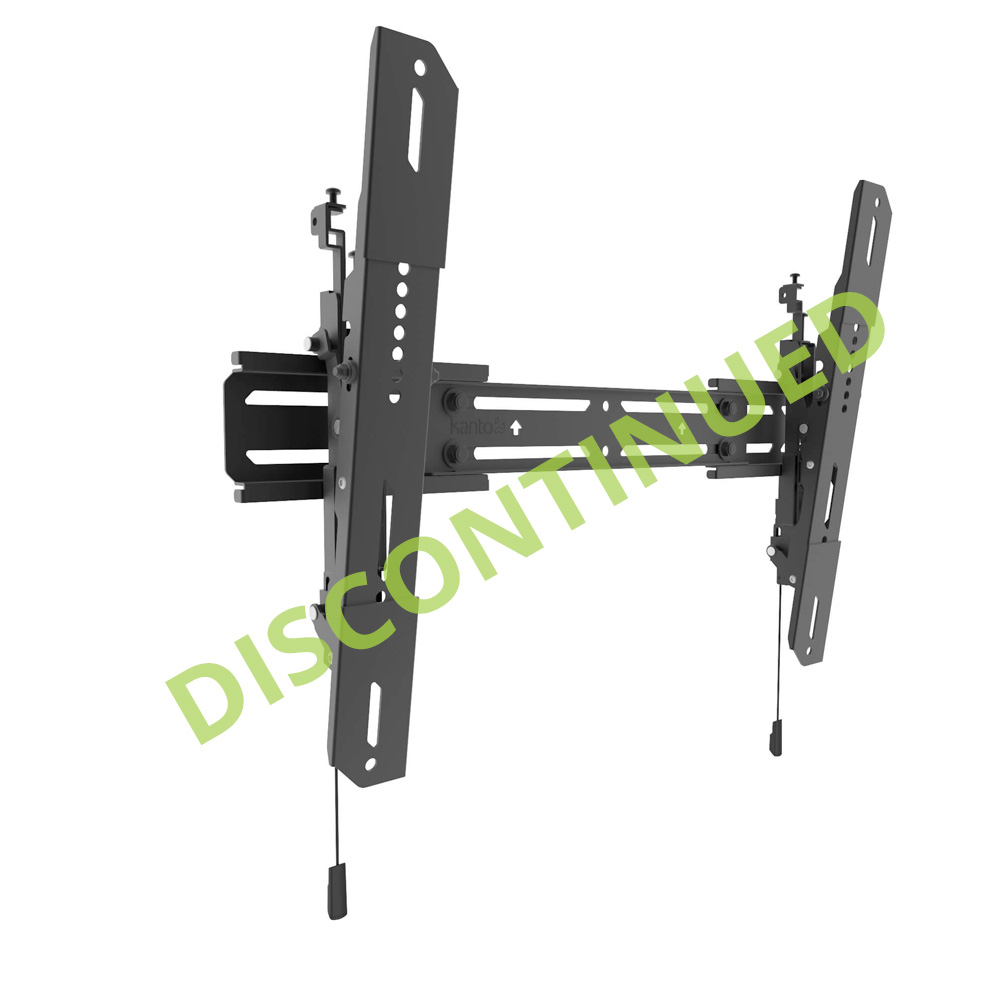

DISCONTINUED
REPLACEMENT PRODUCT: PT300

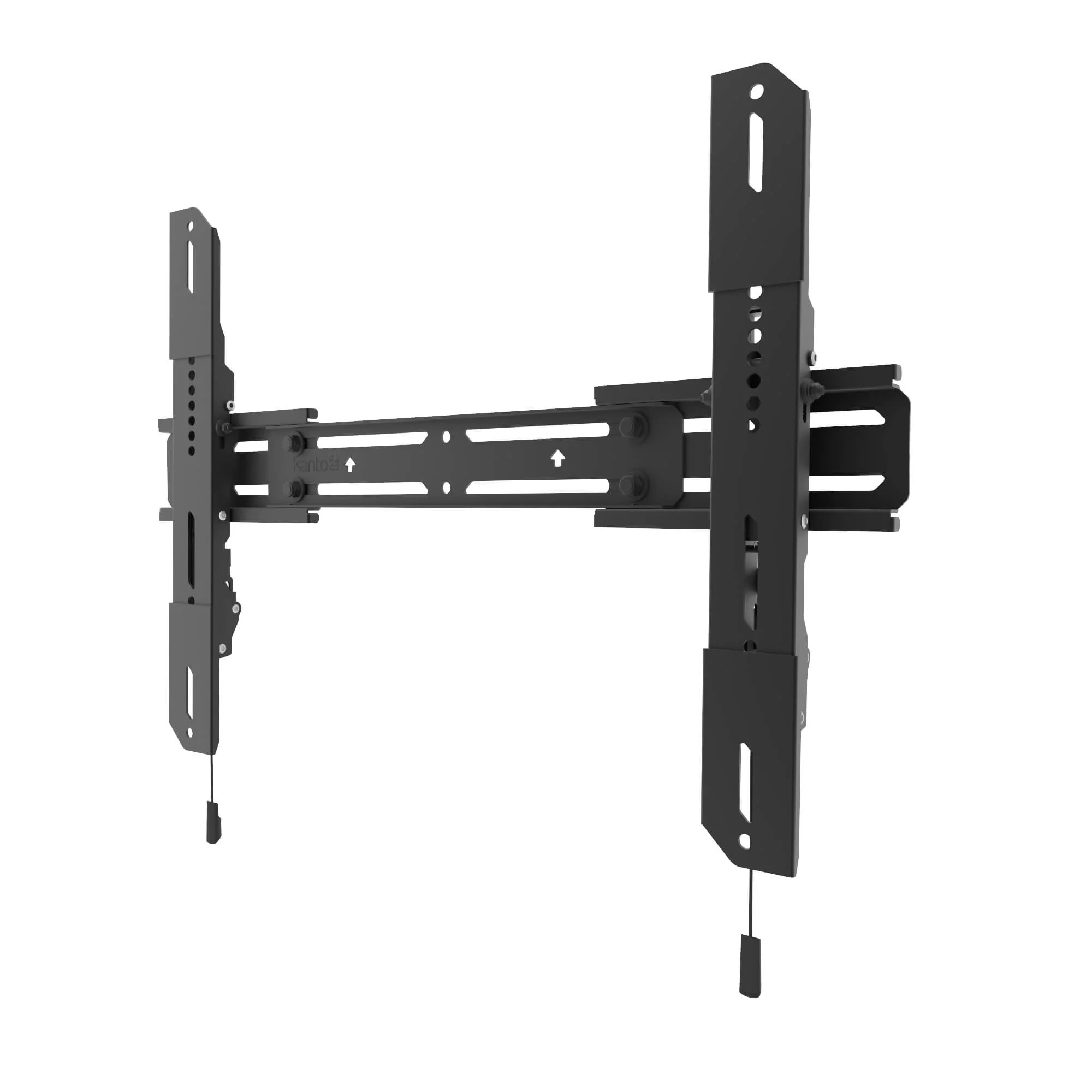

The PT250 is a low-profile, tilting TV mount designed to adapt to your needs. Sitting 1.4 inches from the wall, it features an expandable wall plate that accommodates single stud installations, as well as 16 and 24-inch stud spacing. Its two mounting brackets provide up to 12° of forward tilt, helping to reduce glare and improve line-of-sight with your screen. Each bracket includes a horizontal leveling screw for precision leveling, along with a Torx screw and locking feature to protect against theft. Magnetic quick-release cords are also provided to easily remove your TV when the mount is unlocked.
A mount that adapts to you.
Features at a glance
- Expandable Wall Plate
- Extension Arms
- 12° of Forward Tilt
- Low-Profile Design
- Lockable Arms
- Magnetic Quick Release Cords

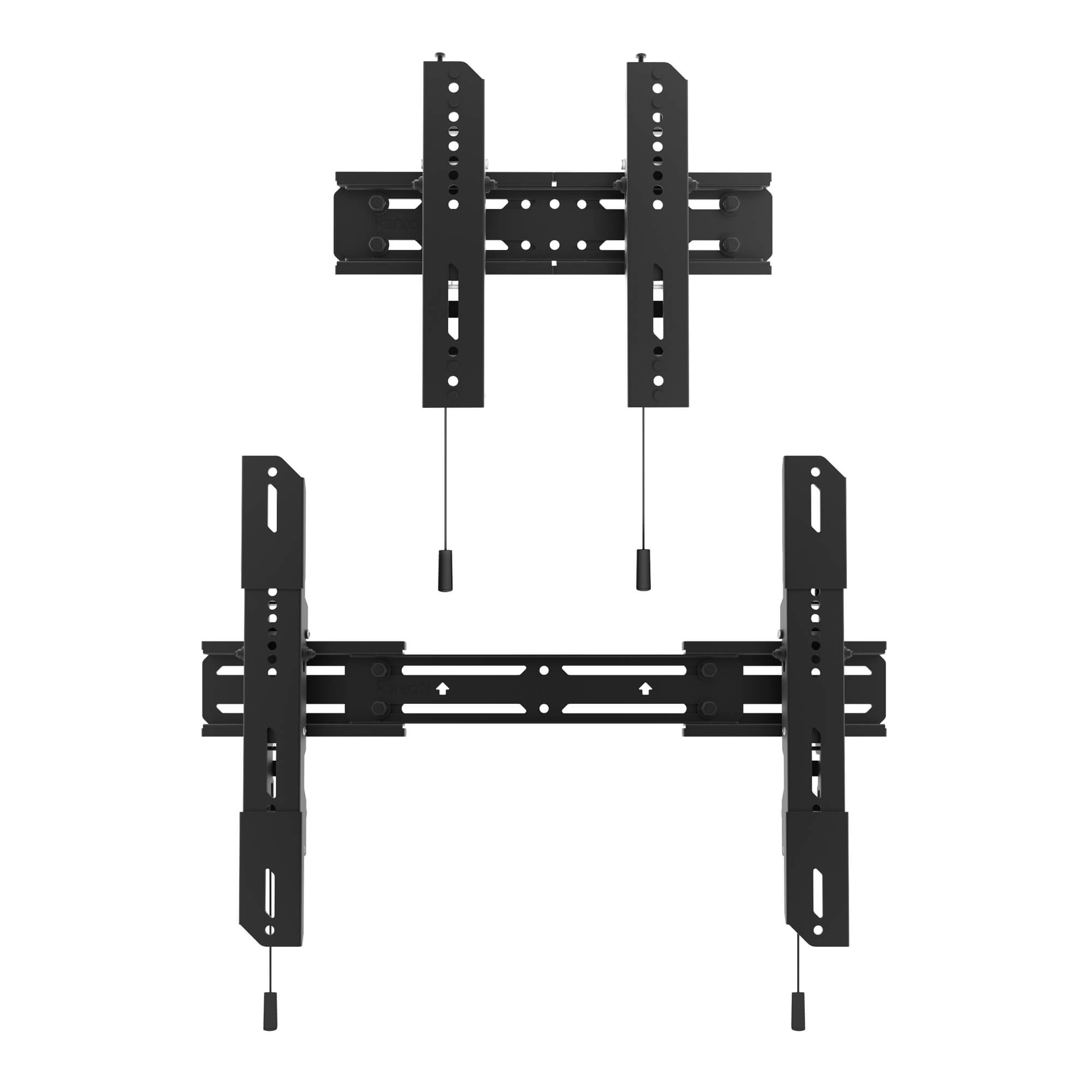

The PT250’s unique wall plate expands to accommodate various stud positions. This makes it possible to mount smaller TVs on a single stud, or up to a 70-inch TV on two studs with 16 or 24-inch spacing.
Four VESA-compliant extension arms are provided to ensure a proper fit with larger TVs. Attach them to the TV brackets to reach VESA sizes up to 600×400.

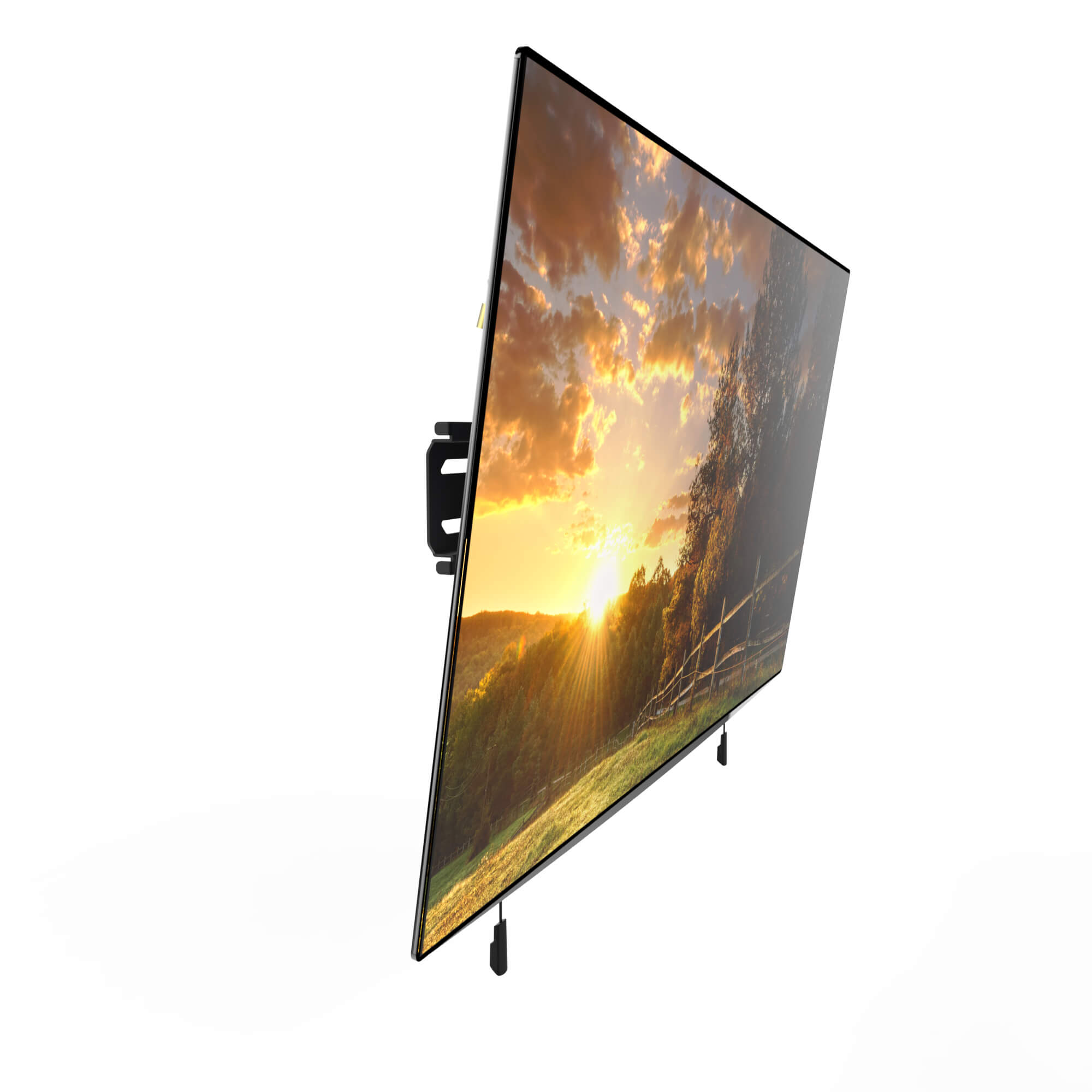

Once tensioned, the tilting arms allow to adjust the viewing angle without the use of tools. Tilt your TV up to 12° to reduce glare and improve line-of-sight with the screen.

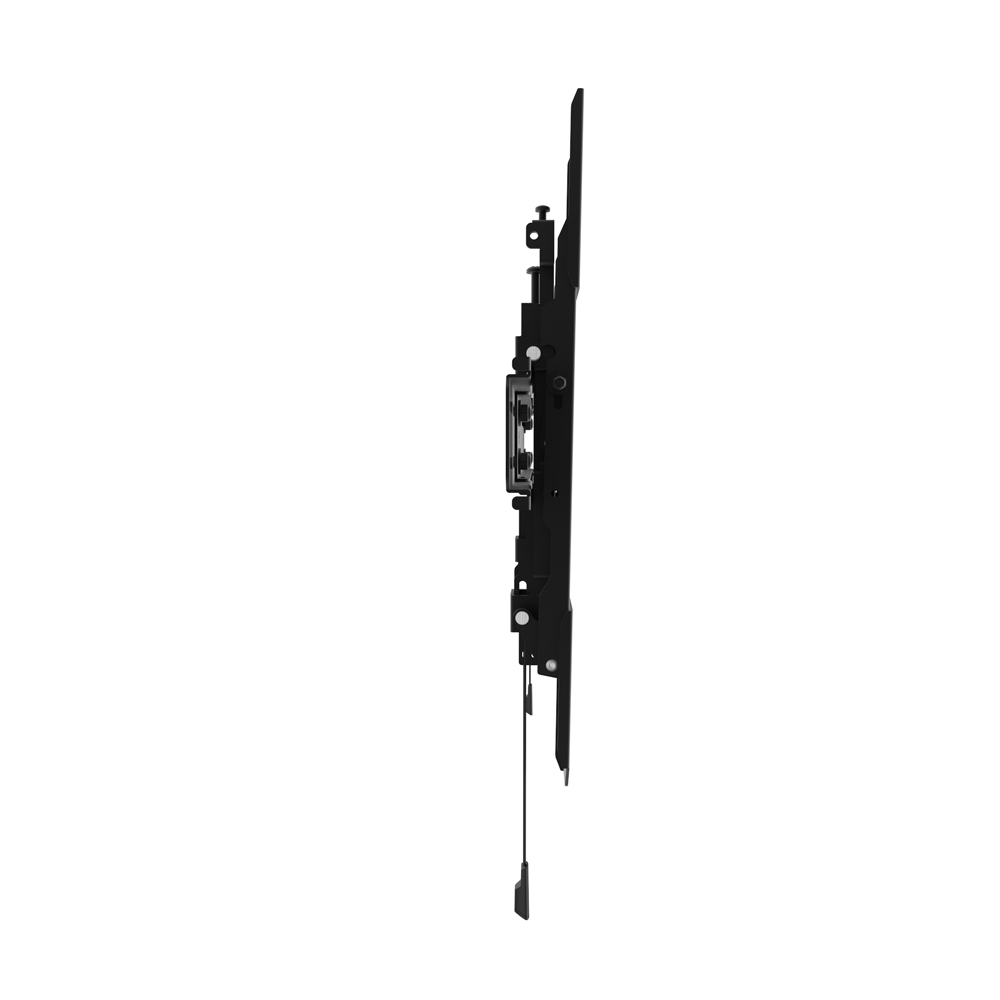

When fully pushed back, the PT250 allows your TV to sit 1.4 inches from the wall.
Two Torx security screws can be tightened with the provided key to prevent your TV from being removed. Alternatively, a lock can be attached to the mounting brackets to secure them in place. (Lock not included)
Removing your TV from the wall is as easy as pulling on two quick-release cords that hang from the bottom of the mount. Each cord includes a magnetic end, allowing them to be easily tucked out of sight.
Specs
It's in the details
5
Year Warranty
What’s Included
Installation manual
All mounting hardware for wood stud and concrete installation
+12°
Tilt
1.4”
from the wall
19” to 70”
TV Sizes
Material: Solid steel with durable powder coated finish
75×75 to 600×400
Specifications
TV Sizes: 19” to 70”
Weight Allowance: 110 lb (50 kg)
VESA Sizes: 75×75 to 600×400
Wall Plate: 15.4″ to 25.7″
Measurements
Shipping box weight: 9.3 lb (4.2 kg)
Shipping box dimensions: 23.2″ x 8.5″ x 2.6″ (59 x 21.5 x 6.7 cm)
Product weight: 7.7 lb (3.5 kg)
UPC: 800152717562
