The PS100 holds TVs weighing up to 88 pounds, and provides modest tilt or swivel capabilities to provide you with a range of viewing positions.
SUPPORTS UP TO 88 POUNDS
With its solid steel construction, the PS100 is designed to hold up to 88 pounds.
LOW PROFILE DESIGN
The PS100 sits 3″ from the wall and secures your TV with a slim, modern profile.
A VARIETY OF VESA PATTERNS
The PS100 is designed for smaller TVs with specific VESA patterns, including 100×100 and 200×200.
VESA SIZES TO 400×400
For larger VESA mounting patterns such as 300×300 and 400×400, attach the four extension arms using the supplied Nylock nuts.
14 DEGREES OF TILT
The PS100 provides +12°/-2° of tilt to reduce glare and improve your viewing angle. Tighten the nuts to lock the tilt angle in place.
Magnetic covers fasten easily to the wall plate to give you a clean, modern look.
EVERYTHING YOU NEED
Because every installation is unique, PS100’s are carefully packaged with all the lag bolts, anchors, mounting bolts, washers and spacers that you could need. Everything is labeled with clear instructions that correspond with the manuals in order to simplify your installation.
Rotate the 360 degree image below.
TV Sizes: 26″ to 60″
Weight Allowance: 88 lb (40 kg)
VESA Sizes: 100×100, 100×150, 100×200, 150×100, 150×150, 200×100, 200×150, 200×200, 200×250, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Wall Plate: Single stud wall mounting

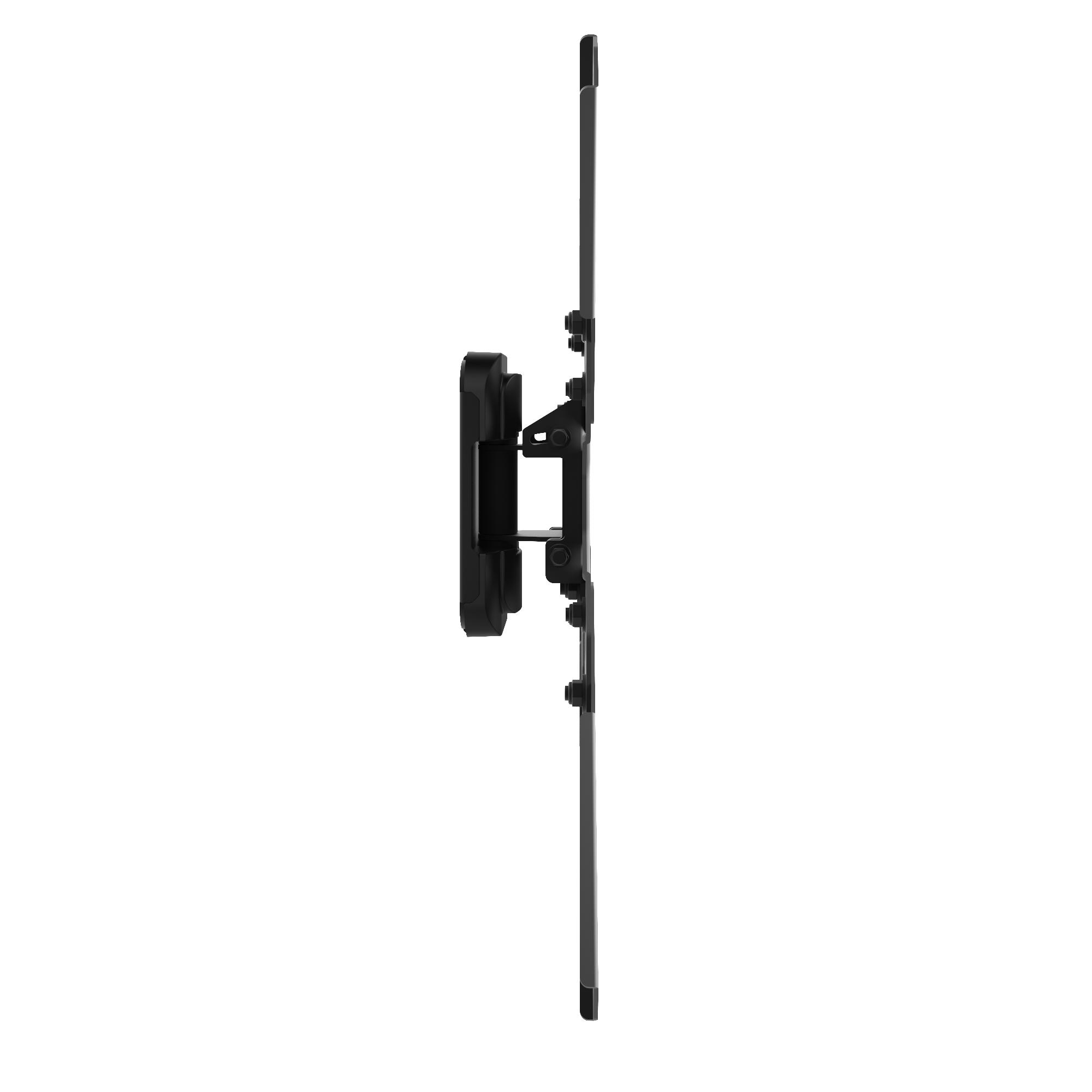

Profile: Sits 3″ (7.8 cm) from the wall
Swivel: Up to 15° in either direction, depending on screen size
Adjustable horizontal leveling

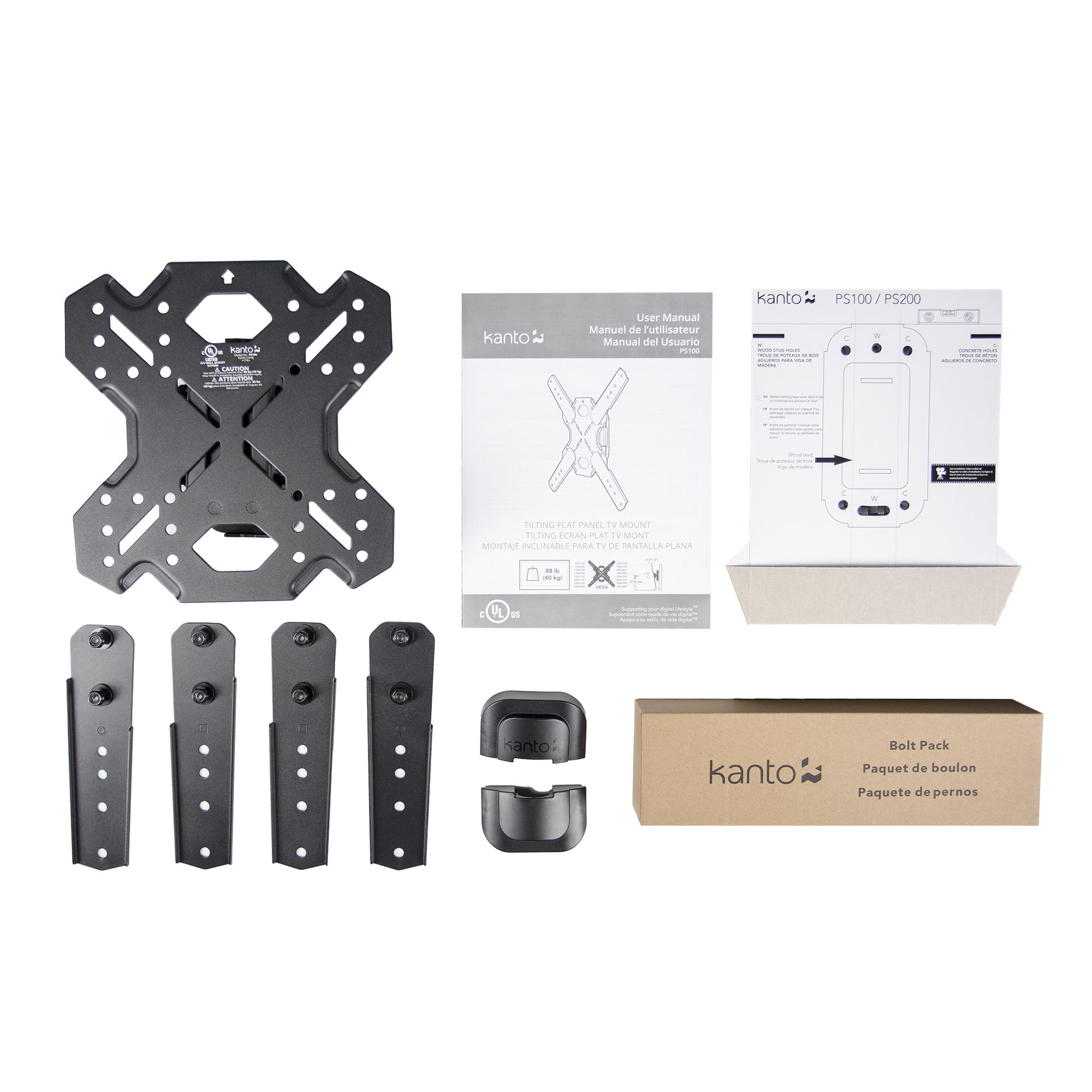

Installation manual and all mounting hardware for wood stud and concrete installation
Material: Solid steel with durable powder coated finish
Warranty: 5 years
Weights and Measurements
Shipping box weight: 8.8 lb (4 kg)
Shipping box dimensions: 14.2” x 12” x 3.7” (36.1 x 30.5 x 9.4 cm)
Product weight: 6.4 lb (2.9 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
