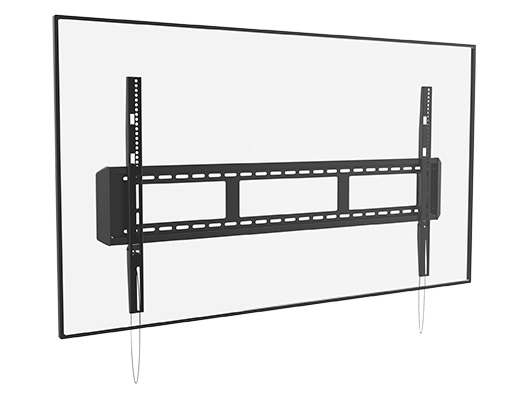

Introducing the F6080, a fixed TV mount for 60” to 100” flat panel displays.

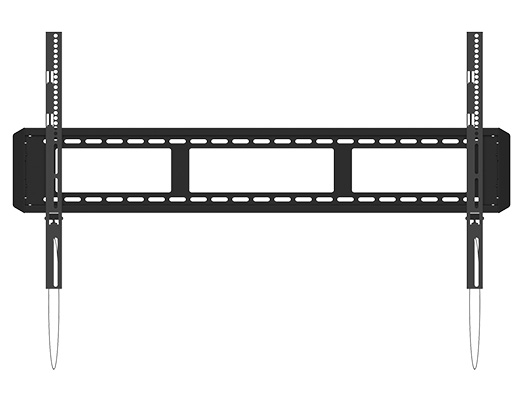

FITS VESA TO 1100×600
The F6080 is compatible with a range of VESA patterns from 100×100 up to 1100×600, to support even the largest TVs.

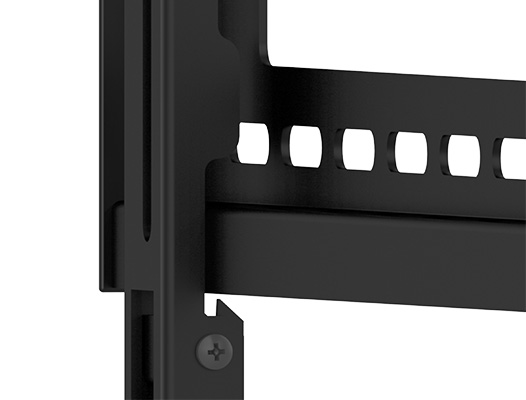

QUICK LOCK MECHANISM
The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.

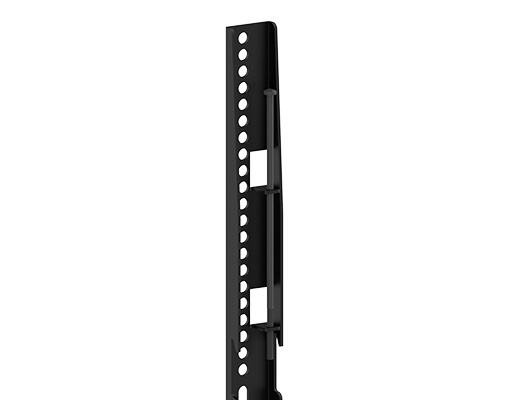

HORIZONTAL LEVELING SCREWS
Located on each of the vertical bracket arms is a leveling screw that is used to fine-tune the angle of your TV. If you notice that your TV is not completely level, use the leveling screws to make the necessary adjustments so that it’s perfectly aligned.

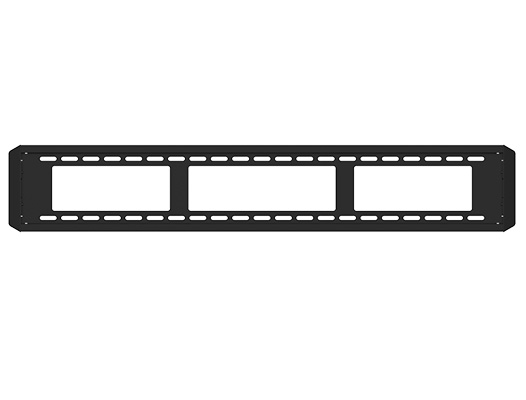

STRONG WALL PLATE
The F6080 is designed with two rows of mounting slots for extra strength and, using up to six lag bolts on three studs, supports very heavy TVs up to 200 pounds. It provides some offset abilities depending on your TV size, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 47” wall plate mounts on either three 16” studs or two 24” studs.

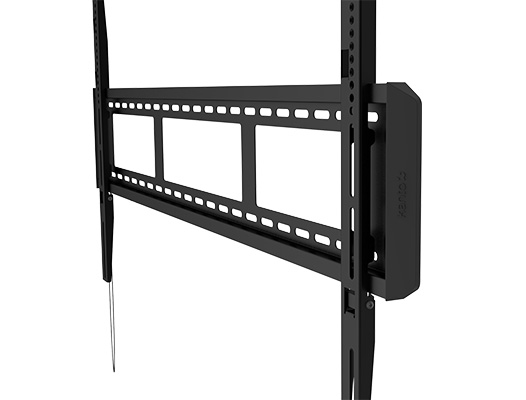

ATTRACTIVE END CAPS
Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.
TV Sizes: 60” to 100”
Weight Allowance: 200 lb (91 kg)
VESA Sizes: 100×100 to 1100×600
Wall Plate: 47” (119.4 cm); Accommodates three studs with up to 16″ spacing, or offsetting on 24” stud centers

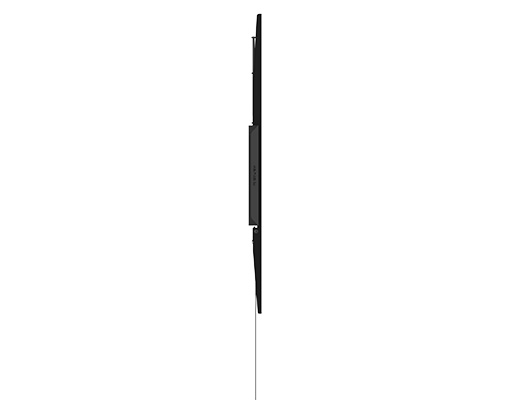

Profile: Sits 1″ (2.5 cm) from the wall
Material: Solid steel with durable powder coated finish and adjustable horizontal leveling.
Includes: Installation Manual; All mounting hardware for wood stud and concrete installation
Warranty: 5 years
Weights and Measurements
Shipping box weight: 14.8 lb (6.7 kg)
Shipping box dimensions: 48” x 10.4” x 3.9” (122 x 26.5 x 10 cm)
Product weight: 11 lb (5 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
