PS300W
Full Motion TV Mount
The Kanto PS300W does it all. 22” of reach from your wall, combined with swivel and tilt capabilities, lets your TV adjust to you – just the way it should be. The low-profile design means you can tuck it away when you want. With the PS300W TV mount for 26″-60″ screens, you only need a single stud to get it up on the wall, yet still benefit from its many features. Solid steel construction equates to durability and reliability, while the cable management system will make you forget your input wires even existed in the first place. Also available in black as PS300.
22″ of reach from your wall, combined with swivel and tilt capabilities, lets your TV adjust to you – just the way it should be.
Features at a glance
- Supports Up to 88 Pounds
- Extends Up to 22 Inches
- Clean Finish
- Low Profile Design
- VESA Sizes to 400×400
- Swivels Up to 180 Degrees
- Tilt Mechanism
- Sleek Cable Management
- White Cable Sleeve
- Convenient Bolt Pack

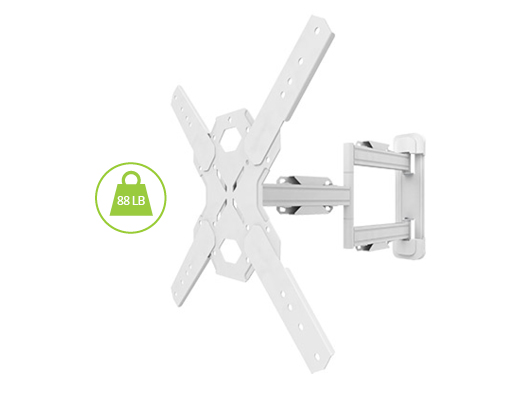

With its solid steel construction, the single stud TV mount for 26″-60″ TVs is designed to hold up to 88 pounds.

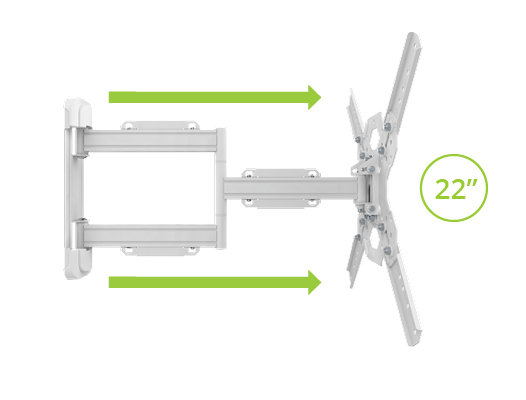

The Kanto PS300W extends 22” from the wall to give you a variety of viewing options.
The Kanto PS300W full motion TV wall mount for 26″-60″ displays is made of solid steel with a durable powder coated finish, giving you a sophisticated look and feel.

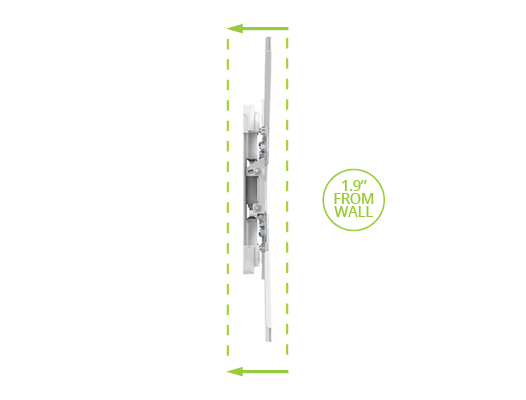

When pushed back, your 26″-60″ TV will sit 1.9” from the wall, with the center of the screen in-line with the full motion TV wall mount.

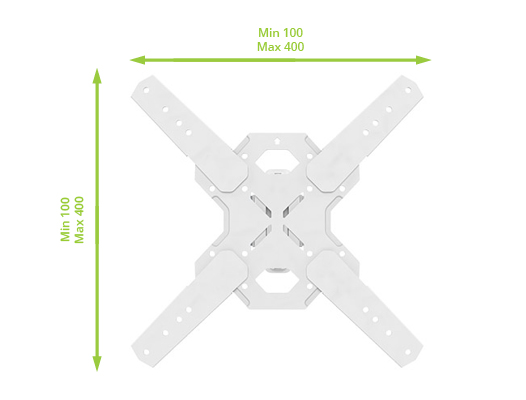

The Kanto PS300W single stud TV mount is designed for small to midsize 26″-60″ TVs with specific VESA patterns, including 100×100 and 200×200. For larger VESA mounting patterns such as 300×300 and 400×400, attach the four extension arms using the supplied Nylock nuts.

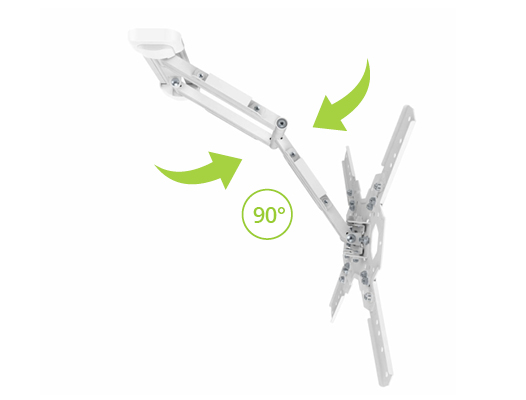

With its articulating arms, the single stud TV mount allows you to swivel your 26″-60″ TV 90° left or right depending on the size of your TV.

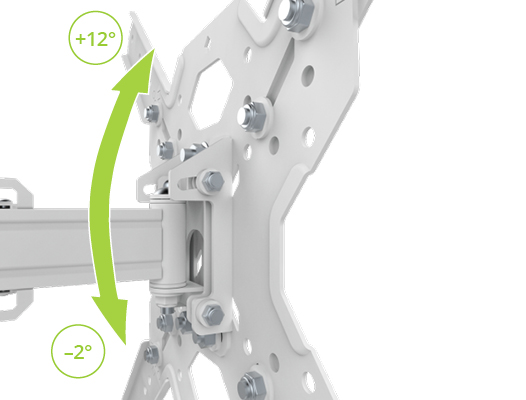

With 12° of forward tilt and 2° of backward tilt, the full motion TV wall mount makes it easy to angle your 26″-60″ TV just the way you want it.
An integrated cable management system allows you to route your power and video cables neatly between the TV and the wall.
For a more discreet appearance, the white model comes with a white cable sleeve to match the surrounding area.
Because every installation is unique, PS300W’s are carefully packaged with all the lag bolts, anchors, mounting bolts, washers and spacers that you could need. Everything is labeled with clear instructions that correspond with the manuals in order to simplify your installation.
Product Walkthrough
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto PS300/PS400 Full Motion TV mount.
Visit our support hub for help.
ADDITIONAL QUESTIONS?
Looking for an answer and want to help yourself? Visit our self-serve Knowledge Base for questions that other customers might have already asked. And if your question isn’t already answered, reach out and we will be happy to help.
Visit our Knowledge BaseSpecs
It's in the details
5
Year Warranty

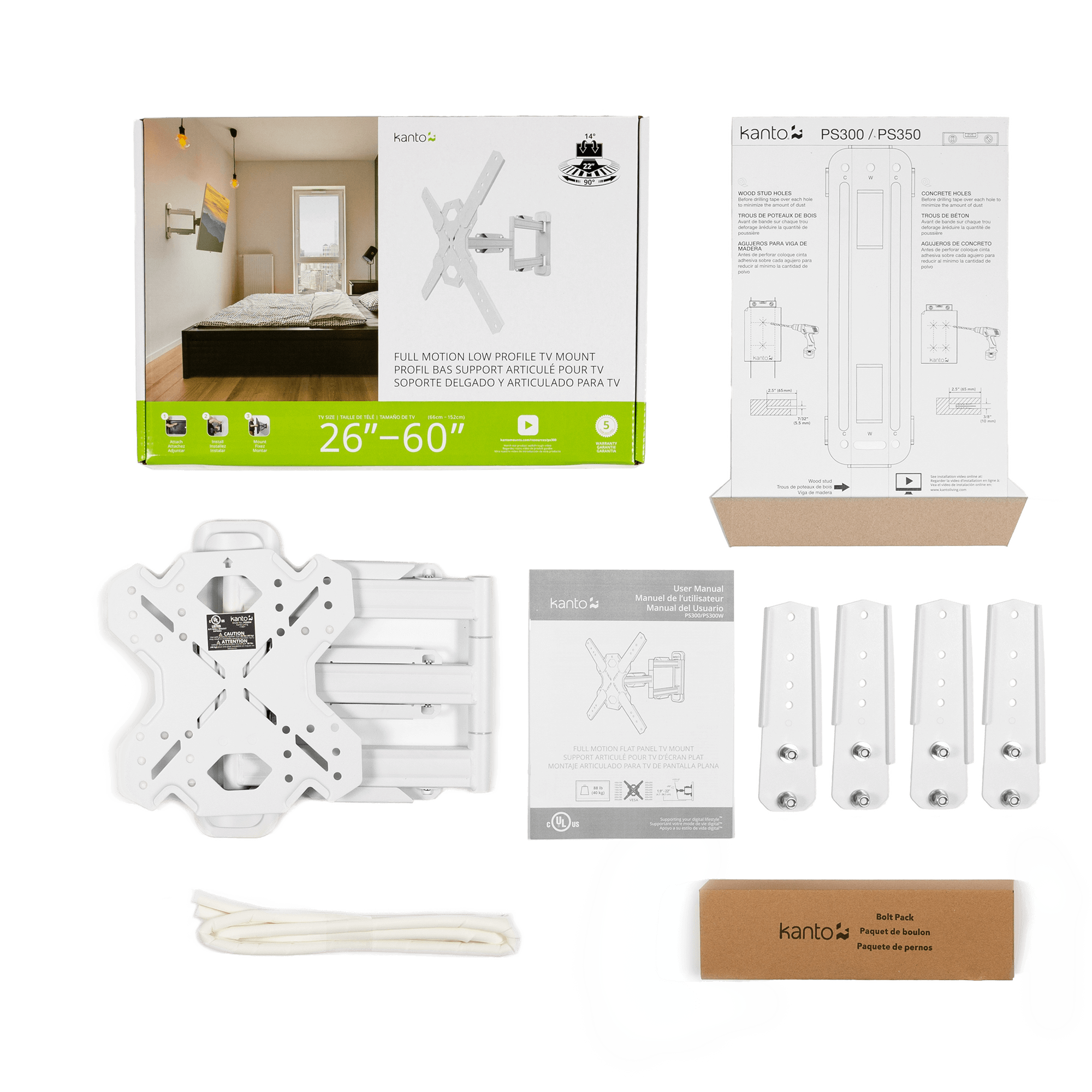

What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installation
White cable sleeve (White model only)
+12° to -2°
Tilt
90°
Swivel
(in either direction, dependent on screen size)
1.9″ to 22"
Extension
Material: Solid steel with durable powder coated finish
Integrated cable management
Adjustable horizontal leveling
Magnetic lag bolt covers
100×100, 100×150, 100×200, 150×100, 150×150, 200×100, 200×150, 200×200, 200×250, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Specifications
TV Sizes: 26” to 60”
Weight Allowance: 88 lb (40 kg)
VESA Sizes: 100×100, 100×150, 100×200, 150×100, 150×150, 200×100, 200×150, 200×200, 200×250, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Wall Plate: Single stud mounting
Measurements
Shipping box weight: 16.1 lb (7.3 kg)
Shipping box dimensions: 20.5” x 14” x 2.8”
(52 x 35.5 x 7 cm)
Product weight: 13.7 lb (6.2 kg)
UPC: 800152718217
