MBW41PT

Name: MBW41PT
SKU: MBW41PT
Price: 1099.99 USD
Availability: InStock

Menu Board Wall Mount System

The MB Series wall mount system offers retailers a flexible, all-in-one solution for displaying menu boards and other digital signage. Its modular rails allow two to four screens to be placed adjacent to one another in portrait or landscape orientation, while precision leveling screws ensure perfect alignment. Combining discrete tilt settings with push-in pop-out arms for easy cable access, this versatile system is ideal for mounting at any height. Includes all the hardware necessary for wood stud, brick and concrete installations.

Learn more about our Menu Board Mount Solutions here.

75 x 75 - 600 x 400

264 lb

40″ - 60″

Up to 9"

Menu Boards

Tilting

BUY NOW Categories: Menu Board Mounts, Tilting Wall Mounts, TV Mounts

Features at a glance

Modular Design
Precision Leveling
Easy Input Access
Improved Line-of-Sight
Accessories - MB Extrusion

Available in three models, MB Series wall mounts support two to four screens weighing up to 66 pounds each. Their modular design allows for additional extrusions to be added to accommodate TVs with wider VESA patterns, or to connect multiple units together.

Individual leveling screws are provided to ensure your screens are perfectly aligned, even after installation.

Each mounting bracket features a unique spring mechanism to allow for easy access to your TV’s inputs. Simply push in to disengage the mechanism, and release to extend your TV away from the wall.

Tilt the mounting brackets 5°, 10° or 15° forward to improve line-of-sight while maintaining alignment between your screens.

Available in 28, 48, 68, and 100 cm lengths, these supplemental extrusions can be used to accommodate various display sizes and VESA patterns. The MB Series’ modular system makes it easy to add additional extrusions, or to swap between larger and smaller ones to ensure a perfect fit. Additional connectors are also available when adding extrusions. (Sold Separately)

Learn More

Ultra-easy install

Installation video coming soon

Visit our support hub for help.

Shipped with all the necessary hardware for wood stud, brick and concrete installations, MB Series wall mounts help you get your retail space up and running without delay.

Have questions?

View our FAQ

Specs

It's in the details

5

Year Warranty

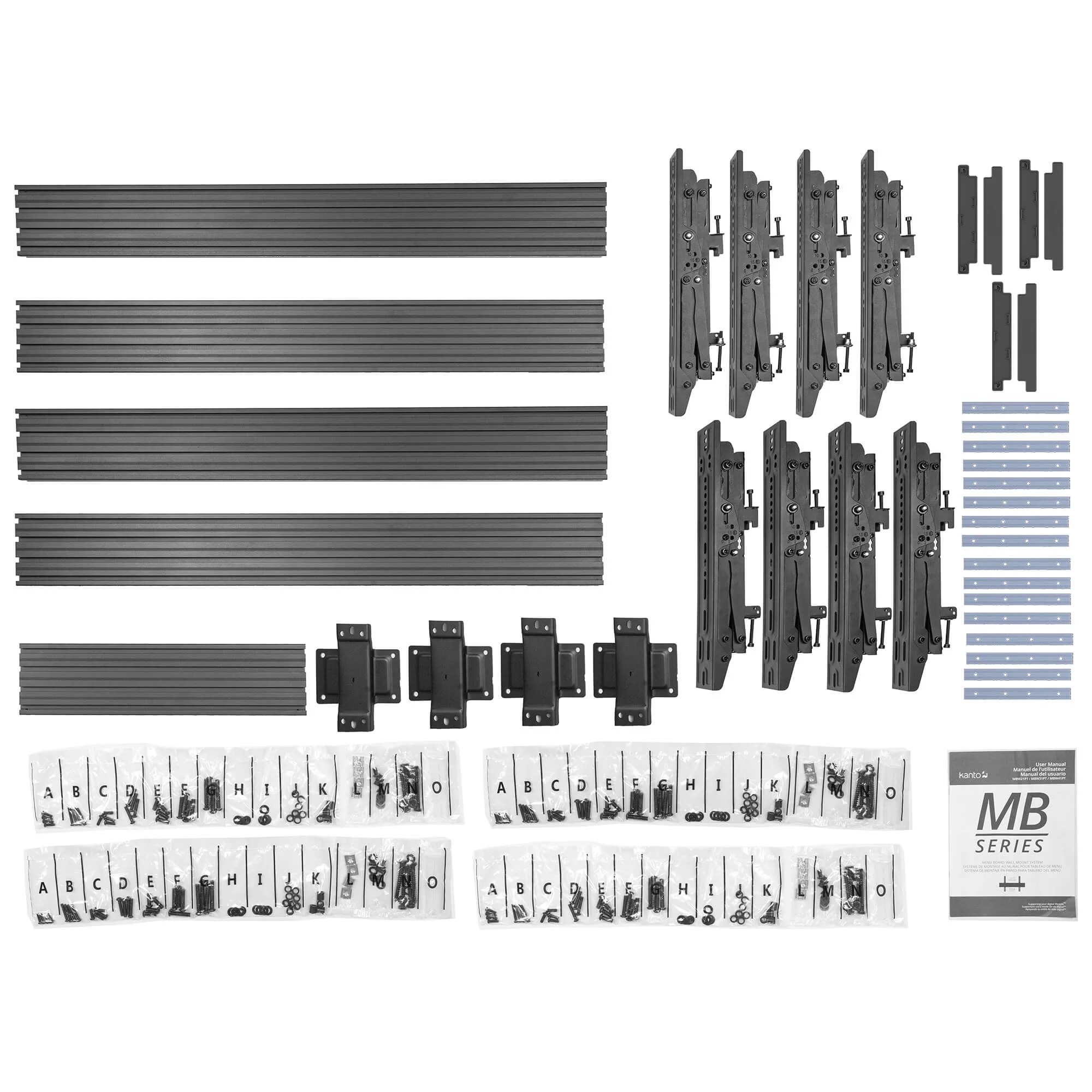

What’s Included

Installation Manual

All mounting hardware for wood stud and concrete installation

5°, 10°, 15°

Tilt

40” to 60”

TV Sizes

4

Number of TVs

Material: Steel, Aluminum and Plastic Construction

Pop-in pop-out arms

Adjustable horizontal leveling

Internal cable management

75×75 to 600×400

Specifications

Number of TVs: 4
TV Sizes: 40” to 60”
Weight Allowance: 264 lb (120 kg)
VESA Sizes: 75×75 to 600×400

Measurements

Shipping box weight: 74.3 lb (33.7 kg)
Shipping box dimensions: 44.3″ x 14.2″ x 7.2″ (112.5 x 36 x 18.4 cm)
Product weight: 70.8 lb (32.1 kg)
UPC: 800152719184

Documentation

MBW41PT Multilingual Manual (English | French | Spanish)

MBW41PT Product Sheet (English)

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
