M600
Full Motion TV Mount
The Kanto M600 full motion TV mount features a narrow wall plate intended for single-stud, brick and concrete installations. Its dual arm design allows you to extend, pan and swivel your TV to improve line-of-sight, and ensures it remains centered with the wall plate when pushed back to sit 2.2 inches from the wall. Four mounting holes situated on the outer corners of the wall plate are also provided for additional strength when mounting to brick or concrete. Featuring integrated cable management and clip-on wall plate covers, the Kanto M600 ensures a clean and professional TV setup.
Features at a glance
- Ideal for Concrete
- Improved Viewing
- Low Profile Design
- Clean Appearance
Capable of supporting up to 77 pounds, the Kanto M600 TV mount features four wide-set mounting holes to ensure a secure and adjustable installation on both brick and concrete, and two vertically-aligned center holes to mount to a single wood stud.
Reaching 18.3″ from the wall, the dual articulating arms allow for a wide range of viewing angles. Swivel your TV 51° to 90° in either direction, depending on screen size, and tilt it up to 14° forward to improve line-of-sight and 3° backward to reduce glare.

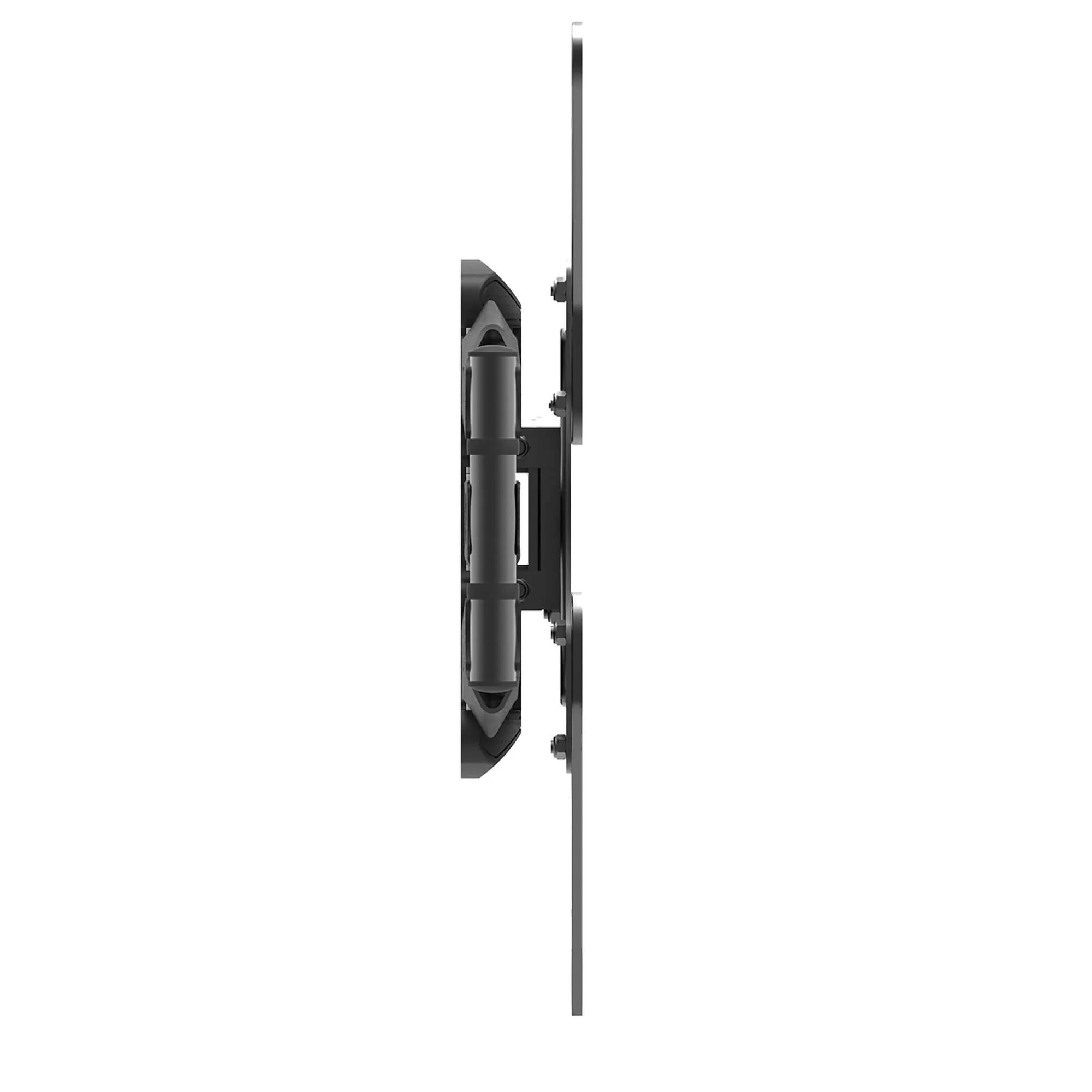

While maintaining alignment between the center of your TV and the wall plate, the M600’s adjustable arms can be effortlessly pushed back to sit 2.2″ from the wall.

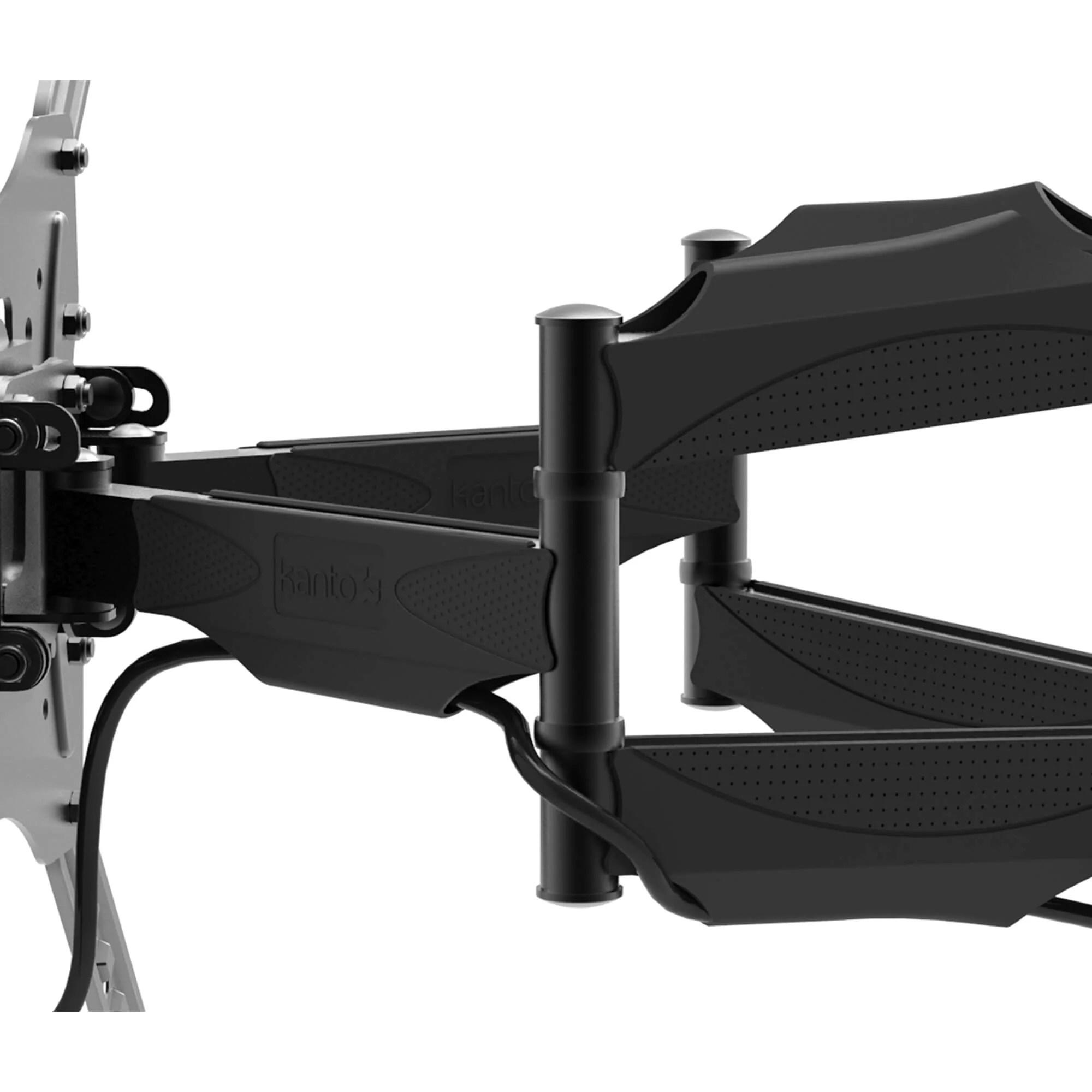

Use the provided cable management clips to conveniently route your cables, ensuring your viewing area remains clutter-free. Plastic wall plate covers are also included to hide any sign of installing this single stud TV mount.
Specs
It's in the details
5
Year Warranty

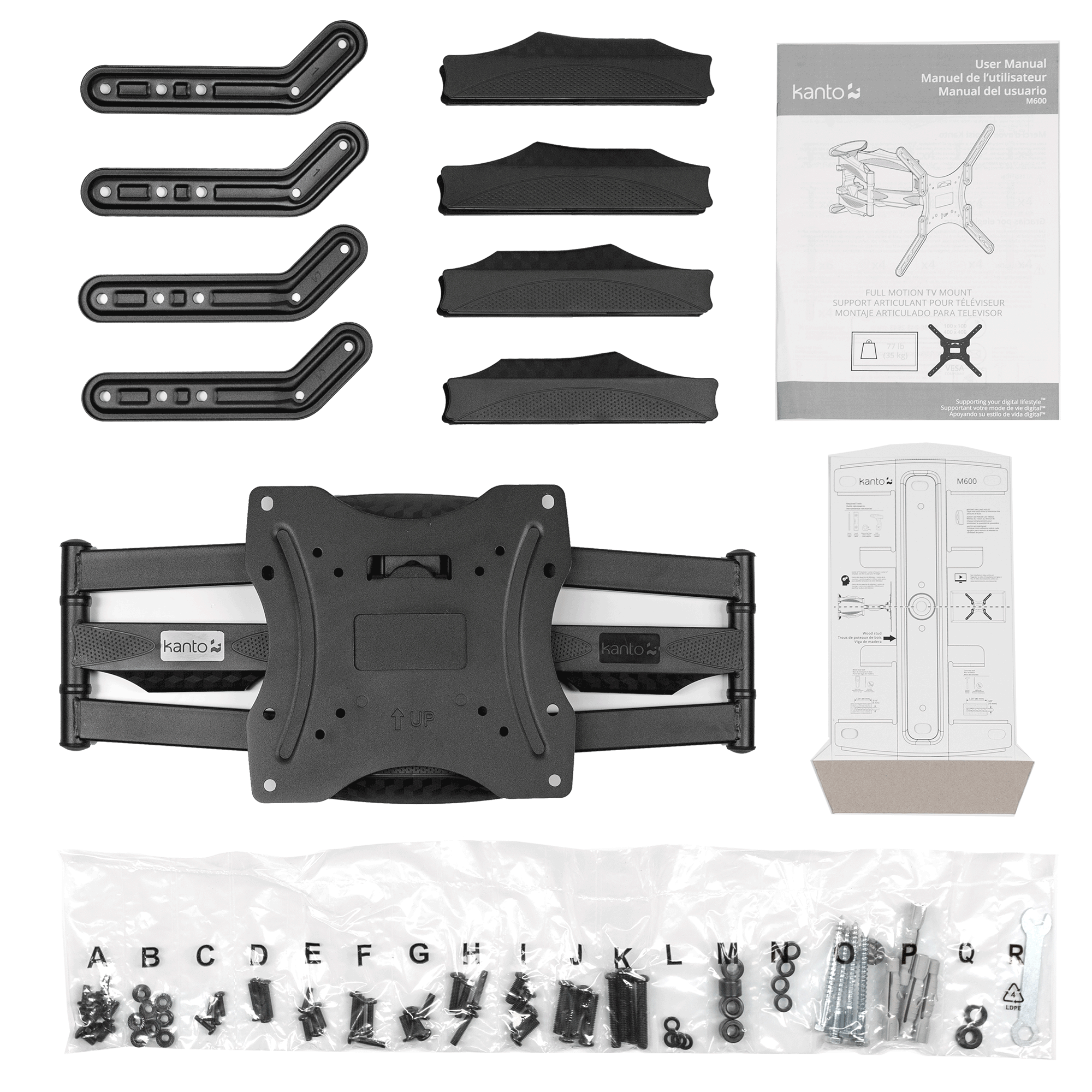

What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installations
+14° to -3°
Tilt
Up to 90°
Swivel (left or right)
18.3”
Extension
Material: Solid steel construction with durable powder coated finish
Adjustable horizontal leveling
Cable management
100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Specifications
TV Sizes: 26” to 55”
Weight Allowance: 77 lb (35 kg)
VESA Sizes: 100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Profile: 2.2″ (5.5 cm)
Measurements
Shipping box weight: 10.9 lb (5 kg)
Shipping box dimensions: 21.5″ x 9.9″ x 2.4″
(54.7 x 25.1 x 6.1 cm)
Product weight: 8.7 lb (3.9 kg)
UPC: 800152720005
Documentation
