M100
Full Motion TV Mount
Equipped with a single 10-inch extension arm, the M100 full motion wall mount for 26 to 50 inch TVs provides a simple way of improving your TV viewing experience. Swivel, pan and tilt your TV to bring it into better alignment with your viewing position, and push it back to sit 1.8 inches from the wall for a low-profile appearance. Featuring a snap-on cable management clip and wall plate covers, the M100 makes it easy to achieve a clean and professional TV setup.
Features at a glance
- Single Stud Installation
- Improved Viewing
- Low Profile Design
- Clean Appearance
The M100’s narrow wall plate is designed to fit on a single wood stud while safely mounting 26-50 inch TVs up to 60 pounds. Anchors are also provided for brick and concrete installations.

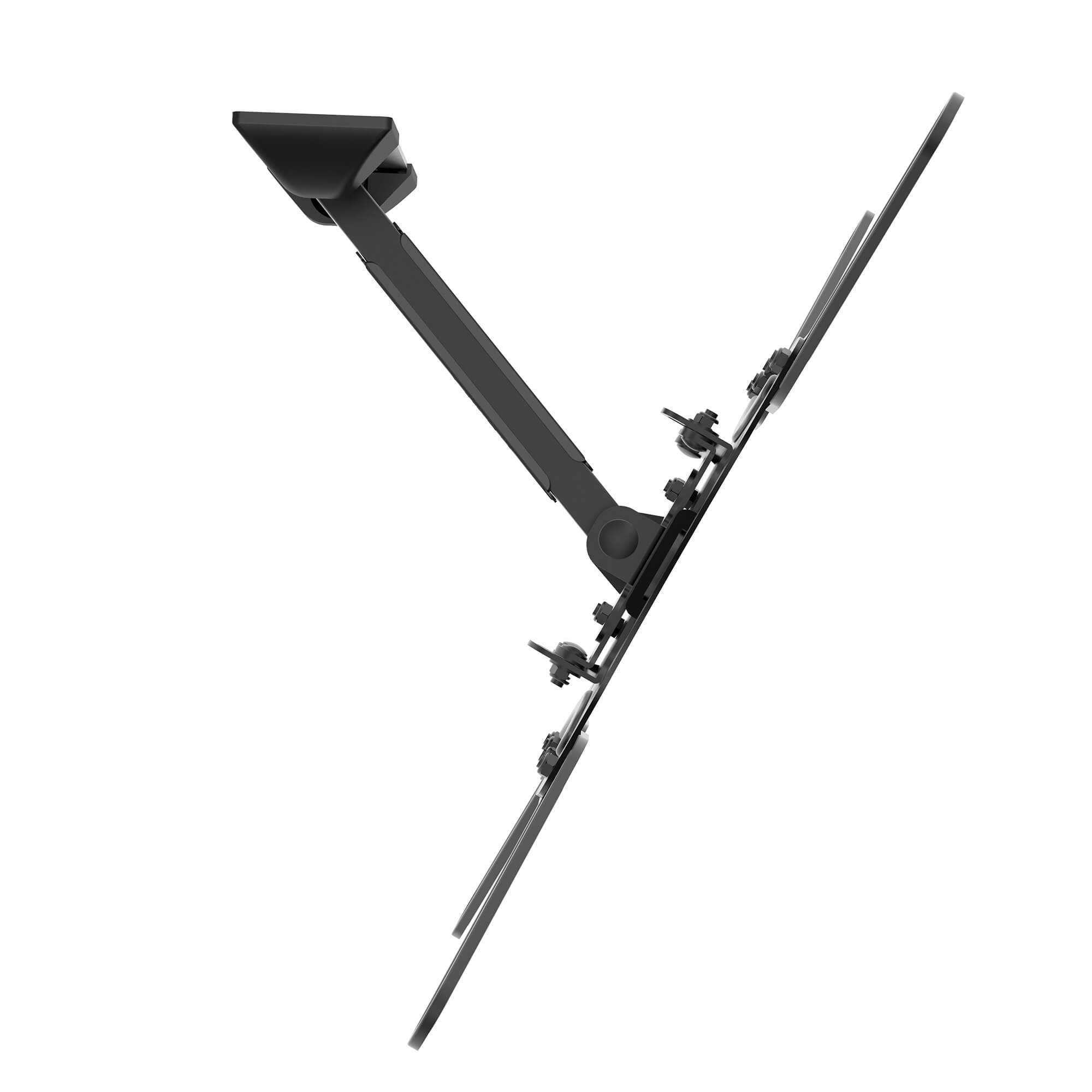

Achieve a better viewing angle with the TV wall mount’s extension arm by moving your TV 10.2″ away from the wall and swiveling it 25° to 53° in either direction, depending on screen size. An accessible tilt mechanism also allows you to angle your TV up to 12° forward to improve line-of-sight and 2° backward to reduce glare. This TV wall mount with a 26 inch extension also extends to 50 inches, making TV viewing even more comfortable.

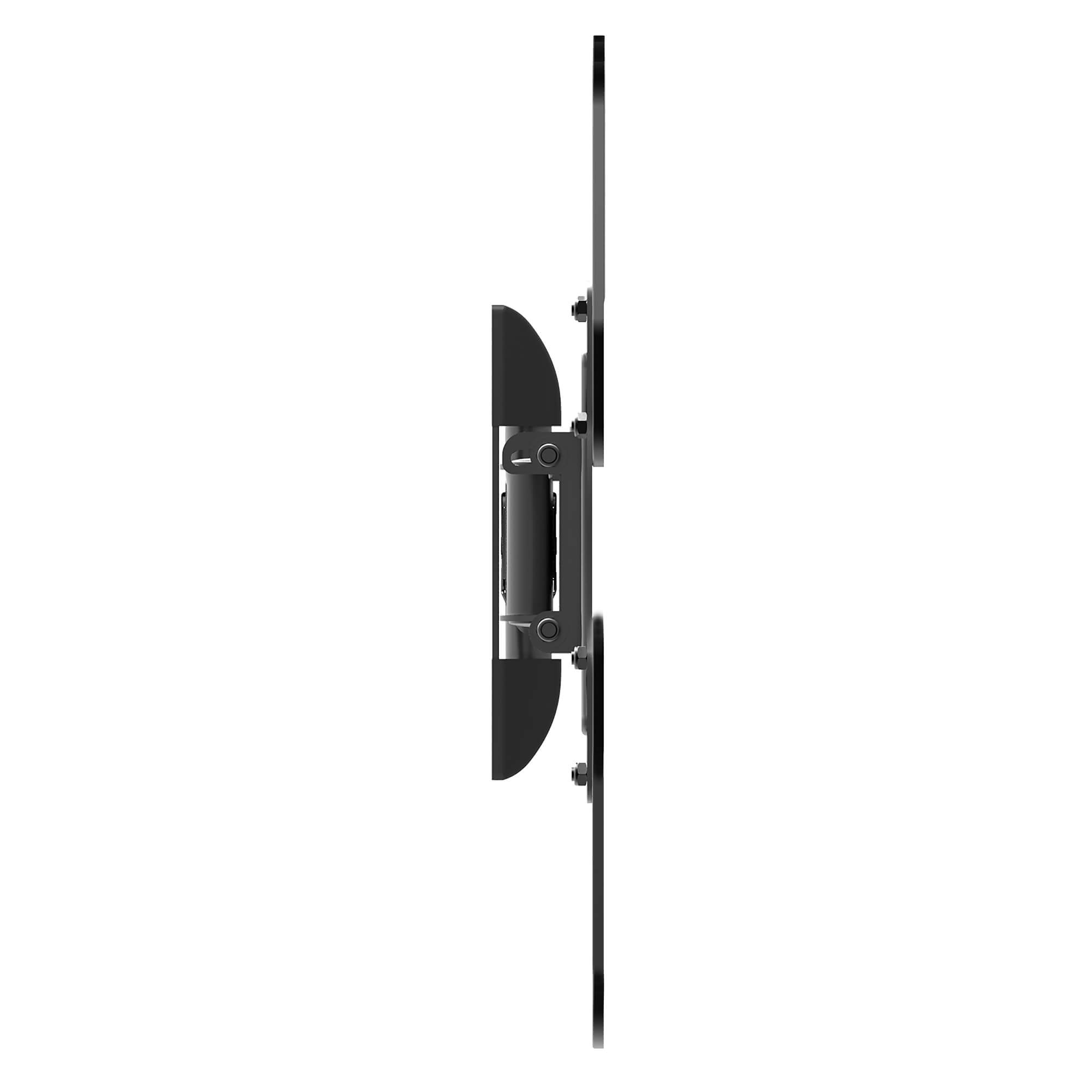

Push your TV back to sit 1.8″ from the wall for a remarkably low-profile setup. Note that the center of your TV will be situated 8″ to the left or right of the wall plate when fully pushed back.

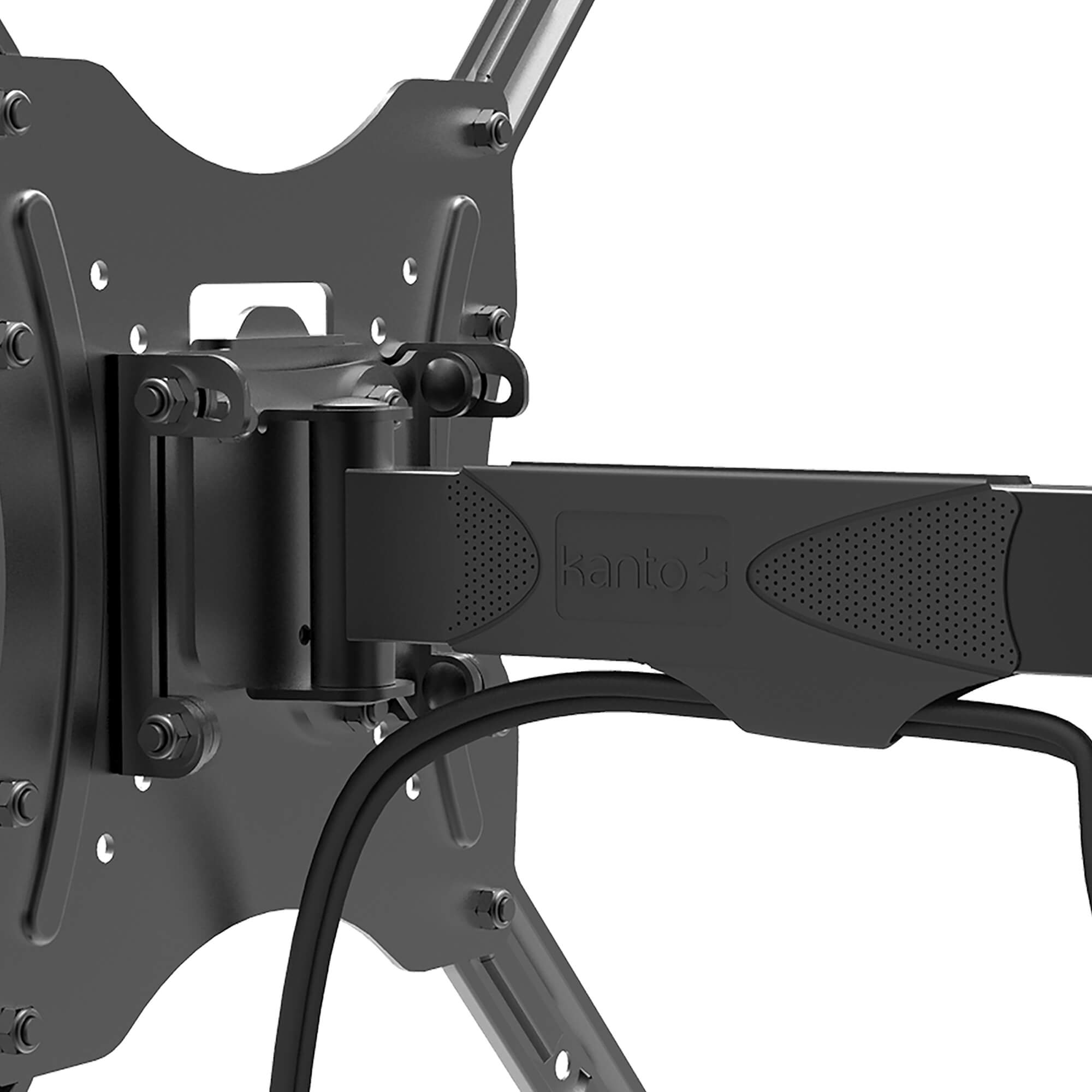

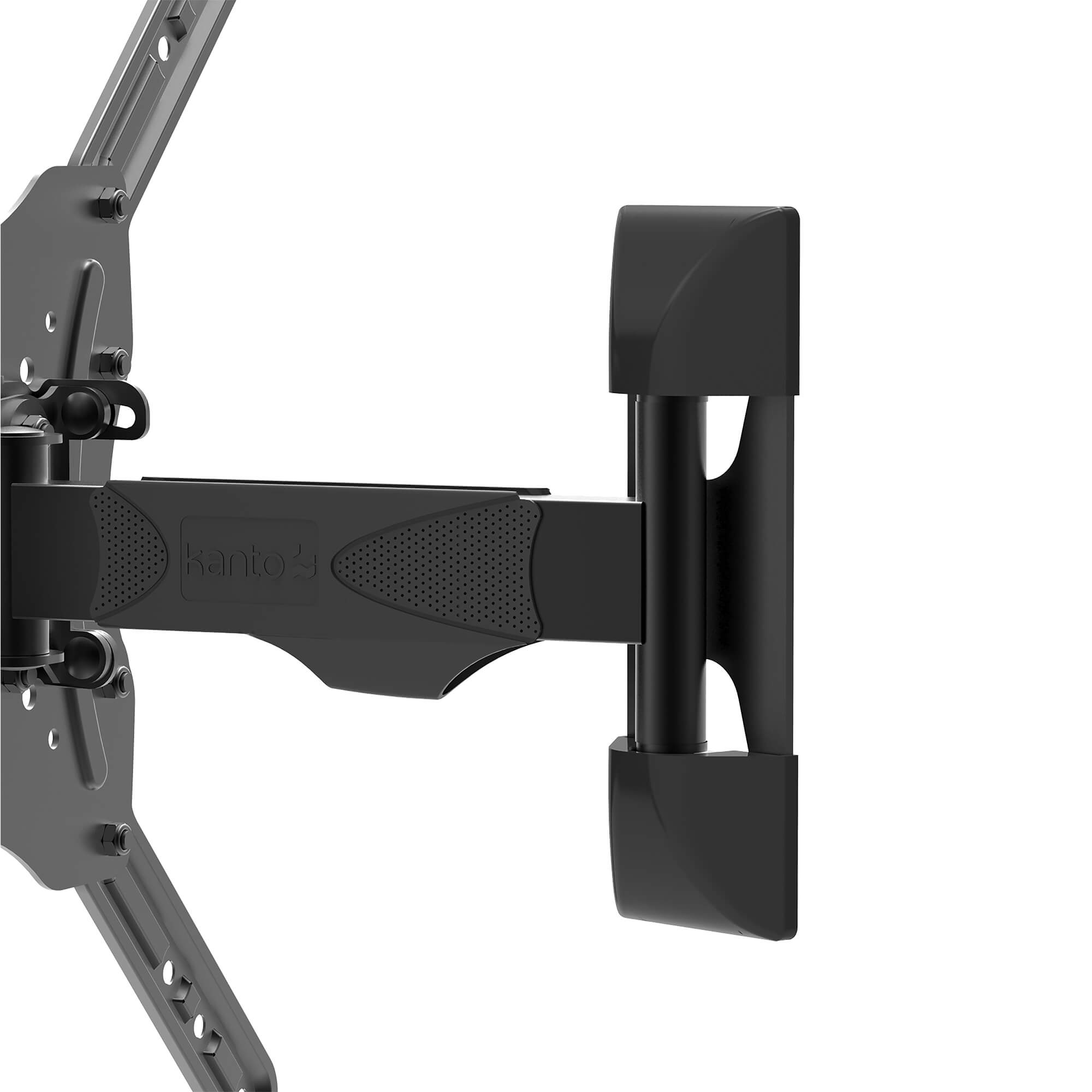

Use the provided cable management clip to conveniently route your cables, ensuring your viewing area remains clutter-free. Plastic wall plate covers are also included to hide any sign of installation.
Specs
It's in the details
5
Year Warranty

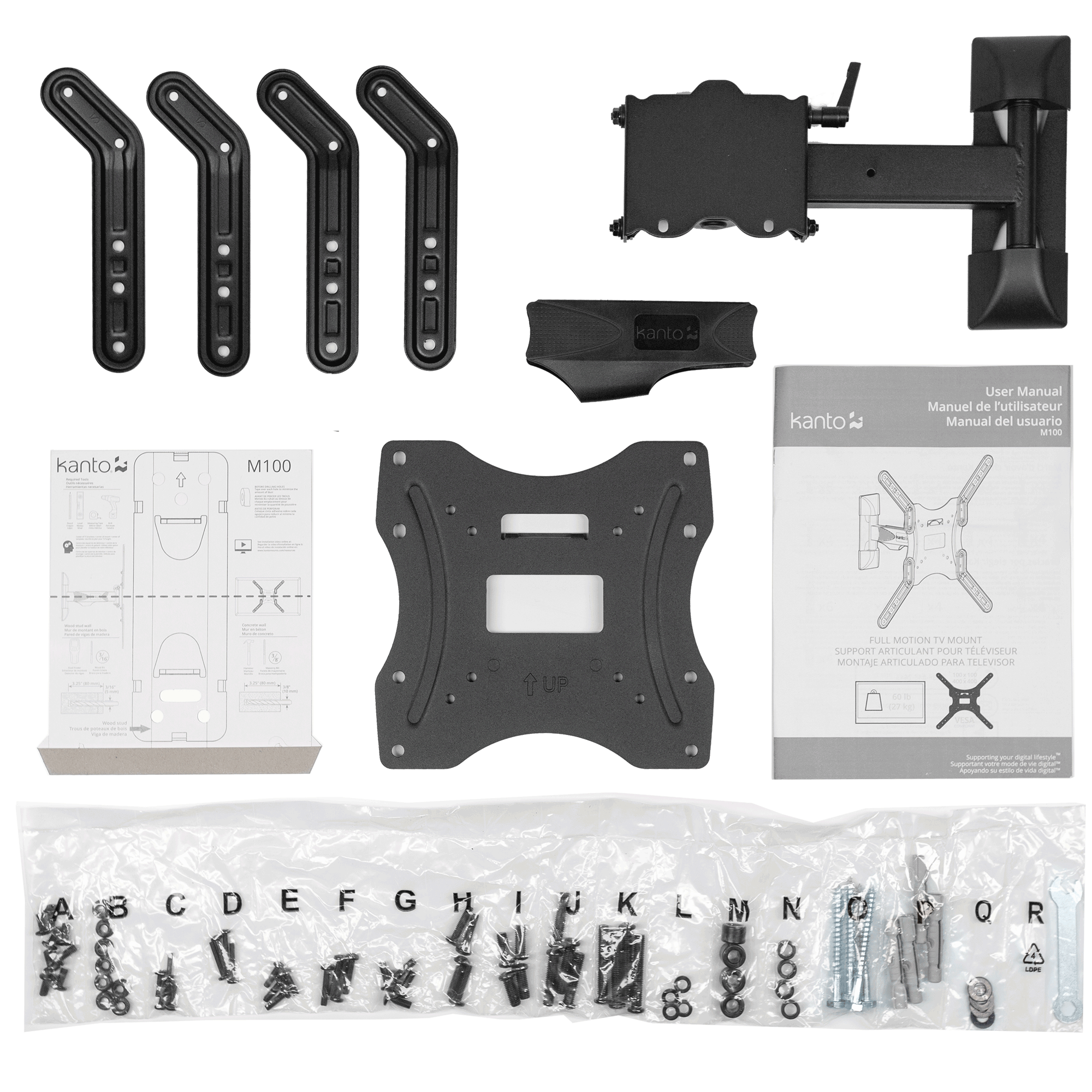

What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installations
+12° to -2°
Tilt
Up to 53°
Swivel (left or right)
10.2”
Extension
Material: Solid steel construction with durable powder coated finish
Adjustable horizontal leveling
Cable management
100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Specifications
TV Sizes: 26” to 50”
Weight Allowance: 60 lb (27 kg)
VESA Sizes: 100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Offset: 8″ left or right of wall plate
Profile: 1.8″ (4.5 cm)
Measurements
Shipping box weight: 7.2 lb (3.2 kg)
Shipping box dimensions: 13.7″ x 9.6″ x 2.6″
(34.8 x 24.3 x 6.5 cm)
Product weight: 5.3 lb (2.4 kg)
UPC: 800152719993
Documentation
No stress, just support
Our customer support team is ready to help. Reach out with any pre-purchase or install questions, and we’ll be happy to help you get set up.
