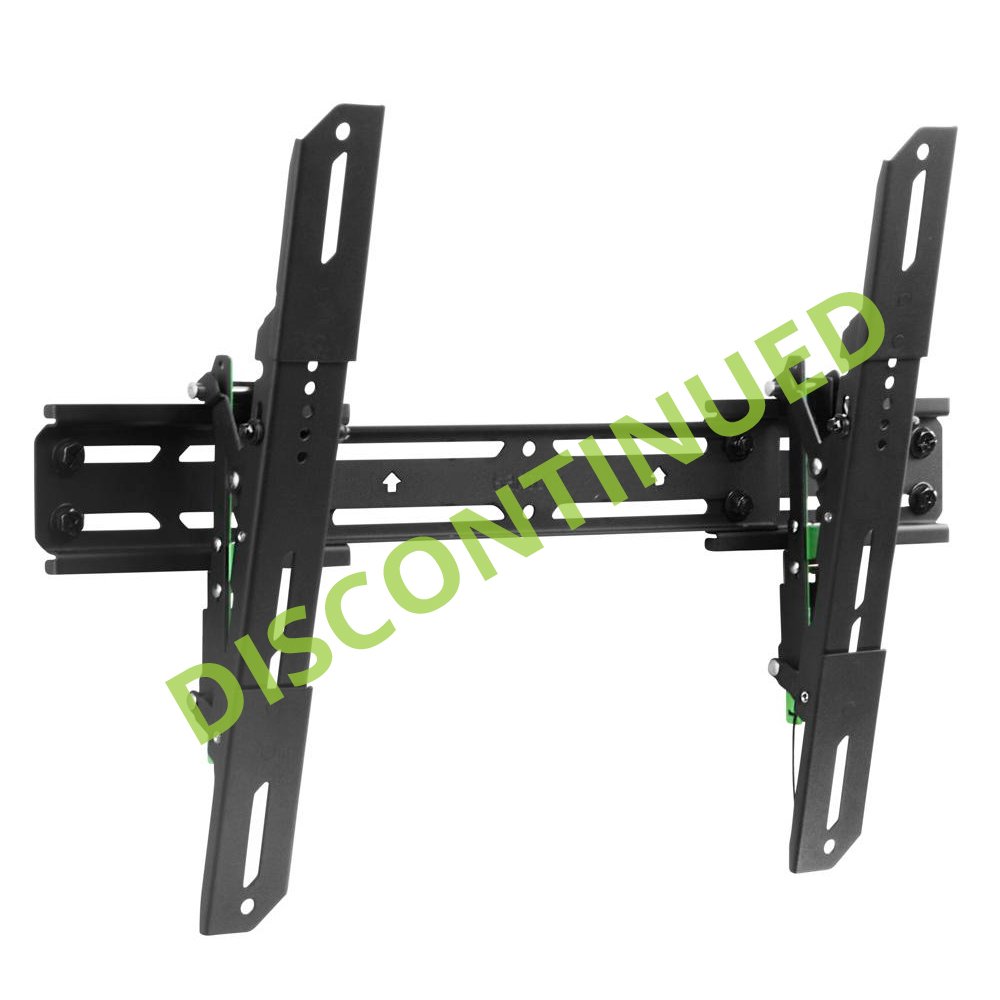

KT1960
Tilting TV Mount
DISCONTINUED
REPLACEMENT PRODUCT: PT300

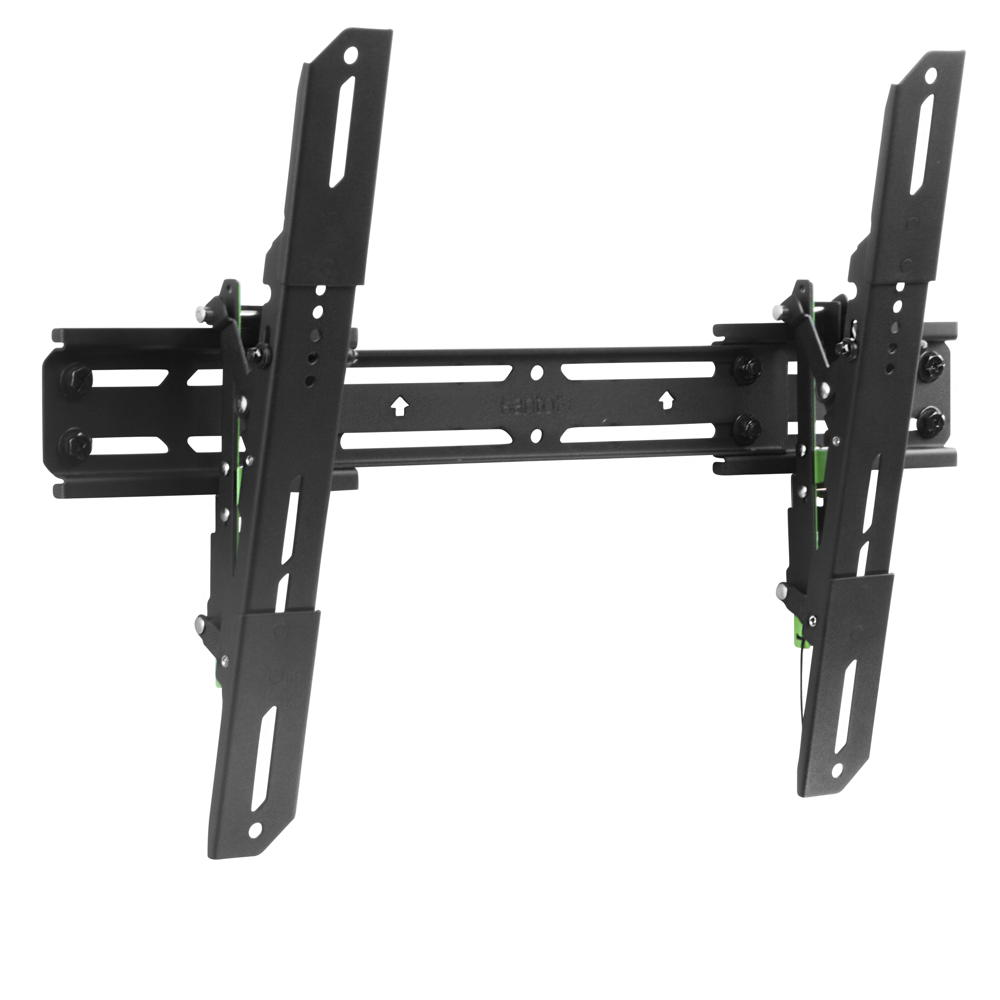

Designed to work with a wide range of VESA patterns, the KT1960 allows for simple adjustments to be made to accommodate a wide range of TV sizes. Sitting a mere 1.2” from the wall, this tilting TV wall mount offers 12° of forward tilt, and comes equipped with quick-release cords to allow for easy removal of your TV. The KT1960 is your one-size-fits-most TV mount solution.
Designed to work with a wide range of VESA patterns, the KT1960 allows for simple adjustments to be made to accommodate a wide range of TV sizes.
Features at a glance
- Perfect for Small TVs
- Fits VESA Sizes to 600×400
- Adjustable Wall Plate
- 12 Degrees of Forward Tilt
- Locking Mechanism
- Low Profile
- Magnetic Quick Release Cords
The KT1960 accommodates TVs with VESA patterns as small as 75×75, making it perfectly suited for displays as small as 19″.
With the addition of four vertical extension arms, the KT1960 fits VESA patterns as large as 600×400. Even as you upgrade to a larger TV, you can continue to use the the KT1960 after making a few simple adjustments.

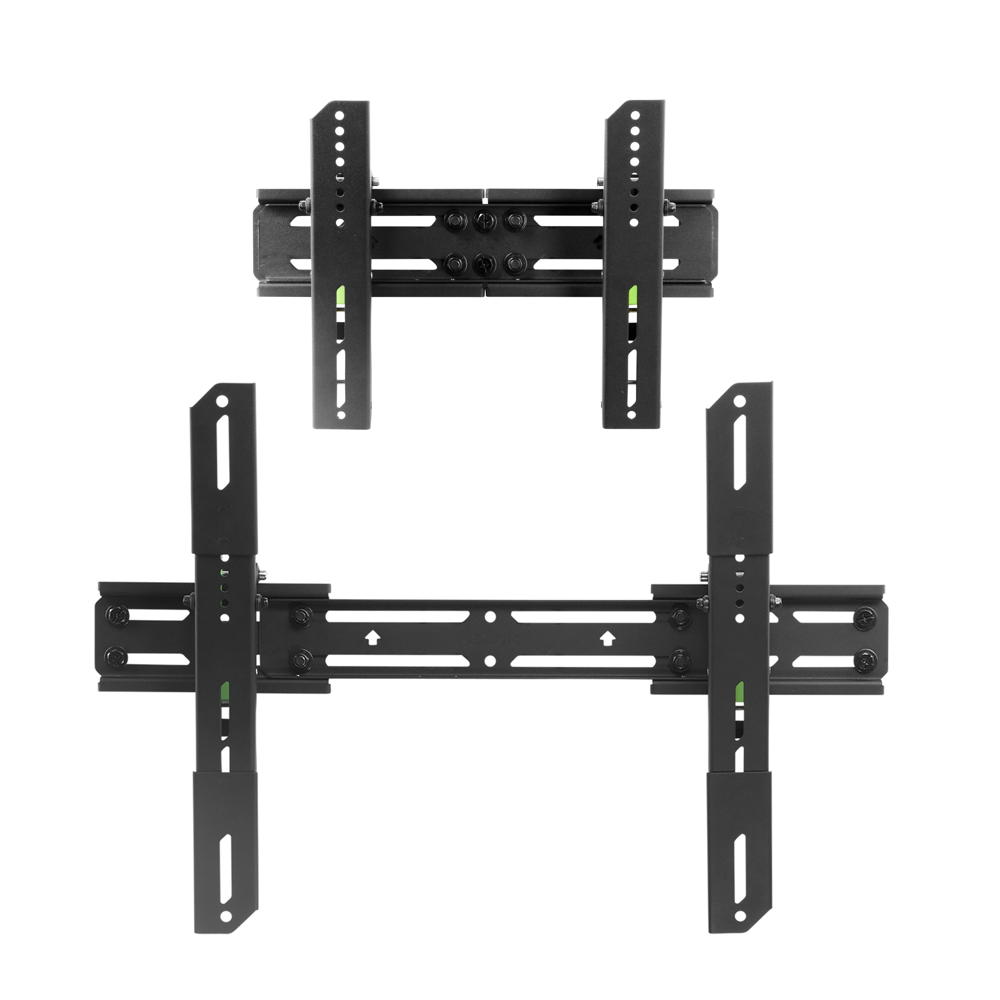

The KT1960’s wall plate can be extended to pre-set widths of 17.8” and 25.8” in order to accommodate both 16″ and 24″ stud spacing. At its smallest size, the wall plate is 15.4” wide and can attach to a single stud. When extended, the wall plate can be secured to two or even three studs to support bigger TVs.

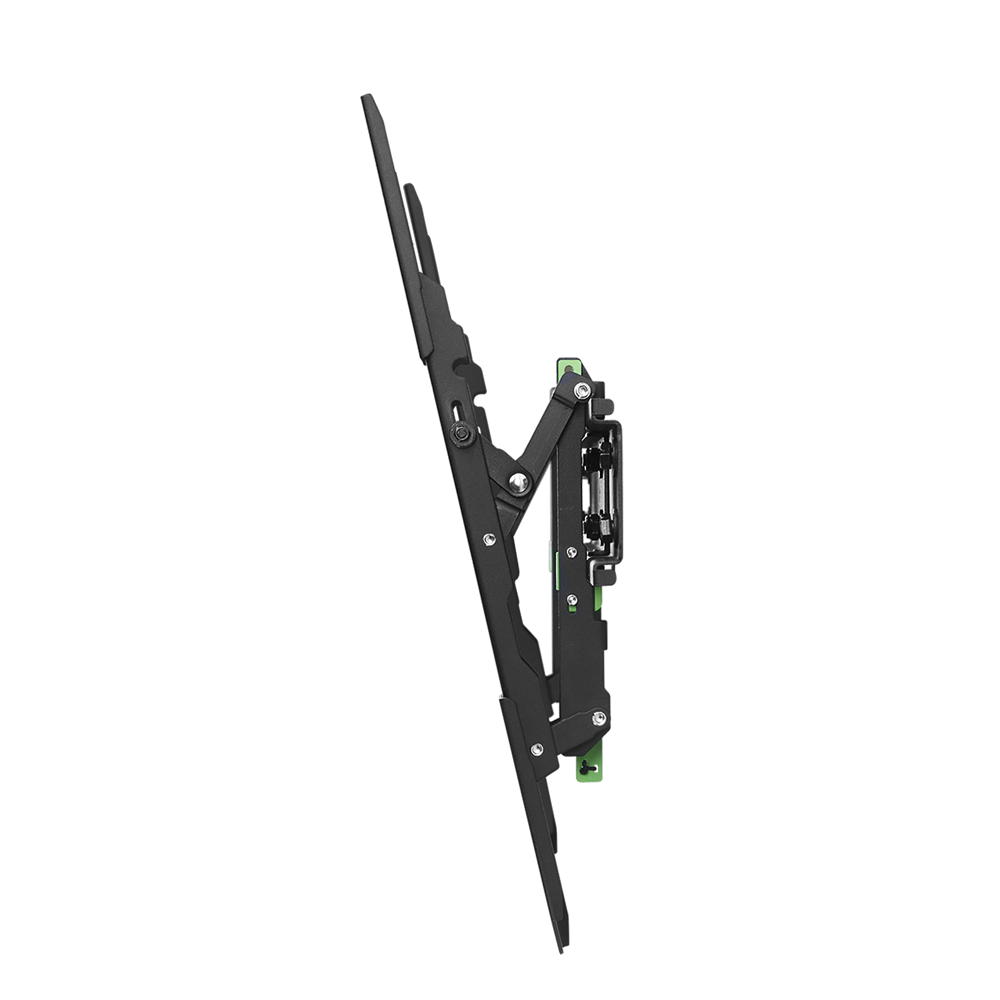

The finger-tip controlled tilting ability of the KT1960 allows up to 12° of forward tilt, and can be easily pushed back to a vertical position where it clicks into place.
For safety and security, the KT1960 provides the option to install a lock at the top of the latch. This secures the TV in place and helps prevent theft. (Lock not included)

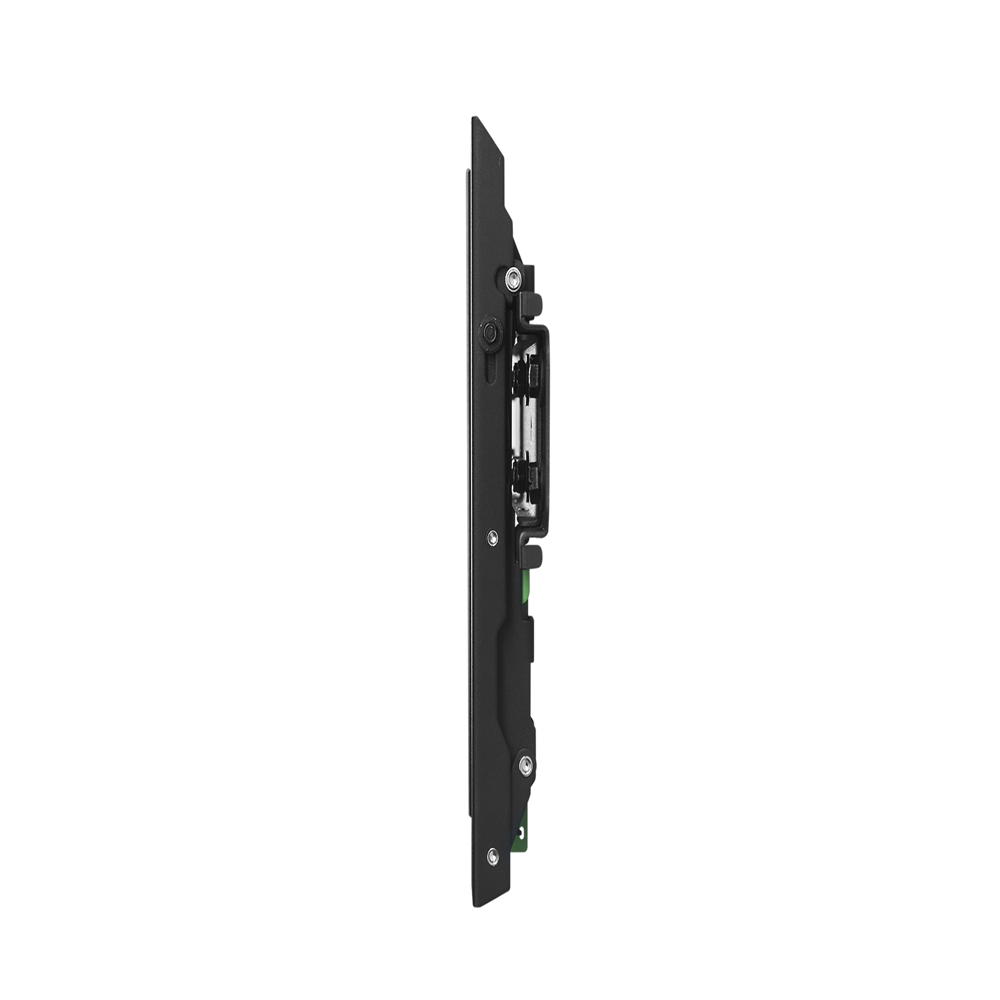

Built to be low profile, the KT1960 will have your TV sitting 1.4” from the wall when pushed all the way back.
Removing your TV from the wall plate is as easy as pulling on the two quick release cords located at the bottom of the mount. These cords include magnetic ends, making it easy to tuck them out of sight.
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto KT1960.
Visit our support hub for help.

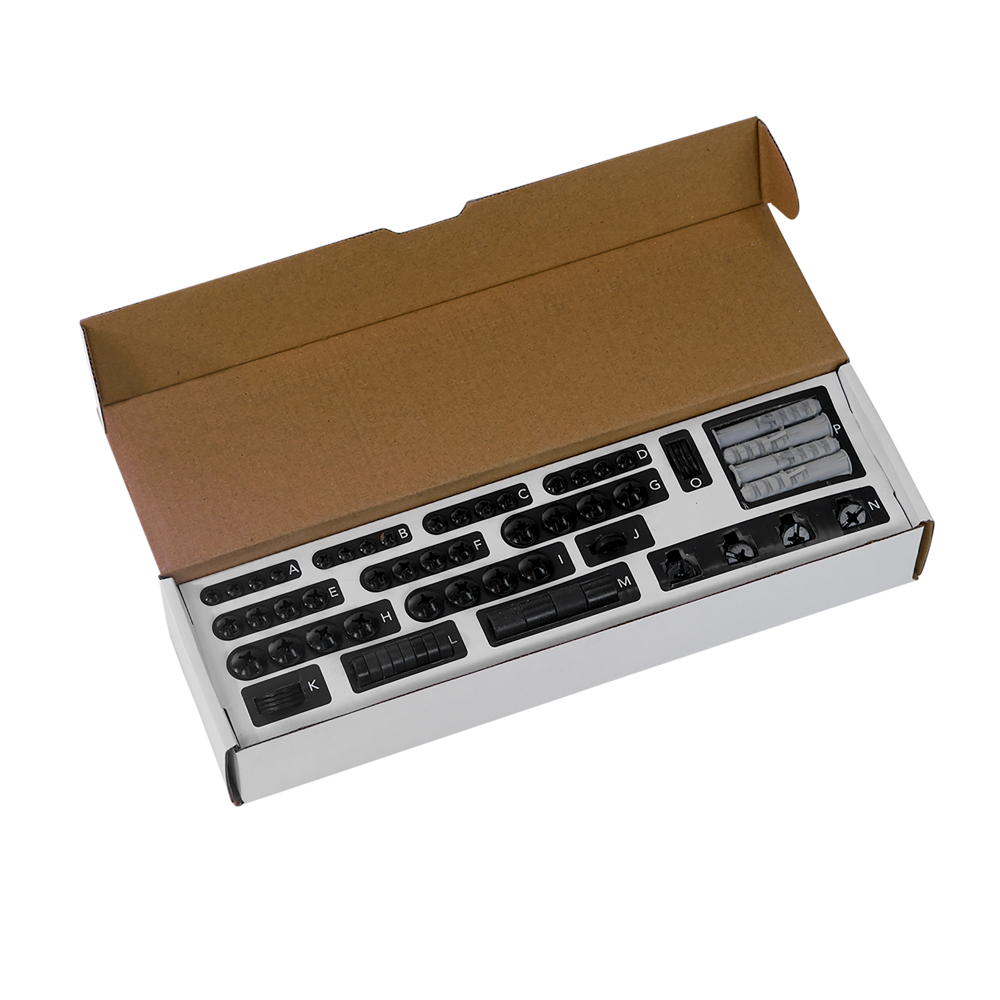

The KT1960 includes a labeled bolt pack with a variety of bolt diameters and lengths, as well as several spacers for custom installations. Lag bolts and concrete anchors are also provided for mounting to wood studs or concrete walls.
Have questions?
View our FAQSpecs
It's in the details
5
Year Warranty
What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installation
+12°
Tilt
1.4”
from the wall
75×75 to 600×400
Specifications
TV Sizes: 19” to 60”
Weight Allowance: 80 lbs (36 kg)
VESA Sizes: 75×75 to 600×400
Wall Plate: 25.8” (70.6 cm) wall plate accommodates up to 24” stud spacing
Material: Solid steel with durable powder coated finish
Measurements
Shipping box weight: 8.4 lbs (3.8 kg)
Shipping box dimensions: 23.4” x 8.5” x 2.6” (59.5 x 21.5 x 6.7 cm)
Product weight: 6.2 lbs (2.8 kg)
UPC: 800152713052
