FMX3W
Discontinued
Replacement Product: FMX3
Improve your TV viewing experience with the FMX3W full motion wall mount. Offering 28 inches of extension, the FMX3W’s heavy-duty articulating arms allow you to pan, swivel and tilt your TV to achieve the best view from wherever you’re seated. Conveniently mount it to wood studs up to 24″ apart, or use the provided anchors for concrete or brick installations. Quick to install, the FMX3W comes with a paper drill template to accurately mark your pilot holes, as well as cable management clips to ensure a clean and organized setup.
Features at a glance
- Supports 150 Pounds
- 28 Inches of Extension
- Fits VESA Sizes to 700×500
- Over 26 Inch Wide Wall Plate
- Swivels 88 Degrees in Either Direction
- Sleek Cable Management
With its solid steel construction, the FMX3W TV wall mount is designed and tested to hold up to 150 pounds. Even with your TV at the maximum weight at full extension, your TV will remain in place with no sag.

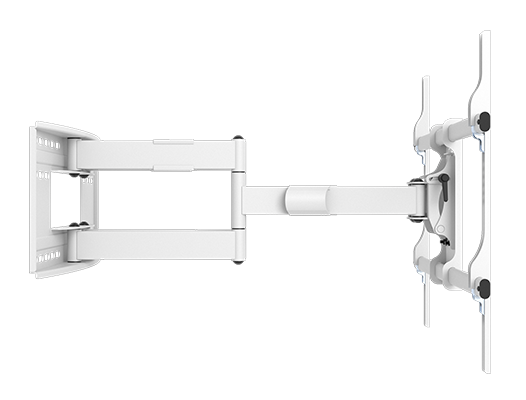

Even at its maximum weight capacity, the FMX3W allows you to safely extend your TV over fireplaces and out of recessed locations.

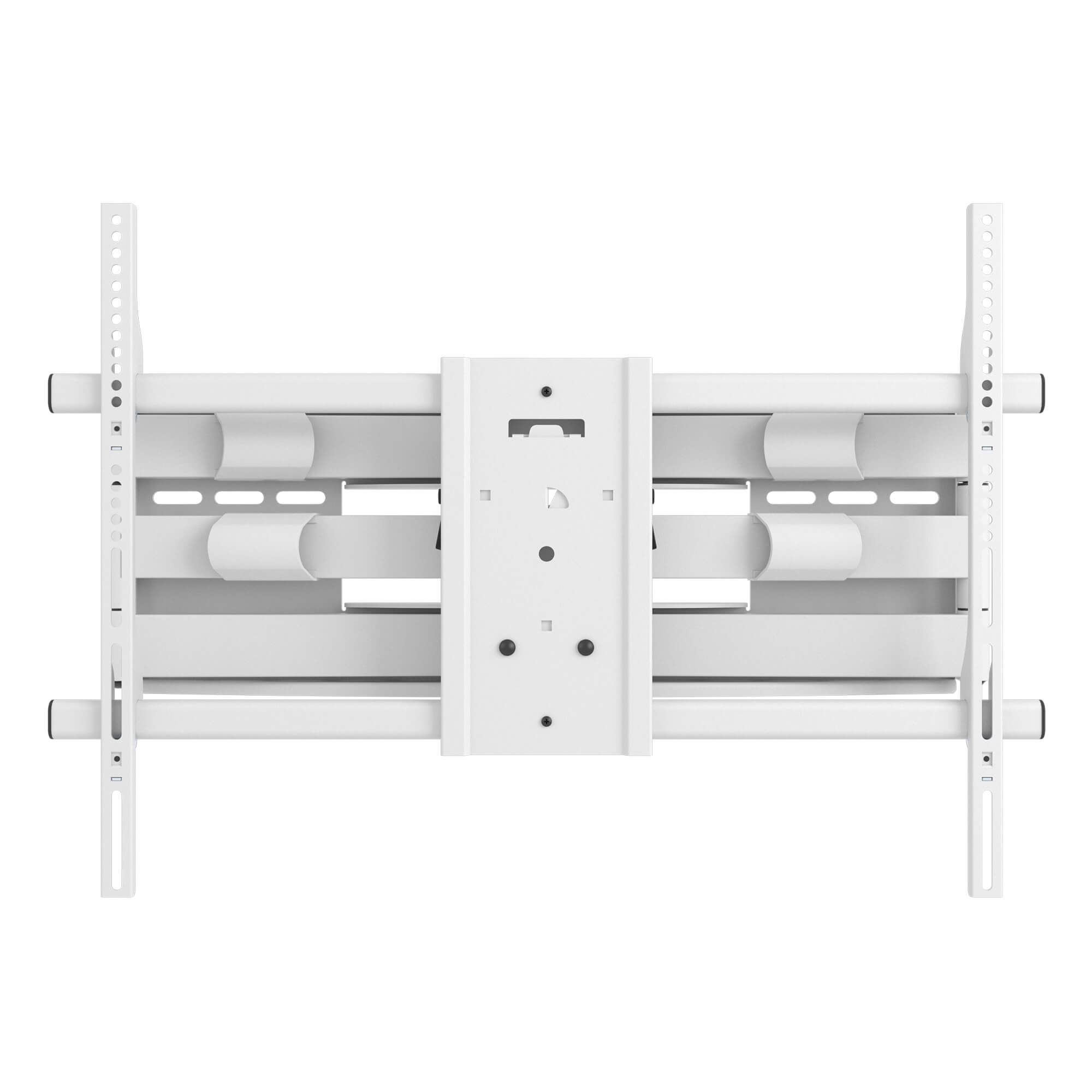

The FMX3W accommodates a range of VESA patterns from 200×100 to 700×500.

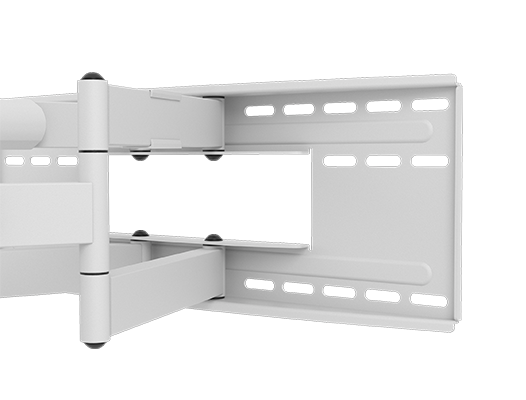

The FMX3W has a wide 26.8” wall plate so you can mount it on 16” or 24” stud centers, or offset it 10” left or right on your 16” studs.

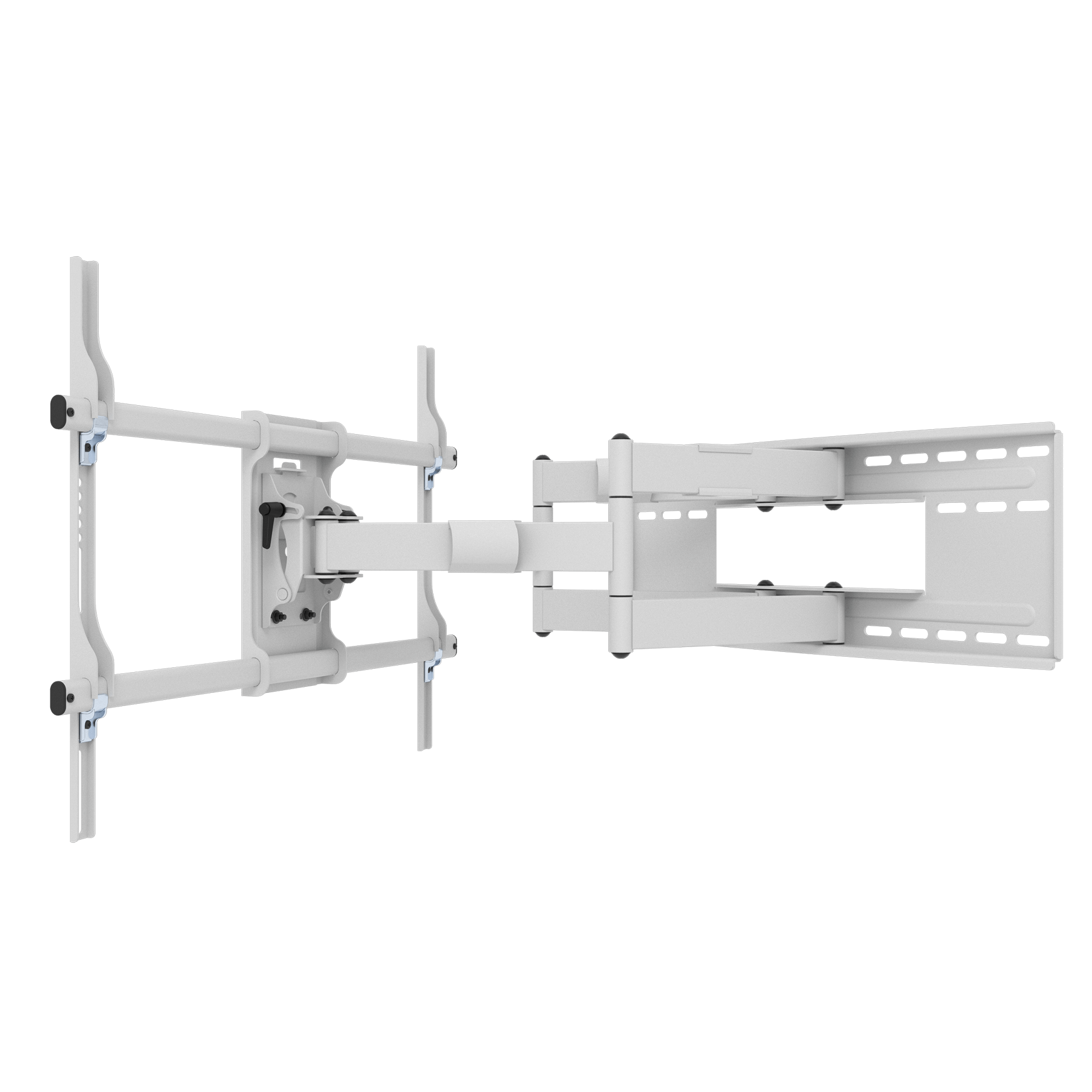

The articulating arms allow you to swivel your TV 88° in either direction, depending on your TV size, allowing you to achieve the perfect viewing angle.

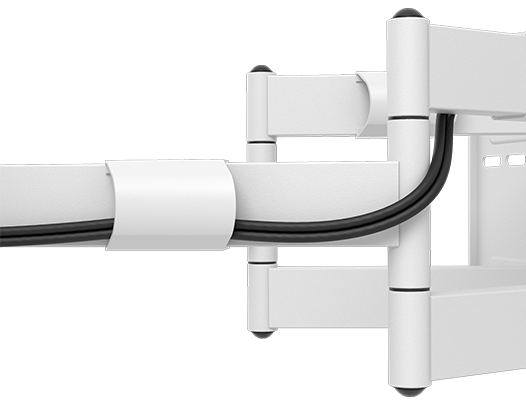

Removable cable management clips hook easily onto the extension arms, and can be positioned on any of the six arms to route your cables neatly back to the wall. Keep your cables tidy and out of sight for a clean, organized look.
Product Walkthrough
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto FMX3 Full Motion TV mount.
Visit our support hub for help.Specs
It's in the details
5
Year Warranty
What’s Included
Paper wall template for marking pilot holes
Installation manual and all mounting hardware for wood stud and concrete installation
+15° to -5°
Tilt
88°
Swivel
4″
from the wall
Extension: 28″ (71 cm) from the wall
Integrated cable management
Adjustable horizontal leveling
200×100 to 700×500
Specifications
TV Sizes: 40″ to 90″
Weight Allowance: 150 lb (68 kg)
VESA Sizes: 200×100 to 700×500
Wall Plate: 26.8″ (68 cm) dual stud accommodates up to 24″ stud spacing
Measurements
Shipping box weight: 34 lb (15.4 kg)
Shipping box dimensions: 31.9” x 12.8” x 4.3” (81 cm x 32.5 x 11 cm)
Product weight: 32.6 lb (14.8 kg)
UPC: 800152015590
