CM600B4B

Name: CM600B4B
SKU: CM600B4B
Price: 599.99 USD
Availability: InStock

Back to Back Quad Screen Ceiling Mount

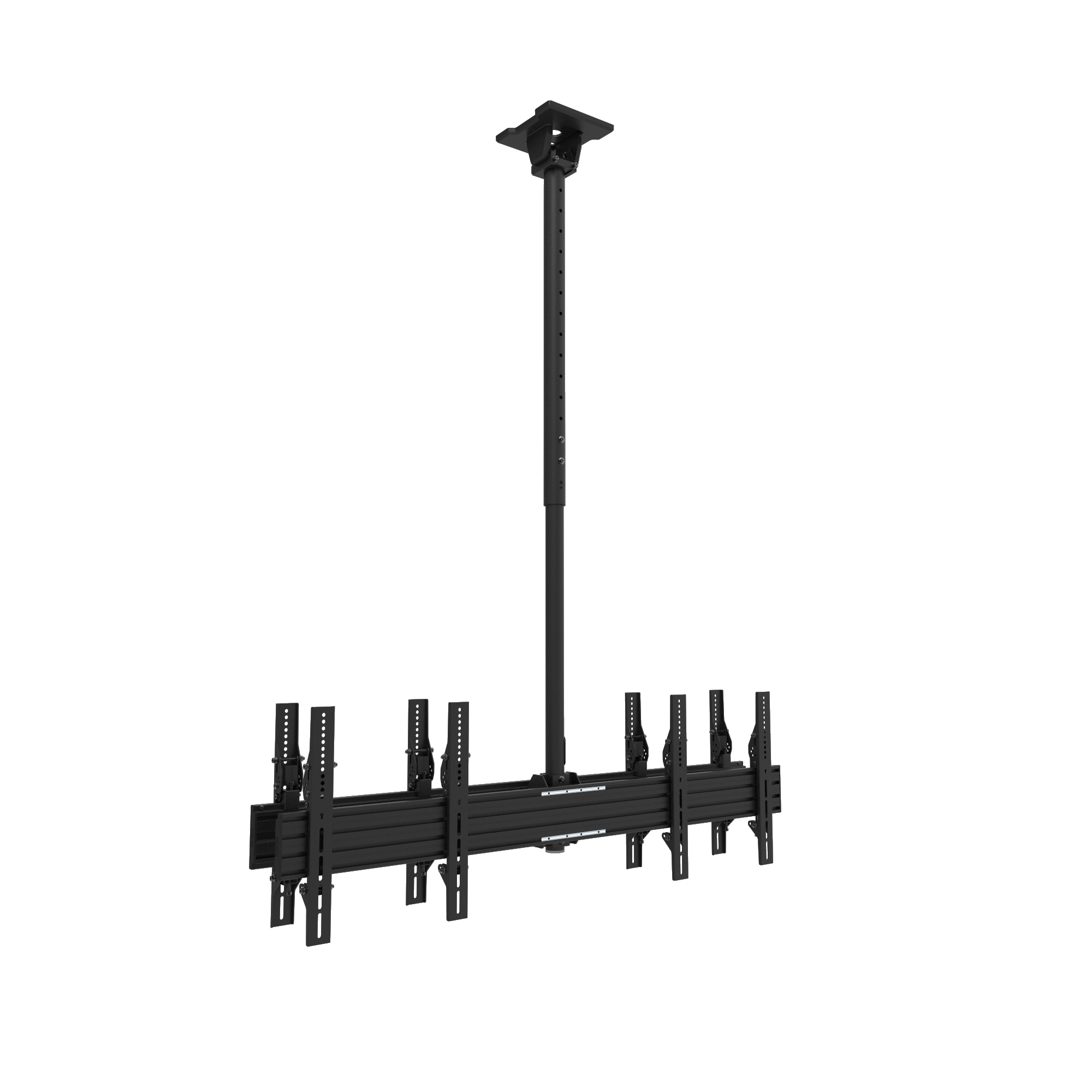

The CM600B4B Quad TV Ceiling Mount is the perfect solution for AV installations requiring multiple screens. Supporting panels up to 45”, CM600B4B allows you to mount four displays in a back-to-back configuration with two facing each direction. The pivoting ceiling plate offers flexibility to attach to flat, angled, or vertical surfaces. With a telescoping extension pole providing 23.6” of height adjustment and 360° rotation, you can position your screens exactly where you need them. The adjustable leveling screws and four discrete tilt options, with up to 15° forward or 6° backward tilt, ensure perfect screen alignment. Additionally, the mount includes unobstructed cable management along the entire length of the pole, keeping your installation clean and organized.

75 x 75 - 600 x 400

50 lb Per Screen

40″ - 45"

Up to 61.5" in 2" increments

Ceiling

Categories: Ceiling Mounts, TV Mounts Tags: adjustable ceiling mount, angled ceiling mount, back to back ceiling mount, back to back tv mount, ceiling tv mount, hanging tv mount

Quad screens, one powerful solution.

Features at a glance

Back-to-Back Screens
Flexible Mounting Options
Height Adjustable
Swivel & Tilt
Integrated Cable Management

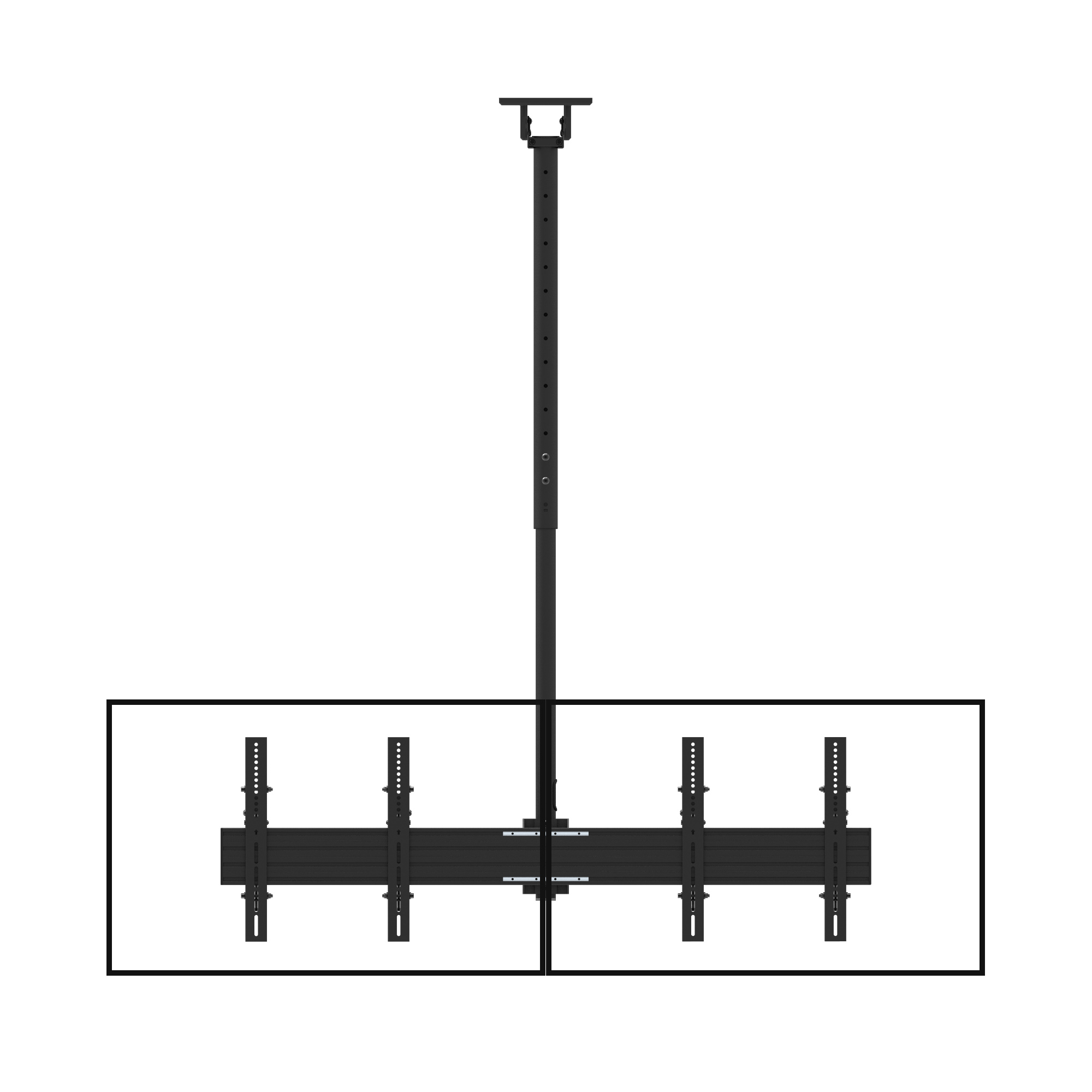

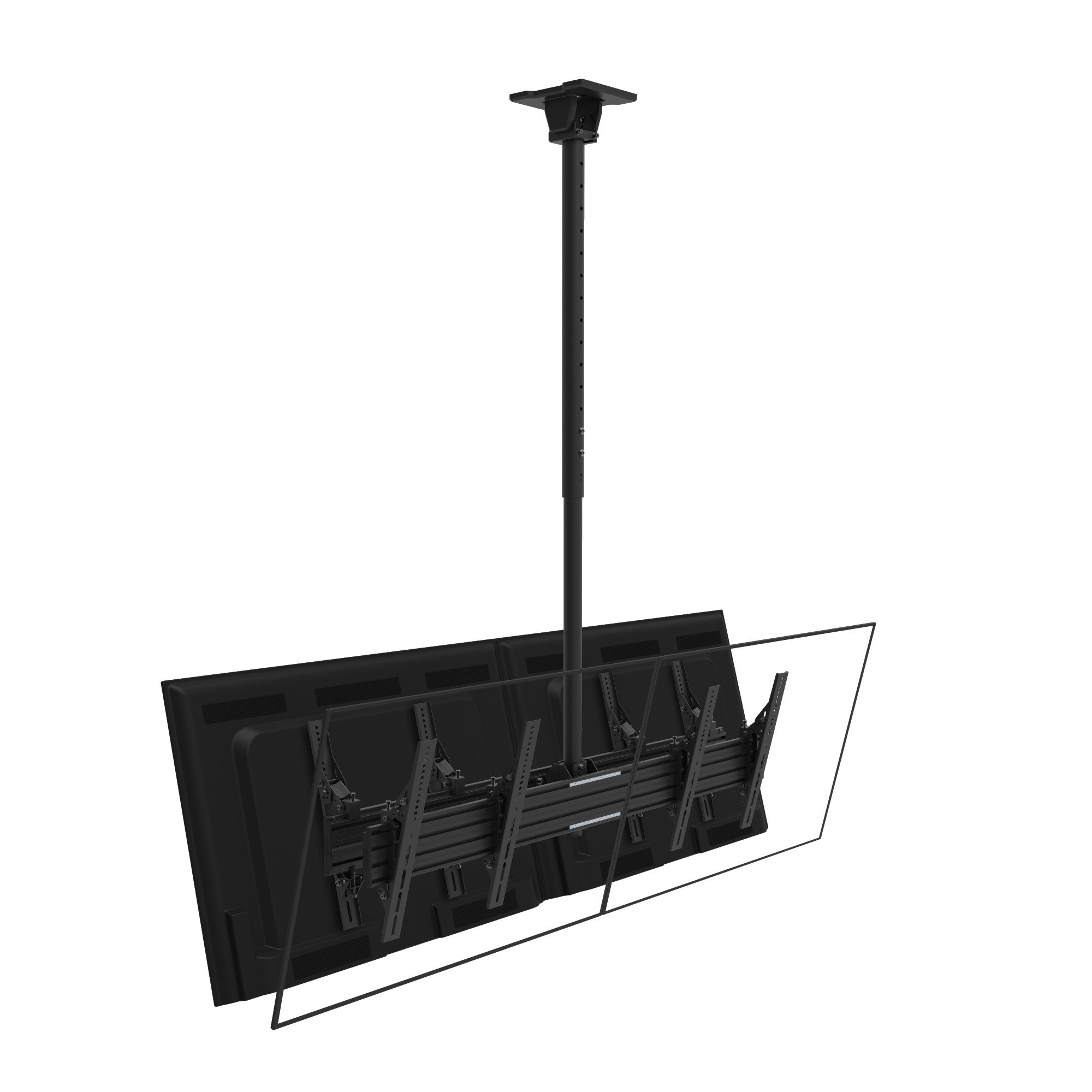

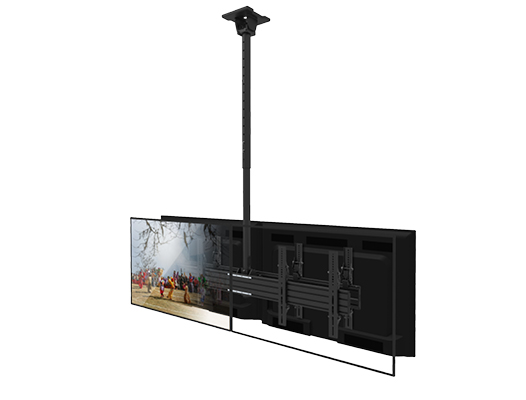

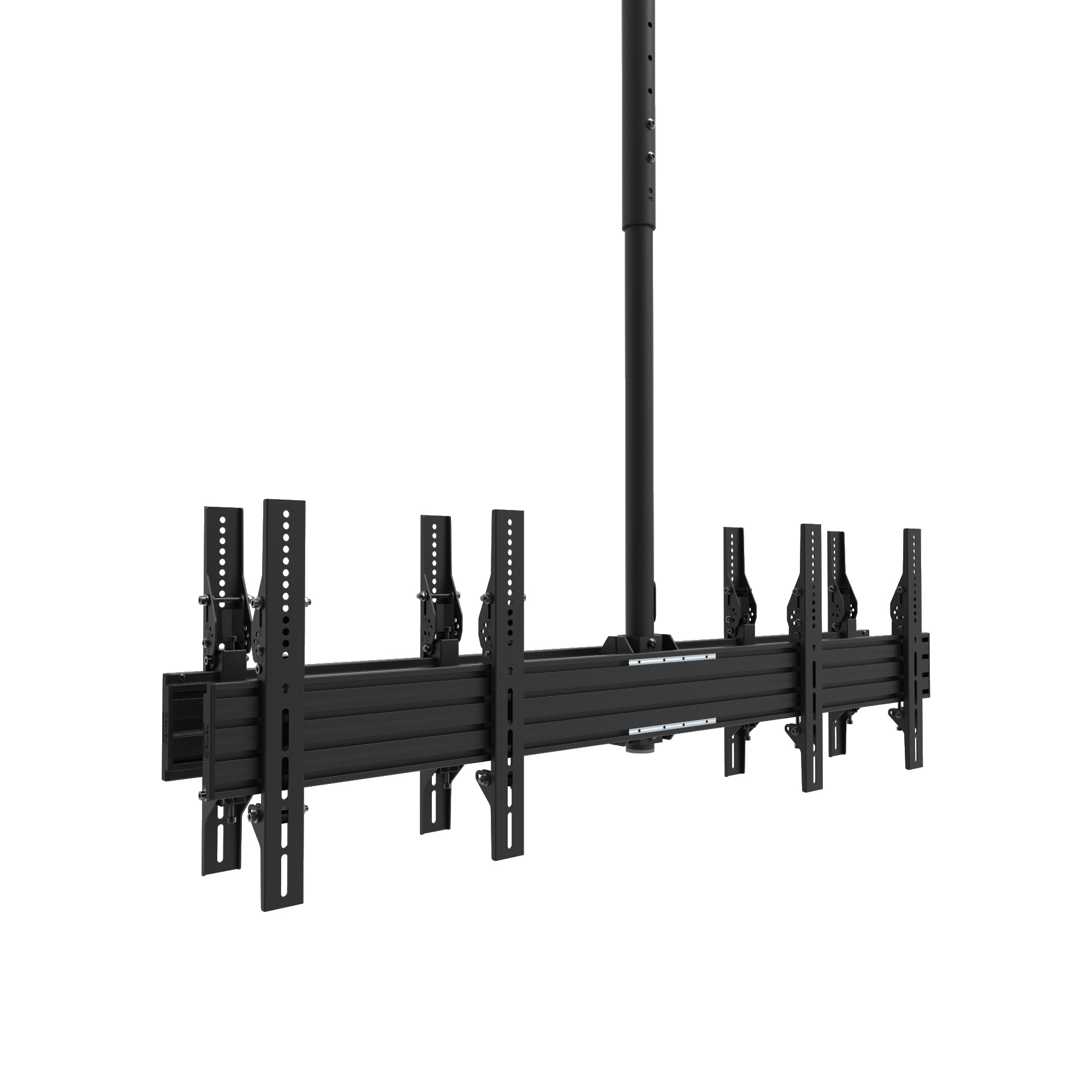

The back-to-back TV plates allow mounting of 4 panels in opposite directions, increasing visibility and ensuring content reaches a wider audience.

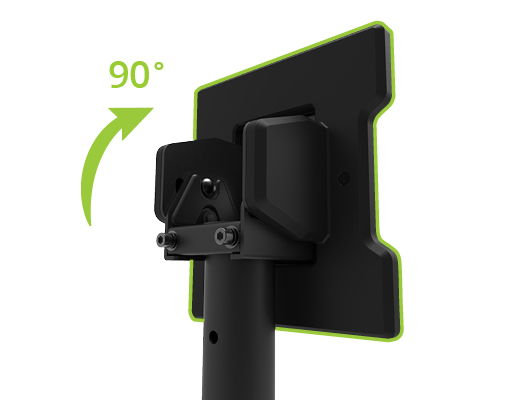

The pivoting mounting plate secures the CM600B4B to a flat ceiling, angled ceiling, beam, or walls, expanding the possibilities for screen placement in any environment.

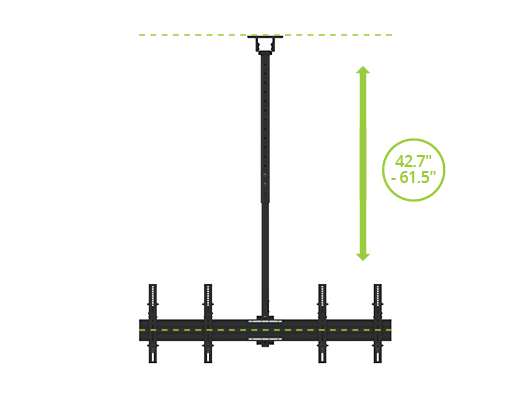

The telescoping extension pole provides height adjustment between 42.7” and 61.5” from the ceiling to the center of the TV, ensuring perfect screen positioning.

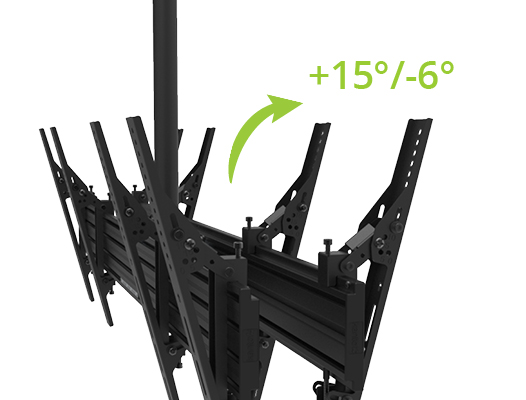

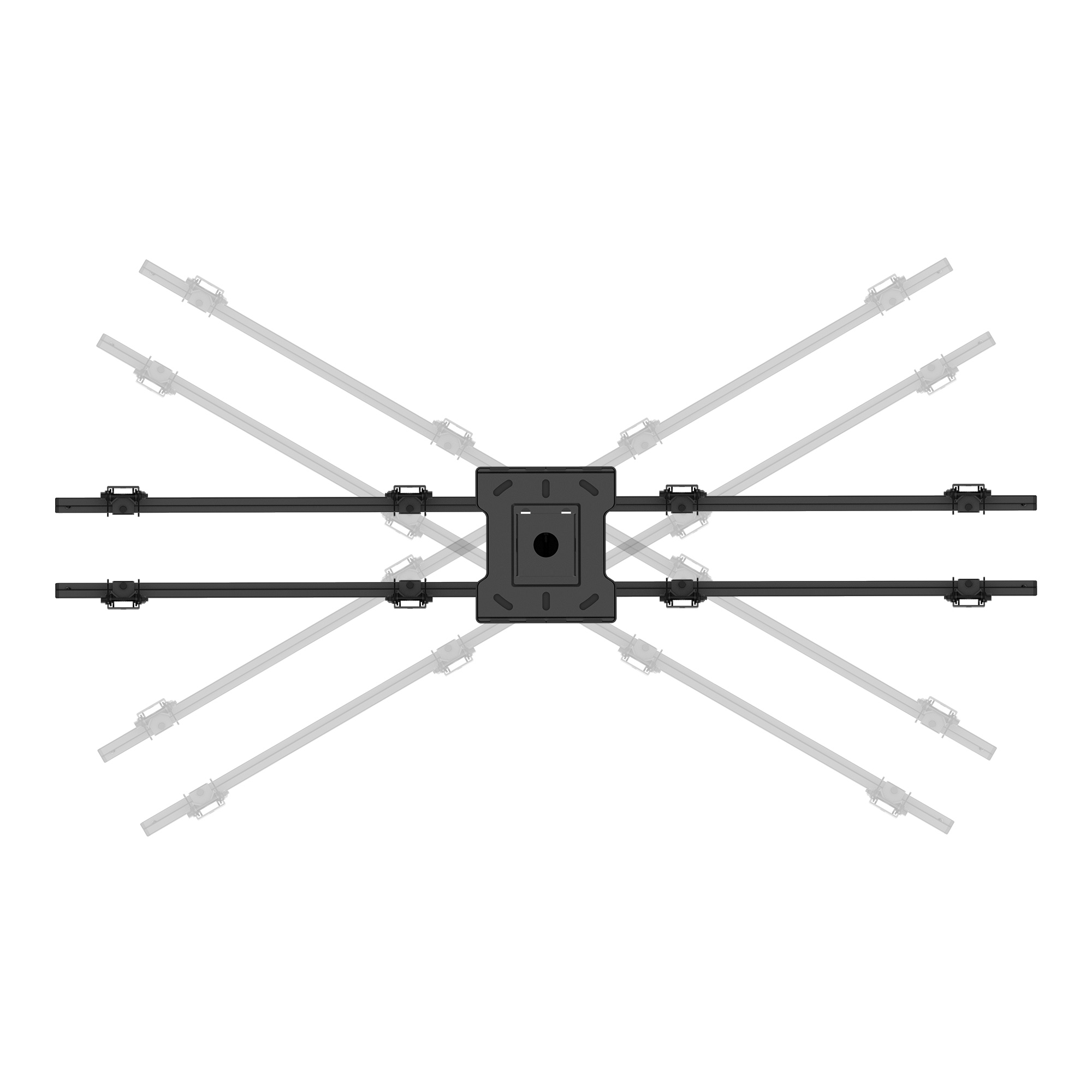

Along with 360° of rotation, this back-to-back quad TV ceiling mount offers four discrete tilt options. In 5° increments, angle the TV brackets up to 15° forward to improve line-of-sight, or tilt them 6° backward to compensate for potential lean.

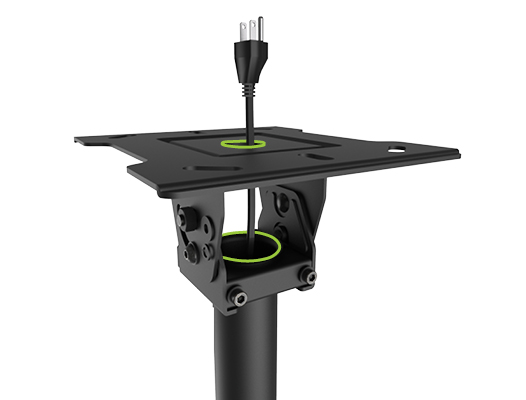

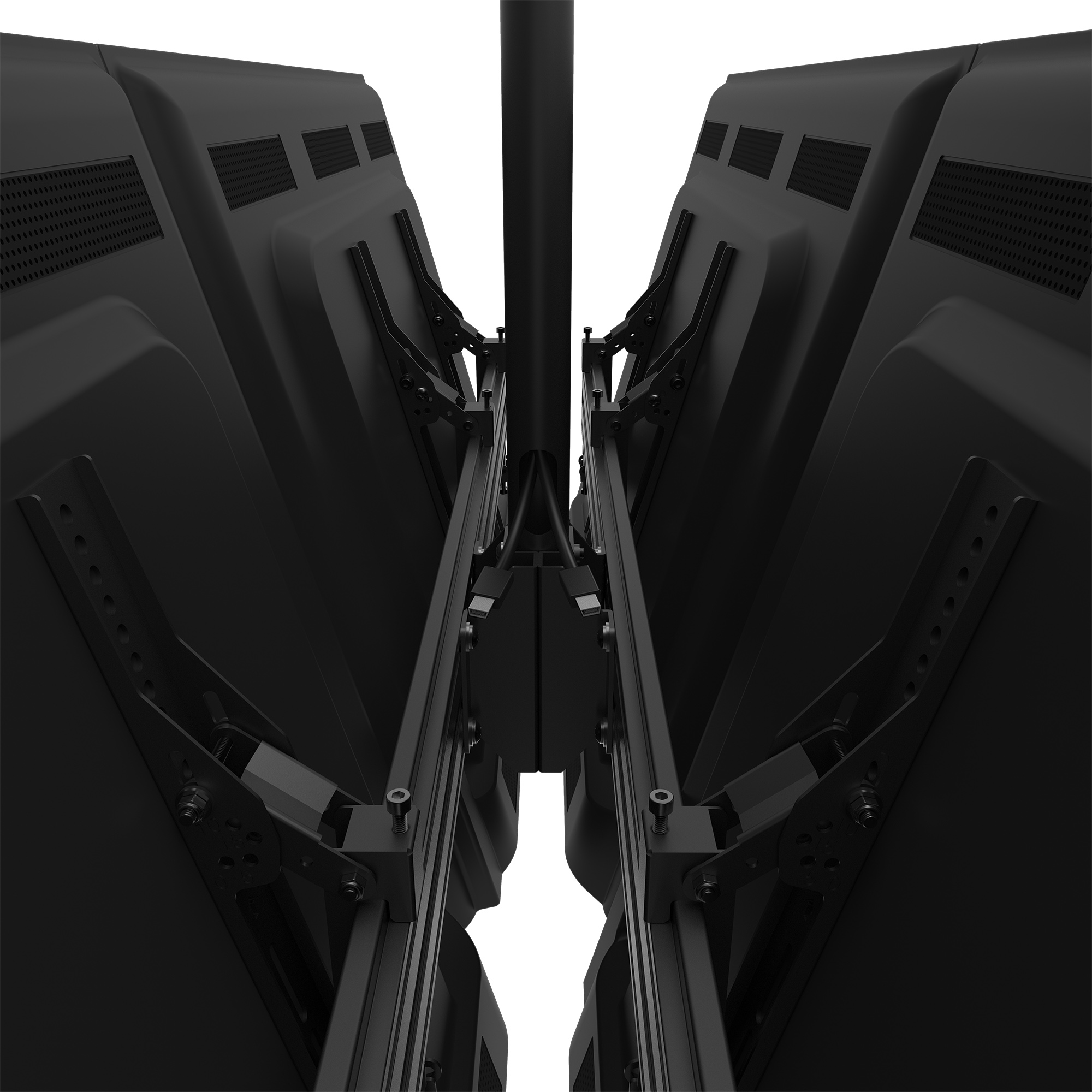

The hollow core of the extension pole provides an unobstructed path for cable routing, while an opening in the mounting plate allows cables to continue through to the mounting surface, keeping them hidden and organized.

Ultra-easy install

This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto CM600BTB Back-to-Back Hanging TV Ceiling Mount.

Visit our support hub for help.

Specs

It's in the details

Warranty

What’s Included

CM600B4B Back-to-back hanging TV ceiling mount

Installation manual

All mounting hardware for wood stud installation

+15° to -6°

Tilt

90°

Swing

42.7” to 61.5”

from ceiling to center of TV

Special Features:

Adjustable horizontal leveling
Internal cable management

75×75 to 600×400

Specifications

TV Sizes: 40” to 45”
Weight Allowance: 50 lb (23 kg) per screen
VESA Sizes: 75×75 to 600×400
Material: Solid aluminum and steel construction

Measurements

Shipping box weight: 41.5 lb (18.8 kg)
Shipping box dimensions: 34.3″ x 9.2″ x 8.7″ (87.2 x 23.3 x 22 cm)
Product weight: 37.3 lb (16.9 kg)
UPC: 800152722641

Documentation

CM600B4B Multilingual Manual (English | French | Spanish)

CM600B4B Product Sheet (English)

CM600B4B Technical Drawing

Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
