Kanto PMX Product Line
Experience the unique features of the PMX Series.
Designed for large TVs while providing the same great experience and superior quality you’ve come to expect with Kanto PMX wall mount tv stands.
Made for Larger TVs
10 Year Warranty
Toolless Adjustments
PMX SERIES
The only choice to mount extra large TVs
Features
Perfect Positioning
Easily remove the arm assembly from the wall plate to make installation a breeze. This also allows for TV center adjustments regardless of where your studs are located.

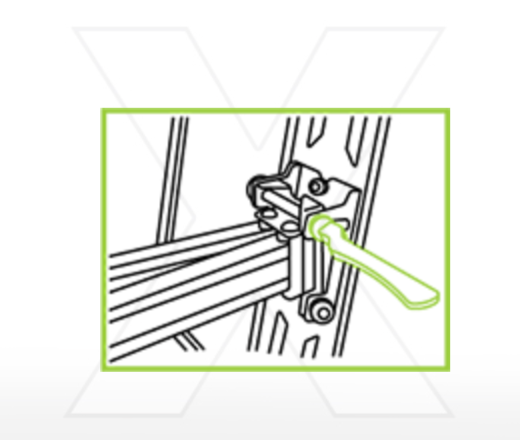

Toolless Tilt Mechanism
The specially designed toolless tilt mechanism allows on-the-fly tilt adjustments for the perfect viewing angle. Set the tension on your wall mount tv stand to allow for fingertip adjustments or to lock your TV in place.
Superior Extension
Solid steel construction and heavy-duty wishbone arms allow for maximum extension and stability, even while supporting larger TVs. The Kanto PMX model series will hold the heaviest TVs at full extension without a problem.
Easy Installation
Each mount includes a carefully packaged box containing all the lag bolts, anchors, washers, spacers and screws needed for installation. An included drill template makes marking holes for installation pain free.
Compare PMX Models
| Model | TV Size | Weight Capacity | Total Offset | Extension | Tilt | Swivel | VESA |
|---|---|---|---|---|---|---|---|
| PMX660 | 37″- 80″ | 125 lb | 12″ | 22″ | -3/+12° | 180° | 200×100 600×400 |
| PMX680 | 39″ – 80″ | 125 lb | 18″ | 24″ | -3/+12° | 180° | 200×100 700×400 |
| PMX700 | 42″ – 100″ | 150 lb | 22″ | 31.3″ | -3/+12° | 180° | 200×100 700×500 |
| PMX800 | 55″ – 120″ | 200 lb | 22″ | 31.3″ | -3/+12° | 180° | 200×100 900×600 |
