LDX640
Full Motion TV Mount
The Kanto LDX640 wall mount ensures a hassle-free installation for TVs weighing up to 100 pounds. Its dual articulating arms extend 17 inches in order to pan and swivel your TV for angled viewing, and sit 2.2 inches from the wall when fully retracted. Up to 18° of tilt is also achievable, helping to reduce glare and improve line-of-sight with your TV. Easy to install, the Kanto LDX640 features an 18-inch wall plate to accommodate both concrete walls and wood studs up to 16 inches apart. This TV hanger for 34-65 inch TVs also comes with plastic cable management clips and clip-on wall plate covers to ensure a clean, professional-grade setup.
Features at a glance
- Easy Installation
- Improved Viewing
- Low-Profile Design
- Clean Setup
Capable of supporting up to 100 lb., the LDX640 can be mounted to any concrete wall or wood studs up to 16” apart.
Heavy-duty articulating arms on this full motion wall mount for 65-inch TVs allow you to swivel your TV 45° in either direction and tilt it -3° to +15° to achieve the best viewing angle.

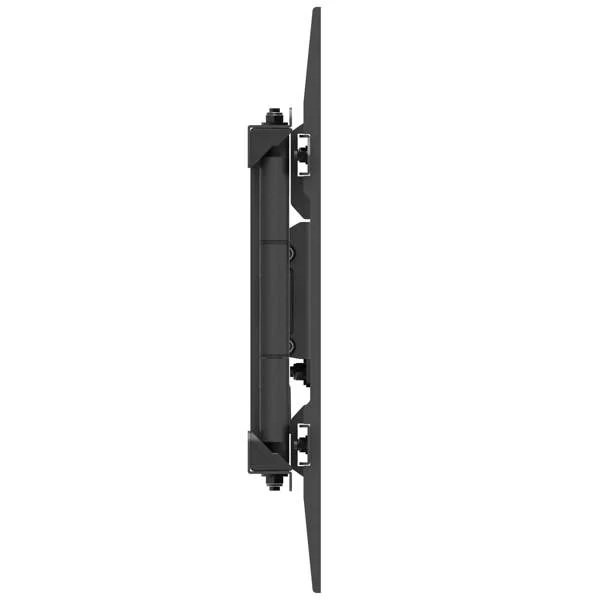

The low-profile design of the Kanto LDX640 full motion wall mount for 65-inch TVs allows your TV to sit 2.2” from the wall when fully retracted.
Cable management clips are provided to conveniently route your cables, while plastic wall plate covers hide any sign of installation.
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto LDX640 Full Motion TV mount.
Visit our support hub for help.
ADDITIONAL QUESTIONS?
Looking for an answer and want to help yourself? Visit our self-serve Knowledge Base for questions that other customers might have already asked. And if your question isn’t already answered, reach out and we will be happy to help.
Visit our Knowledge BaseSpecs
It's in the details
5
Year Warranty
What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installation
+15° to -3°
Tilt
45°
Swing
2.2" to 17”
Extension
Material: Solid steel construction with durable powder coated finish
Adjustable horizontal leveling
Cable management
100×100 to 400×400
Specifications
TV Sizes: 34” to 65”
Weight Allowance: 100 lb (45 kg)
VESA Sizes: 100×100 to 400×400
Profile: 2.2” (5.5 cm)
Measurements
Shipping box weight: 18.3 lb (8.3 kg)
Shipping box dimensions: 19.5’’ x 13’’ x 2.8’’
(49.5 x 33 x 7 cm)
Product weight: 16.9 lb (7.7 kg)
UPC: 800152718736
