PDX680W

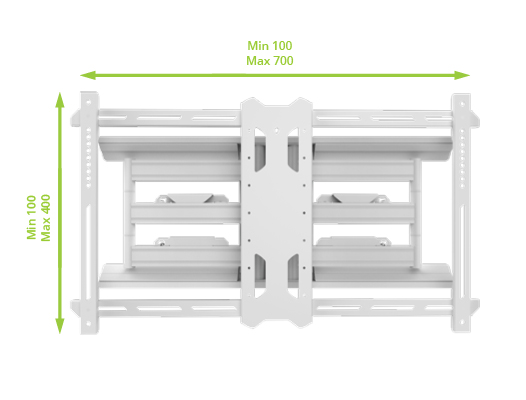

The H Frame mounting bracket accommodates VESA sizes from 100×100 to 700×400. The mounting arms come with plenty of options to raise or lower the TV depending on the VESA pattern on the TV.

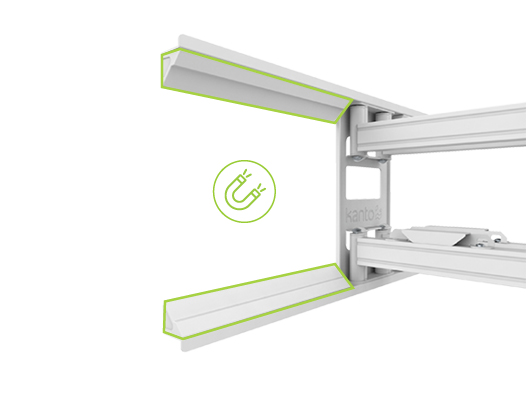

Magnetic covers go over the lag bolts to give the wall plate an elegant look. Remove the covers when you install or remove the wall plate from the wall.

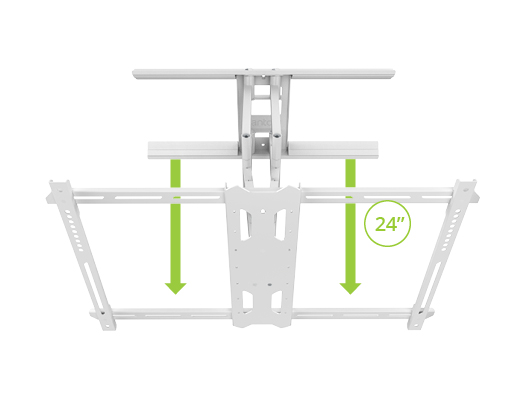

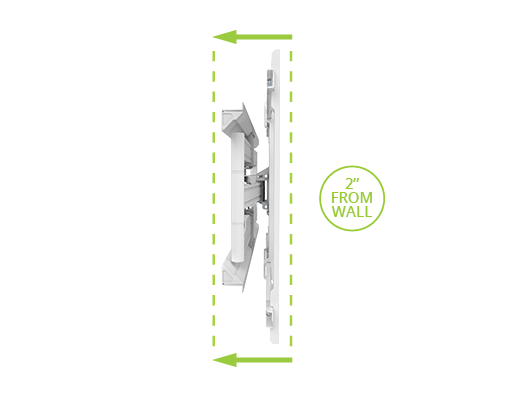

Even with its low-profile design the PDX680W can extend 24” from the wall, giving you plenty of room for tilting and swiveling your TV, or for reaching out from alcoves.

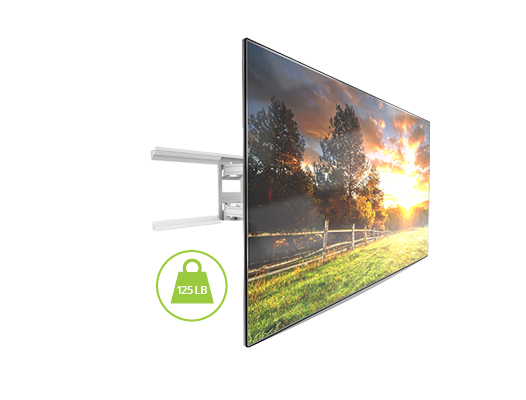

Designed with strength in mind, the PDX680W’s solid steel frame can hold up to 125 lb (57 kg) with no concern, even at full extension.

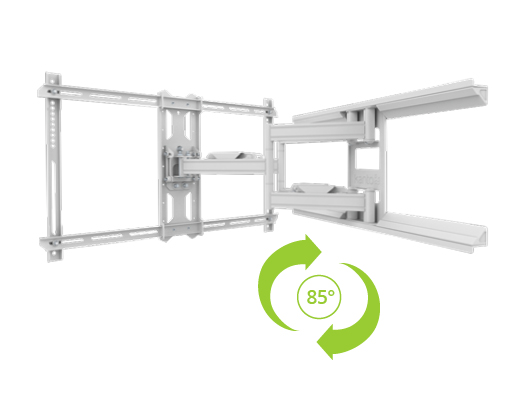

The articulating arms on the PDX680W allow for a maximum of 170 degrees (with a 39″ TV). The larger the TV, the less swivel the PDX680W will have

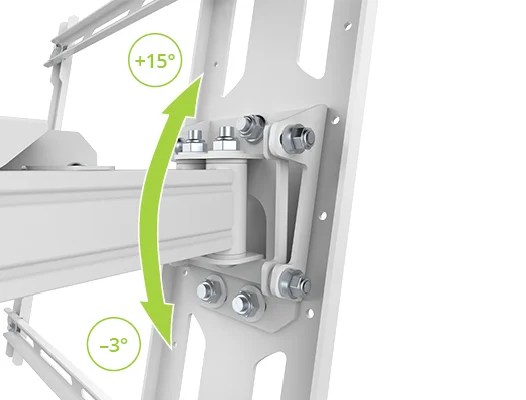

The accessible tilt mechanism makes it easy to angle your TV 15° forward or 3° backward. Once you’ve found the best viewing angle, tighten the nuts to secure your TV in place.

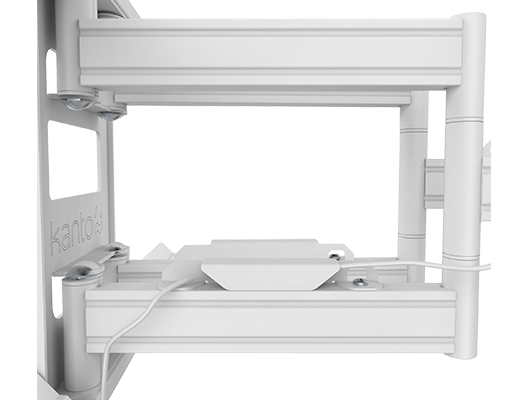

Four cable management raceways are attached to the bottom of the wishbone arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides – whatever works best.

For a more discreet appearance, the white TV wall mount comes with a white cable sleeve to match the surrounding area.
