LOW PROFILE DESIGN
The PDX660 lets you push your TV within 2” of the wall and features an unobtrusive H frame assembly to provide easy access to your TV inputs.
FITS VESA SIZES TO 600 x 400
Accommodates VESA sizes from 200×100 to 600×400.
EXTENDS OVER 21 INCHES
Featuring two wishbone arms for maximum stability, the PDX660 can extend a remarkable 21.7” from the wall, giving you the freedom to pan and swivel your TV to accommodate a variety of viewing positions.
SUPPORTS 125 POUNDS
Constructed out of durable steel, the PDX660 is designed and tested to hold up to 125 pounds.
SWIVELS UP TO 160 DEGREES
Two articulating arms allow you to swivel your TV up to 80° in either direction, depending on the size of your TV.
18 DEGREES OF TILT
With 15° of forward tilt and 3° of backward tilt, the PDX660 helps to reduce glare and ensure proper line-of-sight with your TV.
SLEEK CABLE MANAGEMENT
Four cable management raceways are attached to the top of the wishbone arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides – whatever works best.

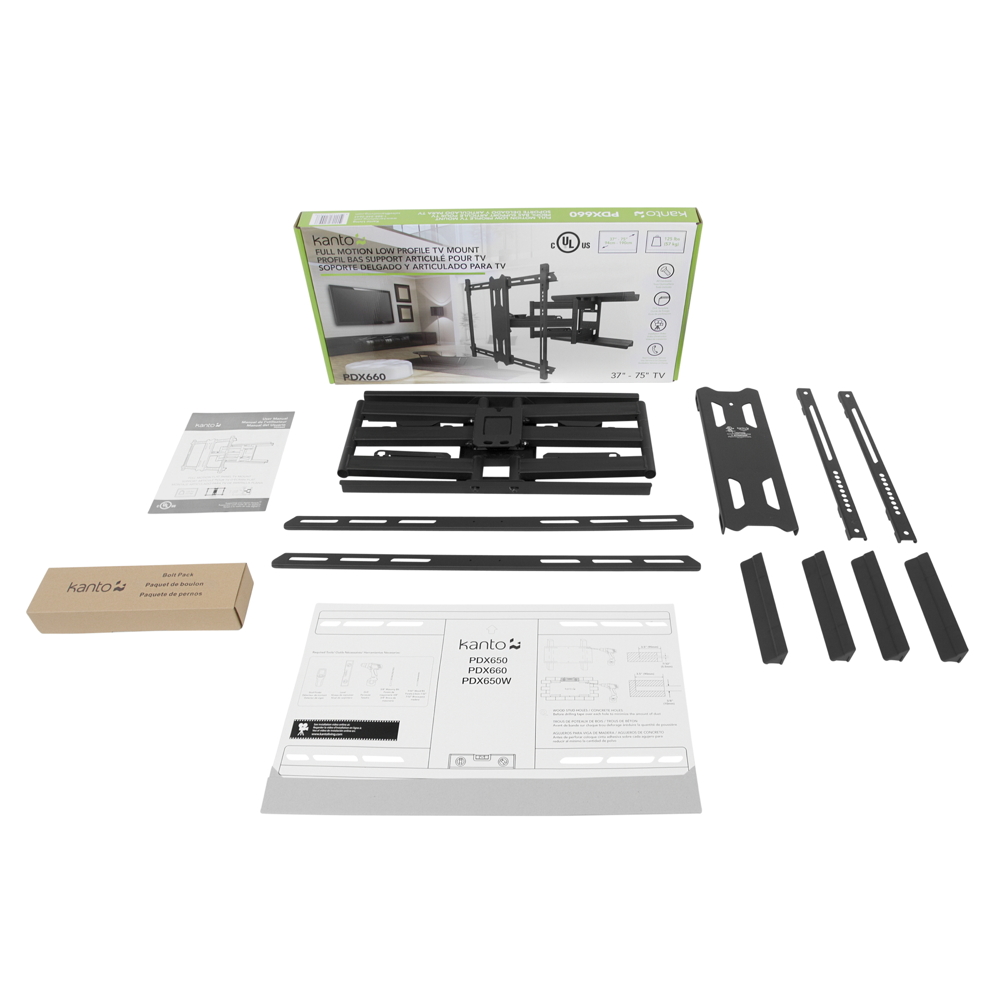

EVERYTHING YOU NEED
Because every installation is unique, the PDX660 is carefully packaged with all the lag bolts, anchors, mounting bolts, washers and spacers that you could need. Phone support and an online installation video are also available to help you along the way.
CONVENIENT BOLT PACK
The PDX660 includes a labeled bolt pack with a variety of bolt diameters and lengths, as well as several spacers to allow a custom fit. Lag bolts and concrete anchors are provided so you can mount to wood studs and concrete walls.
Rotate the 360 degree image below.
TV Sizes: 37” to 75”
Weight Allowance: 125 lbs (57 kg)
VESA Sizes: 200×100 to 600×400
Wall Plate: 22″ (56 cm); Accommodates dual studs with up to 16″ spacing
Tilt: +15° to -3°
Swivel: Up to 160° for maximum viewing angle
Extension: 21.8″ (55.3 cm) from the wall
Profile: Sits 2″ (5 cm) from the wall
Integrated cable management
Adjustable horizontal leveling
Magnetic lag bolt covers
Paper wall template for marking pilot holes
All mounting hardware for wood stud and concrete installation
Warranty: 5 years
Weights and Measurements
Shipping box weight: 24.7 lbs (11.2 kg)
Shipping box dimensions: 29.4” x 15” x 2.8” (74.6 x 38 x 7 cm)
Product weight: 22.5 lbs (10.2 kg)
Make sure to check back here often whenever installing (or reinstalling) your product to make sure that you have the most up to date manual. Changes could include ratings, installation procedures, etc.
VESA stands for Video Electronics Standard Association. At its basic core, VESA is a family of standards for mounting flat panel monitors, televisions and other displays to stands or wall mounts. To find out your VESA pattern size, simply measure the distance between the center of screw holes on the back of your TV on a vertical and horizontal plane. For example, if your screw holes are 200mm apart both vertically and horizontally, your VESA size is 200 x 200.
Yes you can. All of the TV mounts from Kanto come with the appropriate hardware to install your mount into both wooden studs and concrete walls.
