MTMA70
Mobile TV Mount
DISCONTINUED
REPLACEMENT PRODUCT: MTM82PL

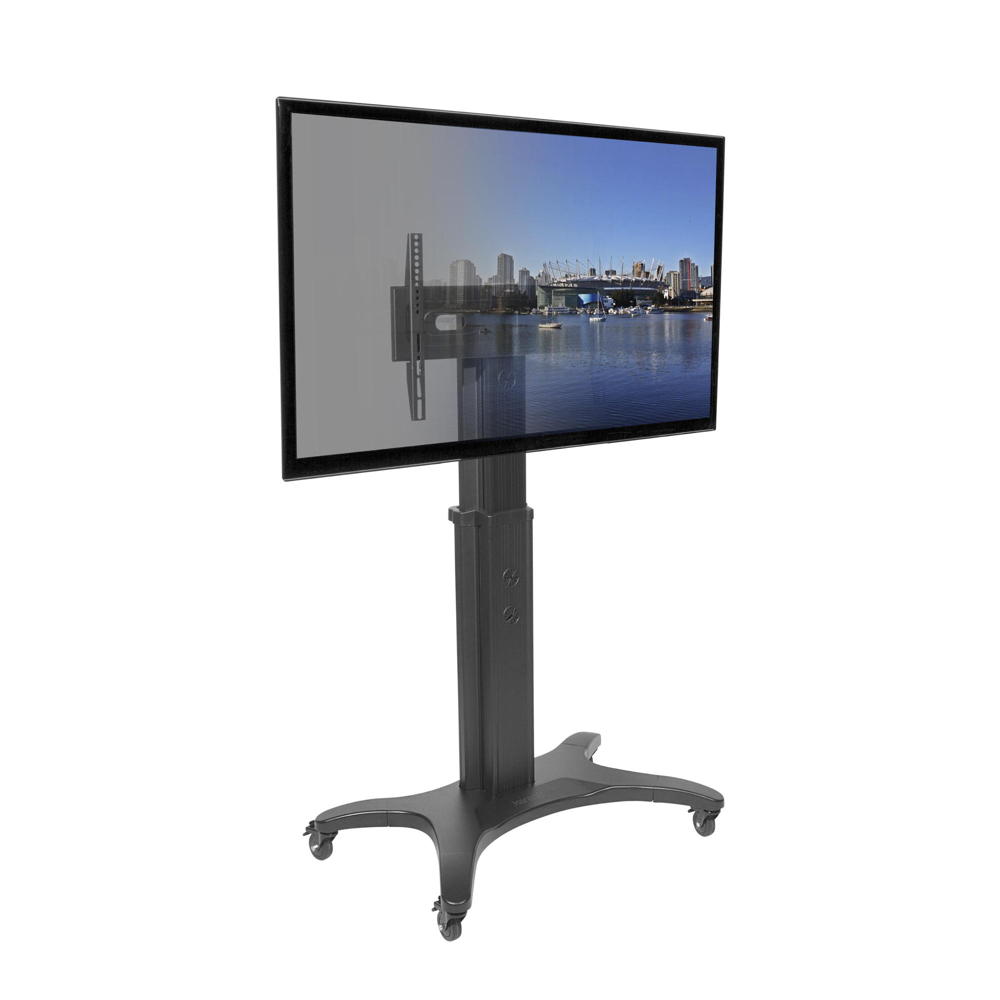

Constructed out of high-grade aluminum, the MTMA series provides a mobile mounting solution that is highly durable and lightweight. Available in various models to accommodate a wide range of screen sizes, each mount is designed to help safely and effortlessly maneuver your flat screen TV. Complementing even the most high-end TVs, their sleek appearance and integrated cable management systems make them perfectly suited for any home, school or office environment. Every MTMA offers simple height adjustment and quick-release wheel locks, and comes packaged in a heavy-duty, compact box to allow for safe and easy transport.
MTMA70. Light, Sleek and Functional, perfect fit for corporate settings, schools, commercial displays, and residential applications.
Features at a glance
- Supports Up to 100 Pounds
- Quick Release Wheel Locks
- Attractive From All Angles
- Fits VESA Sizes to 600×400
- Low Profile Design
- Cable Management System
- Easy Height Adjustment
Built from sturdy aluminum, the MTMA70 can safely hold TVs up to 100 lbs without concern.
The 3” wheels roll smoothly and can be locked into place quickly by stepping on the lock with your toe. Additionally, the locks can be released easily by simply hooking the toe of your shoe under the lock lever and lifting up.
MTMA70 features clean lines, simple cable management, and an attractive black powder coated finish.

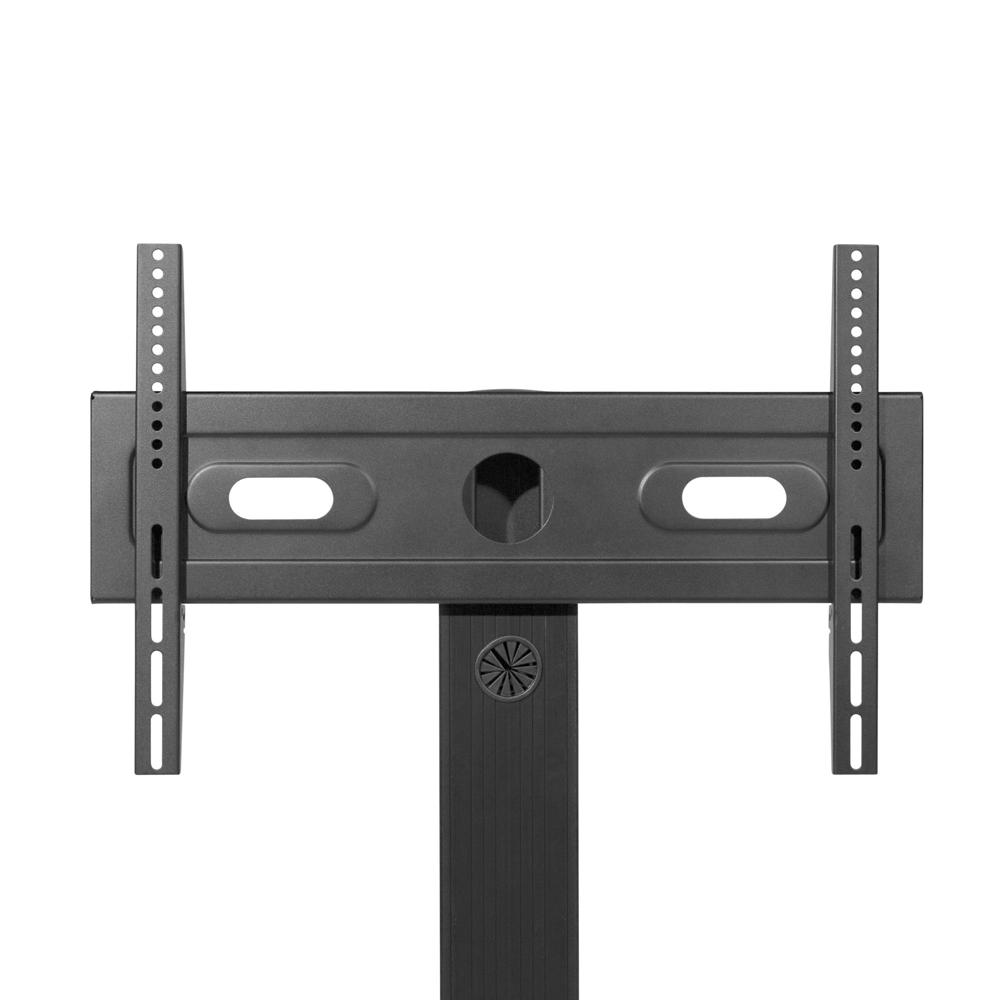

MTMA70 is designed to fit most flat panel TVs from 40” to 70”, with VESA sizes ranging from 100×100 to 600×400.
While extremely stable, MTMA70 incorporates a sleek and low profile design.

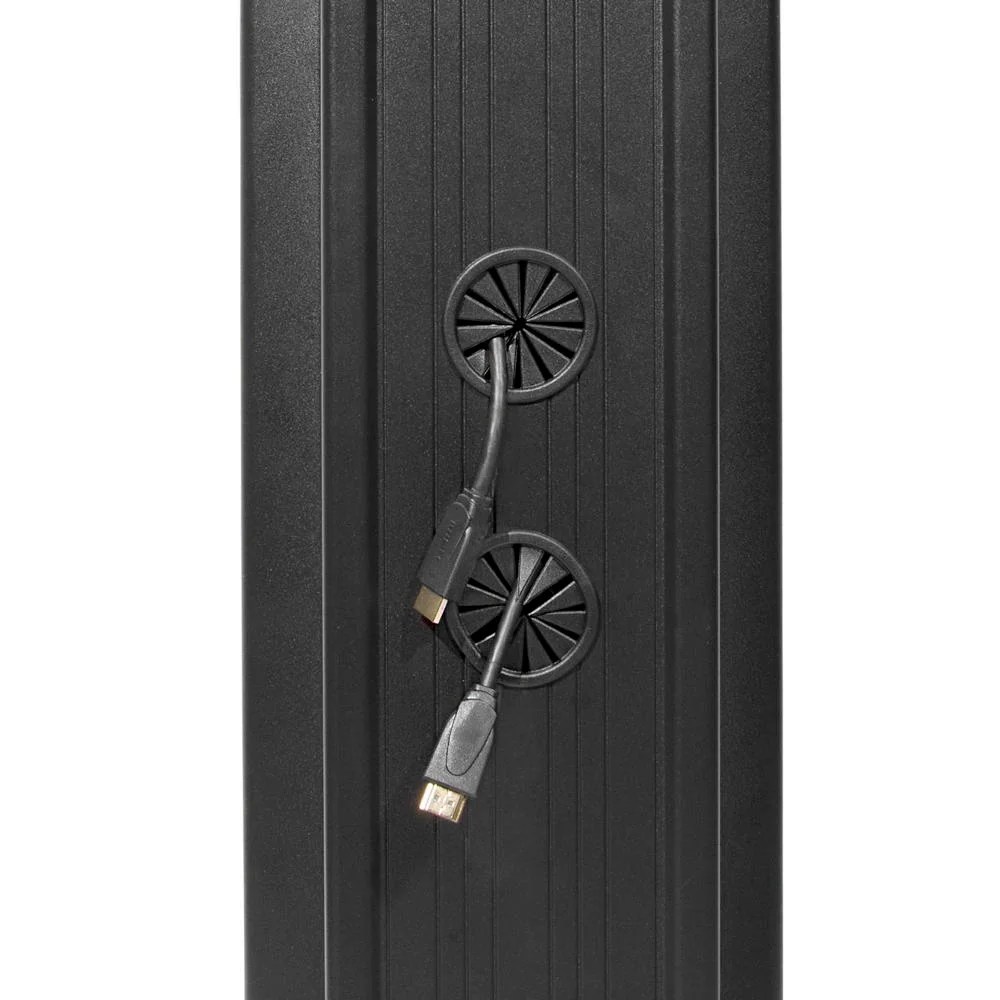

With the hollow tower, MTMA70 allows you to hide the unsightly cables inside the tower. The grommets keep your cables in place so they do not move.
Using the Allen key provided, the MTMA70 adjusts anywhere between 43” (1.1m) to 59” (1.5m) to find the perfect viewing height. This adjustment should be done with the TV removed!
Ultra-easy install

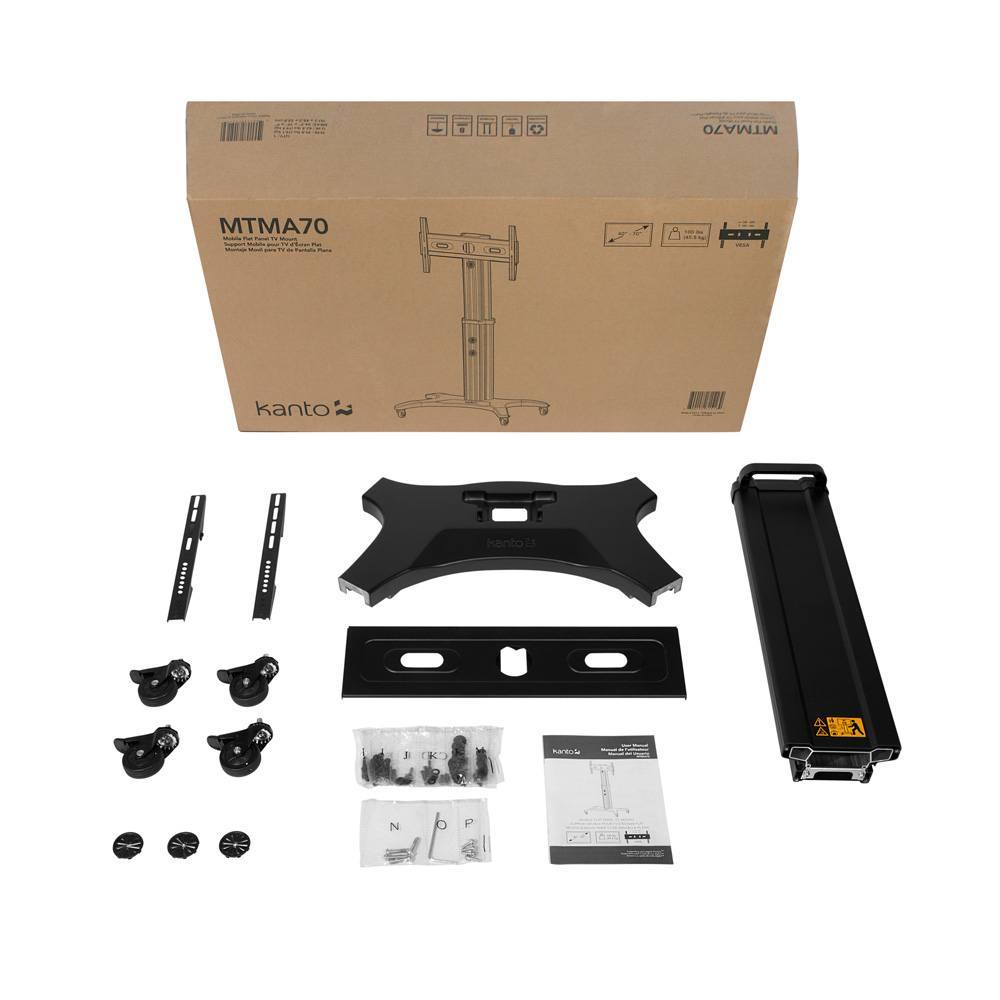

MTMA70 comes packaged with all the mounting bolts, washers and spacers you’ll need to fit virtually any size flat panel TV up to 70”.
Visit our support hub for help.Specs
It's in the details
5
Year Warranty
Contents
Assembly Manual
All TV mounting hardware
Height adjustment: Between 43” (1.1 m) and 59” (1.5 m)
Material: Light weight powder coated aluminum
Cable Management: Integrated cable management system
Wheels: Four wheel locks for safety
100×100 to 600×400
Specifications
TV Sizes: 40” to 70”
Weight Allowance: 100 lbs (45.5 kg)
VESA Sizes: 100×100 to 600×400
Measurements
Shipping box weight: 42.8 lbs. (19.4 kg)
Shipping box dimensions: 34.3” x 19” x 9” (87.2 x 48.3 x 22.9 cm)
Product weight: 39.9 lbs. (18.1 kg)
UPC: 800152715162
