M200
Full Motion TV Mount
The Kanto M200 single-stud TV mount allows you to achieve a wide range of viewing angles without taking up a large amount of wall space. Providing 18.6 inches of extension, its articulating support arm provides easy swivel, pan and tilt adjustments to improve line-of-sight with your TV. The arm can also be pushed back to place your TV 1.8″ from the wall, with the center of the screen sitting 3.9 inches to the left or right of the wall TV mounting plate. Featuring snap-on cable management clips and wall plate covers, this pan and tilt mount provides a clean and low-profile solution to your TV mounting needs.
Features at a glance
- Single Stud Installation
- Improved Viewing
- Low Profile Design
- Clean Appearance
The Kanto M200’s narrow TV mounting plate is designed to fit on a single wood stud while safely supporting up to 60 pounds. Anchors are also provided for brick and concrete installations.

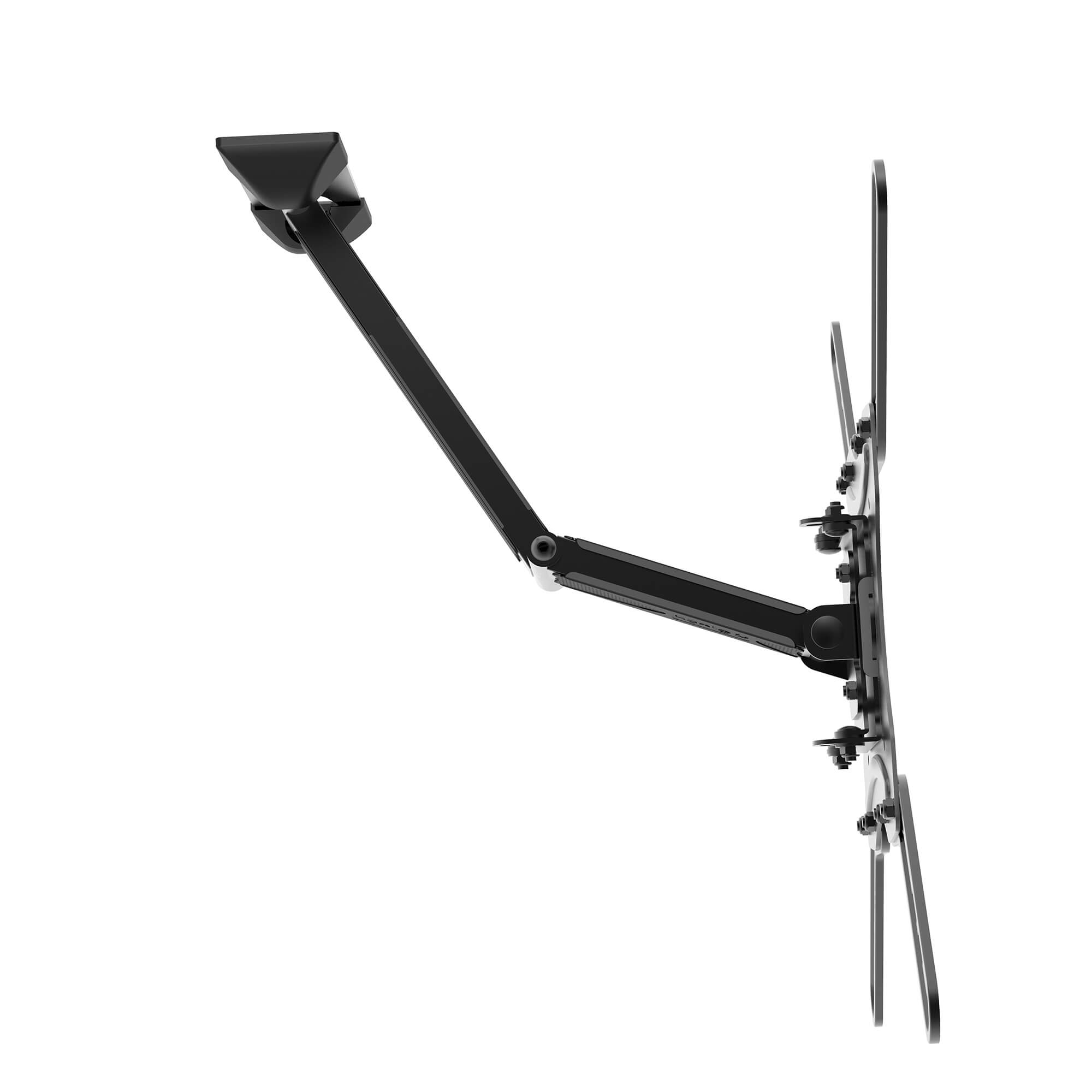

Measuring 18.6″ long, the articulating arm allows for a wide range of viewing angles. Swivel your TV 51° to 90° in either direction, depending on screen size, and tilt it up to 12° forward to improve line-of-sight and 2° backward to reduce glare.

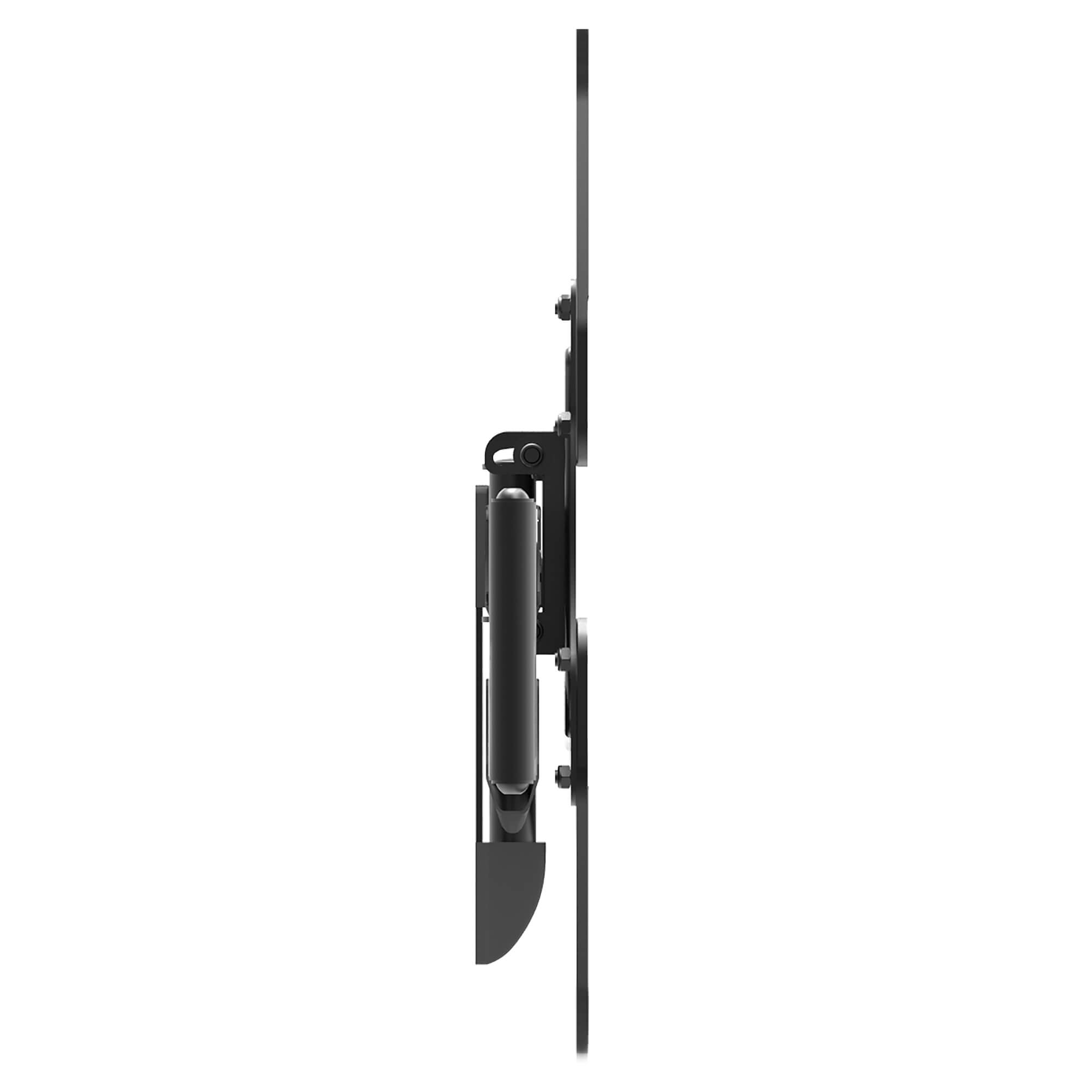

Achieve a remarkably low-profile setup by pushing your TV back to sit 1.8″ from the wall. Note that the center of your TV will be situated 3.9″ to the left or right of the wall TV mounting plate when fully pushed back.

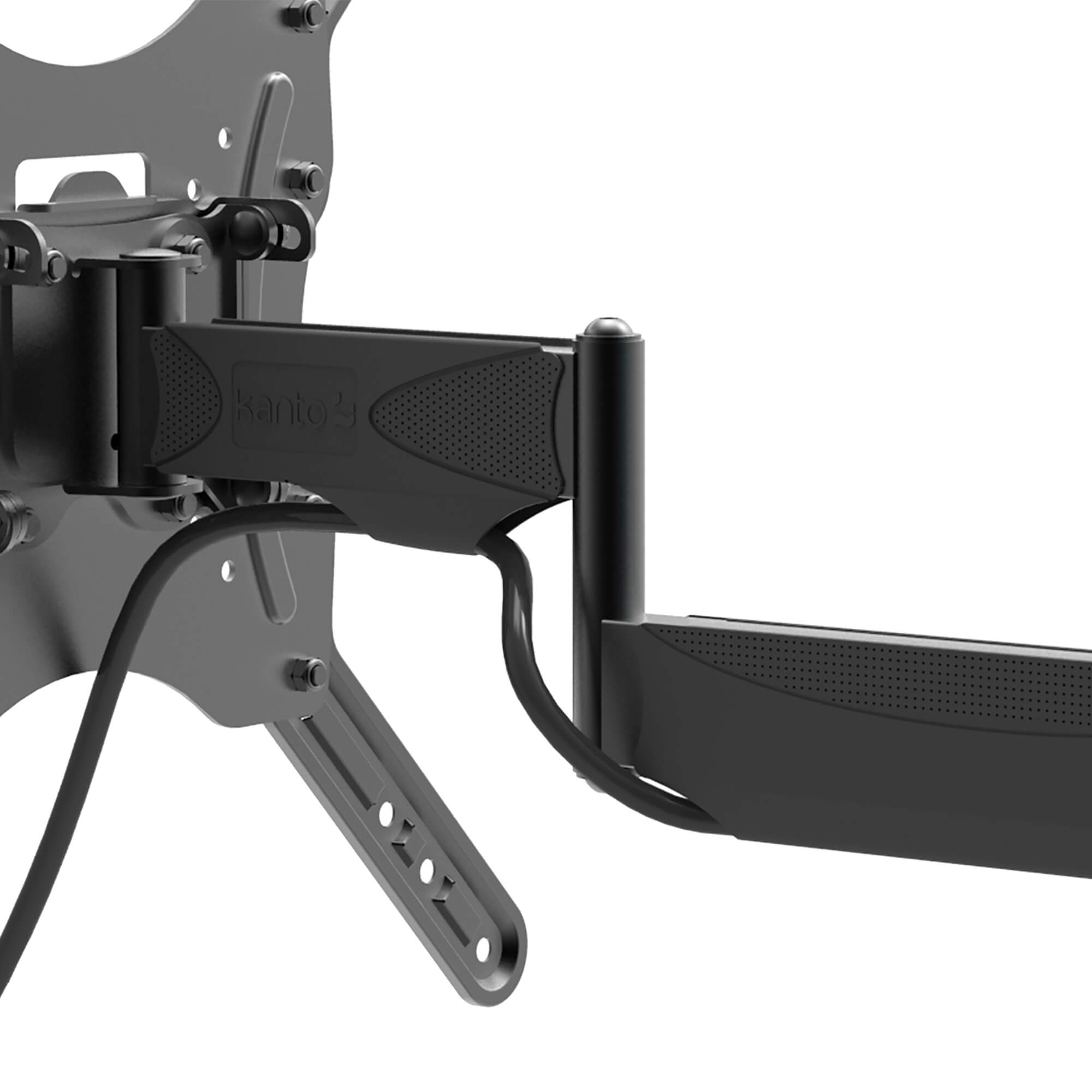

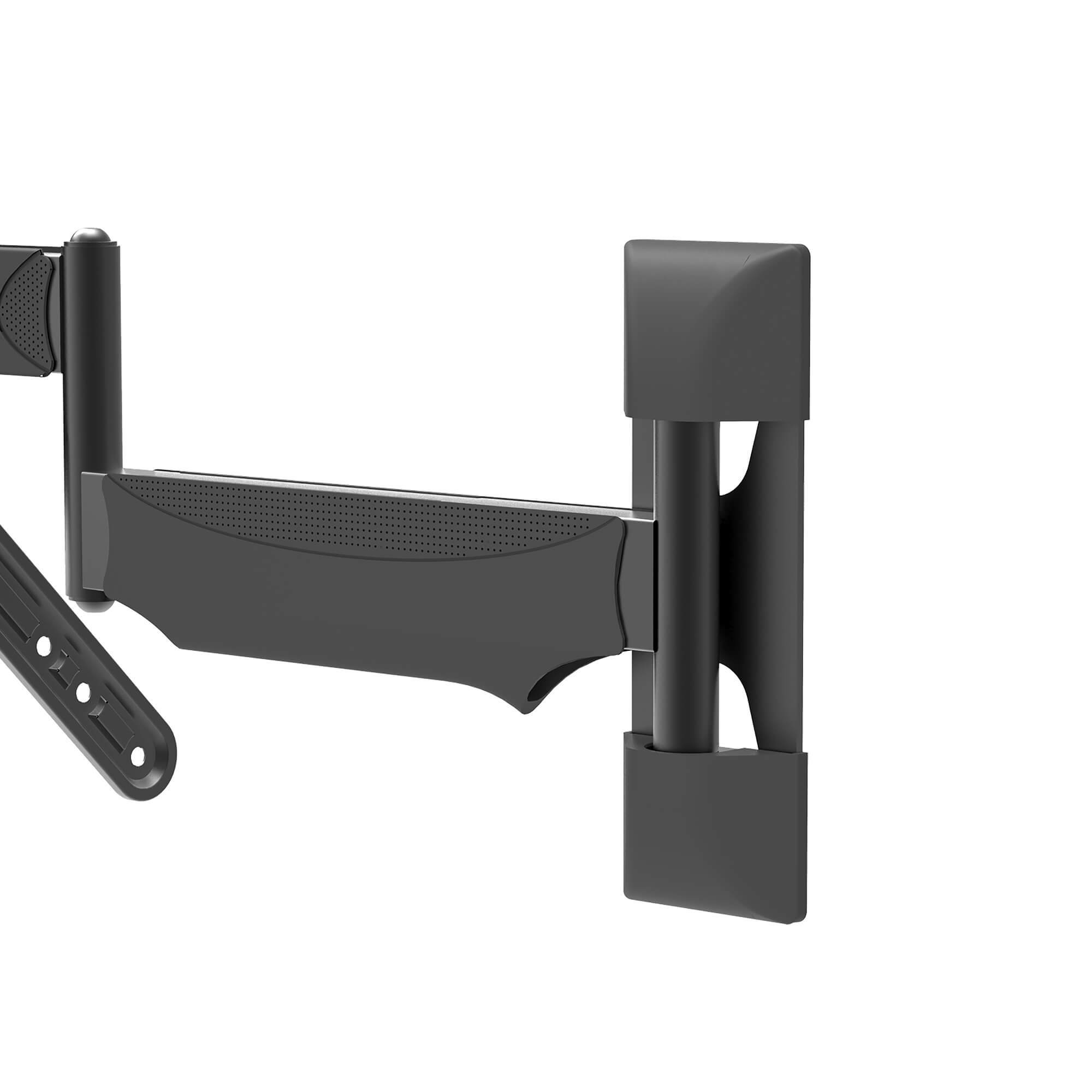

Use the provided cable management clips with the Kanto M200 to conveniently route your cables, ensuring your viewing area remains clutter-free. Plastic wall plate covers are also included to hide any sign of installation.
Specs
It's in the details
5
Year Warranty

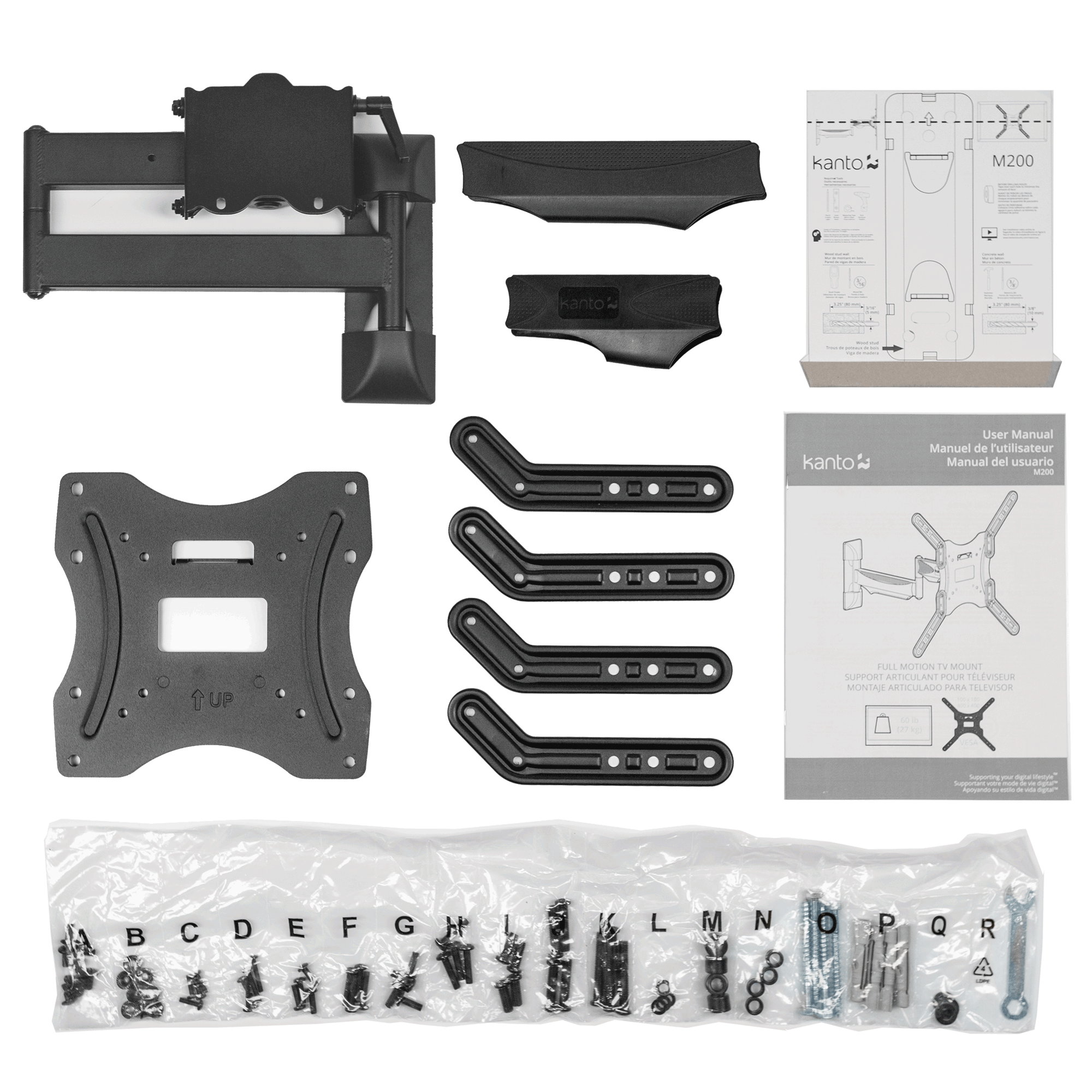

What’s Included
Installation Manual
All mounting hardware for wood stud and concrete installations
+12° to -2°
Tilt
Up to 90°
Swivel (left or right)
18.6”
18.6”
Material: Solid steel construction with durable powder coated finish
Adjustable horizontal leveling
Cable management
100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Specifications
TV Sizes: 26” to 50”
Weight Allowance: 60 lb (27 kg)
VESA Sizes: 100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400
Offset: 3.9″ left or right of wall plate
Profile: 1.8″ (4.5 cm)
Measurements
Shipping box weight: 8.6 lb (3.9 kg)
Shipping box dimensions: 12.8″ x 10.2″ x 2.8″
(32.5 x 25.5 x 7 cm)
Product weight: 6.6 lb (3 kg)
UPC: 800152015613
