MBC211T

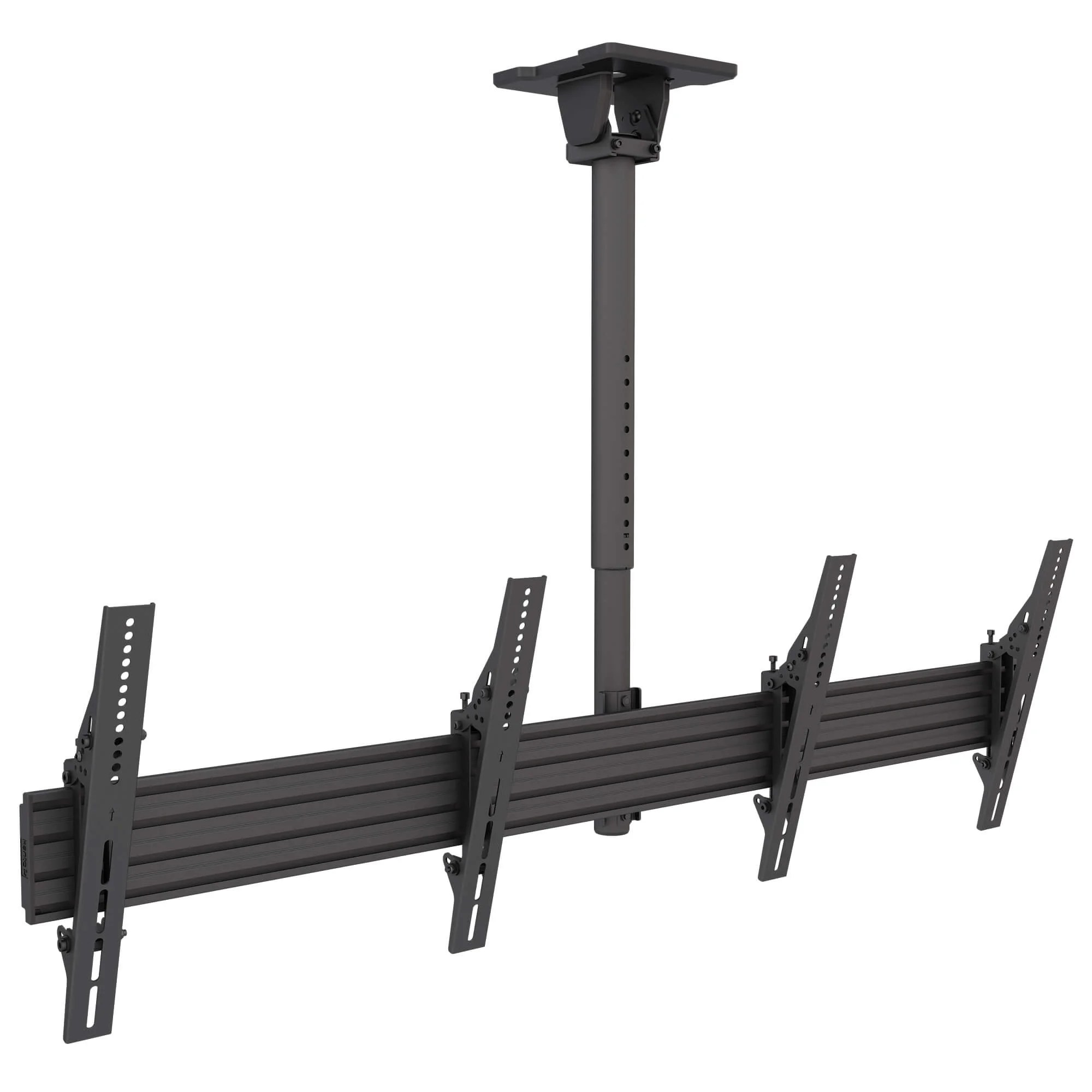

To reduce strain, the MB series uses lightweight ceiling plates that are installed independent of the rest of the mounting system. Simply slide each extension pole into place and secure it to complete the installation. The ceiling plates also provide up to 90° of swing to account for sloped ceilings and support beams, or to secure the mount to a wall.

Each mounting bracket allows for micro height adjustments to be made to ensure your TVs are level and perfectly aligned.

The telescoping extension pole allows you to position the center of the TV mounting plate between 24.3” and 39.3” from the ceiling. For tighter spaces, remove the inner pole to achieve a distance of 12.7″ to 17″.

Tilt the mounting brackets 5°, 10° or 15° forward to improve line-of-sight while maintaining alignment between your screens. To compensate for potential lean, the brackets can also be angled up to 6° backward.

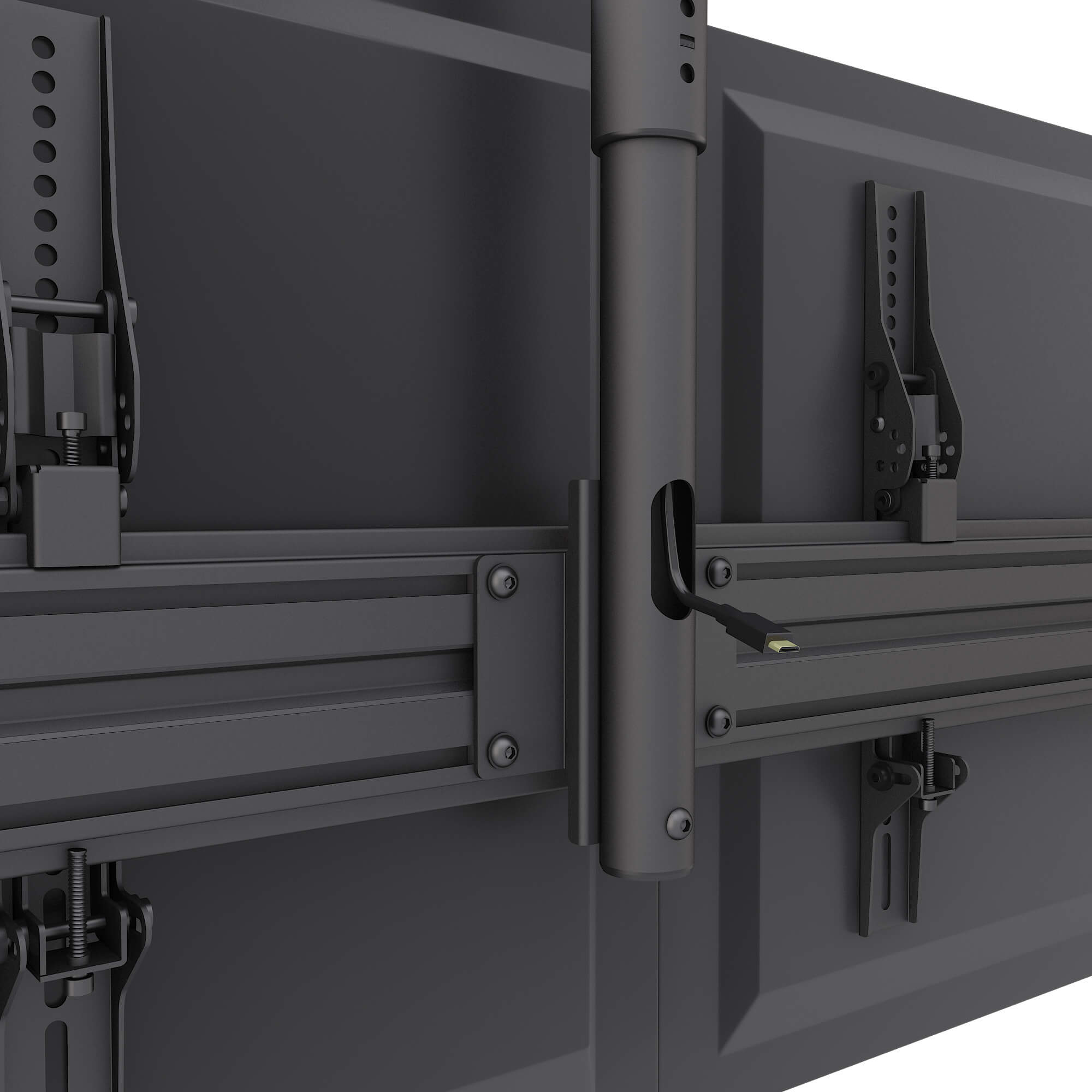

The extension pole’s hollow core provides an unobstructed path to route your cables, while an opening in the mounting plate allows them to continue through the ceiling for a truly professional setup.

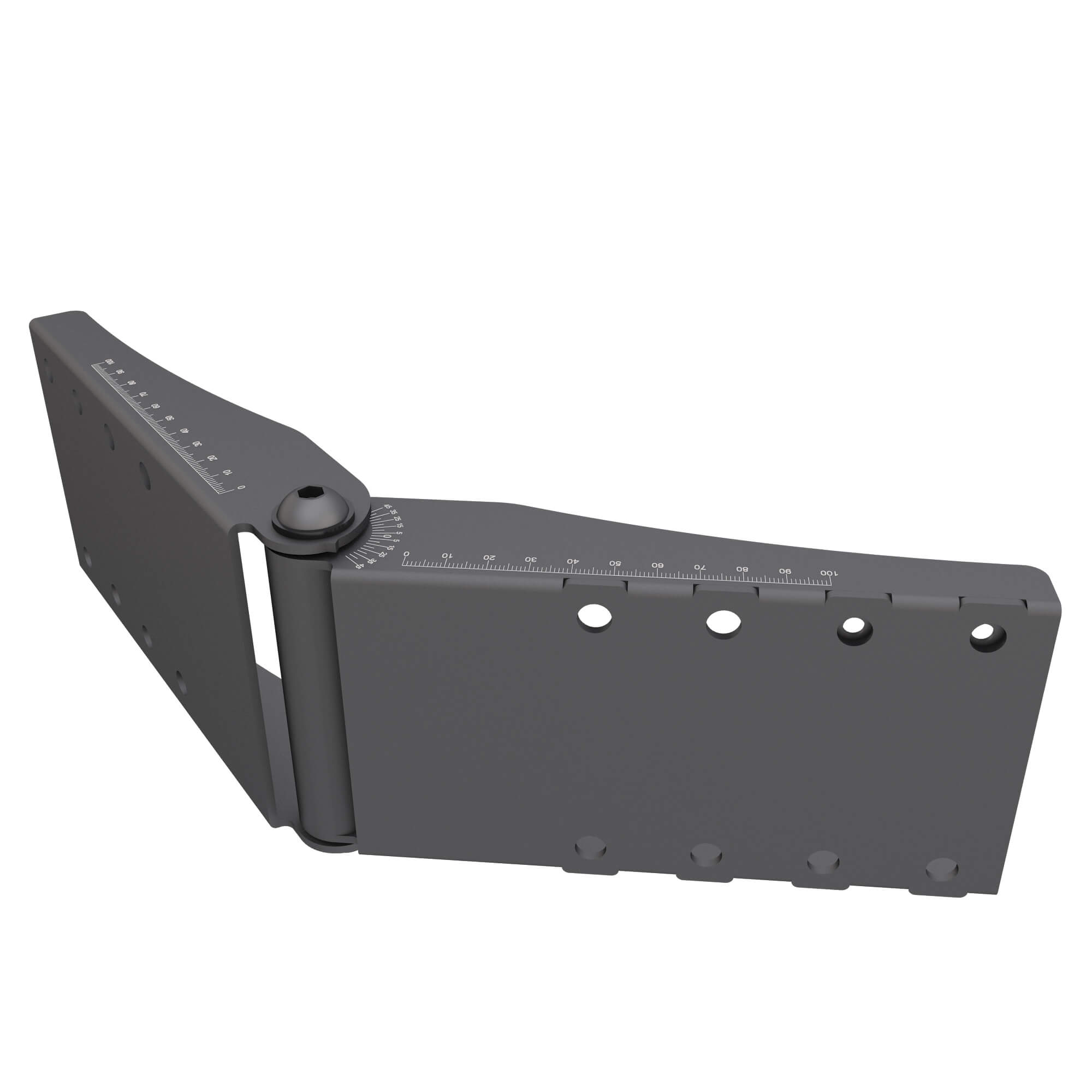

Providing up to a 45° angle, this simple adaptor can be used with any MB Series mount to accommodate corner installations. Use the provided hardware to connect two extrusions together and adjust the tension screw to lock them at the preferred angle.

(Sold Separately)

Available in 28, 48 or 68 cm lengths, these supplemental extrusions can be used to accommodate various display sizes and VESA patterns. The MB Series’ modular system makes it easy to add additional extrusions, or to swap between larger and smaller ones to ensure a perfect fit. Additional connectors are also available when adding extrusions. (Sold Separately)
